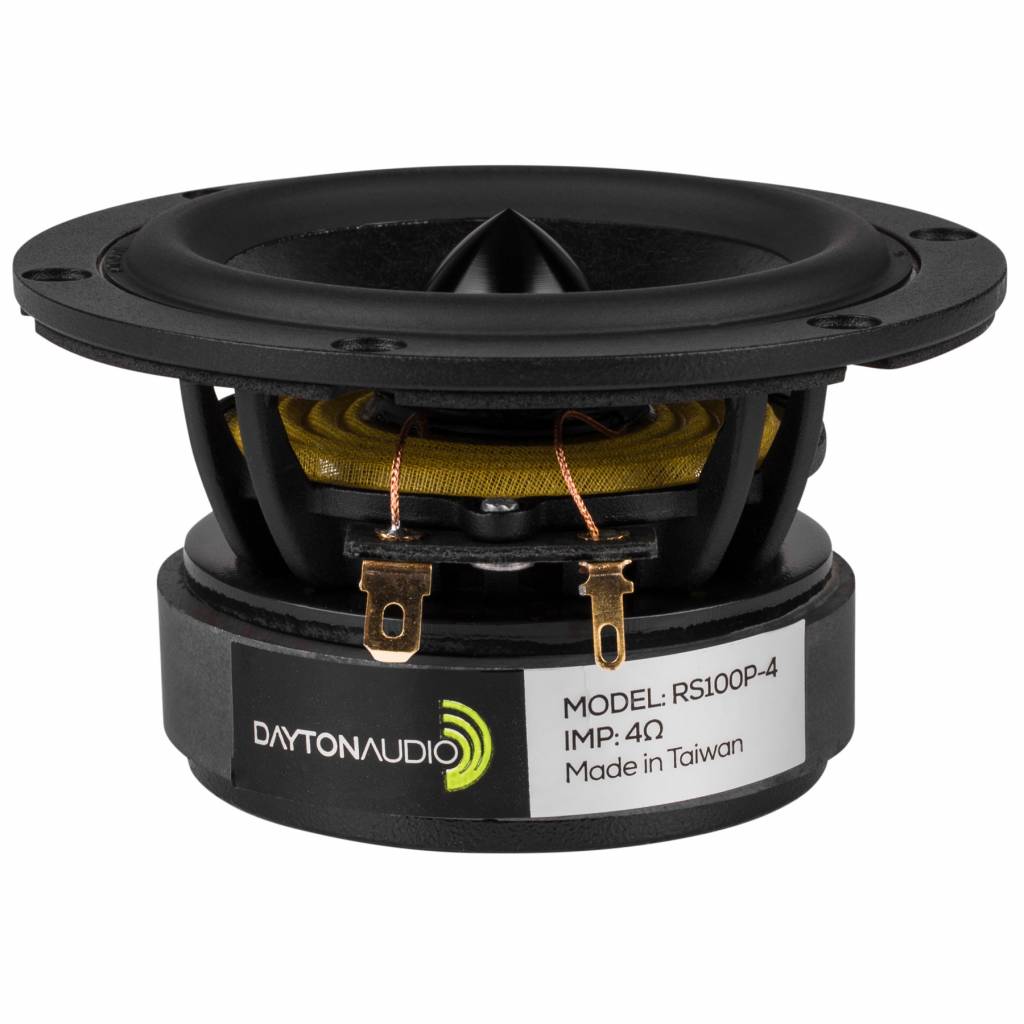

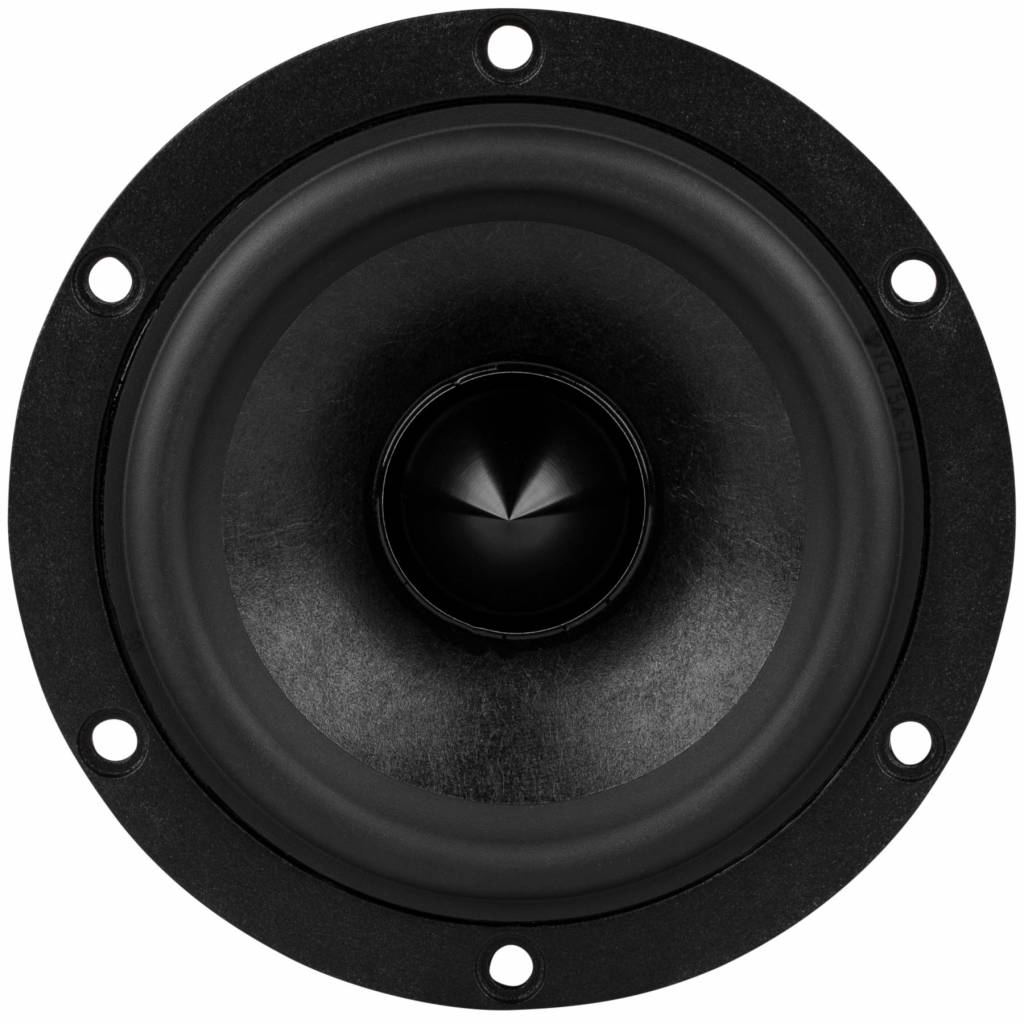

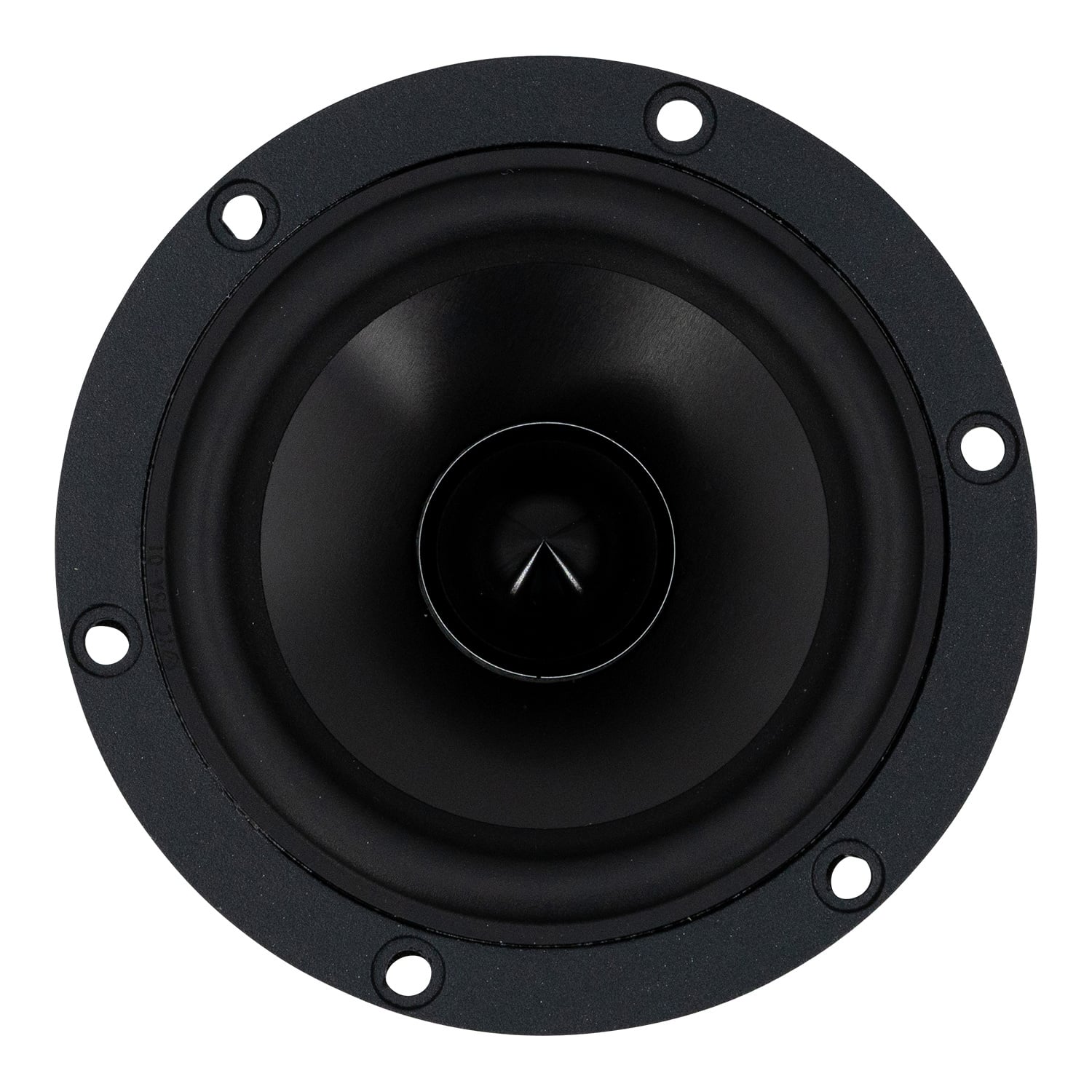

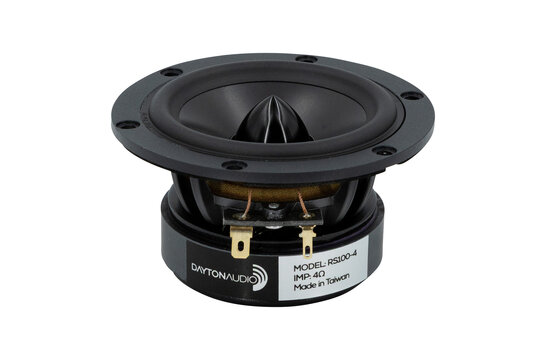

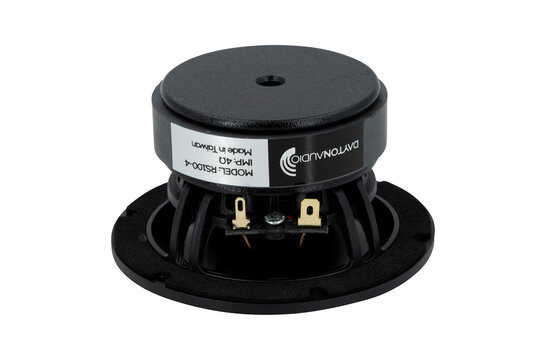

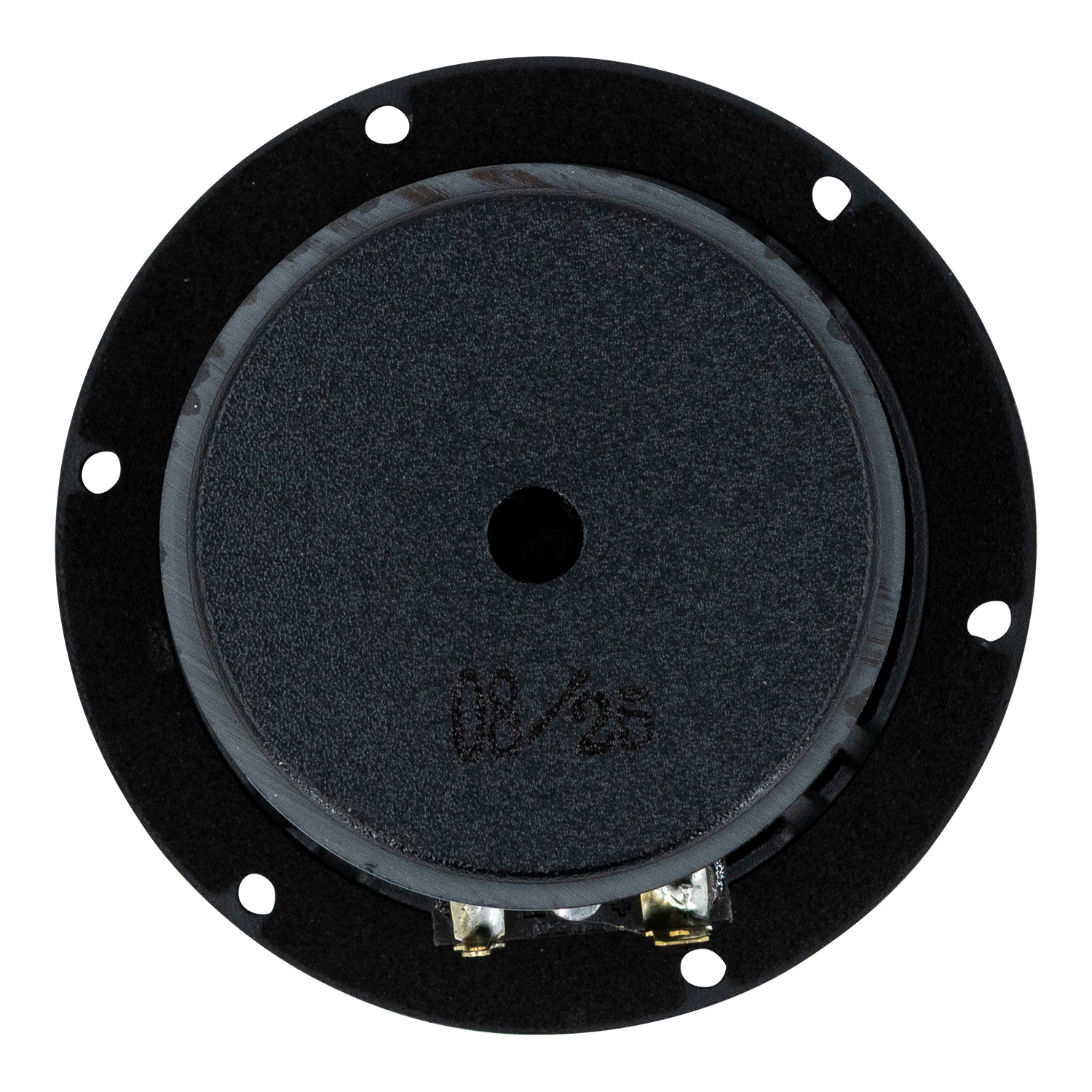

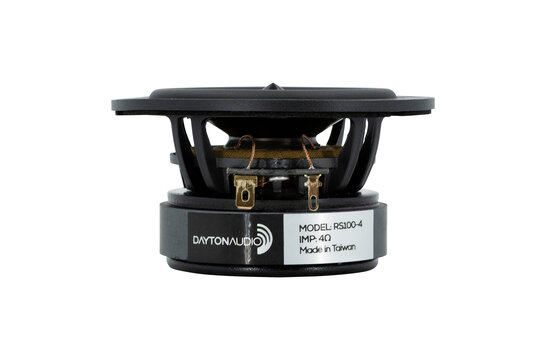

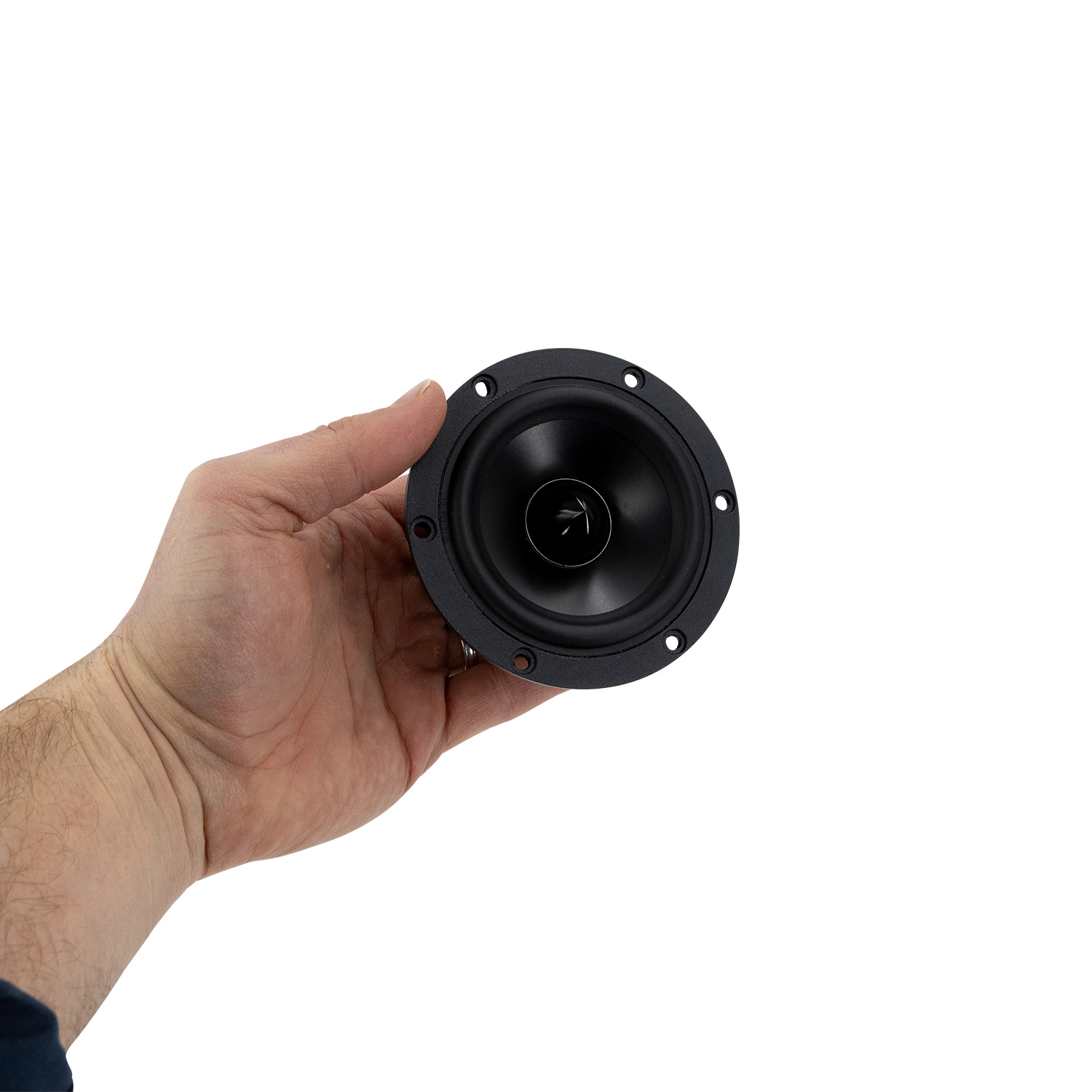

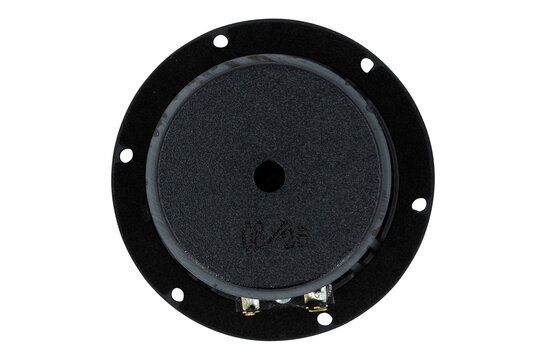

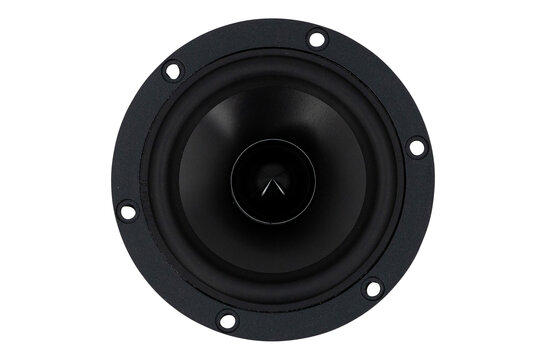

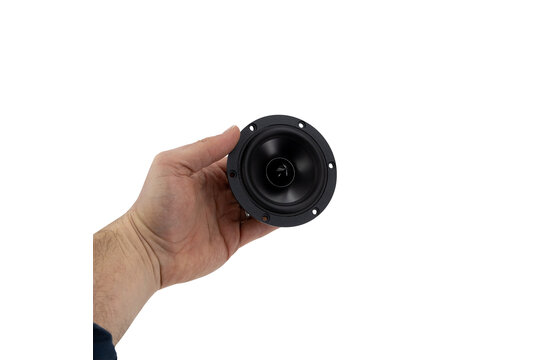

      Dayton Audio RS100P-4 4" Reference Paper Woofer 4 Ohm

      € 41,28€ 49,95 >10 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €47,45 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.



      Highlights

      • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
      • Similar cosmetics and design features as original aluminum Dayton Audio Reference Series
      • Perfect for use a woofer, midwoofer, or dedicated midrange driver



      Product details

      Dayton Audio RS100P-4 4" Reference Paper Woofer 4 Ohm



      The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

      Specifications

      Article number
      RS100P-4
      Woofer Series
      Reference Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      4"
      Power Handling (RMS)
      30 watts
      Power Handling (max)
      45 watts
      Impedance (Z)
      4 ohms
      Sensitivity
      88.5 dB @ 2.83V/1m
      Frequency Response
      85 - 13,500 Hz
      Voice Coil Diameter
      25 mm
      DC Resistance (Re)
      3 ohms
      Voice Coil Inductance (Le)
      0.26 mH @ 1 kHz
      Resonant Frequency (Fs)
      84.8 Hz
      Mechanical Q (Qms)
      2.67
      Electromagnetic Q (Qes)
      0.67
      Total Q (Qts)
      0.54
      Diaphragm Mass Inc. Airload (Mms)
      3.7g
      Mechanical Compliance of Suspension (Cms)
      0.95 mm/N
      Surface Area of Cone (Sd)
      36.3 cm²
      Volume of Displacement (Vd)
      15.0 cm³
      BL Product (BL)
      2.95 Tm
      Compliance Equivalent Volume (Vas)
      1.86 liters
      Maximum Linear Excursion (Xmax)
      4.0 mm
      Cone / Diaphragm Material
      Paper / Kevlar Cone
      Surround Material
      Rubber
      Basket / Frame Material
      Cast Aluminum
      Magnet Material
      Ferrite
      Overall Outside Diameter
      98 mm
      Overall Depth
      51 mm
      Baffle Cutout Diameter
      77.2 mm
      Bolt Circle Diameter
      89.92 mm
      # Mounting Holes
      6
      Sealed Volume
      0.05 ft.³
      Sealed F3
      124 Hz
      Vented Volume
      0.12 ft.³
      Vented F3
      60 Hz
