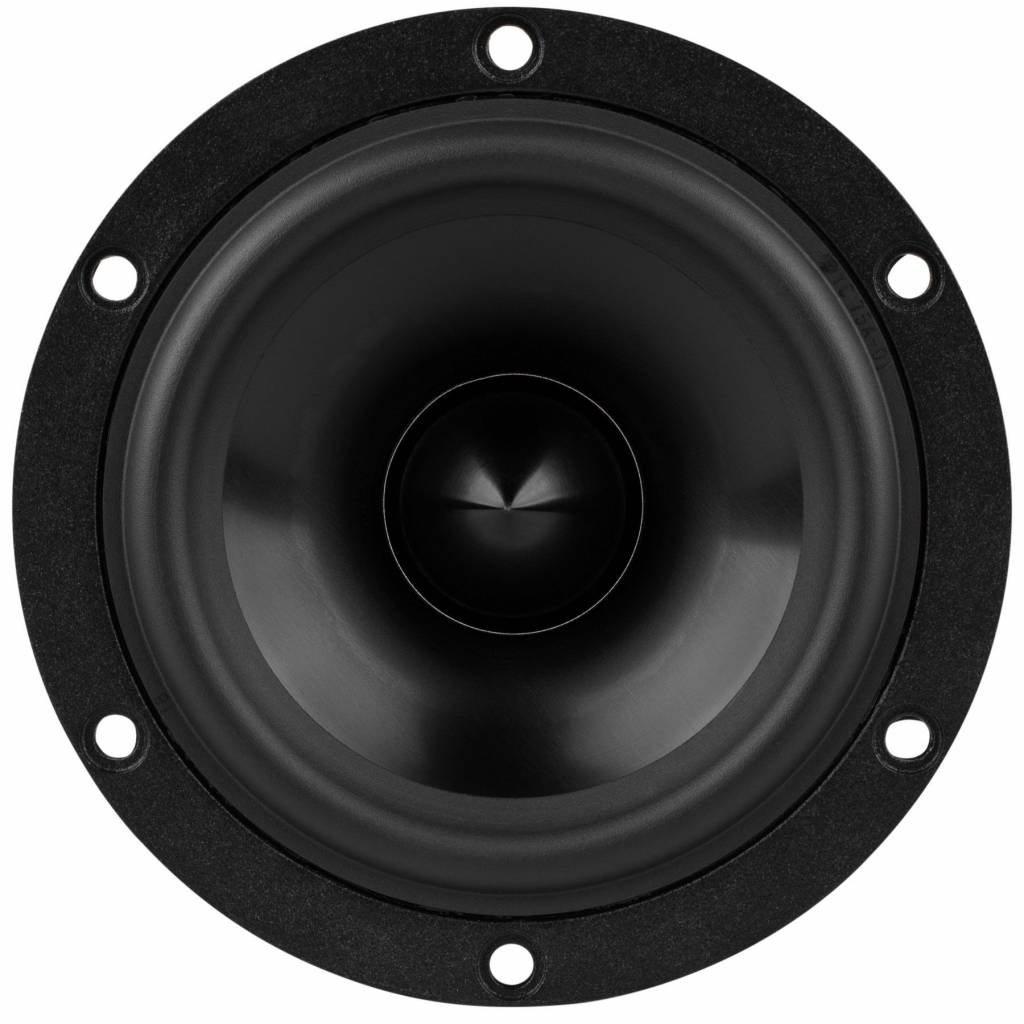

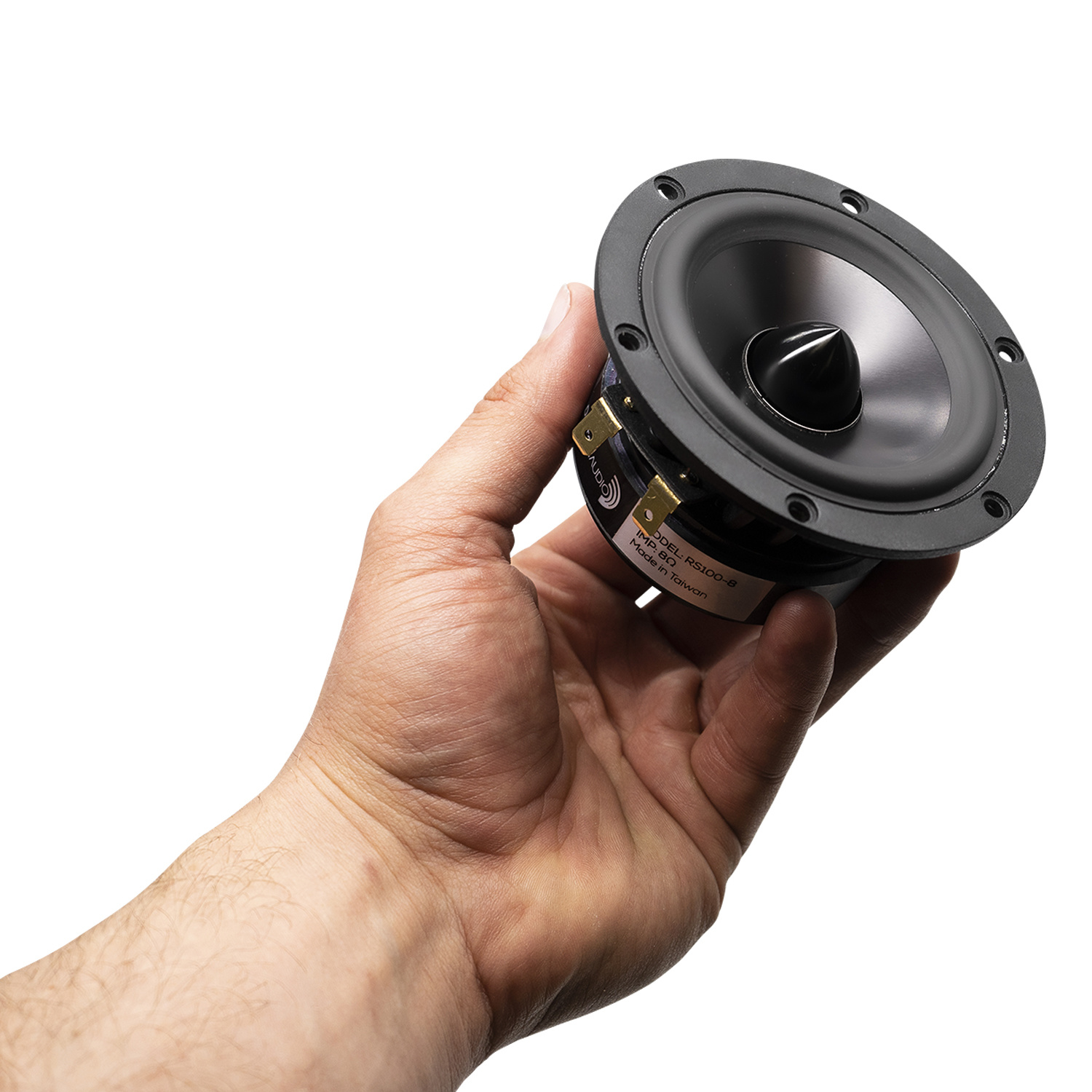

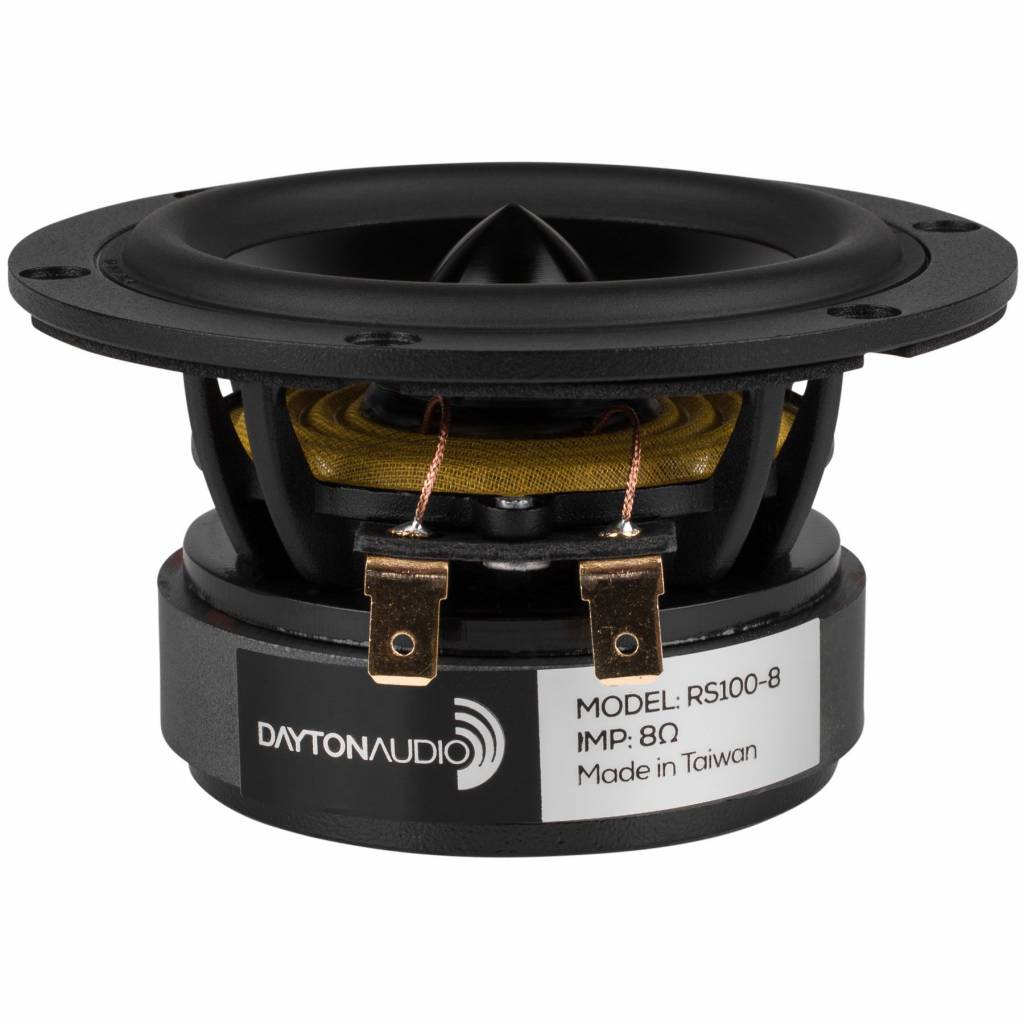

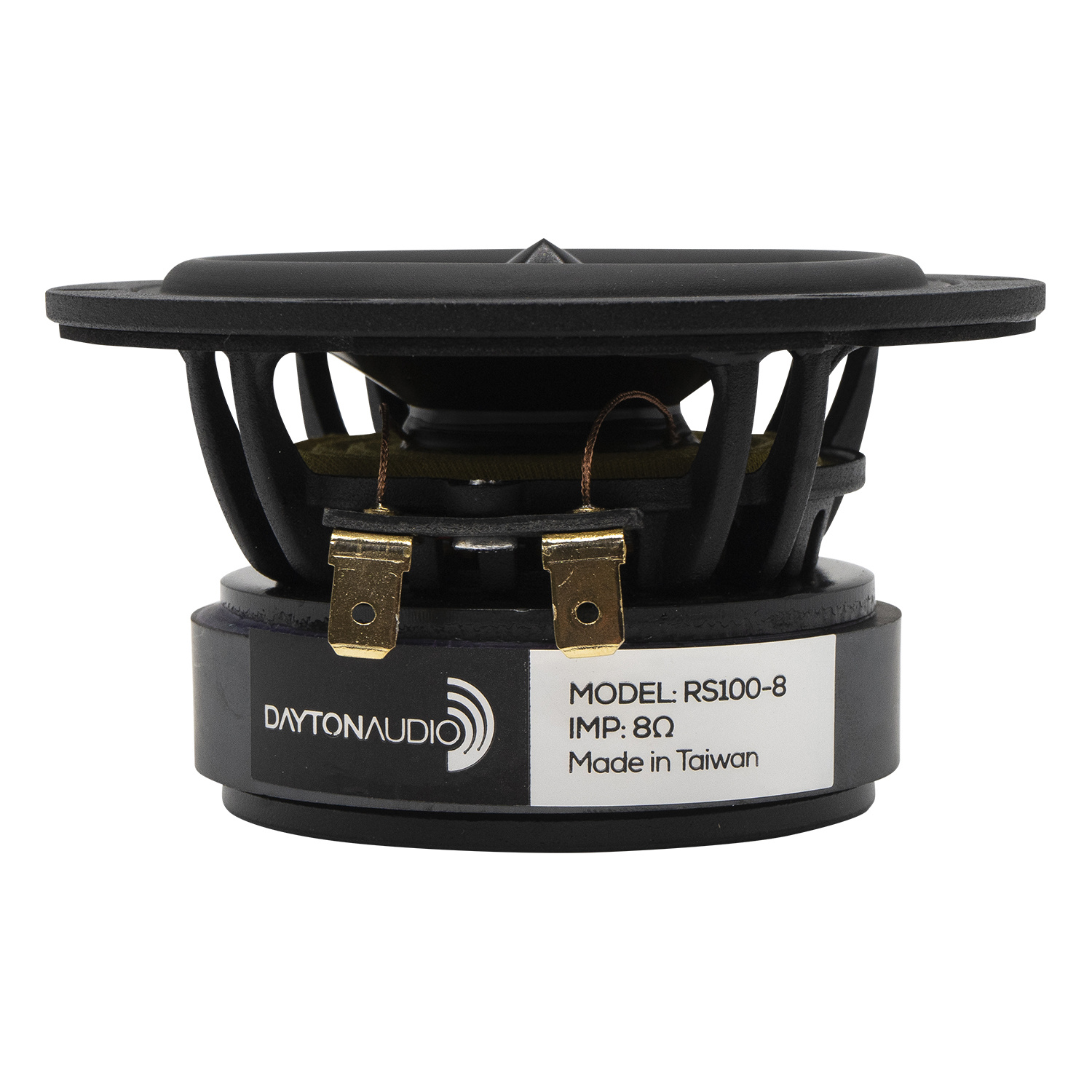

Dayton Audio RS100-8 4" Reference Full-Range Driver 8 Ohm

13 reviews

Brand: Dayton Audio

Show all Full-range woofer

Compare

4" | 8 Ω

RS100-8 4" Reference Full-Range Driver 8 Ohm

€ 40,45€ 48,95 10+ In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Dayton Audio Reference Series RS100-8 4" midbass speakers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

Highlights

One of the lowest distortion, highest resolution driver series available
Low-distortion high-excursion motor system with two short-circuit paths
Compliant suspension and rigid black anodized aluminum cone for strong bass performance
Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug
Designed and engineered in the USA

Product details

Dayton Audio RS100-8 4" Reference Full-Range Driver

The Dayton Audio Reference Series was conceived with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS100-8 4" midbass speakers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

Specifications

Article number: RS100-8
Woofer Series: Reference Series
Woofer Type: Full-Range
Nominal Diameter: 4"
Power Handling (RMS): 30 watts
Power Handling (max): 60 watts
Impedance (Z): 8 ohms
Sensitivity: 84.6 dB @ 2.83V/1m
Frequency Response: 90 - 20,000 Hz
Voice Coil Diameter: 25 mm
DC Resistance (Re): 6.4 ohms
Voice Coil Inductance (Le): 0.5 mH @ 1 kHz
Resonant Frequency (Fs): 92.2 Hz
Mechanical Q (Qms): 2.37
Electromagnetic Q (Qes): 0.76
Total Q (Qts): 0.58
Diaphragm Mass Inc. Airload (Mms): 3.63g
Mechanical Compliance of Suspension (Cms): 0.82 mm/N
Surface Area of Cone (Sd): 35.3 cm²
Volume of Displacement (Vd): 12.4 cm³
BL Product (BL): 4.2 Tm
Compliance Equivalent Volume (Vas): 1.43 liters
Maximum Linear Excursion (Xmax): 3.5 mm
Cone / Diaphragm Material: Black Anodized Aluminum Cone
Surround Material: Rubber
Voice Coil Wire Material: Copper
Voice Coil Former: Aluminum
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite
Overall Outside Diameter: 98 mm
Overall Depth: 51 mm
Baffle Cutout Diameter: 77.2 mm
# Mounting Holes: 6
Sealed Volume: 0.06 ft.³
Sealed F3: 136 Hz
Vented Volume: 0.17 ft.³
Vented F3: 67 Hz

Data sheet

Reviews

13 reviews

5 from 5Based on 13 reviews

Review this product

5 of 5

Great very nice for the price perfect sound

By yam c. on 3 April 2021

5 of 5

Very good sound for a small and cheap driver :) 40-50W feels like the best range

By Mathias Rönnholm on 9 February 2021

5 of 5

Swapped noname speakers with 4 of those in a DIY boombox. Combined with a decend subwoofer they are mindblowing!

By Manuel B. on 19 January 2021

5 of 5

Absolutely amazing driver. If you are using them as a midrange as I am in a DIY 3 way these are absolutely of the charts in quality. As long as you build the correct size enclosure and match driver sensitivity as required these are infallible in my opinion. As a full range I couldn't say, but it's a small driver, you don't really want to ask it to do everything without some serious attention to cabinet design. I think these could work great in a back loaded horn though. Using my pair crossed @ 500Hz - 4000Hz.

By Jason Cross on 11 January 2021

5 of 5

No description was given

By Peter N. on 24 September 2020

4 of 5

Great 4" fullrange drivers. With a well calibrated box enclosure you can draw quite a punch from this little guys! Just don't expect that sharp treble on all way round kinds of music, it's just not there. Build quality is fantastic though. Still a bit pricey for what they offer! I've found similar drivers online for less than 30eur. Cheers, Pedro.

By Pedro S. on 22 September 2020

5 of 5

Ottimi altoparlanti Full Range, con la corretta camera di risonanza possono dare grandi soddisfazioni!!

By Alessandro L. on 30 December 2019

5 of 5

No description was given

By Petr C. on 14 July 2019

3 of 5

The sound produced by these speakers is of a very high quality, however, you have to drive them hard to get them to work well. I was driving them via a Brennan B2. On my normal mordaunt short 902i's I get great sound at about 30 on the volume knob, these I had to drive at 55 to get anywhere near the same level. They will do as speakers for the garden as background but not for full time listening.

By Martin H. on 8 May 2019

5 of 5

Great product for low price

By Jordan C. on 3 April 2019

5 of 5

The product i bought was two of the Dayton Audio RS100-8 4" Reference Full-Range Driver and the quality and sound was great! I will give 5 stars duo to the perfect support i was given via the chat to choose the right product that would suit my needs, then I am not so familiar with speakers. I was also pleasantly surprised how fast the freight was and the shipping cost when i dont live in the same country as the parcel was sent from. The packaging was perfect! I think the website design was also very good for me, easy to find the products for someone who buys there for the first time. Best regards Andreas - Sweden

By andreas hjortmark on 25 March 2019

5 of 5

from the reviews I have seen I will be pleased will be pleased with them I have not yet had time to fit them as I have been busy doing other things at home

By marvin p. on 21 March 2019

5 of 5

No description was given

By Sebastian S. on 7 June 2018
