        PT2C-8 Planar Tweeter

        PT2C-8 Planar Tweeter

        €89,95

        Dayton Audio PT2C-8 Planar Tweeter

        4 reviews
        5 from 5
        4 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 74,34€ 89,95 Out of stock
        • -5% Purchase 4 for only € 85,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The immediacy and lack of coloration found in planar-type tweeters offers users extremely detailed, effortless high frequency reproduction. The Dayton Audio PT2C-8's physical shape and wide horizontal/narrow vertical dispersion also make it an obvious choice for line arrays.



        Highlights

        • Superb resolution and detail for the most discerning audiophile
        • Wide horizontal and narrow vertical dispersion patterns
        • Perfect for use in line arrays
        • 3 kHz recommended crossover frequency at 12 dB per octave



        Product details

        Dayton Audio PT2C-8 Planar Tweeter

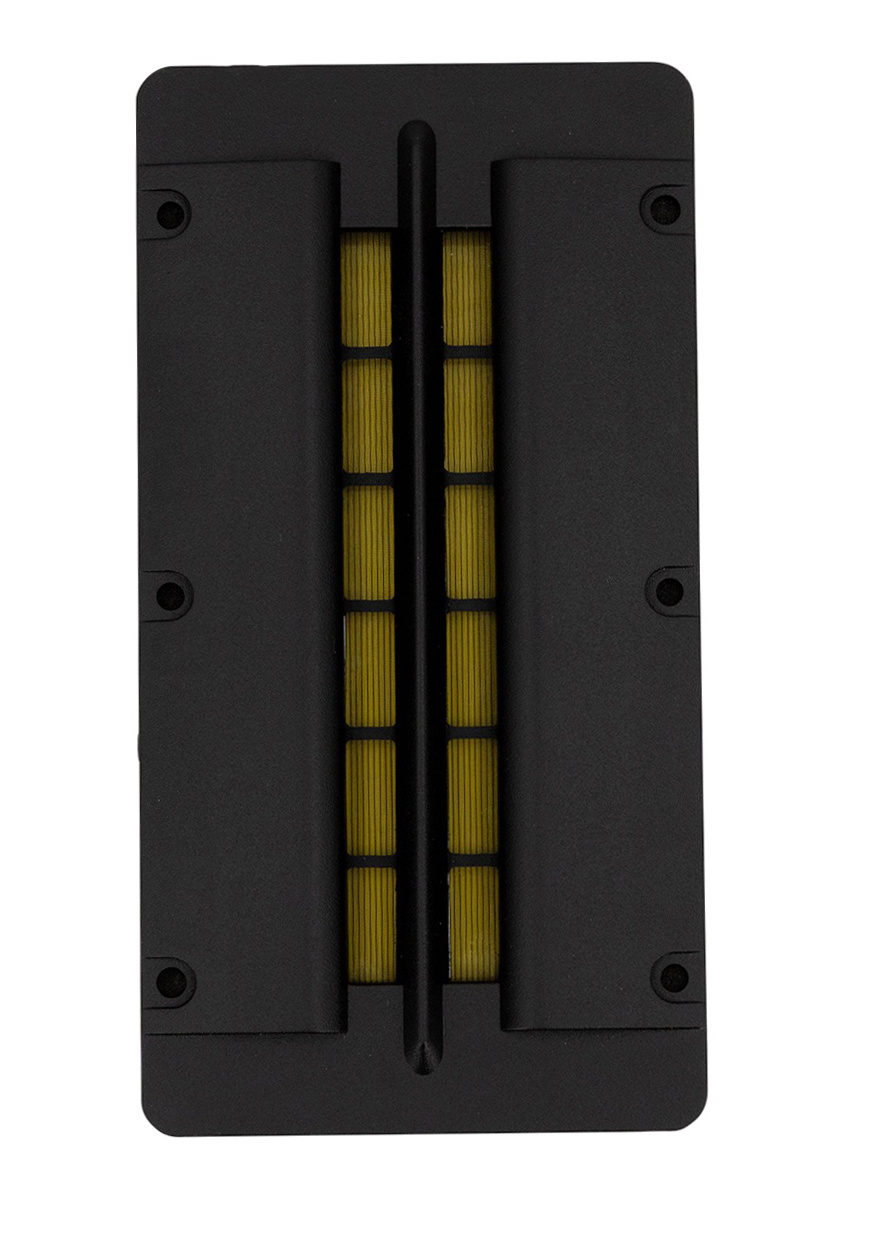

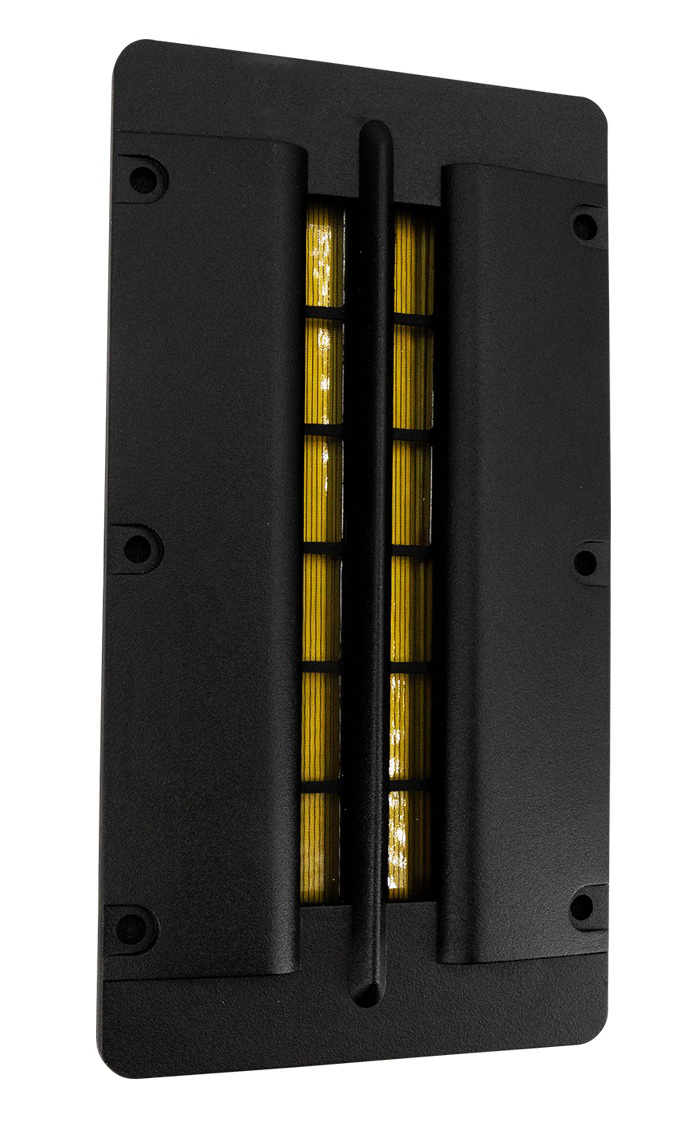

        Many audiophiles praise the Dayton Audio PT2C-8 ribbon tweeter's excellent clarity, transparency, and imaging. The key to this remarkable performance is the almost weightless ribbon element: a Kapton film membrane etched with a pattern of aluminum conductors and placed precisely between two rows of neodymium magnets. The result is an immediate response to any transient impulse found in the original signal.



        The Dayton Audio PT2's ability to deliver musical detail is clearly amazing. The tweeter's large membrane and radiating area provide higher power handling and a substantially lower cut off frequency. This membrane is thermally attached to a cast aluminum plate that facilitates cooling and dramatically increases dynamic range. The flared waveguide's wide horizontal dispersion projects an excellent off axis response. At the same time, vertical dispersion is limited, which reduces distracting floor and ceiling reflections. Perfect for line array applications. The recommended second order crossover cut-off frequency is 3 kHz or higher, although the crossover point can be lowered to 2,500 Hz if a 3rd order crossover is used.

        Show more

        Specifications

        Article number
        PT2C-8
        Tweeter Type
        Planar
        Tweeter Series
        Specialty Drivers Series
        Power Handling (RMS)
        80 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        94 dB
        Frequency Response
        2,000 to 26,000 Hz
        Resonant Frequency (Fs)
        1607 Hz
        DC Resistance (Re)
        6.60 ohms
        Voice Coil Inductance (Le)
        0.15 mH
        Mechanical Q (Qms)
        1.86
        Total Q (Qts)
        1.78
        Overall Outside Diameter
        6.61" x 3.46"
        Cutout Diameter
        6.14" x 2.52"
        Depth
        1.09"

        Show more

        5 of 5
        Alternativ Produkt zum Original und Klanglich passend
        By Andreas O. on 7 October 2019
        5 of 5
        Natuurlijk hoog, best met afzonderlijke versterker aansturen omdat het rendement vrij laag is. Goede prijs kwaliteit.
        By JOSEPH B. on 22 February 2019
