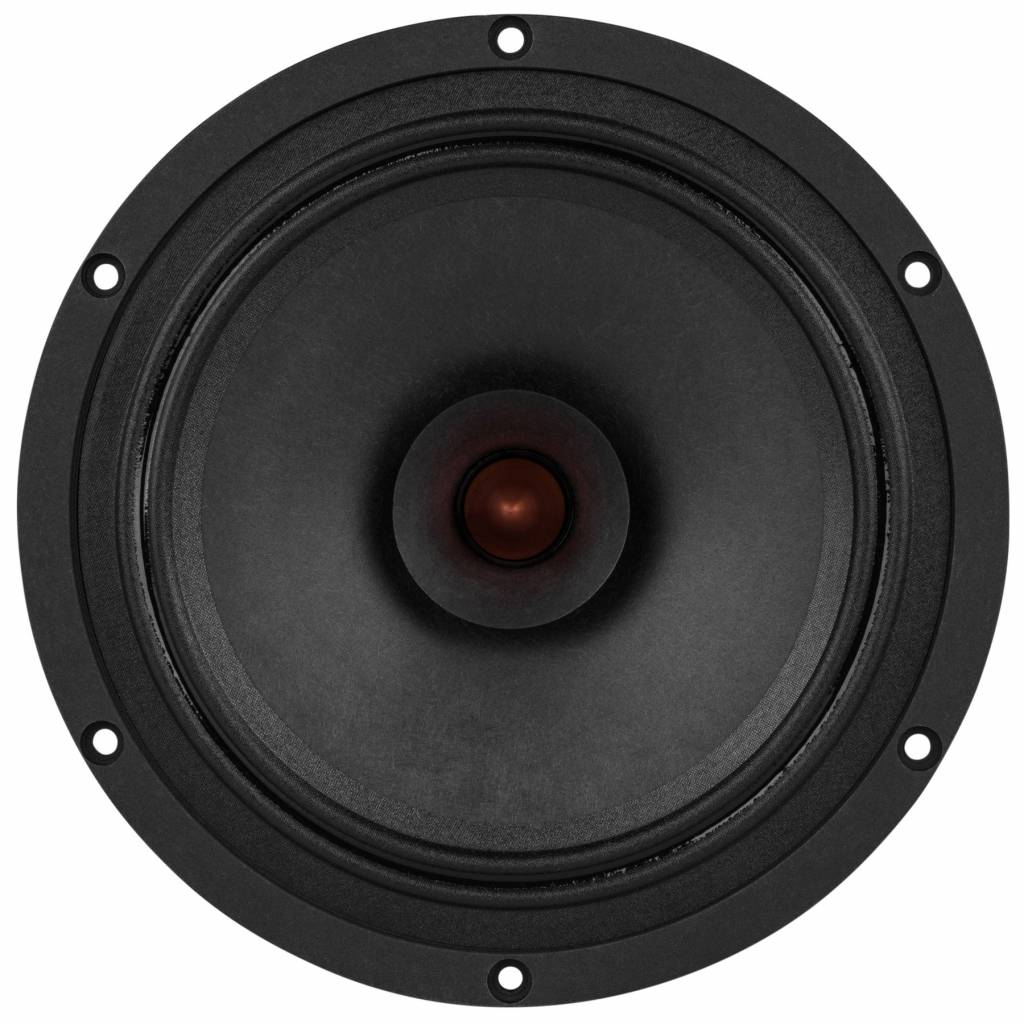

      Dayton Audio PS220-8 8" Point Source Full-Range Neo Driver

      € 165,25€ 199,95 >10 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €189,95 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs.



      Highlights

      • High sensitivity/minimal distortion—an ideal match for lower powered amplifiers

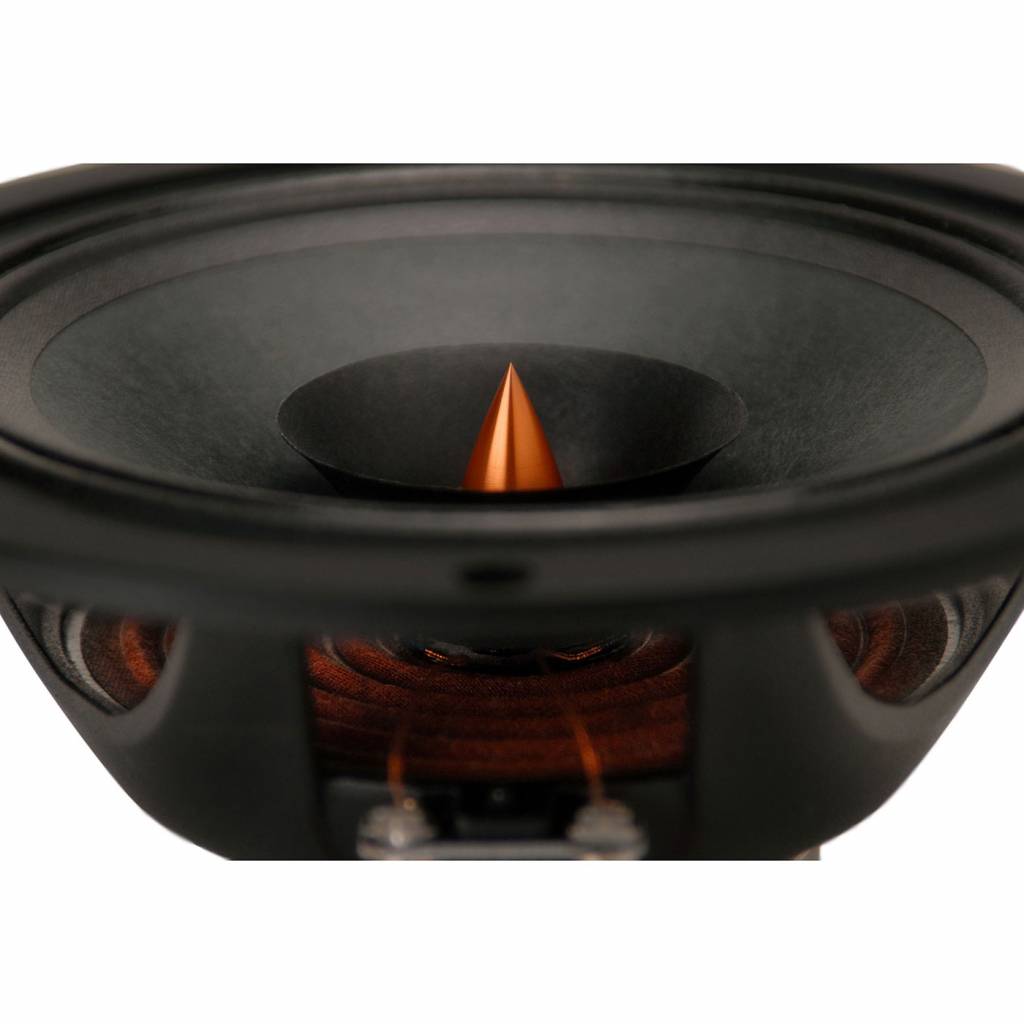

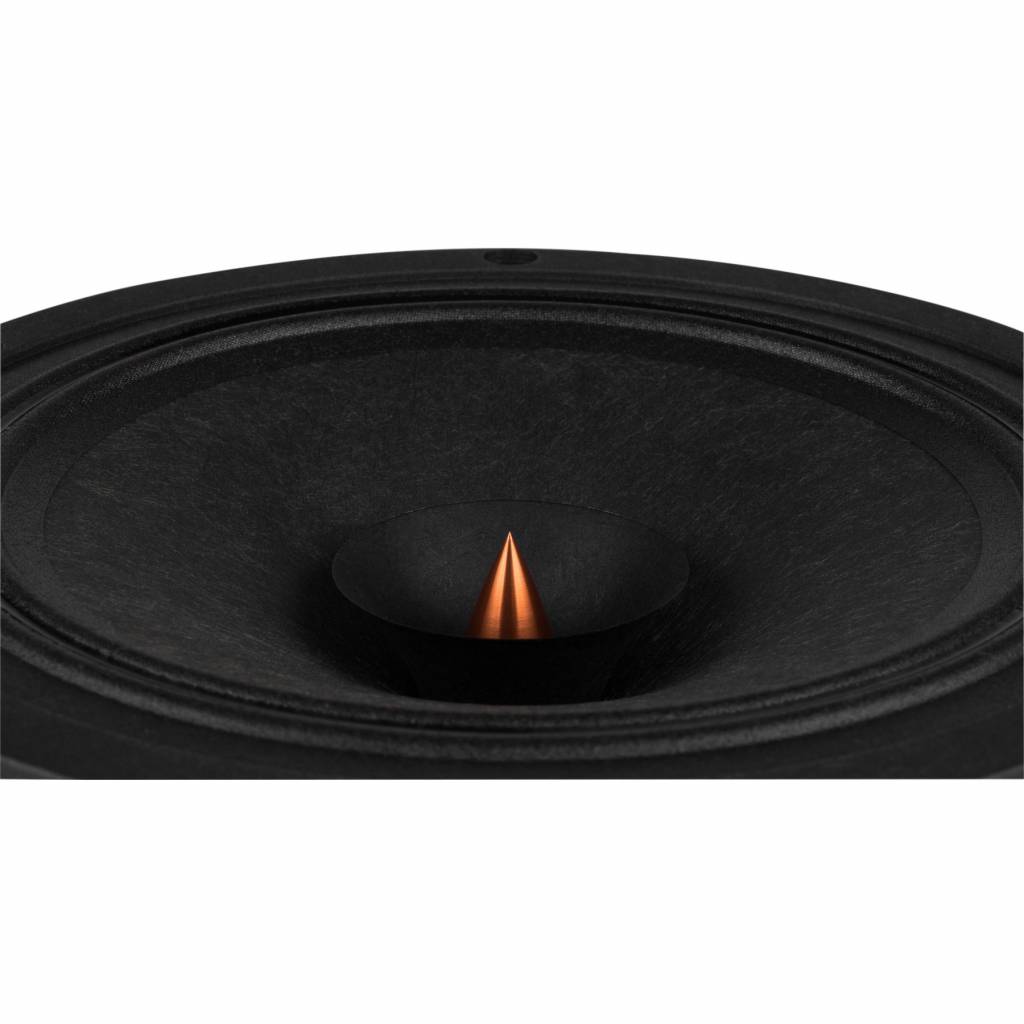

      • Parasitic HF cone and carefully engineered phase plug extend on- and off-axis response
      • Solid bass performance, thanks to usefully high excursion capability (5 mm Xmax)
      • Optimized neodymium magnet provides high motor strength
      • Low-mass copper clad aluminum voice coil
      • Copper cap and copper ring on pole piece reduce inductance and distortion
      • Kevlar reinforced paper cone is lightweight yet rigid and well controlled



      Product details

      Dayton Audio PS220-8 8" Point Source Full-Range Neo Driver

      The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs. An intensive program of design and testing has yielded full-range speakers that feature high sensitivity and smooth response, both on- and off-axis. Although an ideal match for lower powered Class A and Class T designs, the PS220-8 8" driver's superb resolution and natural sound quality make it a viable option for an even wider variety of applications. The PS Series' audio performance is complemented by the speaker's striking appearance—they look great in dipole and other open back designs, too!

      Specifications

      Article number
      PS220-8
      Woofer Series
      Point Source Series
      Woofer Type
      Full-Range
      Nominal Diameter
      8"
      Power Handling (RMS)
      40 watts
      Power Handling (max)
      80 watts
      Impedance (Z)
      8 ohms
      Sensitivity
      96.5 dB @ 2.83V/1m
      Frequency Response
      40 - 25,000 Hz
      Voice Coil Diameter
      25.4 mm
      DC Resistance (Re)
      6.2 ohms
      Voice Coil Inductance (Le)
      0.73 mH @ 1 kHz
      Resonant Frequency (Fs)
      46.4 Hz
      Mechanical Q (Qms)
      5.73
      Electromagnetic Q (Qes)
      0.40
      Total Q (Qts)
      0.38
      Diaphragm Mass Inc. Airload (Mms)
      8.4g
      Mechanical Compliance of Suspension (Cms)
      1.41 mm/N
      Surface Area of Cone (Sd)
      216.4 cm²
      Volume of Displacement (Vd)
      99.6 cm³
      BL Product (BL)
      6.15 Tm
      Compliance Equivalent Volume (Vas)
      90.2 liters
      Maximum Linear Excursion (Xmax)
      4.8 mm
      Cone / Diaphragm Material
      Paper / Kevlar Cone
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      Aluminum
      Basket / Frame Material
      Steel
      Magnet Material
      Neodymium
      Overall Outside Diameter
      221.5 mm
      Overall Depth
      94 mm
      Baffle Cutout Diameter
      181 mm
      # Mounting Holes
      6
      Sealed Volume
      0.5 ft.³
      Sealed F3
      108 Hz
      Vented Volume
      1.15 ft.³
      Vented F3
      68 Hz

      Show more

      Reviews

      5 from 5Based on 2 reviews
      Review this product
      5 of 5
      Clear and good sound!
      By Aldert T. on 20 October 2019
      5 of 5
      Nice full range. Used in a back loaded horn speaker box (DIY). Doesn't require a lot of amp/drive to get good sound.
      By John L. on 10 February 2017
