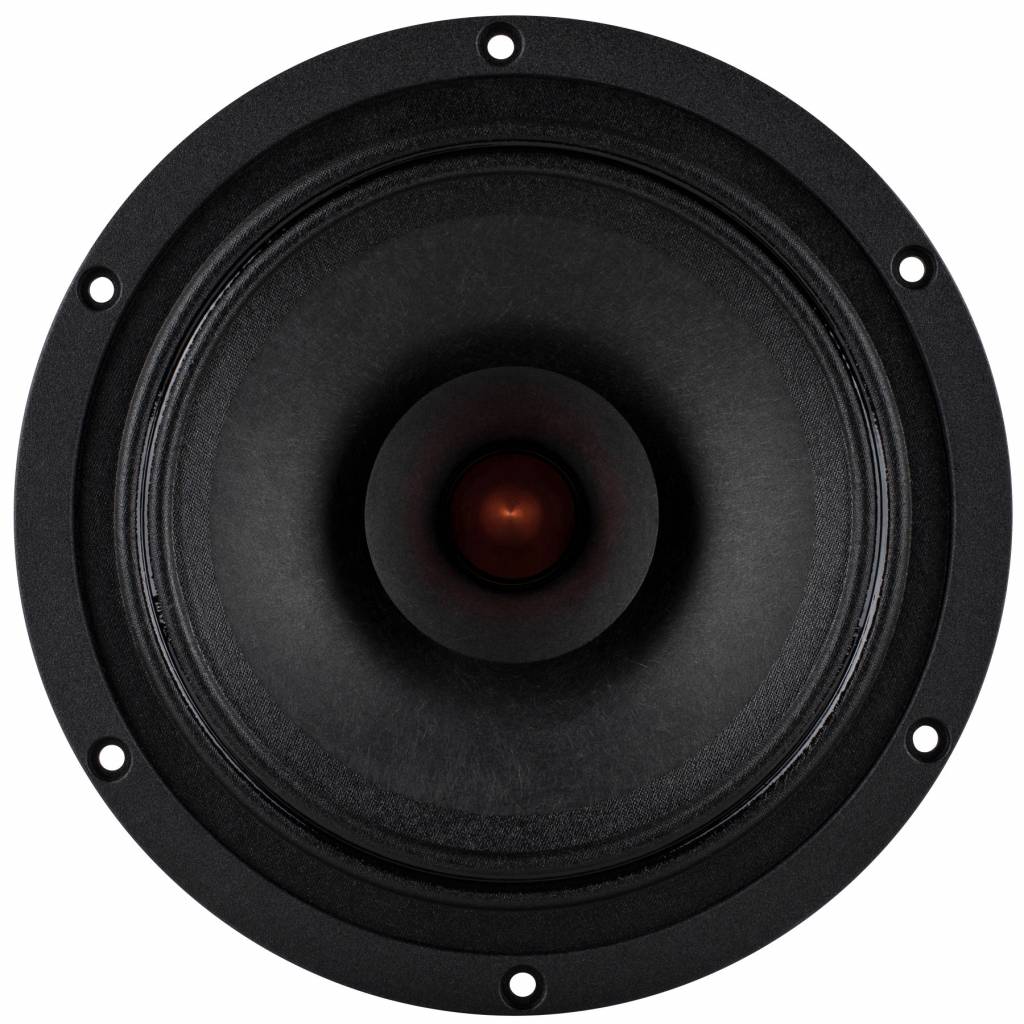

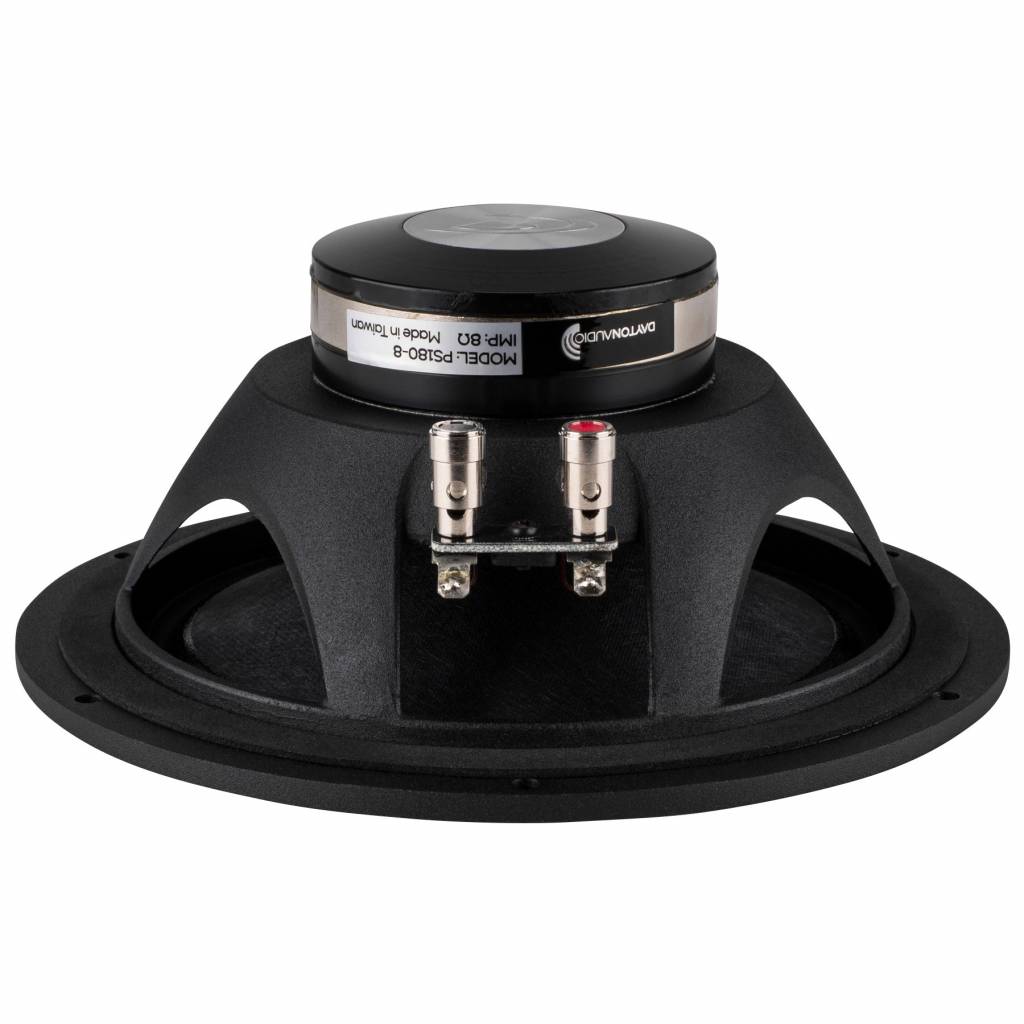

Dayton Audio PS180-8 6-1/2" Point Source Full-Range Neo Driver

Delivery time: 1-4 business days

  • Article code: PS180-8
  • Stock: 8 In stock

The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs.

€ 119,95 Incl. 21% VAT

  • Buy 4 for €113,95 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio PS180-8 6-1/2" Point Source Full-Range Neo Driver

The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs.



Highlights

  • High sensitivity/minimal distortion—an ideal match for lower powered amplifiers

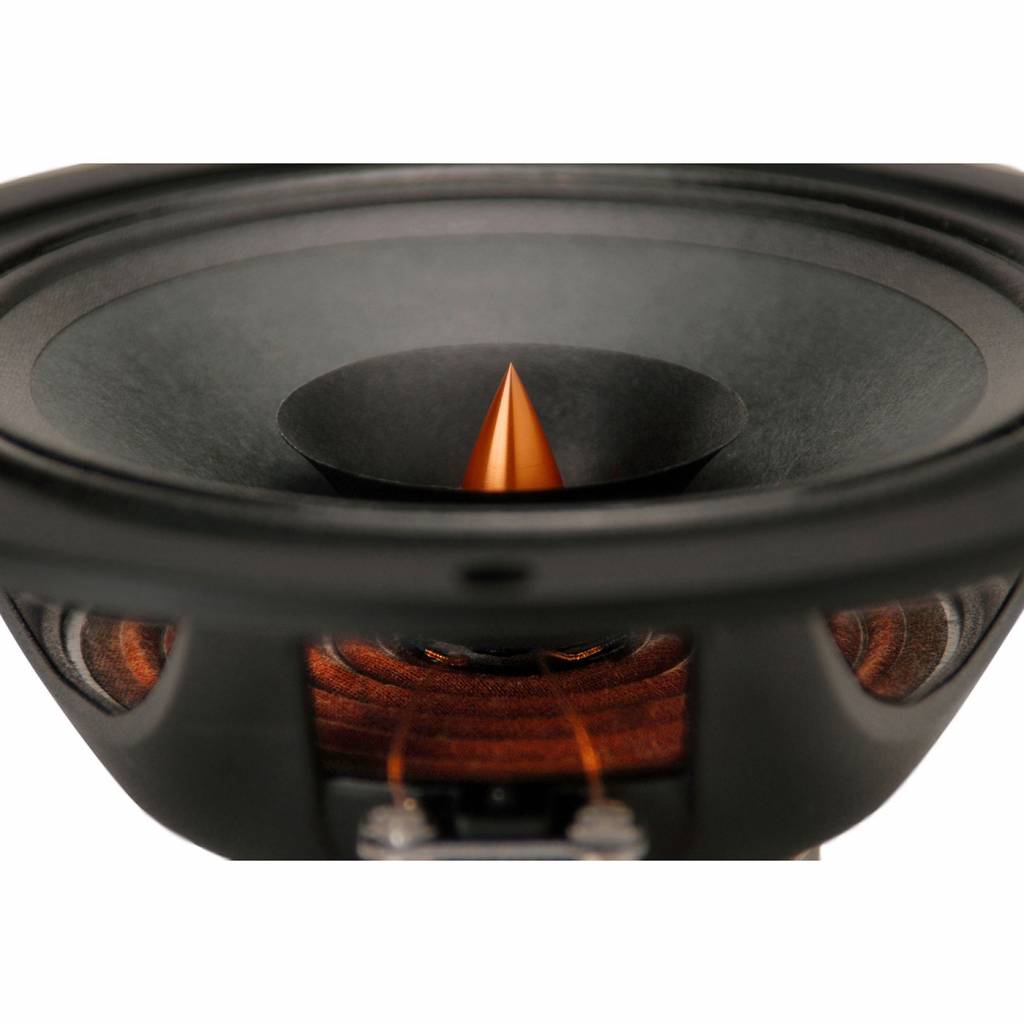

  • Parasitic HF cone and carefully engineered phase plug extend on- and off-axis response
  • Solid bass performance, thanks to usefully high excursion capability (4.6 mm Xmax)
  • Optimized neodymium magnet provides high motor strength
  • Low-mass copper clad aluminum voice coil
  • Copper cap and copper ring on pole piece reduce inductance and distortion
  • Kevlar reinforced paper cone is lightweight yet rigid and well controlled



Product details

Dayton Audio PS180-8 6-1/2" Point Source Full-Range Neo Driver

The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs. An intensive program of design and testing has yielded full-range speakers that feature high sensitivity and smooth response, both on- and off-axis. Although an ideal match for lower powered Class A and Class T designs, the PS180-8 6-1/2" driver's superb resolution and natural sound quality make it a viable option for an even wider variety of applications. The PS Series' audio performance is complemented by the speaker's striking appearance—they look great in dipole and other open back designs, too!

Specifications

Specifications for: PS180-8 6-1/2" Point Source Full-Range Neo Driver

  • Woofer Series Specific woofer production line of the manufacturer. Point Source Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Full-Range
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 6.50"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 30 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 60 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 94.8 dB @ 2.83V/1m
  • Frequency Response 48 - 25,000 Hz
  • Voice Coil Diameter 25.4 mm
  • Magnet Weight
  • DC Resistance (Re) 6.4 ohms
  • Voice Coil Inductance (Le) 0.63 mH @ 1 kHz
  • Resonant Frequency (Fs) 58.5 Hz
  • Mechanical Q (Qms) 3.64
  • Electromagnetic Q (Qes) 0.36
  • Total Q (Qts) 0.33
  • Diaphragm Mass Inc. Airload (Mms) 7g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.05 mm/N
  • Surface Area of Cone (Sd) 132.7 cm²
  • Volume of Displacement (Vd) 61.1 cm³
  • BL Product (BL) 6.82 Tm
  • Compliance Equivalent Volume (Vas) 27.6 liters
  • Maximum Linear Excursion (Xmax) 4.6 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper / Kevlar Cone
  • Surround Material Cloth
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Cast Aluminum
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 180 mm
  • Overall Depth 77.7 mm
  • Baffle Cutout Diameter 145 mm
  • Bolt Circle Diameter
  • # Mounting Holes 6
  • Mounting Hole Diameter
  • Sealed Volume 0.11 ft.³
  • Sealed F3 168 Hz
  • Vented Volume 0.25 ft.³
  • Vented F3 108 Hz

Documenten

Reviews

User reviews 5 / 5 Reviews: (2)

  • MZ By Miroslaw Z. on 28-06-2019 15:37

    5 / 5

    No description was given

  • JA By Jose A. on 21-11-2017 16:54

    5 / 5

    absolutely fantastic as a mid, I am using it together with a ribbon and it sounds great
