        PHT1-6 Planar Horn Tweeter

        PHT1-6 Planar Horn Tweeter

        €144,95

        Dayton Audio PHT1-6 Planar Horn Tweeter

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 119,79€ 144,95 4 In stock
        • -5% Purchase 4 for only € 137,70 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Dayton Audio's PHT1-6 provides the quick reflexes and smooth, non-fatiguing detail of a planar tweeter with horn-loaded efficiency and high power handling, creating the perfect high frequency complement to powerful pro audio drivers or other high-sensitivity speakers. 6 ohm impedance.



        Highlights

        • Low-compression planar horn design
        • Detailed, non-fatiguing sound reproduction
        • Rugged, reinforced injection-molded horn flare
        • Controlled, 60 degree horizontal dispersion
        • High 80-watt RMS power handling



        Product details

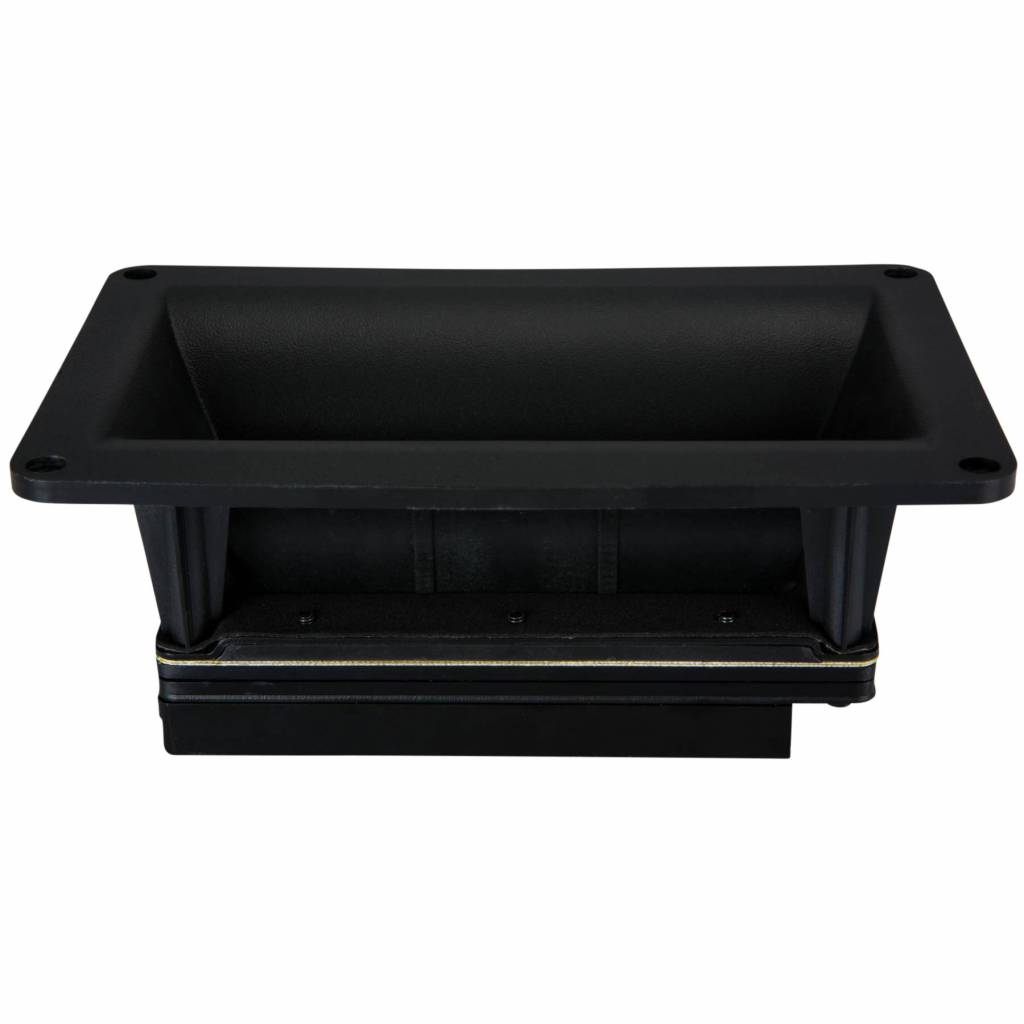

        Dayton Audio PHT1-6 Planar Horn Tweeter 6 Ohm



        Planar tweeters offer a seductively smooth and richly detailed sound, but most don’t have the ruggedness or reliability for use in pro audio and high level studio monitoring applications. The Dayton Audio PHT1-6 Planar Horn Tweeter is different. It features a horn loaded design that achieves the high sensitivity of many horn loaded compression drivers, and its thermally robust Kapton diaphragm with etched aluminum conductor is rugged enough to handle the high power levels common in pro audio.

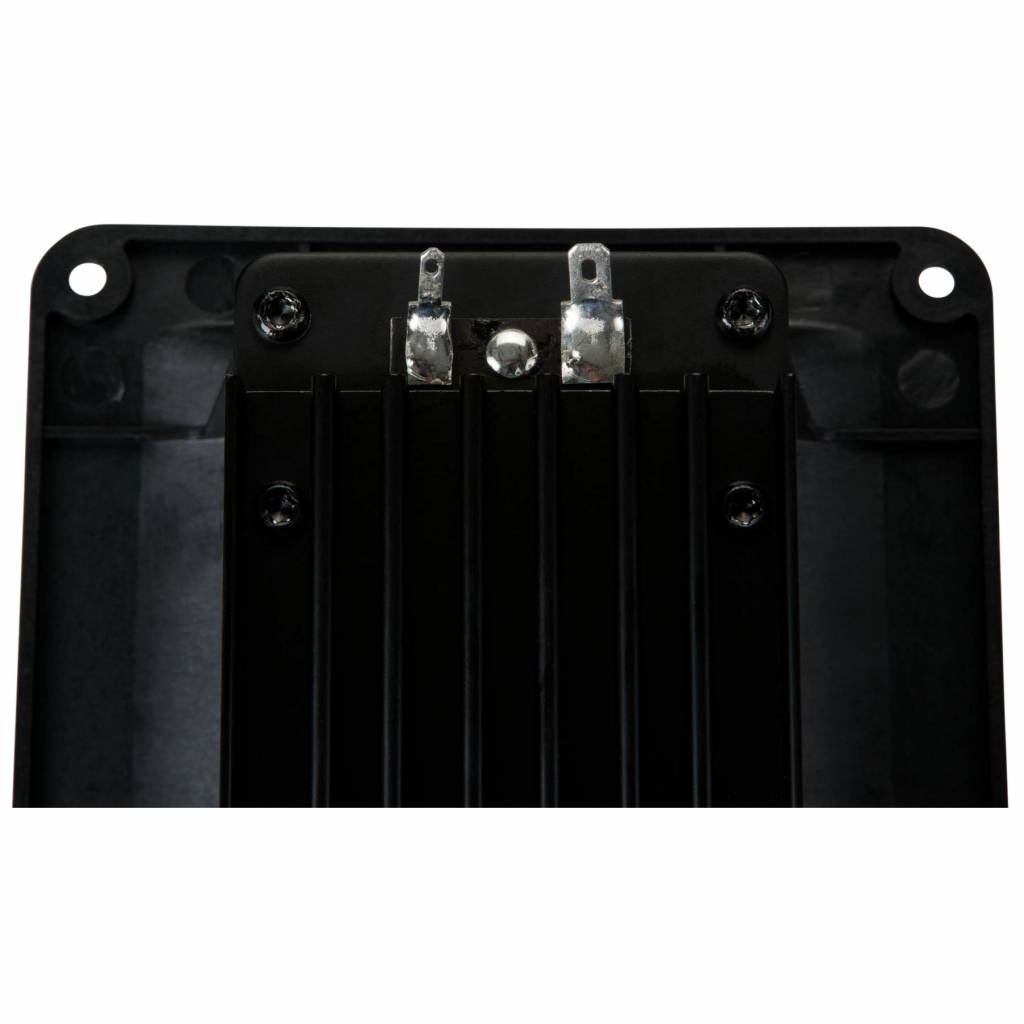

        Cooling is often a problem in planar drivers, but the PHT1-6 features a large, rear-mounted aluminum heatsink that is thermally coupled to the membrane’s conductor and also evacuates heat from the transducer’s rear chamber, for extended component life and the ability to withstand peaks of 160 watts (80 watts RMS) when used with a 2nd order 2,500 Hz (minimum) crossover. The 6-ohm impedance helps the PHT1-6 maintain a high sensitivity, for use with virtually any pro audio or high efficiency midbass driver.

        Show more

        Specifications

        Article number
        PHT1-6
        Tweeter Type
        Planar Horn
        Tweeter Series
        Planar Series
        Power Handling (RMS)
        80 Watts
        Impedance (Z)
        6 Ω
        Sensitivity (SPL at 1m / 2.83V)
        105 dB
        Frequency Response
        2,500 - 18,000 Hz
        DC Resistance (Re)
        5.77 ohms
        Voice Coil Inductance (Le)
        0.17 mH
        Overall Outside Diameter
        126 mm x 196 mm
        Cutout Diameter
        85 mm x 181 mm
        Depth
        75 mm

        Show more

        5 of 5
        well if you want experience hi-end sound,this tweeter might be good choice to 15inch midrande sensitive driver.I am using this tweeter with faital pro 15 4ohms midrange bass drivers. Guitar strings,vocals ,trumpets,cymbals and many other instruments sounds real,like they are in the room.No blankets on intruments like in main stream speakers till 10000euros.You might be shocked by the sound in good way.Improves highs,midrange very much
        By Albina M. on 12 March 2019
