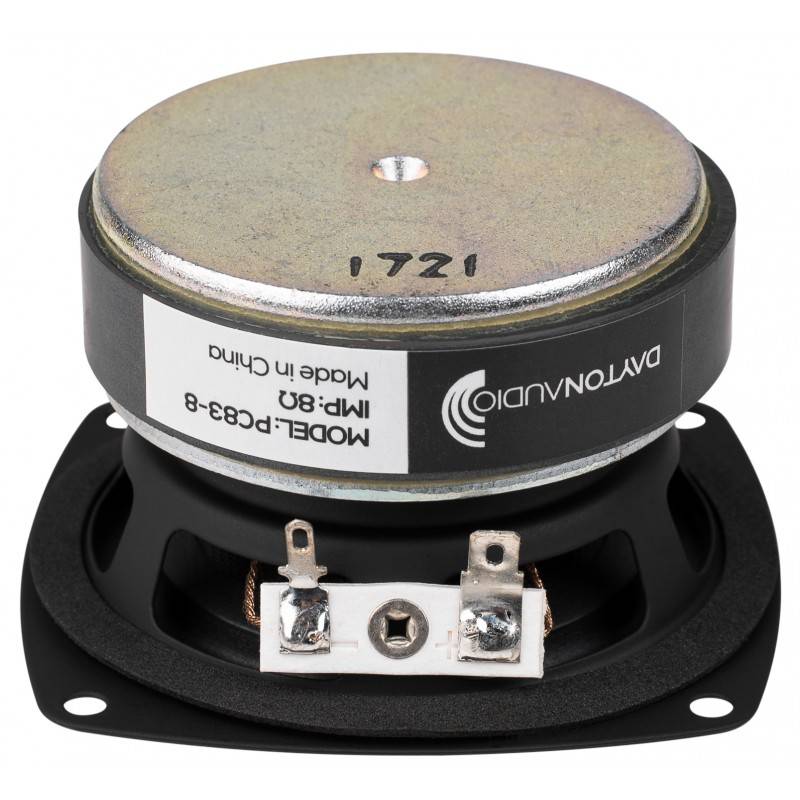

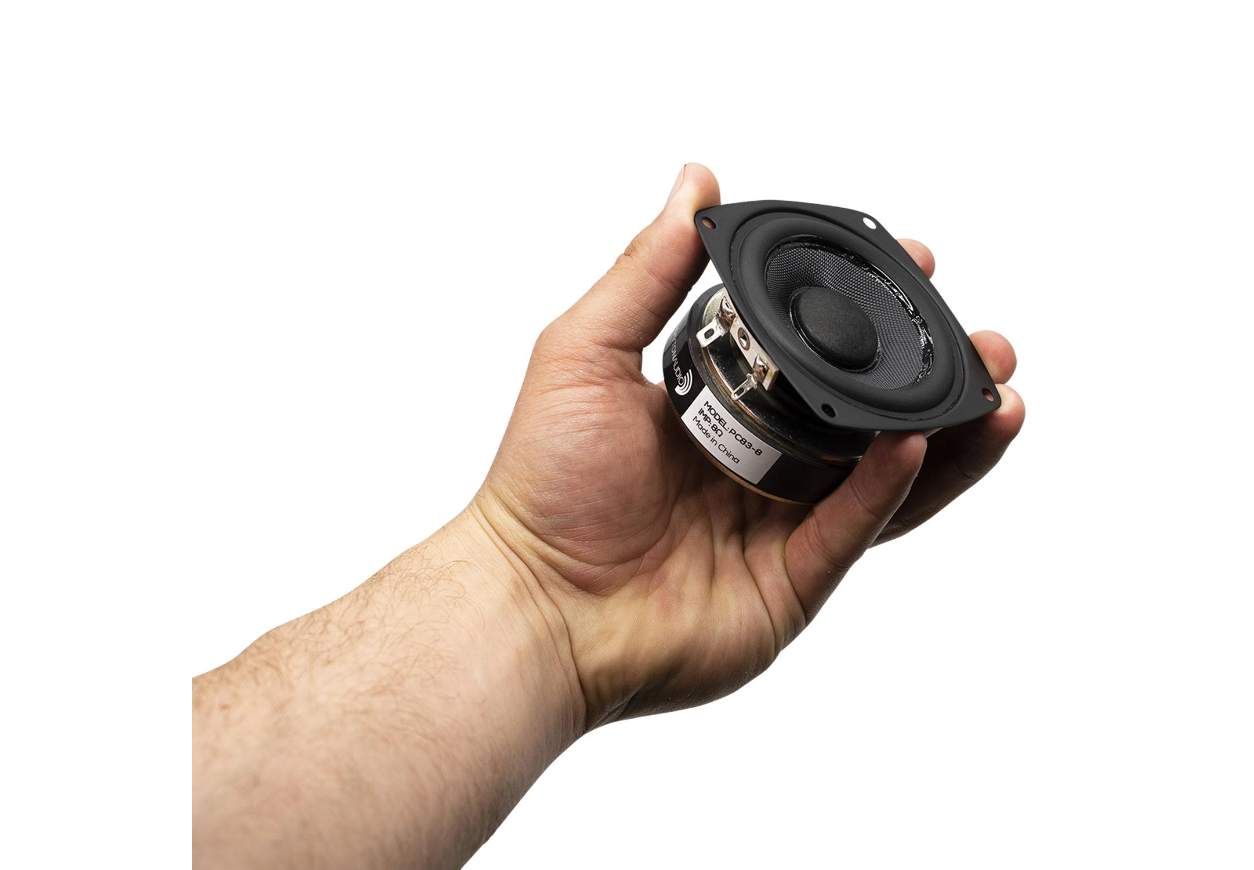

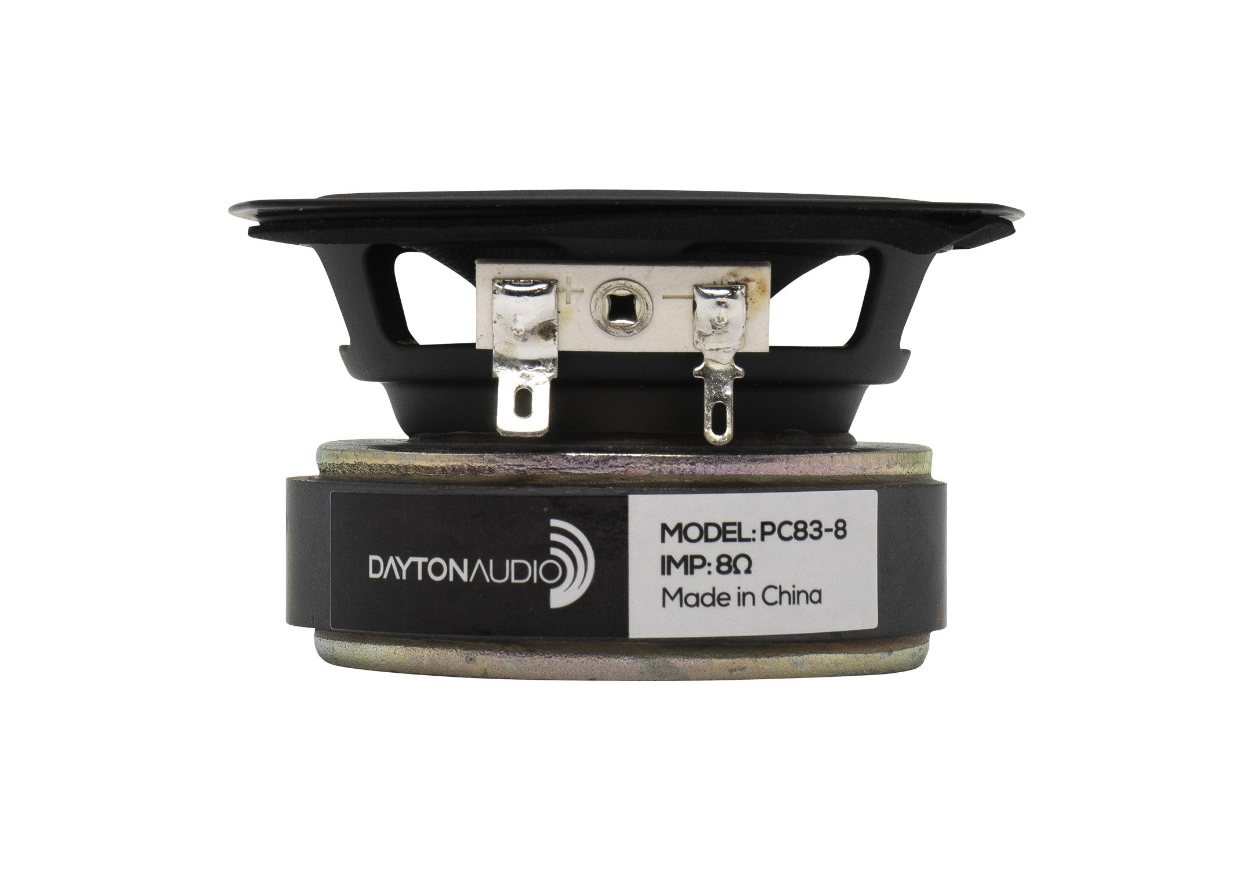

    Dayton Audio PC83-8 3" Full-Range Poly Cone Driver

    € 10,70€ 12,95 >10 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €12,30 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Dayton Audio's PC83-8 3" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excellent value.



    Highlights

    • Smooth response with true full-range reproduction for simple speaker designs
    • Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-off

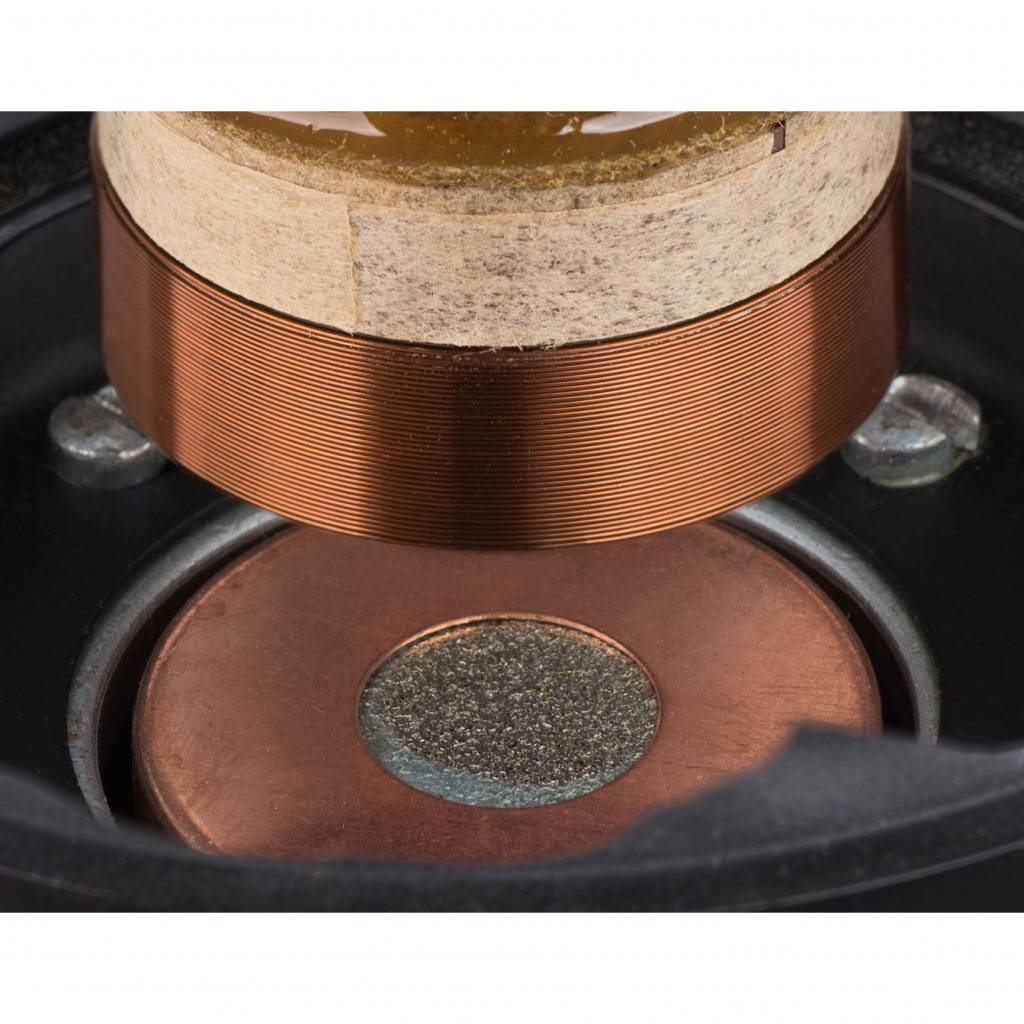

    • Copper cap keeps inductance under control and extends high frequency response
    • High energy ferrite magnet increases BL for higher efficiency and more output
    • Great for MTM bookshelves, car audio, or line arrays



    Product details

    Dayton Audio PC83-8 3" Full-Range Poly Cone Driver

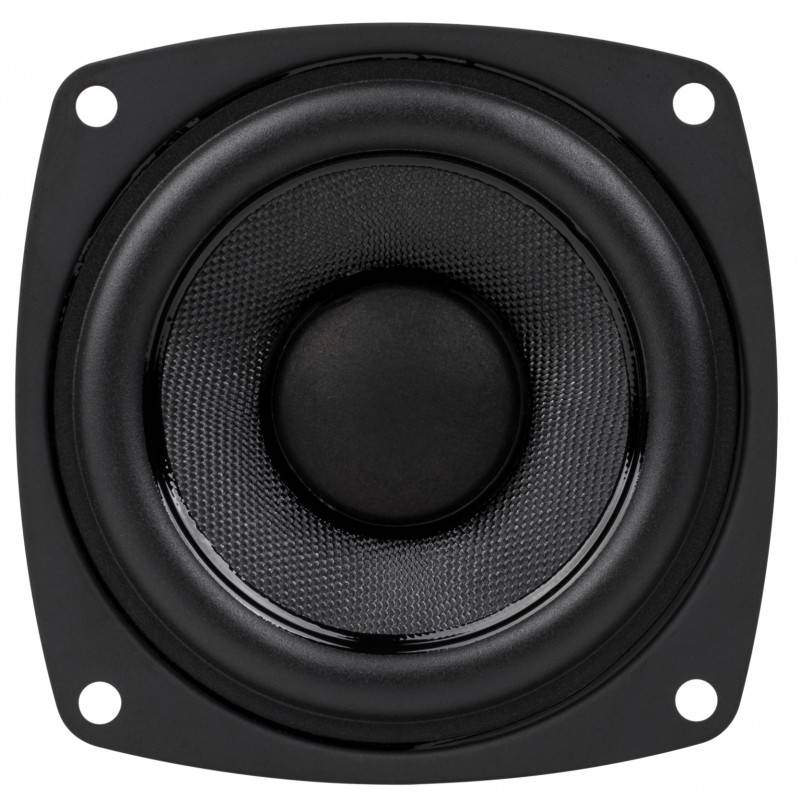

    The Dayton Audio PC83-8 3" full-range driver features a poly damped woven glass fiber cone, damped rubber surround, and high energy motor. The addition of a copper cap on the extended pole improves cone control, lowers inductance, and decreases distortion allowing for improved high frequency response. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio systems, the Dayton Audio PC83-8 will deliver high fidelity and low distortion from compact applications for an amazing value.

    Specifications

    Article number
    PC83-8
    Woofer Series
    PC series
    Woofer Type
    Full-Range
    Nominal Diameter
    3"
    Power Handling (RMS)
    30 watts
    Power Handling (max)
    60 watts
    Impedance (Z)
    8 ohms
    Sensitivity
    86.8 dB @ 2.83V/1m
    Frequency Response
    80 - 20,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    3.9 ohms
    Voice Coil Inductance (Le)
    0.38 mH
    Resonant Frequency (Fs)
    80.1 Hz
    Mechanical Q (Qms)
    3.41
    Electromagnetic Q (Qes)
    0.64
    Total Q (Qts)
    0.54
    Diaphragm Mass Inc. Airload (Mms)
    2.7g
    Mechanical Compliance of Suspension (Cms)
    1.47 mm/N
    Surface Area of Cone (Sd)
    30.2 cm²
    Volume of Displacement (Vd)
    6.0 cm³
    BL Product (BL)
    2.9 Tm
    Compliance Equivalent Volume (Vas)
    0.07 ft.³
    Maximum Linear Excursion (Xmax)
    2.0 mm
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Kapton®
    Basket / Frame Material
    Stamped Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    83 mm
    Overall Depth
    50 mm
    Baffle Cutout Diameter
    77 mm
    # Mounting Holes
    4
    Sealed Volume
    0.09 ft.³
    Sealed F3
    107 Hz
    Vented Volume
    0.16 ft.³
    Vented F3
    54 Hz

    Reviews

    5 from 5Based on 7 reviews
    Review this product
    5 van 5
    Great sound for center speaker. Fitted in an Onkyo system not completely compatible in screw positions.
    By IGNACIO S. on 9 September 2020
    4 van 5
    Voor dit bedrag zeer goed , zijn als vervanger voor een stel monitor audio speakers gebruikt, en ik was verrast
    By boy h. on 9 June 2020
