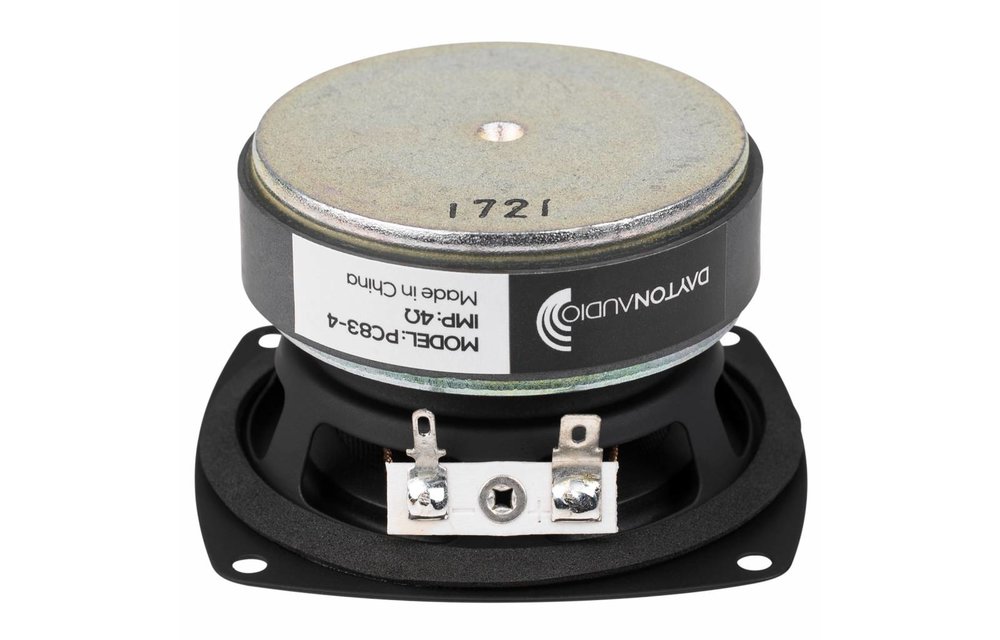

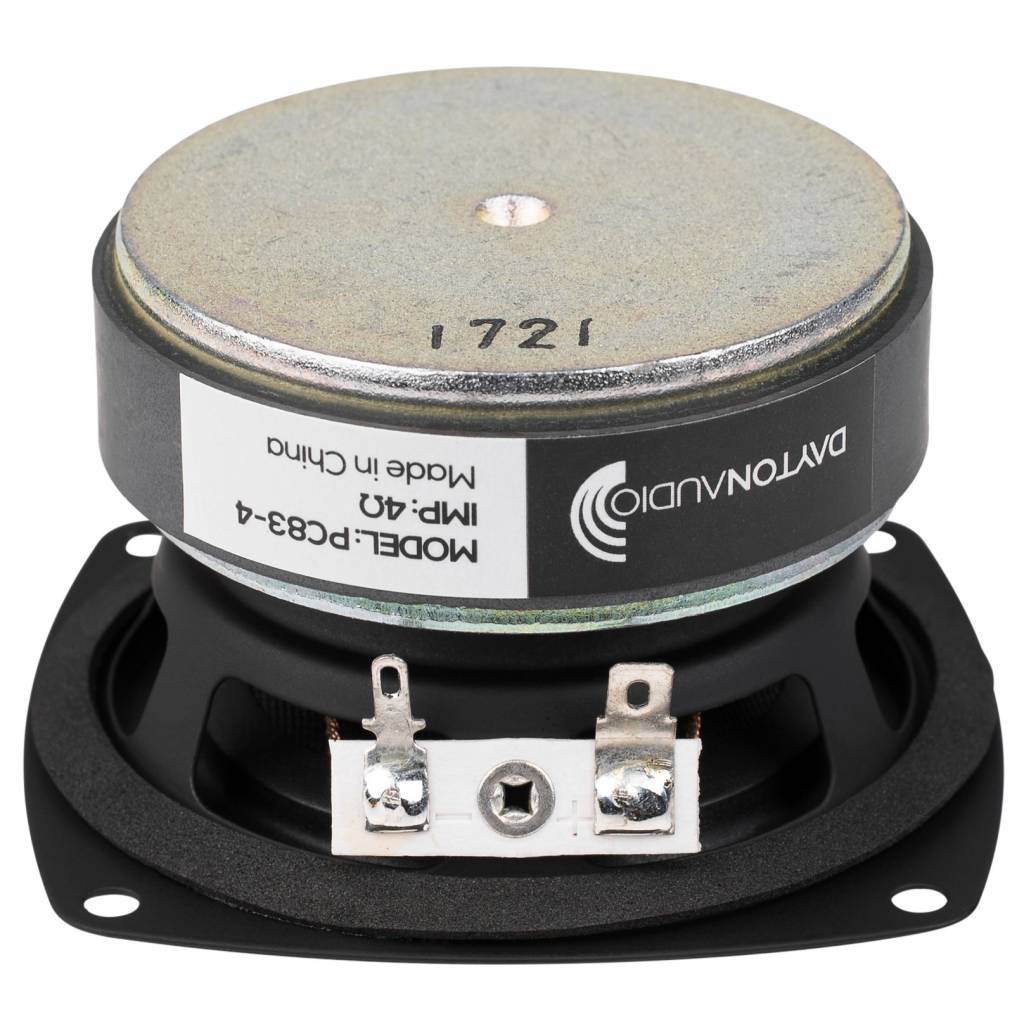

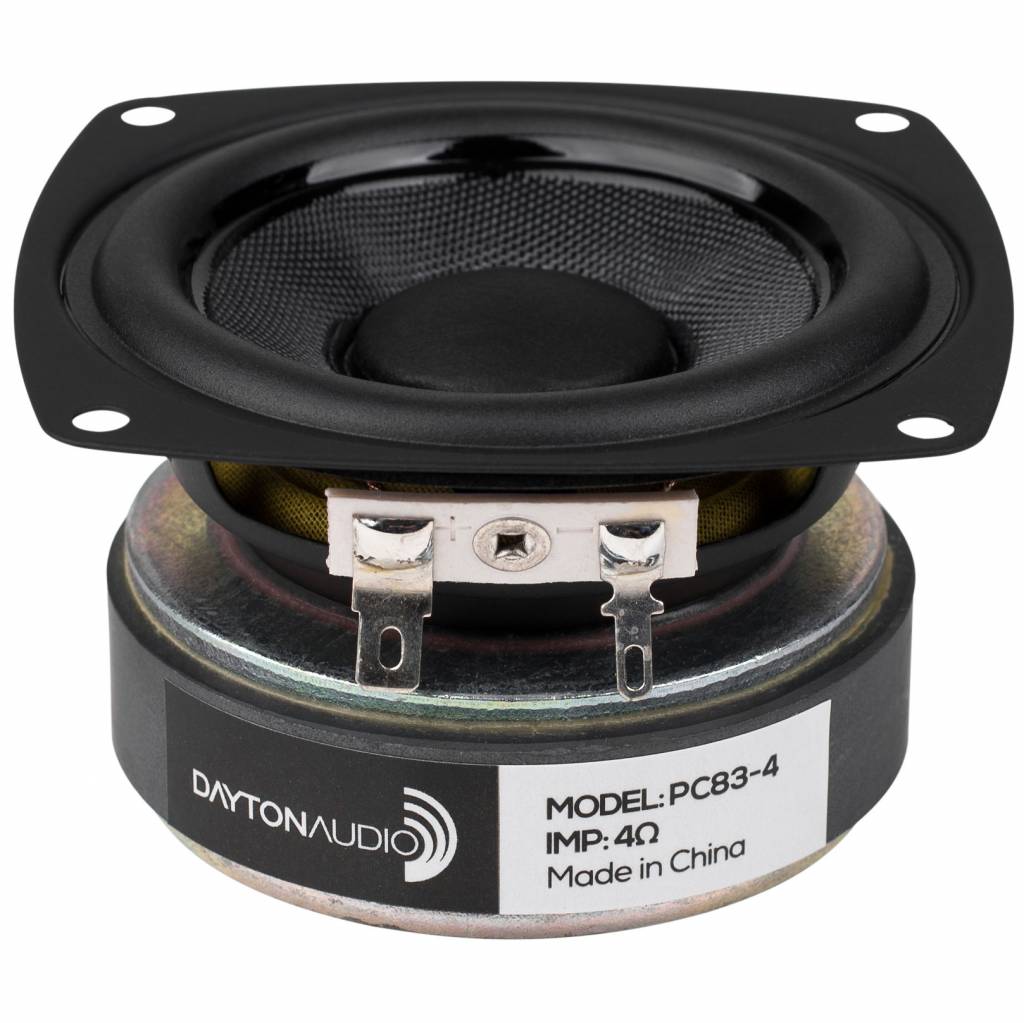

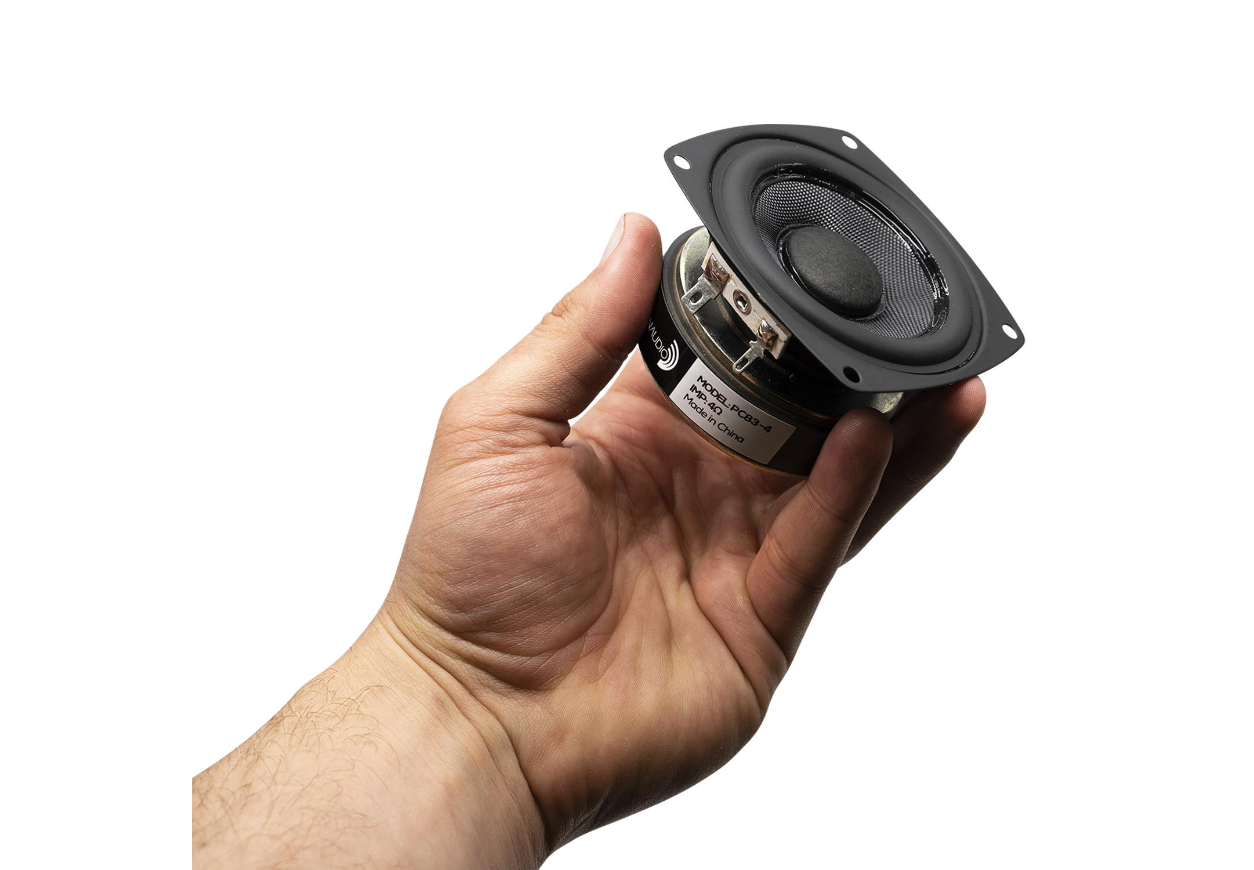

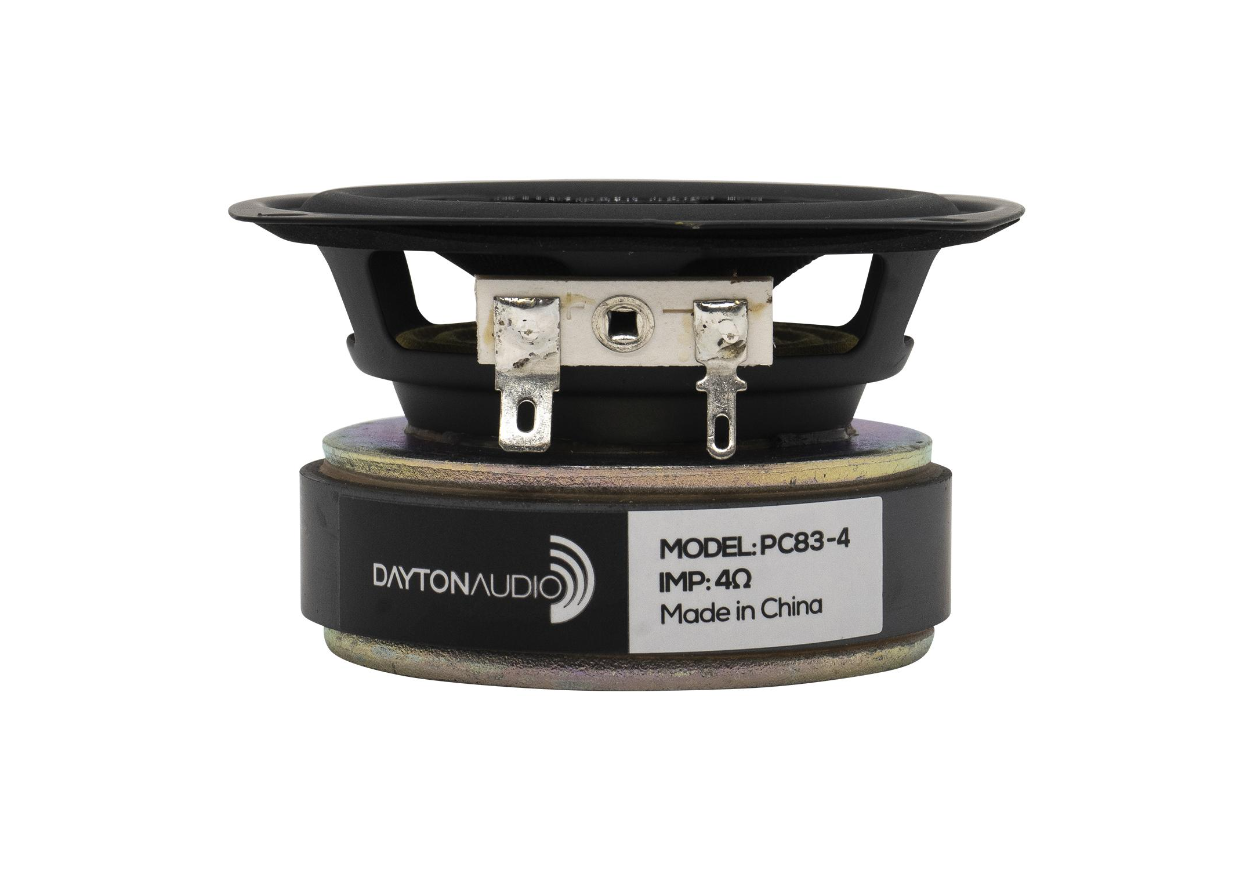

        PC83-4 3" Full-Range Poly Cone Driver

        PC83-4 3" Full-Range Poly Cone Driver

        €15,65

        Dayton Audio PC83-4 3" Full-Range Poly Cone Driver

        15 reviews
        5 from 5
        15 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 12,93€ 15,65 Out of stock10+ expected on 26-04-2024
        • -5% Purchase 4 for only € 14,87 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Dayton Audio's PC83-4 3" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excellent value.



        Highlights

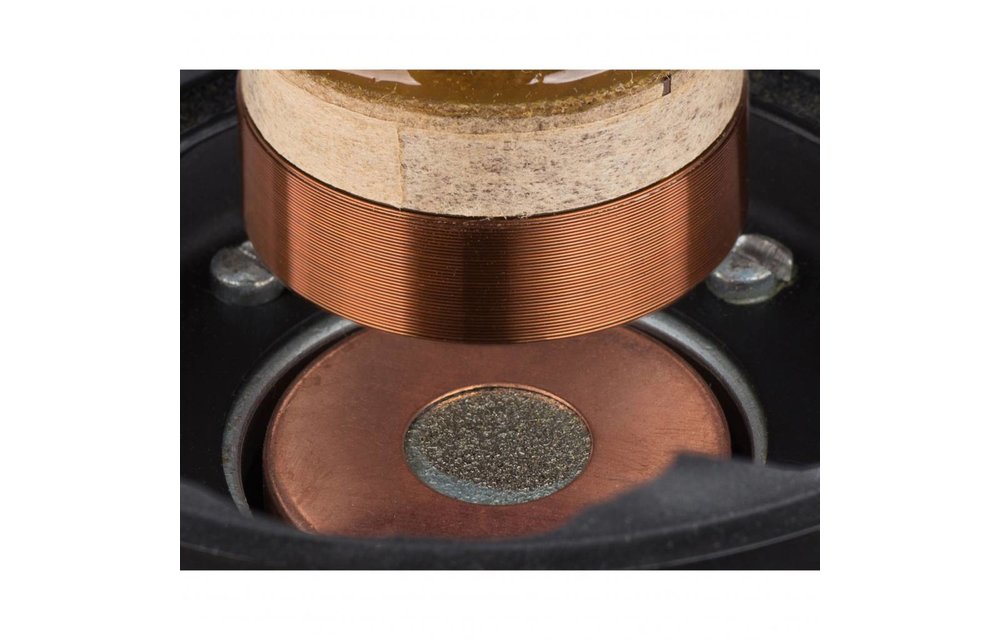

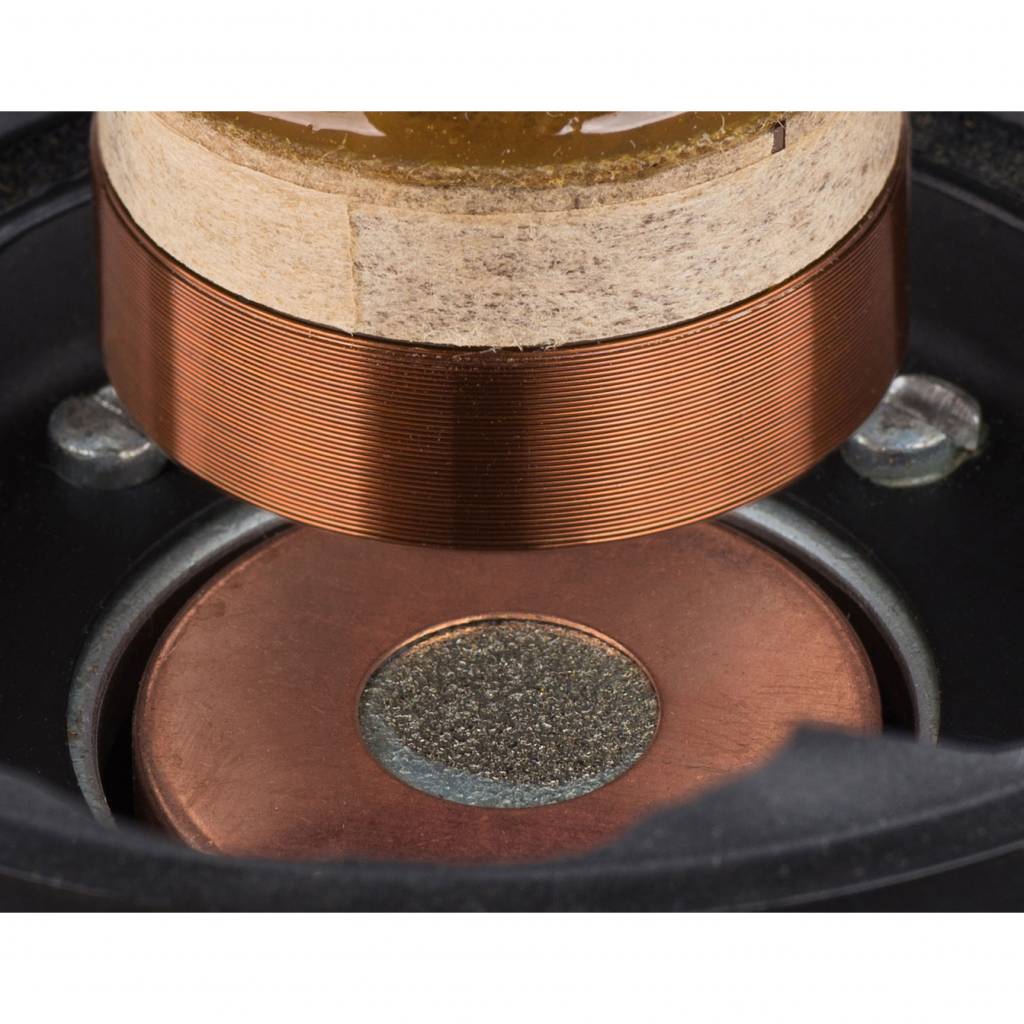

        • Copper cap to keep inductance under control and extend high frequency response

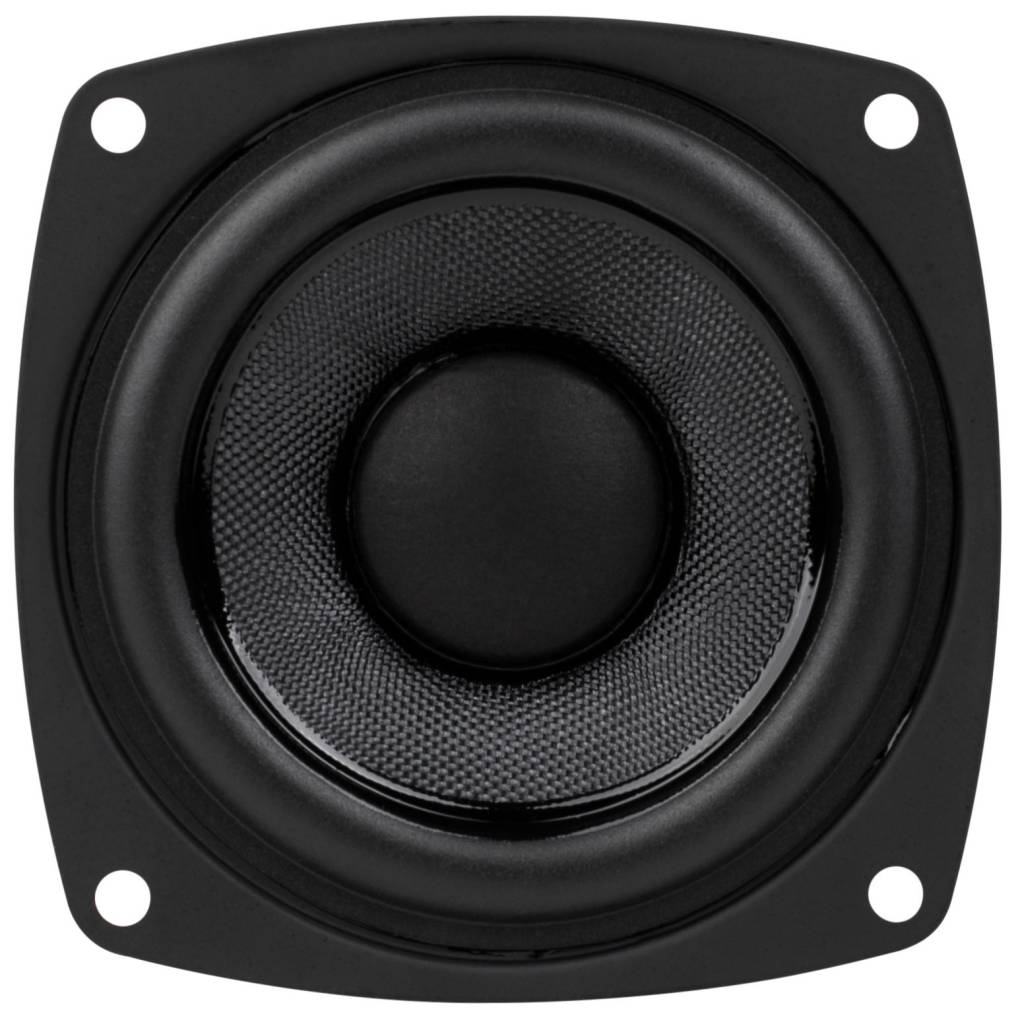

        • Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-off
        • Smooth response with true full-range reproduction for simple speaker designs
        • High energy ferrite magnet increases BL for higher efficiency and more output
        • Great for MTM bookshelves, car audio, or line arrays



        Product details

        Dayton Audio PC83-4 3" Full-Range Poly Cone Driver



        The Dayton Audio PC83-4 3" full-range driver features a poly damped woven glass fiber cone, damped rubber surround, and high energy motor. The addition of a copper cap on the extended pole improves cone control, lowers inductance, and decreases distortion allowing for improved high frequency response. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio systems, the Dayton Audio PC83-4 will deliver high fidelity and low distortion from compact applications for an amazing value.

        Show more

        Specifications

        Article number
        PC83-4
        Woofer Series
        PC Series
        Woofer Type
        Full-Range
        Nominal Diameter
        3"
        Power Handling (RMS)
        30 watts
        Power Handling (max)
        60 watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        86.8 dB
        Frequency Response
        80 - 20,000 Hz
        Voice Coil Diameter
        1"
        DC Resistance (Re)
        3.9 ohms
        Voice Coil Inductance (Le)
        0.38 mH
        Resonant Frequency (Fs)
        80.1 Hz
        Mechanical Q (Qms)
        3.41
        Electromagnetic Q (Qes)
        0.64
        Total Q (Qts)
        0.54
        Diaphragm Mass Inc. Airload (Mms)
        2.7g
        Mechanical Compliance of Suspension (Cms)
        1.47 mm/N
        Surface Area of Cone (Sd)
        30.2 cm²
        Volume of Displacement (Vd)
        6.0 cm³
        BL Product (BL)
        2.9 Tm
        Compliance Equivalent Volume (Vas)
        0.07 ft.³
        Maximum Linear Excursion (Xmax)
        2 mm
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Kapton®
        Basket / Frame Material
        Stamped Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        83 mm
        Overall Depth
        50 mm
        Baffle Cutout Diameter
        77 mm
        # Mounting Holes
        4
        Sealed Volume
        0.05 ft.³
        Sealed F3
        123 Hz
        Vented Volume
        0.12 ft.³
        Vented F3
        60 Hz

        Show more

        5 of 5
        with this amazing driver I made 8 small speakers (1.2lit). I use 5mm PC. I mast say only one think.... this drive is the total winter in its class!!! Very clear and smoooooth sound. even in small enclosure like mine you take 100hz with well calculated bass reflex.
        By Costas Ampelakias on 16 March 2024
        5 of 5
        Klasse Lautsprecher für diese Größe, sehr guten bass ab 3 Liter. Für kleine 2 wege Systeme gut geeignet . Auch fullrange tauglich mit und ohne sperrkreis.
        By Sabia on 10 January 2024
