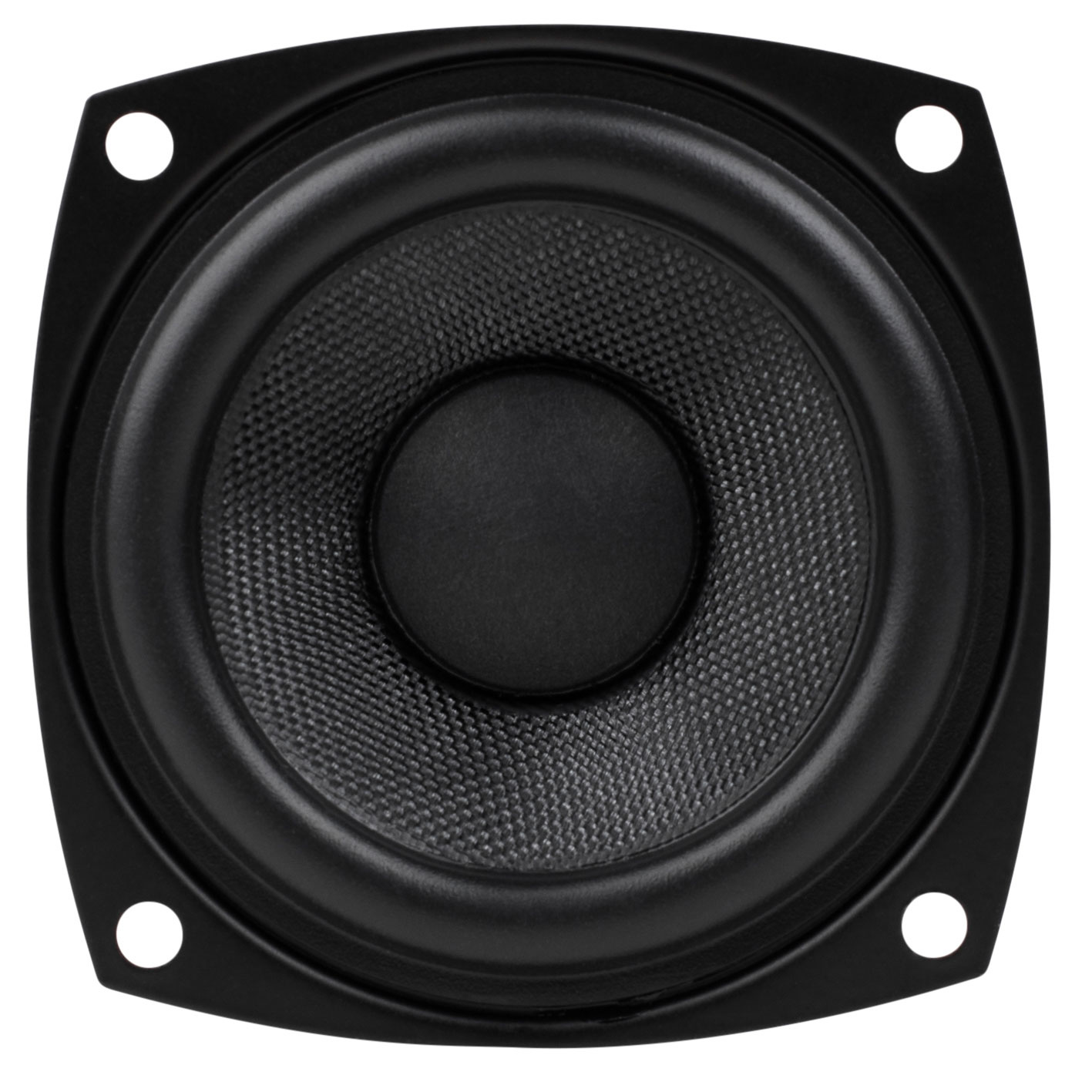

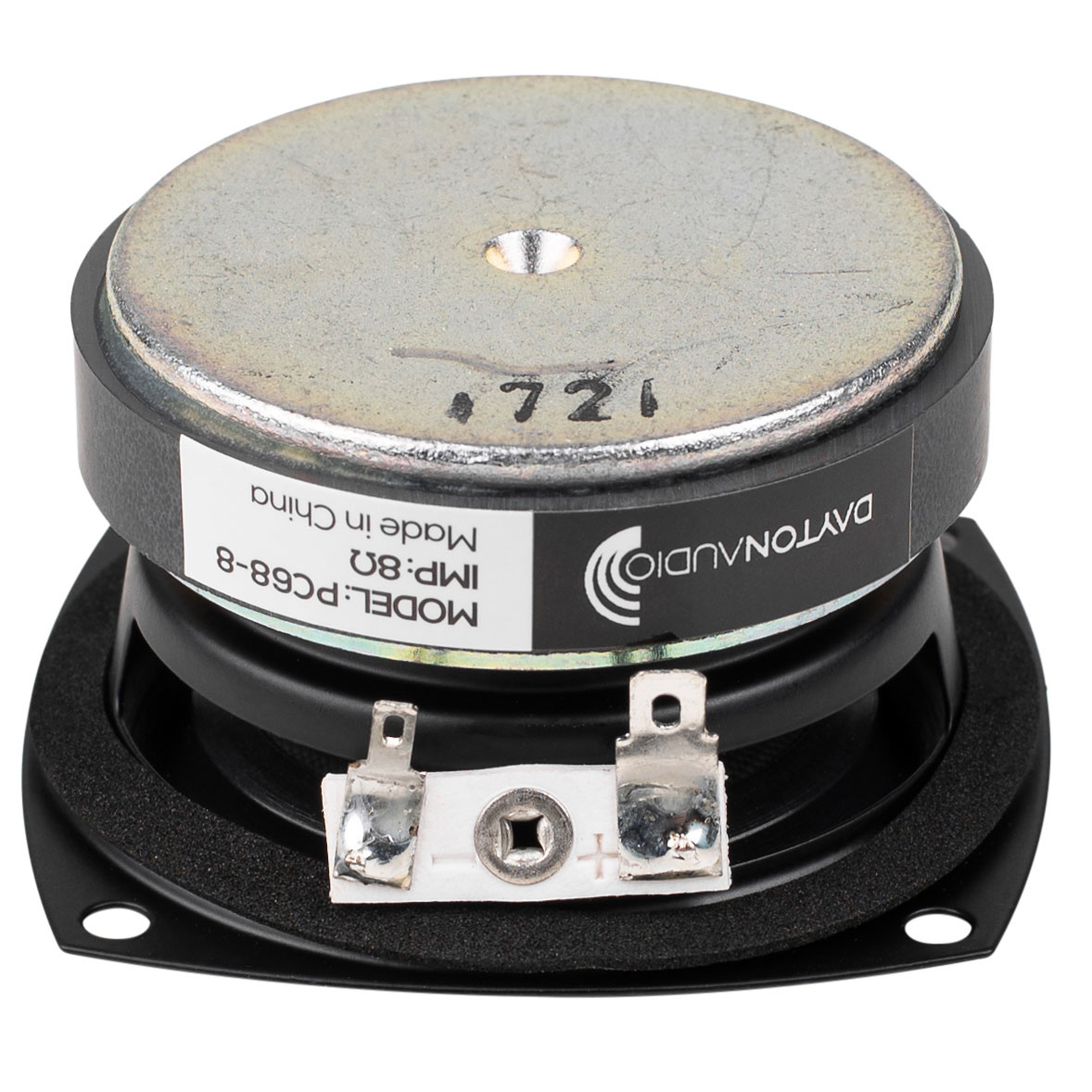

        PC68-8 2-1/2" Full-Range Poly Cone Driver 8 Ohm

        PC68-8 2-1/2" Full-Range Poly Cone Driver 8 Ohm

        €13,45

        Dayton Audio PC68-8 2-1/2" Full-Range Poly Cone Driver 8 Ohm

        3 reviews
        5 from 5
        3 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 11,12€ 13,45 10+ In stock
        • -5% Purchase 4 for only € 12,78 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Dayton Audio's PC68-8 2-1/2" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated mid-range in 3-way designs this driver will prove to be an excellent value.



        Highlights

        • Smooth response with true full-range reproduction for simple speaker designs
        • Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-off
        • Rubber surround improves cone linearity and transients
        • High energy ferrite magnet increases BL for higher efficiency and more output



        Product details

        Dayton Audio PC68-8 2-1/2" Full-Range Poly Cone Driver



        The Dayton Audio PC68-8 2-1/2" full-range driver features a poly damped woven glass fiber cone, rubber surround, and high energy motor. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio the Dayton Audio PC68-8 driver will deliver high fidelity and low distortion from compact applications for an amazing value.

        Show more

        Specifications

        Article number
        PC68-8
        Woofer Series
        PC series
        Woofer Type
        Full-Range
        Nominal Diameter
        2.5"
        Power Handling (RMS)
        20 watts
        Power Handling (max)
        40 watts
        Continuous Program Power
        -
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        85.6 dB
        Frequency Response
        110 - 17,000 Hz
        Voice Coil Diameter
        19 mm
        Magnet Weight
        -
        DC Resistance (Re)
        6.9 ohms
        Voice Coil Inductance (Le)
        0.47 mH
        Resonant Frequency (Fs)
        109 Hz
        Mechanical Q (Qms)
        2.27
        Electromagnetic Q (Qes)
        0.88
        Total Q (Qts)
        0.64
        Diaphragm Mass Inc. Airload (Mms)
        2.0g
        Moving Mass Of Diaphragm (Mmd)
        -
        Mechanical Compliance of Suspension (Cms)
        1.05 mm/N
        Surface Area of Cone (Sd)
        21.2 cm²
        Volume of Displacement (Vd)
        4.24‬ cm³
        BL Product (BL)
        3.3 Tm
        Compliance Equivalent Volume (Vas)
        1.4 liters
        Maximum Linear Excursion (Xmax)
        2 mm
        Driver's Mechanical Losses (Rms)
        -
        Cone / Diaphragm Material
        Poly Composite
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper-clad aluminum
        Voice Coil Former
        Aluminum
        Dual Voice Coil
        -
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Shielded
        -
        Overall Outside Diameter
        68 mm
        Overall Depth
        37 mm
        Baffle Cutout Diameter
        64 mm
        Bolt Circle Diameter
        73 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        4.2 mm
        Sealed Volume
        1.98 liters
        Sealed F3
        140 Hz
        Vented Volume
        3.4 liters
        Vented F3
        71 Hz
