        PC105-4 4" Full-Range Poly Cone Driver

        PC105-4 4" Full-Range Poly Cone Driver

        €19,95

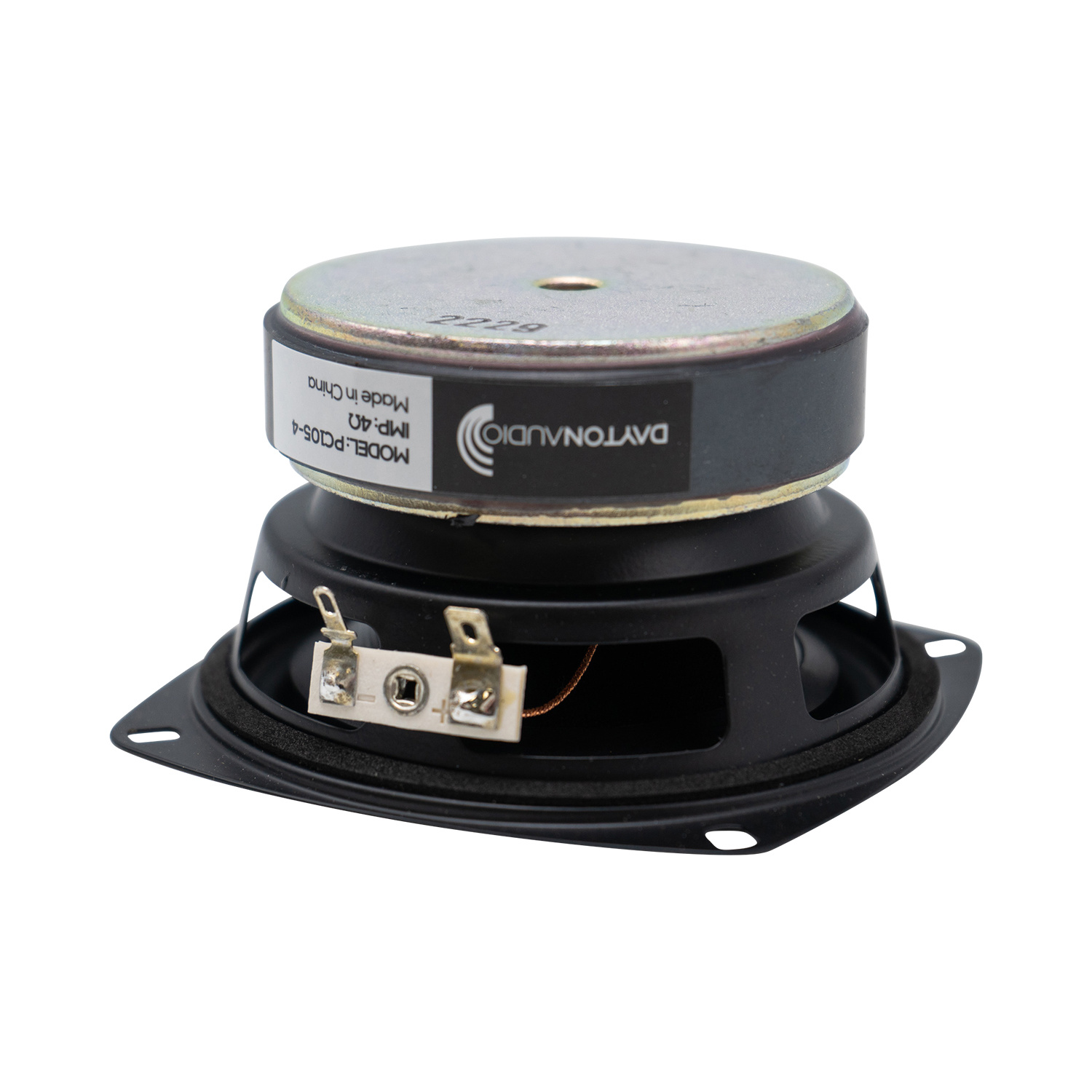

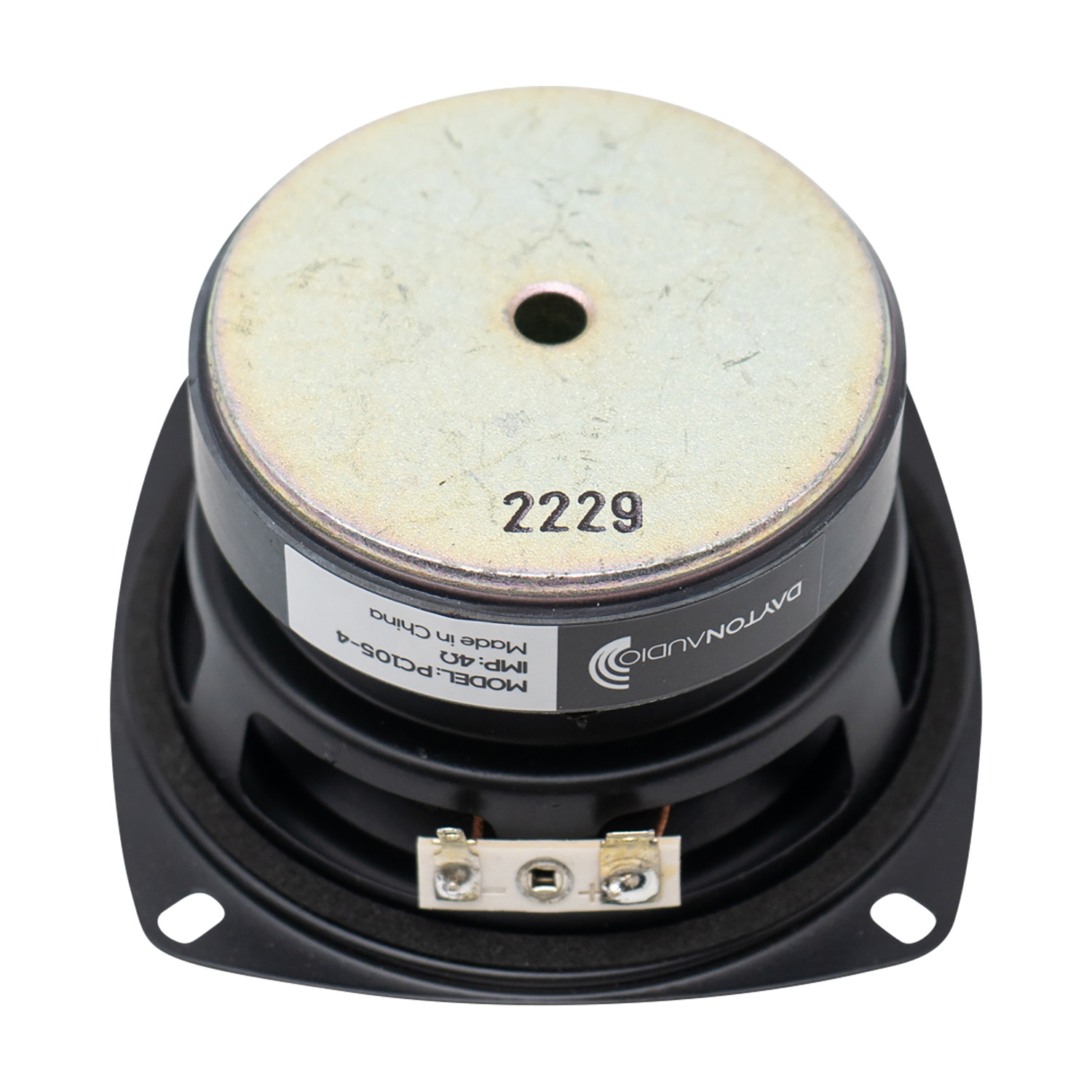

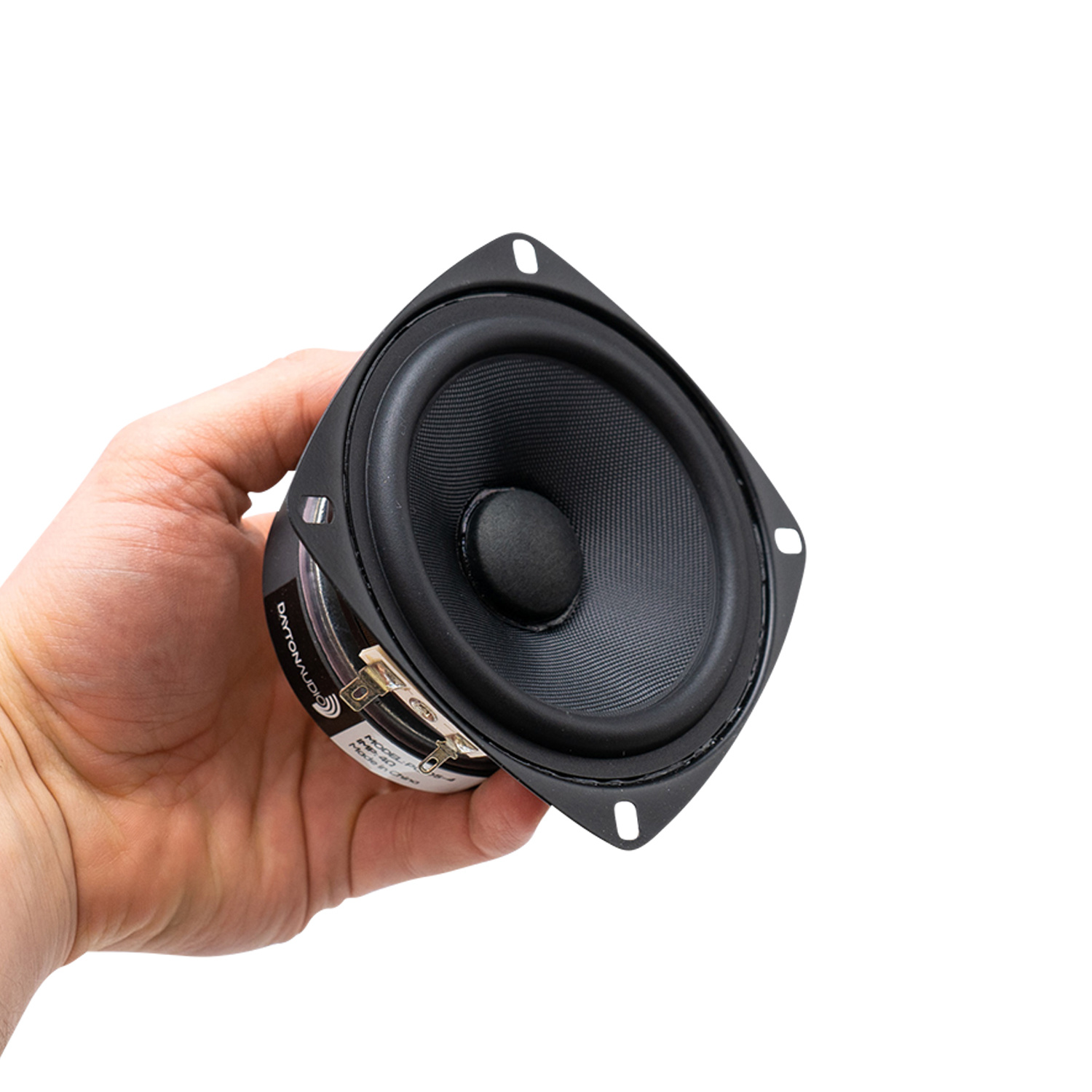

        Dayton Audio PC105-4 4" Full-Range Poly Cone Driver

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 16,49€ 19,95 6 In stock10+ expected on 19-04-2024
        • -5% Purchase 4 for only € 18,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Dayton Audio's PC105-4 4" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excellent value.



        Highlights

        • Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-off
        • Copper cap keeps inductance under control and extends high frequency response
        • 25,4mm vented aluminum voice coil former and vented pole piece for high power handling
        • High energy ferrite magnet increases BL for higher efficiency and more output
        • Smooth response with true full-range reproduction for simple speaker designs



        Product details

        Dayton Audio PC105-4 4" Full-Range Poly Cone Driver

        The Dayton Audio PC105-4 101,6mm full-range driver features a poly damped woven glass fiber cone, damped rubber surround, and high energy motor. Thanks to the vented pole piece and vented aluminum voice coil former the PC105-4 can handle up to 40 watts RMS for surprising output capability with minimal power compression. The addition of a copper cap on the extended pole improves cone control, lowers inductance, and decreases distortion allowing for improved high frequency response. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio systems, the Dayton Audio PC105-4 will deliver high fidelity and low distortion from compact applications.

        Show more

        Specifications

        Article number
        PC105-4
        Woofer Type
        Full-Range
        Nominal Diameter
        4"
        Power Handling (RMS)
        40 Watts
        Power Handling (max)
        80 Watts
        Impedance (Z)
        Sensitivity (SPL at 1m / 2.83V)
        90.3 dB
        Frequency Response
        80 to 15,000Hz
        Voice Coil Diameter
        1"
        DC Resistance (Re)
        3.3Ω
        Voice Coil Inductance (Le)
        0.32mH
        Resonant Frequency (Fs)
        81.4 Hz
        Mechanical Q (Qms)
        2.17
        Electromagnetic Q (Qes)
        0.67
        Total Q (Qts)
        0.51
        Diaphragm Mass Inc. Airload (Mms)
        4.2g
        Mechanical Compliance of Suspension (Cms)
        0.92mm/N
        Surface Area of Cone (Sd)
        52.8cm²
        BL Product (BL)
        3.3T·m
        Compliance Equivalent Volume (Vas)
        0.13ft³
        Maximum Linear Excursion (Xmax)
        2 mm
        Cone / Diaphragm Material
        Poly Composite
        Surround Material
        Rubber
        Voice Coil Wire Material
        CCA
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        4.96"
        Overall Depth
        2.36"
        Baffle Cutout Diameter
        4.00"
        # Mounting Holes
        4
        Sealed Volume
        0.07ft³
        Sealed F3
        136Hz
        Vented Volume
        0.15ft³
        Vented F3
        80Hz

        Show more
