Dayton Audio PA380-8 15" Pro Woofer

Name: Dayton Audio PA380-8 15" Pro Woofer
Brand: Dayton Audio
SKU: PA380-8
Price: 177.45 EUR
Availability: InStock
Rating: 5 (3 reviews)

3 reviews

Brand: Dayton Audio

Show all Woofer

Compare

15" | 8 Ω

€ 146,65€ 177,45 6 In stock

24h express shipping available
Same day shipping
In-house technical support
45-day cooling-off period to return

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems.

Highlights

Strong, low-mass carbon fiber impregnated paper cone
I-beam rolled edge 1.5 mm steel frame
Low distortion motor system w/copper cap
Powerful 80 oz. ceramic ferrite magnet
Vented pole piece/vented voice coil gap improve thermal management
Black motor parts and black polyimide voice coil former dissipate heat
Bumped back plate for unrestricted excursion

Product details

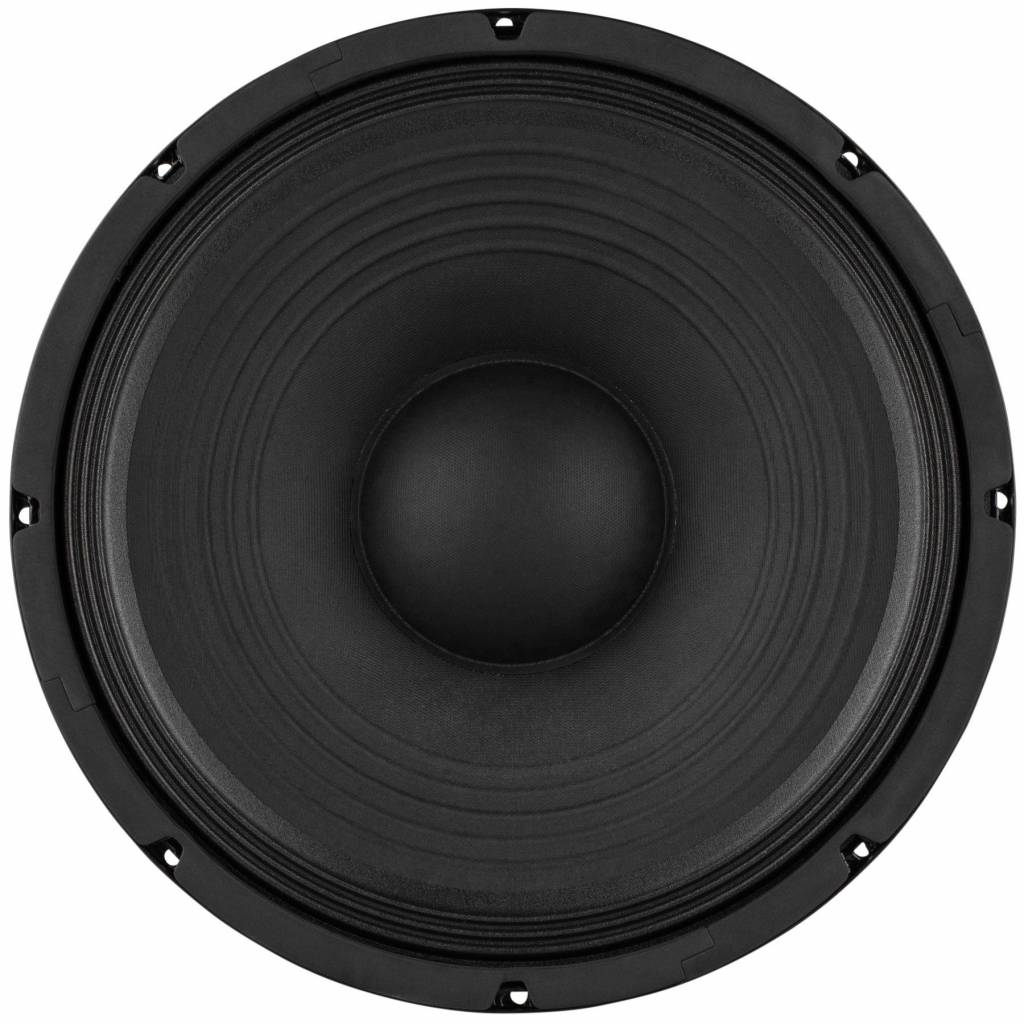

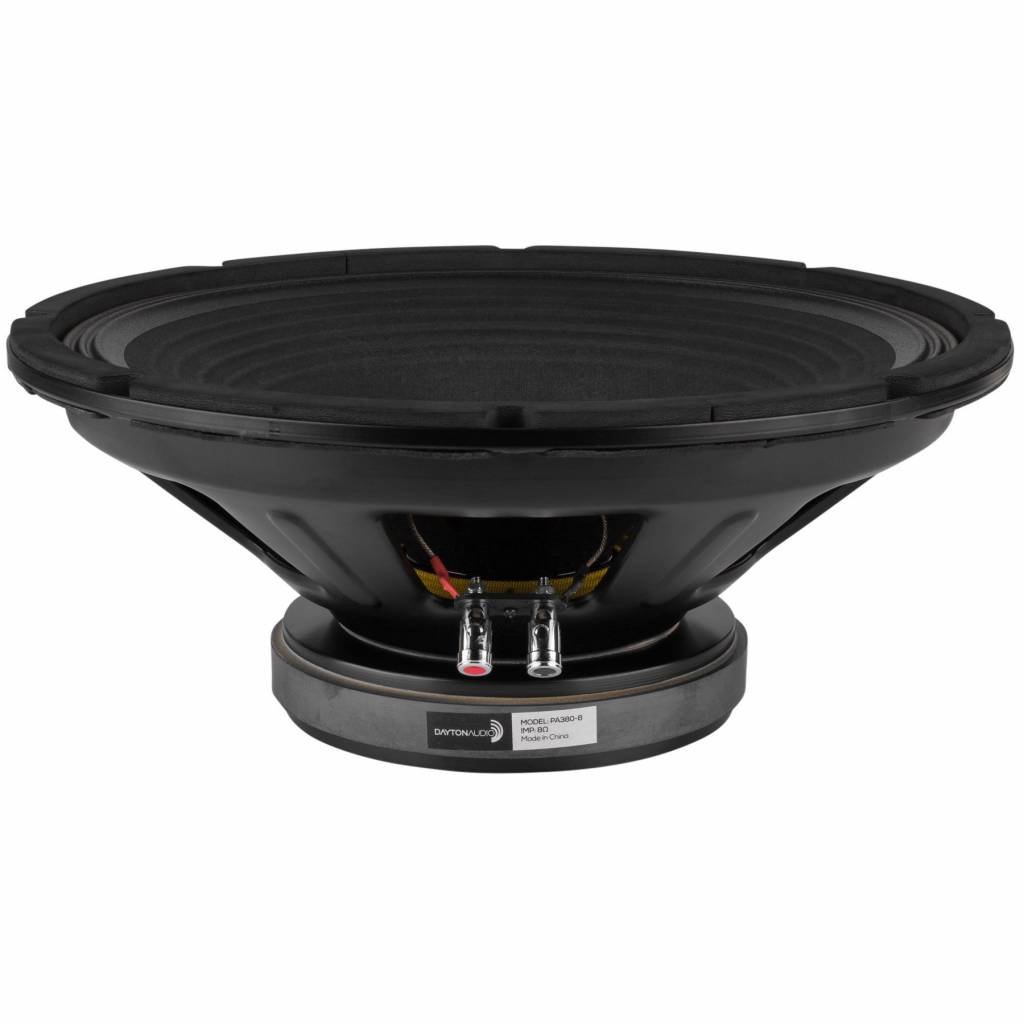

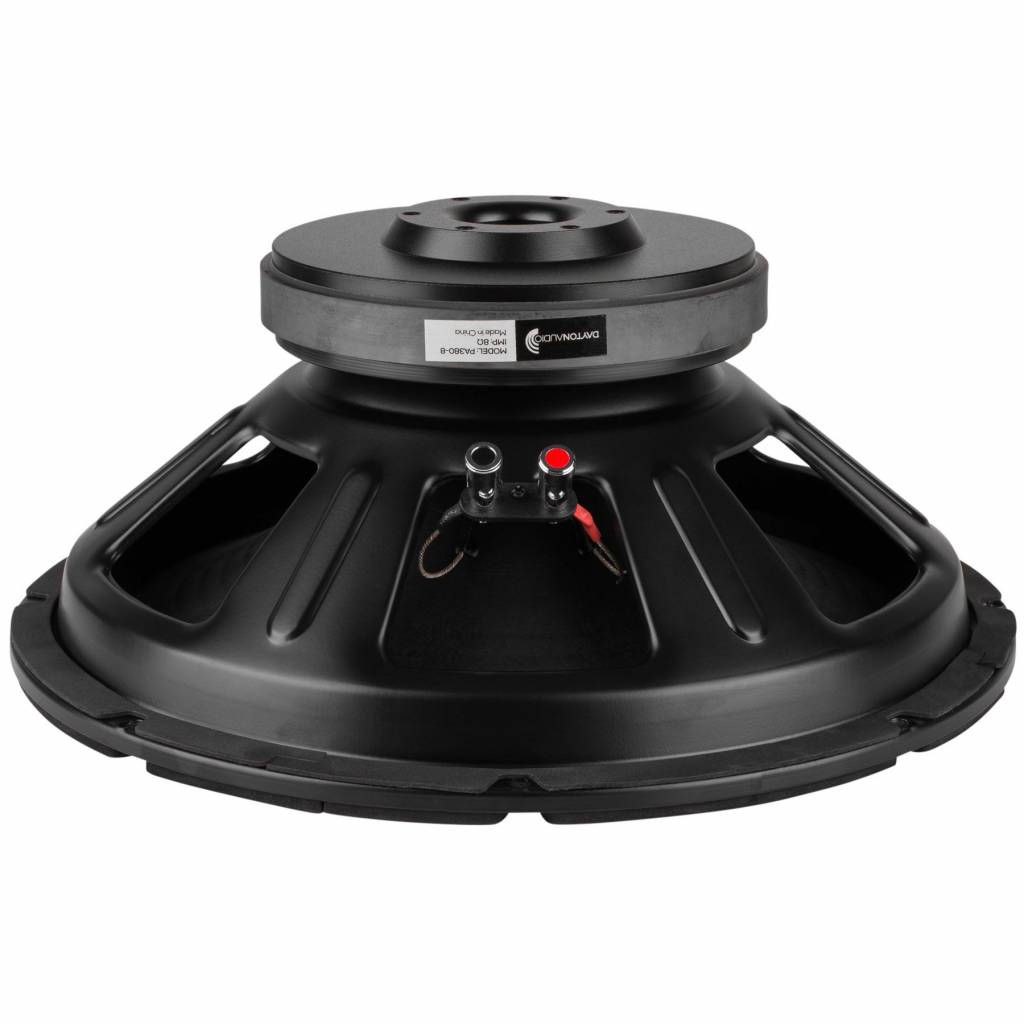

Dayton Audio PA380-8 15" Pro Woofer

The Dayton Audio PA380-8 15" PA Series Pro Woofer is a powerful upgrade for guitar, bass guitar or sound reinforcement cabinets. The PA380-8 also excels in custom-built speaker system cabinets. High power handling, smooth response, low distortion, deep punchy bass, and rugged reliability are the features that set PA Series woofers apart from other drivers – premium performance, but value priced.

Specifications

Article number: PA380-8
Woofer Series: Pro Audio Series
Woofer Type: Midwoofer
Nominal Diameter: 15"
Power Handling (RMS): 500 watts
Power Handling (max): 1000 watts
Impedance (Z): 8 ohms
Sensitivity: 96.1 dB @ 2.83V/1m
Frequency Response: 28 - 3,500 Hz
Voice Coil Diameter: 76 mm
Magnet Weight: 80 oz.
DC Resistance (Re): 6.3 ohms
Voice Coil Inductance (Le): 4.12 mH @ 1 kHz
Resonant Frequency (Fs): 31.6 Hz
Mechanical Q (Qms): 12.20
Electromagnetic Q (Qes): 0.27
Total Q (Qts): 0.27
Diaphragm Mass Inc. Airload (Mms): 147g
Mechanical Compliance of Suspension (Cms): 0.17 mm/N
Surface Area of Cone (Sd): 845.0 cm²
Volume of Displacement (Vd): 422.5 cm³
BL Product (BL): 25.8 Tm
Compliance Equivalent Volume (Vas): 175 liters
Maximum Linear Excursion (Xmax): 5.0 mm
Cone / Diaphragm Material: Paper / Carbon Fiber Cone
Surround Material: Cloth
Voice Coil Wire Material: Copper
Voice Coil Former: Kapton® / Polyimide
Basket / Frame Material: Steel
Magnet Material: Ferrite
Overall Outside Diameter: 380 mm
Overall Depth: 163 mm
Baffle Cutout Diameter: 355 mm
# Mounting Holes: 8
Sealed Volume: 0.7 ft.³
Sealed F3: 101 Hz
Vented Volume: 1.55 ft.³
Vented F3: 65 Hz

Reviews

3 reviews

5 from 5Based on 3 reviews

Review this product

5 of 5

Great speaker for the price. Bought two of them to replace the speakers on an old pair I have and i am quite satisfied with the result. Really powerful sound.

By Erik Tsentovskiy on 2 January 2021

5 of 5

Doet wat iet moet doen heb deze in een zelfbouw system als mids en ik kan niet klagen

By Peeters M. on 7 November 2018
