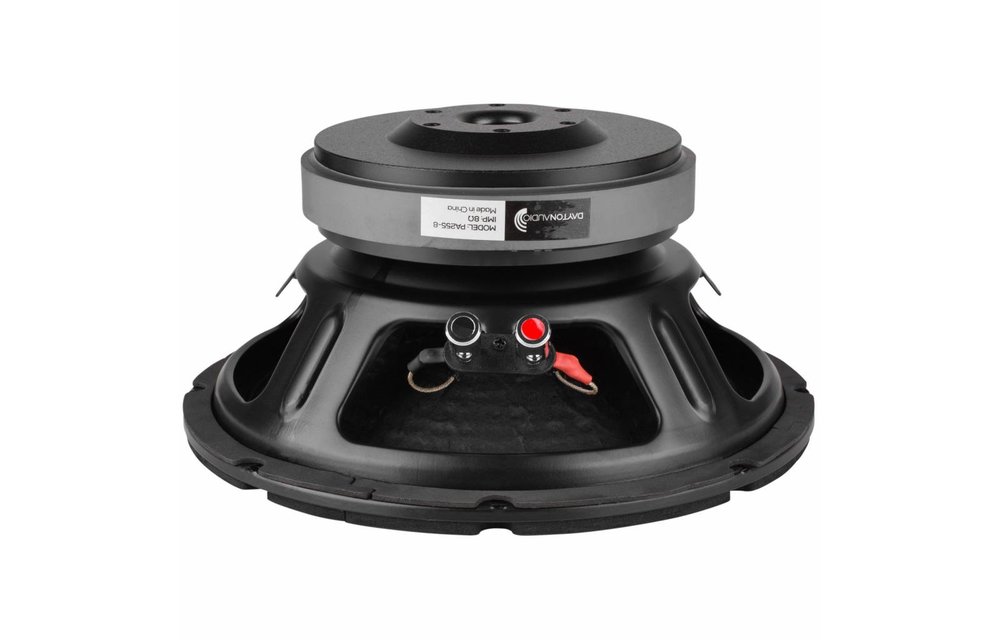

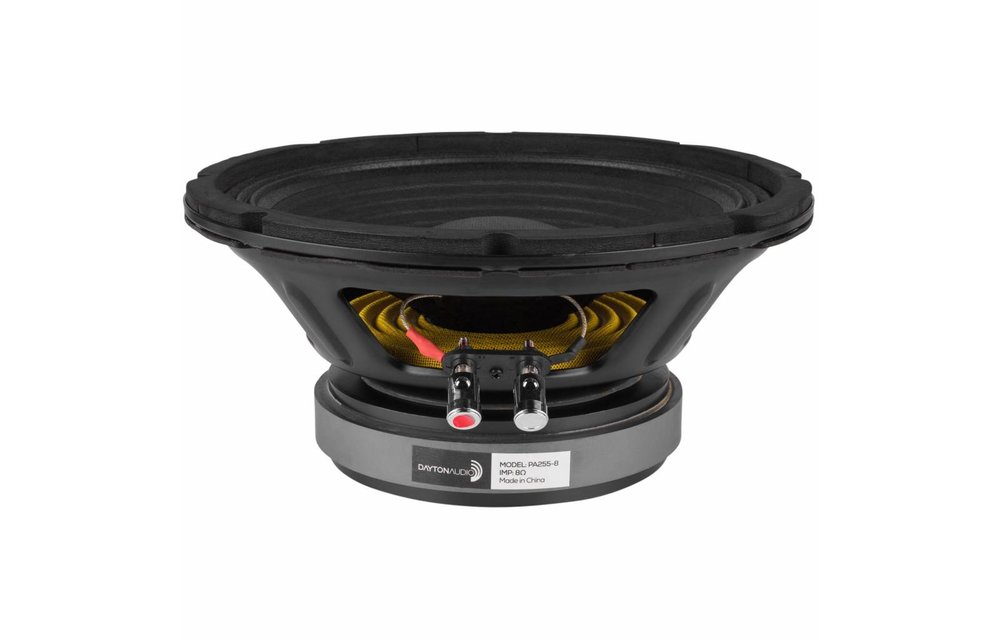

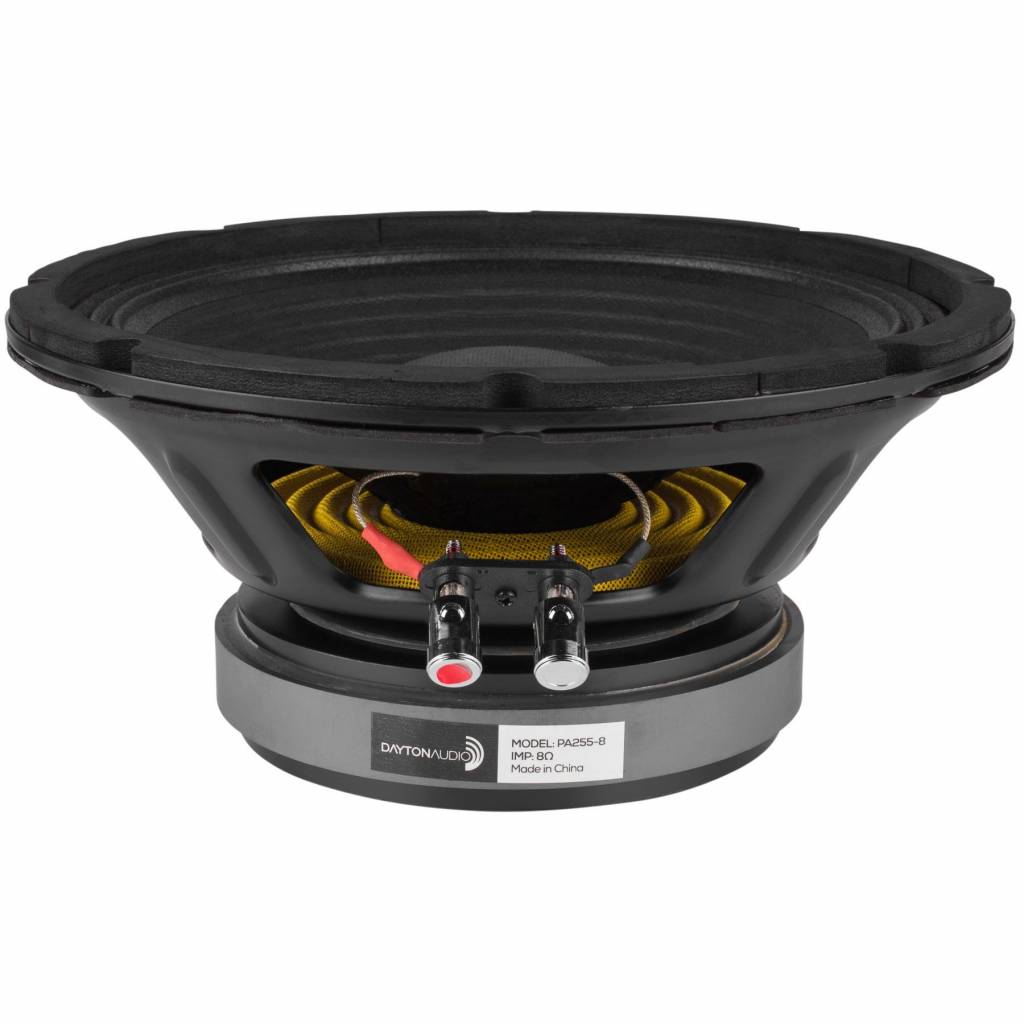

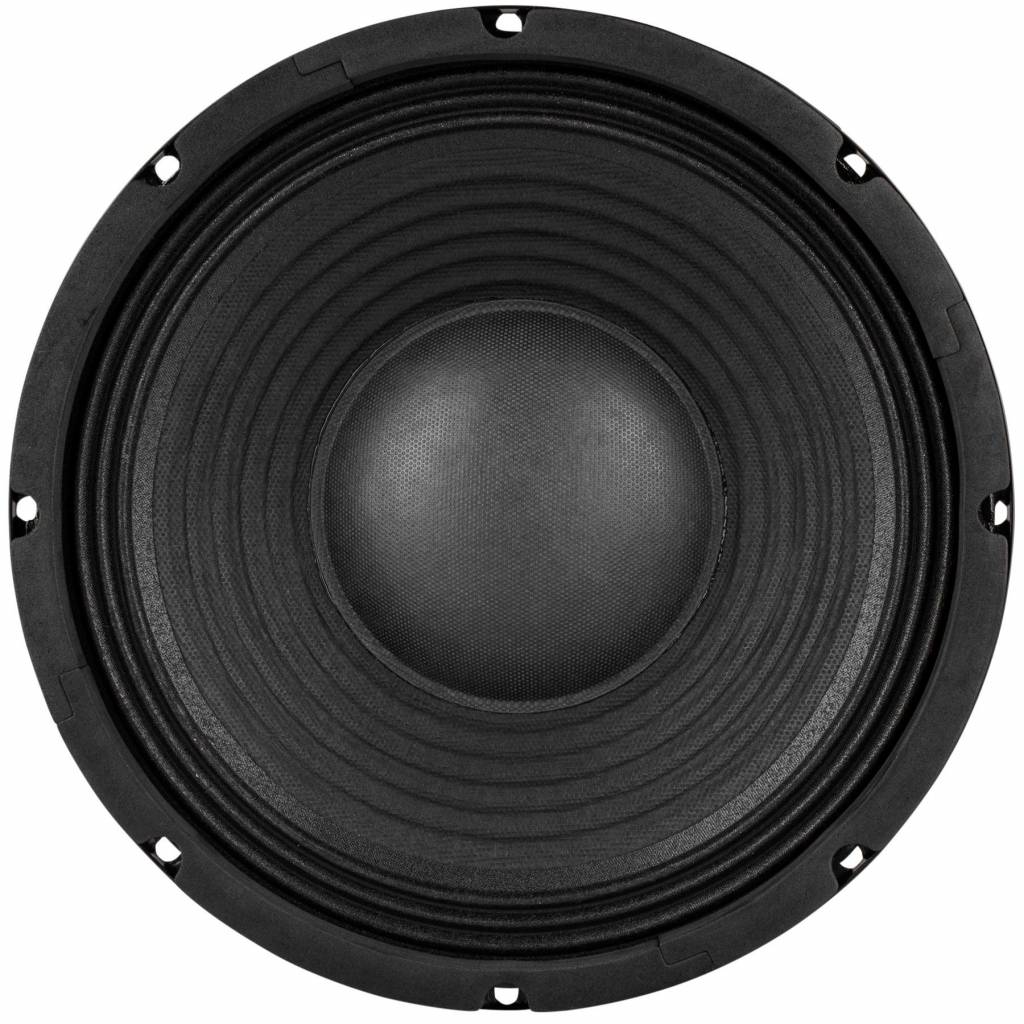

Dayton Audio PA255-8 10" Pro Woofer

Name: Dayton Audio PA255-8 10" Pro Woofer
Brand: Dayton Audio
SKU: PA255-8
Price: 83.95 EUR
Availability: InStock
Rating: 4.5 (2 reviews)

2 reviews

Brand: Dayton Audio

Show all Bass-mid woofer

Compare

10" | 8 Ω

€ 69,38€ 83,95 4 In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems.

Highlights

Strong, low-mass carbon fiber impregnated paper cone
I-beam rolled edge 1.2 mm steel frame
Low distortion motor system w/copper cap
Powerful 50 oz. ceramic ferrite magnet
Vented pole piece/vented voice coil gap improve thermal management
Black motor parts and black polyimide voice coil former dissipate heat
Bumped back plate for unrestricted excursion

Product details

Dayton Audio PA255-8 10" Pro Woofer

Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems. High power handling, smooth response, low distortion, deep punchy bass, and rugged reliability are the features that set PA Series woofers apart from other drivers – premium performance, but value priced.

Specifications

Article number: PA255-8
Woofer Series: Pro Audio Series
Woofer Type: Midwoofer
Nominal Diameter: 10"
Power Handling (RMS): 300 watts
Power Handling (max): 600 watts
Impedance (Z): 8 ohms
Sensitivity: 92.6 dB @ 2.83V/1m
Frequency Response: 46 - 3,500 Hz
Voice Coil Diameter: 51 mm
Magnet Weight: 50 oz
DC Resistance (Re): 5.5 ohms
Voice Coil Inductance (Le): 1.49 mH
Resonant Frequency (Fs): 50.5 Hz
Mechanical Q (Qms): 8.49
Electromagnetic Q (Qes): 0.66
Total Q (Qts): 0.61
Diaphragm Mass Inc. Airload (Mms): 42.3g
Mechanical Compliance of Suspension (Cms): 0.24 mm/N
Surface Area of Cone (Sd): 346.4 cm²
Volume of Displacement (Vd): 173.2 cm³
BL Product (BL): 10.6 Tm
Compliance Equivalent Volume (Vas): 41.2 liters
Maximum Linear Excursion (Xmax): 5 mm
Cone / Diaphragm Material: Paper / Carbon Fiber Cone
Surround Material: Cloth
Voice Coil Wire Material: Copper
Voice Coil Former: Kapton® / Polyimide
Basket / Frame Material: Steel
Magnet Material: Ferrite
Overall Outside Diameter: 254 mm
Overall Depth: 125 mm
Baffle Cutout Diameter: 232 mm
# Mounting Holes: 8
Sealed Volume: 0.89 ft.³
Sealed F3: 83 Hz
Vented Volume: 2.94 ft.³
Vented F3: 42 Hz

Data sheet

Reviews

2 reviews

5 from 5Based on 2 reviews

Review this product

4 of 5

Used it in my restoration of the JBL L26 Decade; it fit almost perfectly, I just had to enlarge the cabinet hole slightly with sandpaper (in spite of the measurements in the datasheet). It sounds terrific! It's very efficient, the bass is great in a ported enclosure (could get down to about 45Hz, 42 from the port), and the midrange is really punchy but not too warm. It also includes the gasketing material already installed. Highly recommended!

By Leonardo C. on 15 April 2020

5 of 5

It's a good woofer , it 's a good for bass

By yassine s. on 26 November 2019
