- Article number

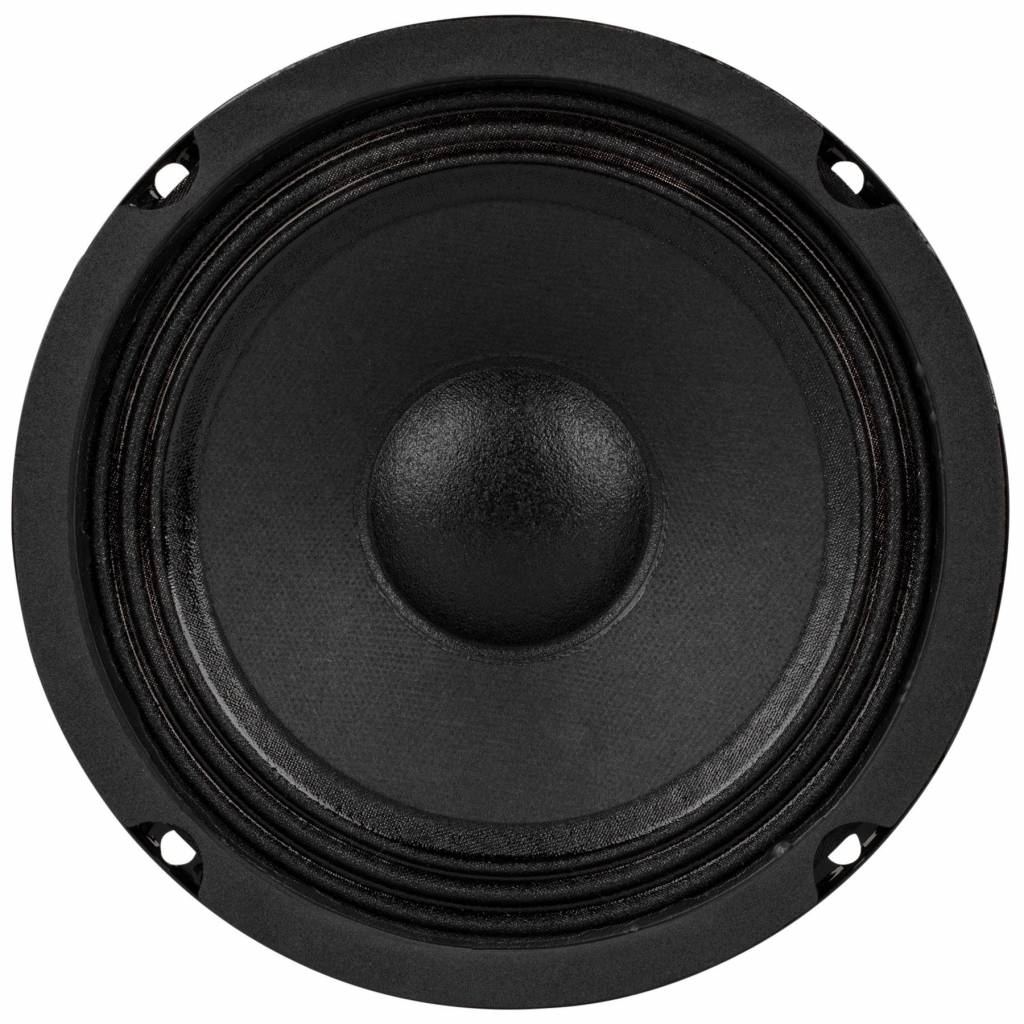

- PA165-8
- Woofer Series
- Pro Audio Series
- Woofer Type
- Midwoofer
- Nominal Diameter
- 6"
- Power Handling (RMS)
- 75 watts
- Power Handling (max)
- 150 watts
- Impedance
- 8 ohms
- Sensitivity
- 92.9 dB @ 2.83V/1m
- Frequency Response
- 80 - 5,000 Hz
- Voice Coil Diameter
- 35 mm
- DC Resistance (Re)
- 5.15 ohms
- Voice Coil Inductance (Le)
- 0.54 mH @ 1 kHz
- Resonant Frequency (Fs)
- 80.8 Hz
- Mechanical Q (Qms)
- 2.19
- Electromagnetic Q (Qes)
- 0.60
- Total Q (Qts)
- 0.47
- Diaphragm Mass Inc. Airload (Mms)
- 9.2g
- Mechanical Compliance of Suspension (Cms)
- 0.42 mm/N
- Surface Area of Cone (Sd)
- 120.8 cm²
- BL Product (BL)
- 6.33 Tm
- Compliance Equivalent Volume (Vas)
- 9.2 liters
- Maximum Linear Excursion (Xmax)
- 0 mm
- Cone / Diaphragm Material
- Paper Cone
- Surround Material
- Cloth
- Voice Coil Wire Material
- Copper
- Voice Coil Former
- Aluminum
- Basket / Frame Material
- Steel
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 165 mm
- Overall Depth
- 75.2 mm
- Baffle Cutout Diameter
- 144.6 mm
- # Mounting Holes
- 4
- Sealed Volume
- 0.17 ft.³
- Sealed F3
- 139 Hz
- Vented Volume
- 0.5 ft.³
- Vented F3
- 68 Hz
