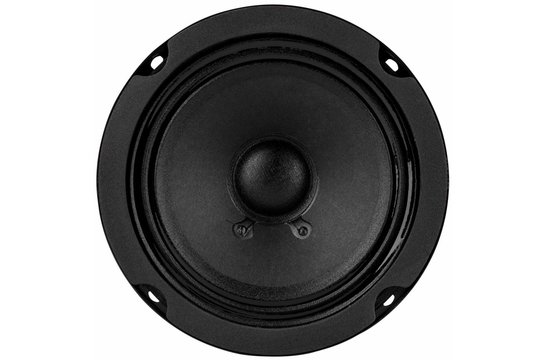

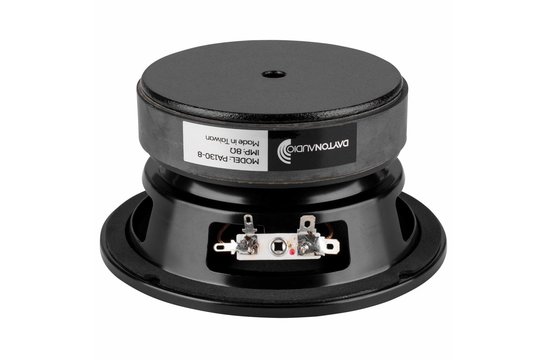

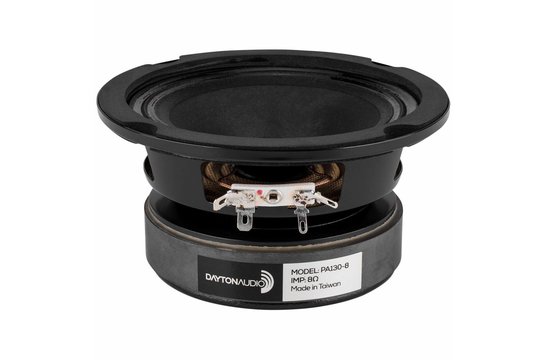

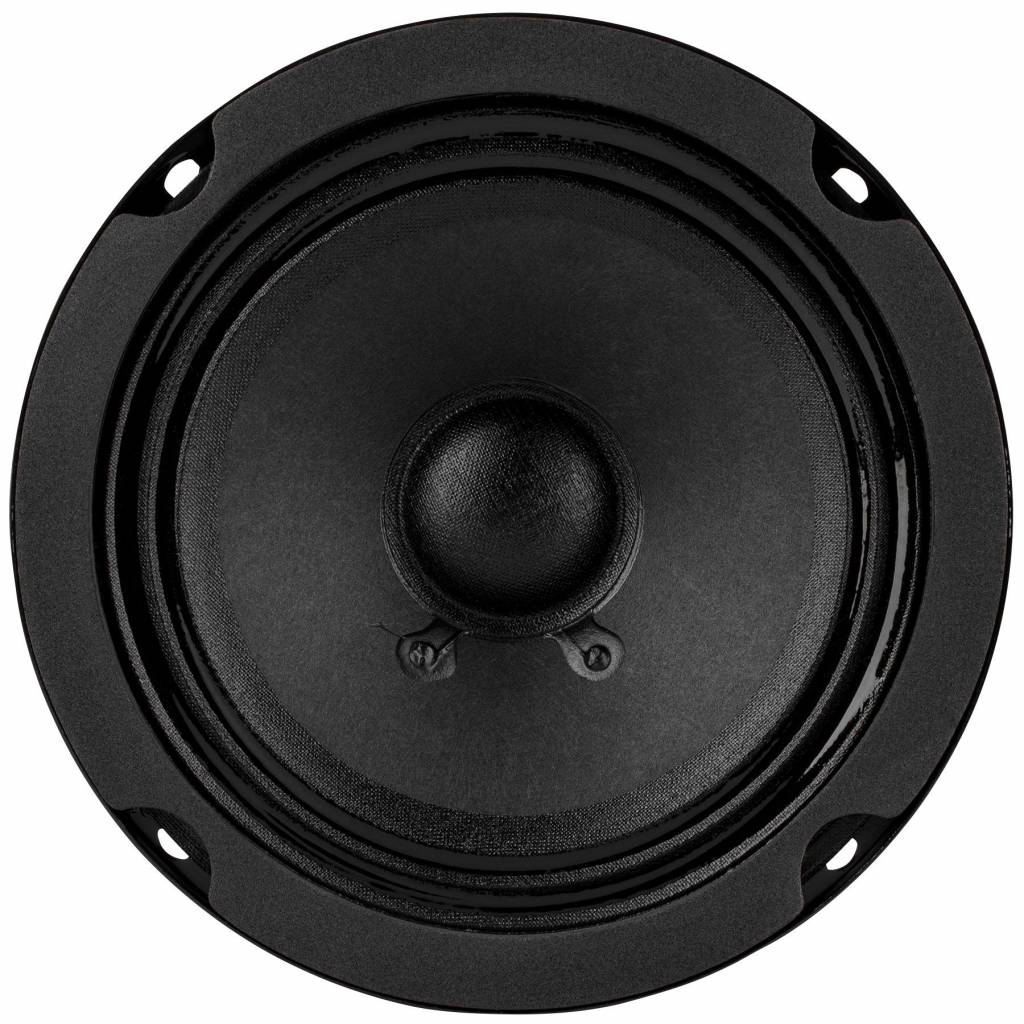

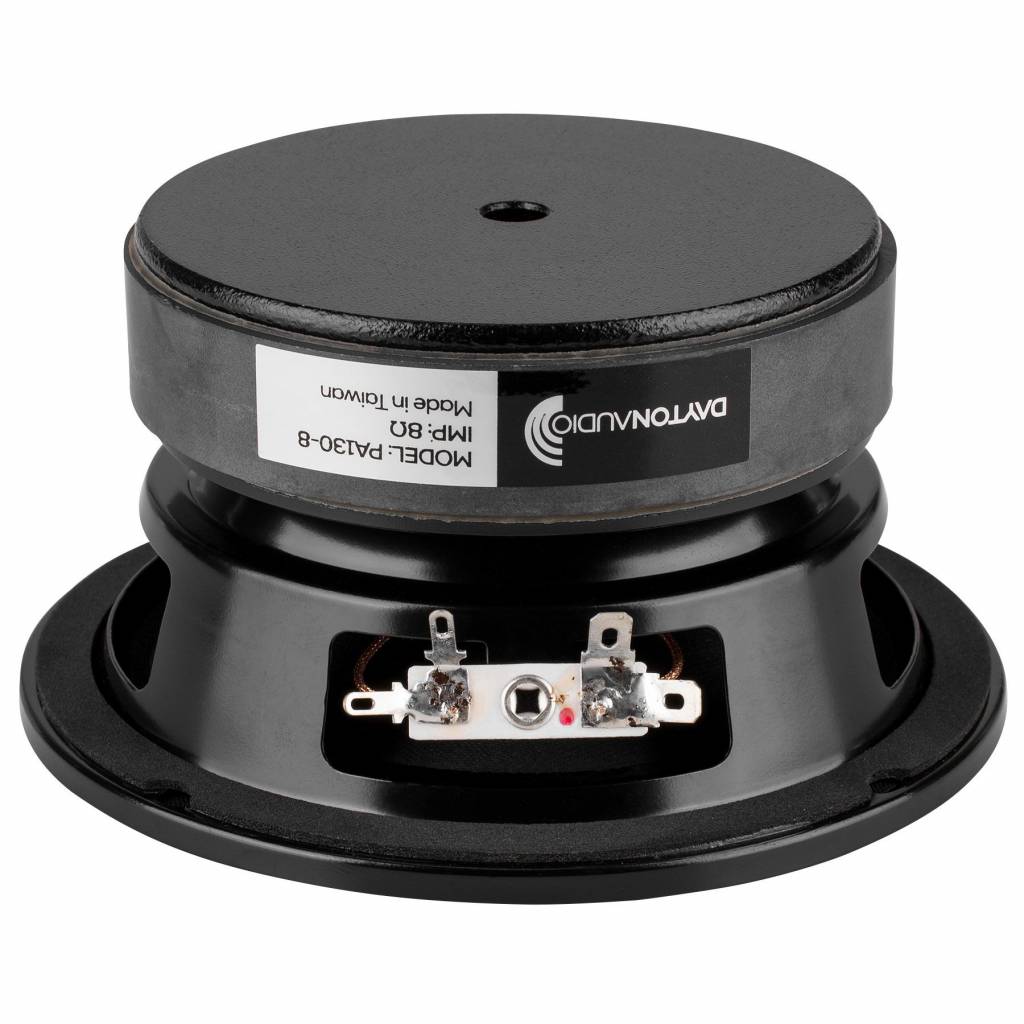

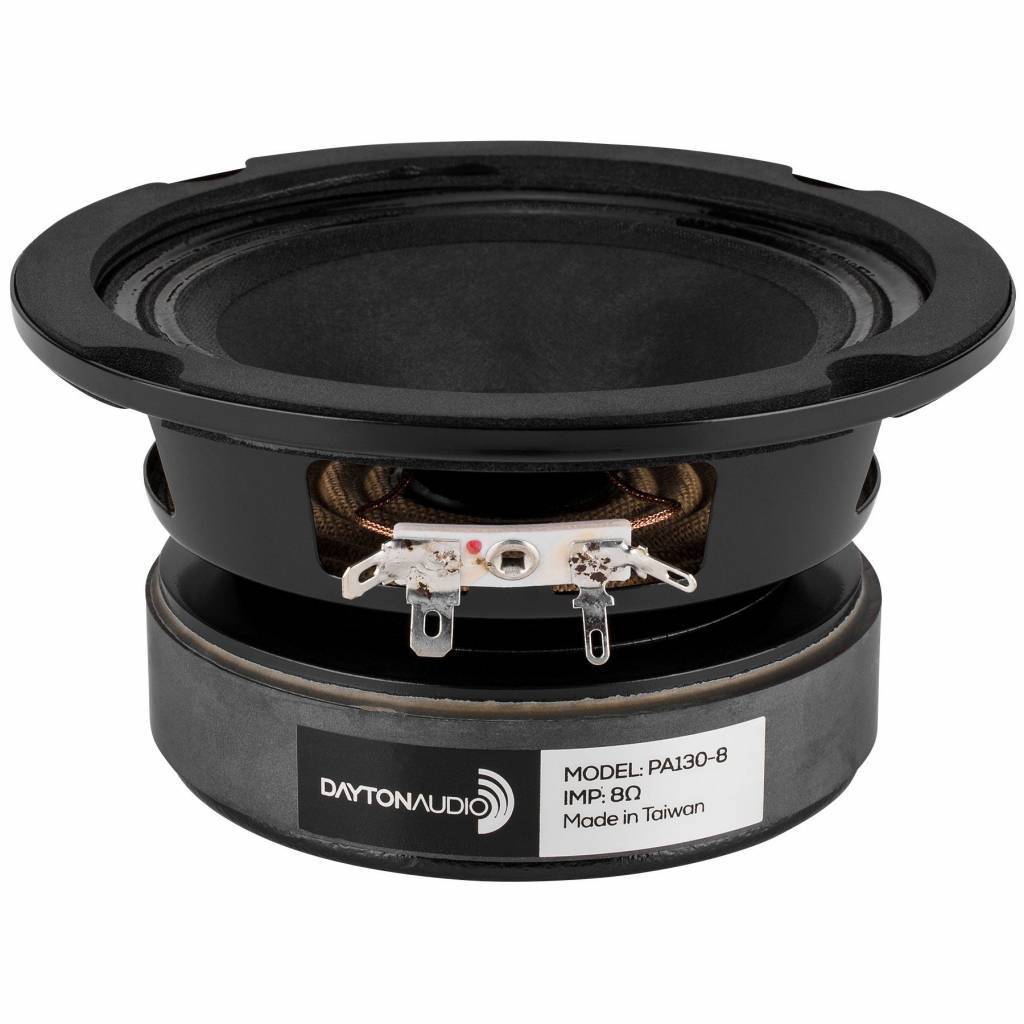

Dayton Audio PA130-8 5" Full Range PA Driver

4 reviews

Brand: Dayton Audio

Show all Audio components

Compare

5" | 8 Ω

€ 20,62€ 24,95 >10 In stock: delivery time 1-4 business days

Shipping always fully insured and with track & trace
Low international shipping rates
Same day shipping*
In-house technical support

Product description

Highlights

Great low-cost driver designed for use in small stage monitors
Broad frequency coverage and flat midrange ensure that vocals and instruments sound perfect
Rugged construction

Product details

Dayton Audio PA130-8 5" Full Range PA Driver

A great low-cost driver designed for use in small stage monitors, either as a replacement driver or for new construction. The broad frequency coverage and flat midrange ensure that vocals and instruments will sound just like they should. Rugged construction includes a steel frame, paper cone, treated cloth surround, vented pole piece and a large 20 oz. magnet.

Specifications

Article number: PA130-8
Woofer Series: Pro Audio Series
Woofer Type: Full-Range
Nominal Diameter: 5"
Power Handling (RMS): 50 watts
Power Handling (max): 100 watts
Impedance (Z): 8 ohms
Sensitivity: 88.2 dB @ 2.83V/1m
Frequency Response: 90 - 15,000 Hz
Voice Coil Diameter: 25 mm
Magnet Weight: 20 oz.
DC Resistance (Re): 7.1 ohms
Voice Coil Inductance (Le): 0.71 mH @ 1 kHz
Resonant Frequency (Fs): 83.4 Hz
Mechanical Q (Qms): 3.21
Electromagnetic Q (Qes): 0.60
Total Q (Qts): 0.51
Diaphragm Mass Inc. Airload (Mms): 6.8g
Mechanical Compliance of Suspension (Cms): 0.54 mm/N
Surface Area of Cone (Sd): 73.9 cm²
Volume of Displacement (Vd): 14.8 cm³
BL Product (BL): 6.44 Tm
Compliance Equivalent Volume (Vas): 3.95 liters
Maximum Linear Excursion (Xmax): 2.0 mm
Cone / Diaphragm Material: Paper Cone
Surround Material: Cloth
Voice Coil Wire Material: Copper
Voice Coil Former: Aluminum
Basket / Frame Material: Steel
Magnet Material: Ferrite
Overall Outside Diameter: 132 mm
Overall Depth: 67.5 mm
Baffle Cutout Diameter: 112 mm
# Mounting Holes: 4
Sealed Volume: 0.07 ft.³
Sealed F3: 161 Hz
Vented Volume: 0.24 ft.³
Vented F3: 80 Hz

Data sheet

Reviews

4 reviews

4 from 5Based on 4 reviews

Review this product

4 van 5

Koper heeft geen omschrijving achtergelaten.

By Arnd C. on 18 June 2020

5 van 5

Met deze driver een Auratone clone gemaakt voor gebruik in de studio. Gesloten behuizing van 18mm berkenplex met buitenmaat 196 x 196 196 en volledig gevuld met wol, zeer tevreden met het resultaat! Het middengebied wordt tussen 1Khz en 8Khz geboost waardoor in dat gebied de kritische puntjes niet verborgen blijven.

By Nick S. on 20 May 2019
