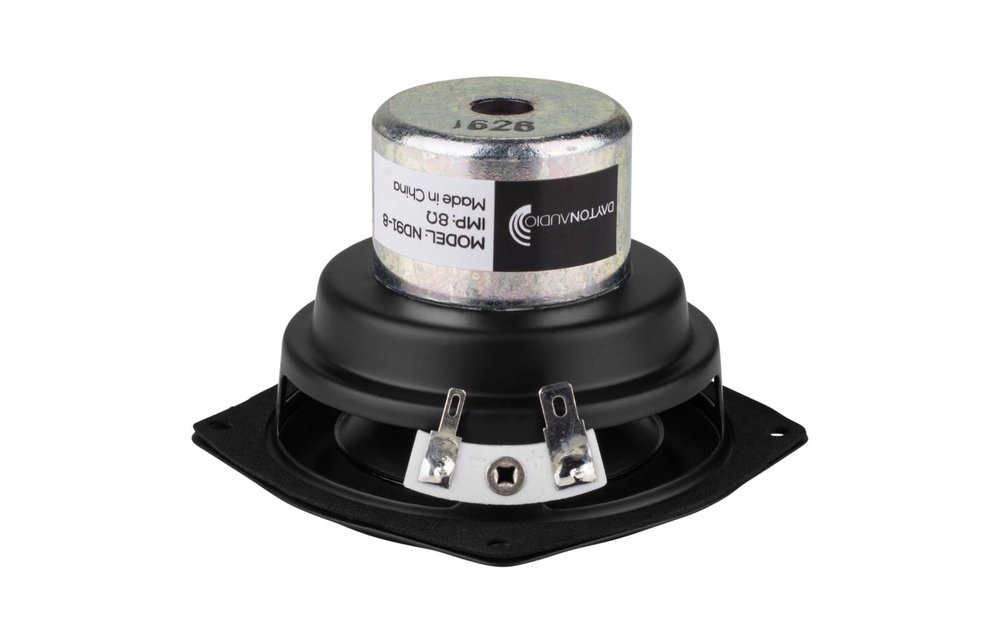

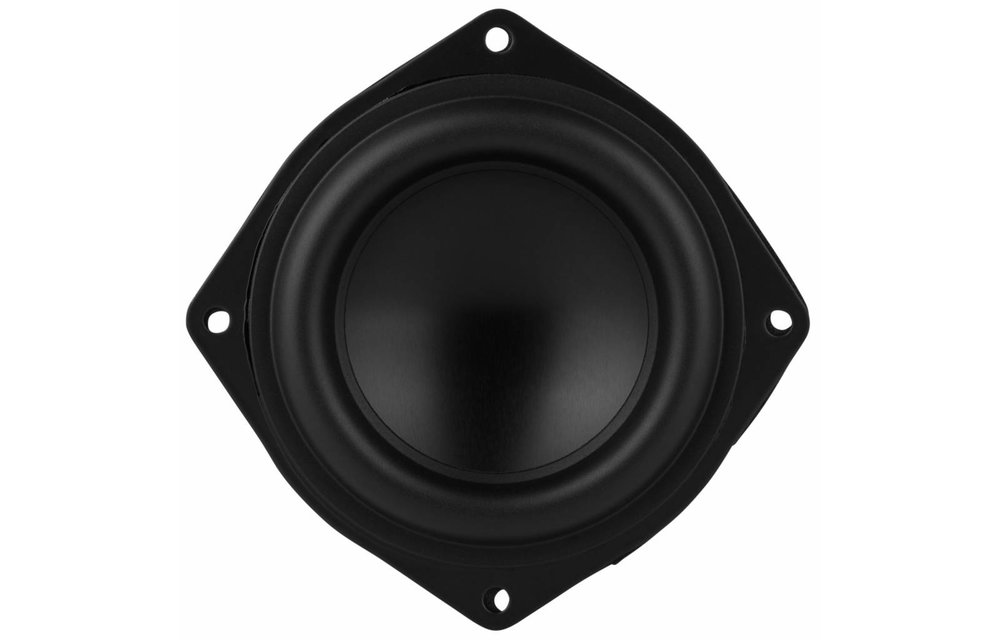

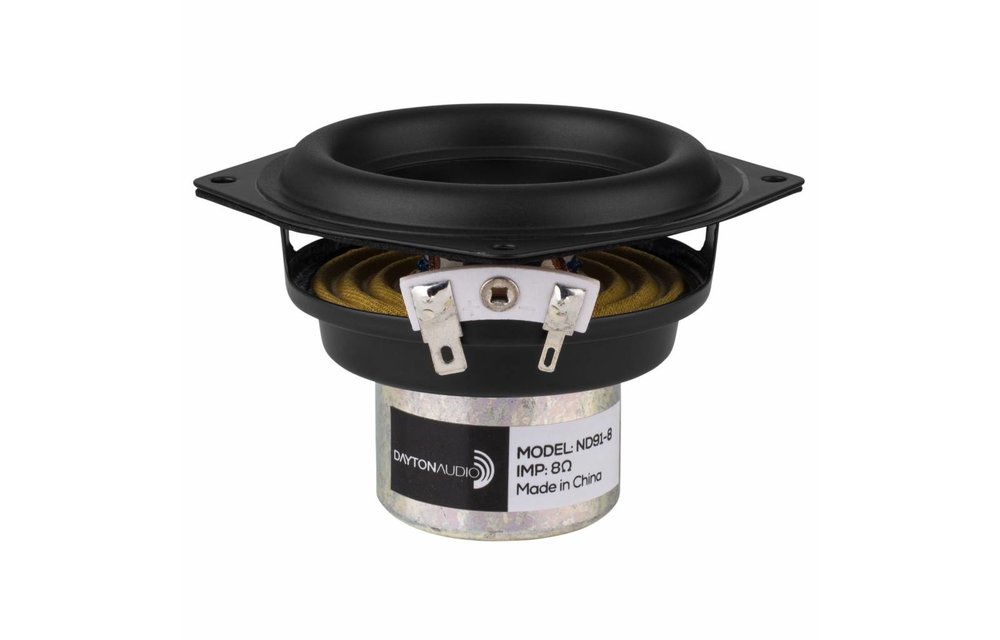

      Dayton Audio ND91-8 3-1/2" Aluminum Cone Full-Range Driver 8 Ohm

      € 28,88€ 34,95 >10 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €33,20 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The Dayton Audio ND91-8 3-1/2" Neo-Balanced driver balances low distortion, extended range, and surprising bass impact. Its sophisticated motor design provides the underhung 1" voice coil with extended linear travel within the magnetic field.



      Highlights

      • Low distortion, full-range 65 Hz to 17 kHz performance
      • Rubber-edged black anodized aluminum alloy cone
      • Large excursion capability—5.1 mm Xmax, 25 mm peak
      • Self-shielded Neo-Balanced motor structure with copper alloy shorting ring
      • 1" 4-layer underhung voice coil with polyimide former
      • 30 watts RMS power handling
      • Great for line arrays and micro monitors



      Product details

      Dayton Audio ND91-8 3-1/2" Aluminum Cone Full-Range Driver 8 Ohm



      Dayton Audio's ND91 aluminum cone full-range drivers are the latest addition to the acclaimed ND Series high output/low distortion neodymium transducers. By increasing the original ND90's voice coil diameter from 3/4" to 1" and adding a copper alloy shorting ring, the ND91-8 features even lower distortion and delivers better bass impact and dynamic range—with peak Xmax up to 25 mm!



      This high-BL version further exploits the low distortion characteristics of the Neo-Balanced motor's optimized magnetic field, making the ND91 drivers an excellent choice for full-range point-source speaker enclosures, as well as extremely accurate, high resolution line arrays.



      Specifications

      Article number
      ND91-8
      Woofer Series
      ND Series
      Woofer Type
      Full-Range
      Nominal Diameter
      3.50"
      Power Handling (RMS)
      30 watts
      Power Handling (max)
      60 watts
      Impedance (Z)
      8 ohms
      Sensitivity
      82.1 dB @ 2.83V/1m
      Frequency Response
      70 - 17,000 Hz
      Voice Coil Diameter
      25 mm
      DC Resistance (Re)
      7.8 ohms
      Voice Coil Inductance (Le)
      1.24 mH @ 1 kHz
      Resonant Frequency (Fs)
      70.7 Hz
      Mechanical Q (Qms)
      4.29
      Electromagnetic Q (Qes)
      0.53
      Total Q (Qts)
      0.47
      Diaphragm Mass Inc. Airload (Mms)
      4.8g
      Mechanical Compliance of Suspension (Cms)
      1.05 mm/N
      Surface Area of Cone (Sd)
      30.4 cm²
      Volume of Displacement (Vd)
      12.2 cm³
      BL Product (BL)
      5.63 Tm
      Compliance Equivalent Volume (Vas)
      1.53 liters
      Maximum Linear Excursion (Xmax)
      5.1 mm
      Cone / Diaphragm Material
      Aluminum Cone
      Surround Material
      Rubber
      Voice Coil Wire Material
      Aluminum
      Voice Coil Former
      Kapton® / Polyimide
      Basket / Frame Material
      Steel
      Magnet Material
      Ferrite
      Shielded
      Yes
      Overall Outside Diameter
      103.5 mm
      Overall Depth
      56.4 mm
      Baffle Cutout Diameter
      85 mm
      # Mounting Holes
      4
      Sealed Volume
      0.02 ft.³
      Sealed F3
      139 Hz
      Vented Volume
      0.04 ft.³
      Vented F3
      75 Hz

      Show more

      Reviews

      5 from 5Based on 5 reviews
      Review this product
      5 of 5
      I bought one ND91 driver and I used it in an portable speaker together with 2x DMA105 PR. Taking into account that the calculated enclosure volume is only 2 liter and the driver is built as a full-range, the bass is incredible. Both ND driver series and DMA PR series worth considering in your future projects!
      By Cristian C. on 8 December 2019
      5 of 5
      No description was given
      By NIKOS K. on 11 September 2018
