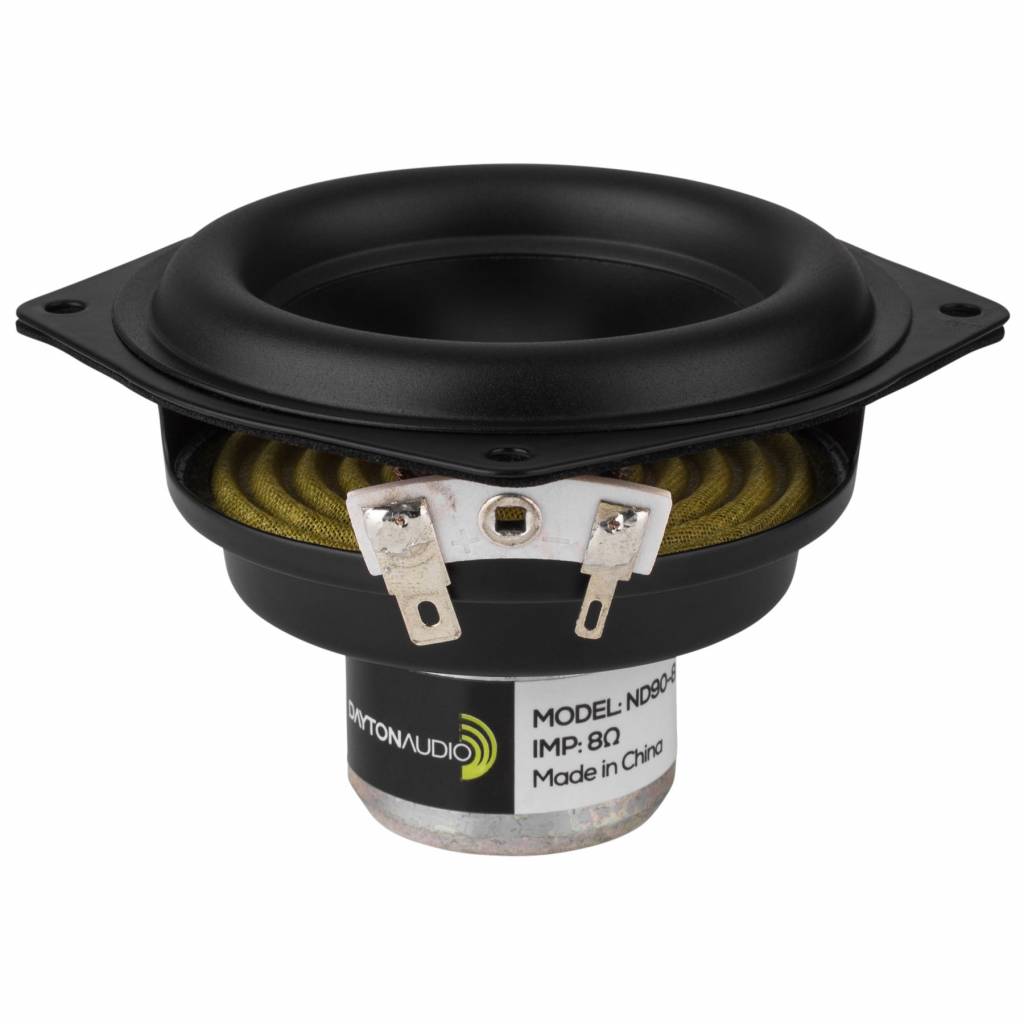

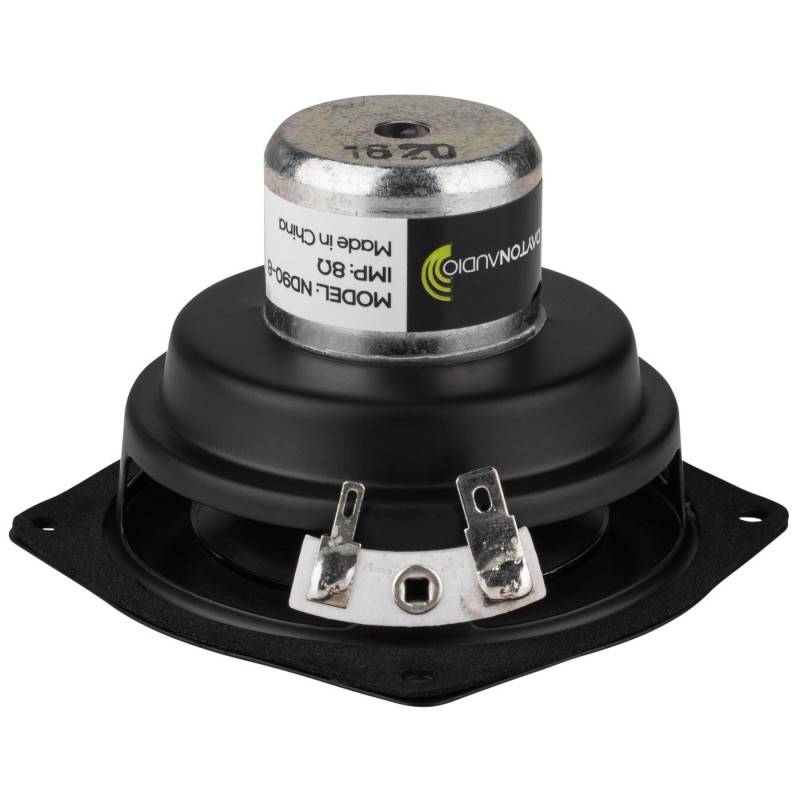

      Dayton Audio ND90-8 3-1/2" Aluminum Cone Full-Range Driver 8 Ohm

      € 25,99€ 31,45 9 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 29,88 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Looking for a small driver that punches above its weight class? This radical high performance full-range transducer exudes an aura of superiority.



      Highlights

      • Direct replacement for Aura NS3

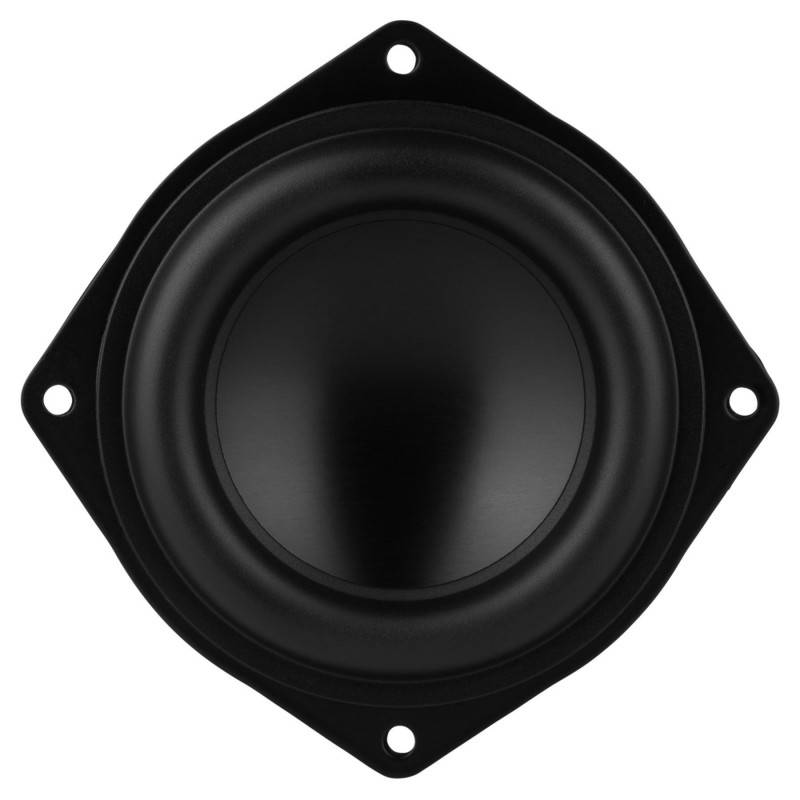

      • Rubber-edged anodized aluminum alloy cone
      • Large excursion capability—4 mm Xmax, 20 mm peak

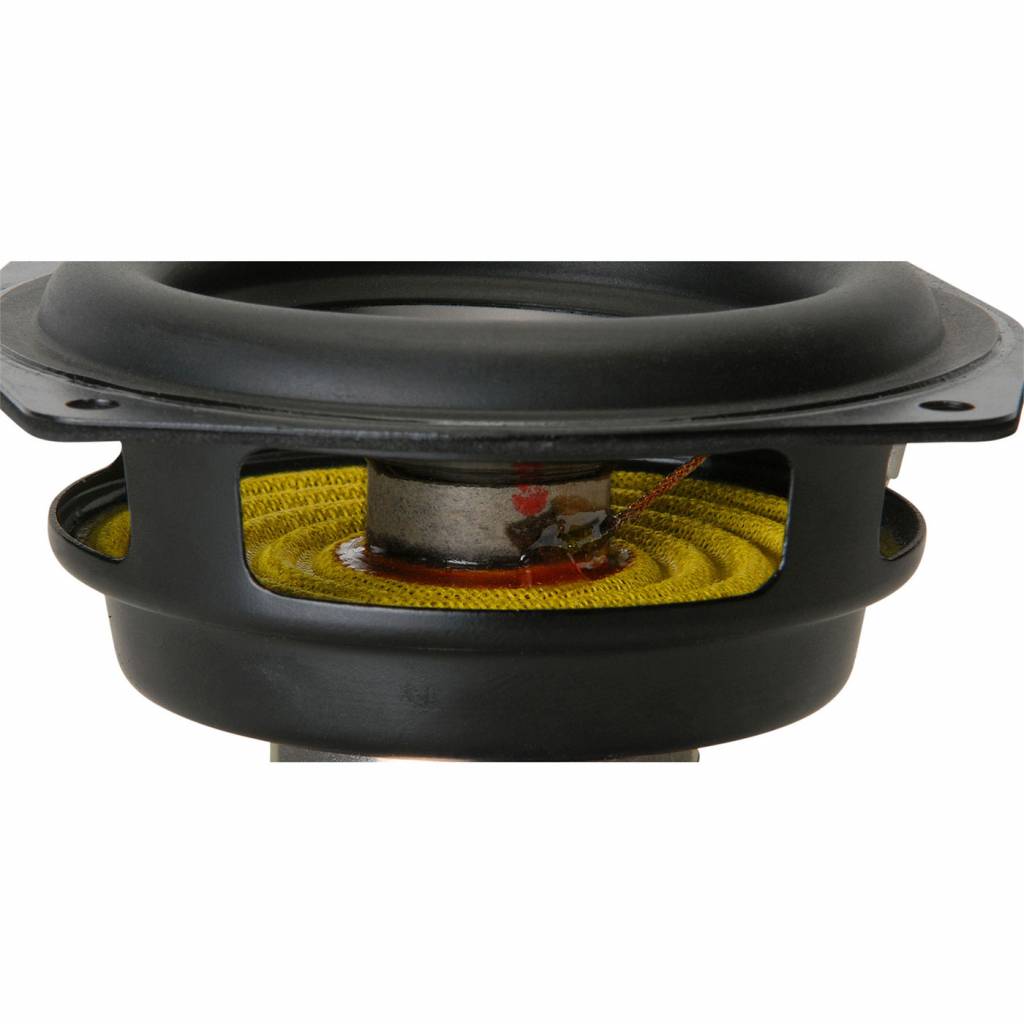

      • Self-shielded Neo-Balanced motor structure
      • Full-range 80 Hz to 15 kHz performance
      • 3/4" 4-layer underhung voice coil with polyimide former
      • 20 watts RMS power handling



      Product details

      Dayton Audio ND90-8 3-1/2" Aluminum Cone Full-Range Driver 8 Ohm



      Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.

      Specifications

      Article number
      ND90-8
      Woofer Series
      ND Series
      Woofer Type
      Full-Range
      Nominal Diameter
      3.50"
      Power Handling (RMS)
      20 watts
      Power Handling (max)
      40 watts
      Impedance (Z)
      8 ohms
      Sensitivity
      81.4 dB @ 2.83V/1m
      Frequency Response
      80 - 15,000 Hz
      Voice Coil Diameter
      19 mm
      DC Resistance (Re)
      7.5 ohms
      Voice Coil Inductance (Le)
      1.08 mH @ 1 kHz
      Resonant Frequency (Fs)
      70.7 Hz
      Mechanical Q (Qms)
      4.71
      Electromagnetic Q (Qes)
      0.75
      Total Q (Qts)
      0.65
      Diaphragm Mass Inc. Airload (Mms)
      4.2g
      Mechanical Compliance of Suspension (Cms)
      1.22 mm/N
      Surface Area of Cone (Sd)
      31.2 cm²
      Volume of Displacement (Vd)
      12.5 cm³
      BL Product (BL)
      4.3 Tm
      Compliance Equivalent Volume (Vas)
      1.77 liters
      Maximum Linear Excursion (Xmax)
      4.0 mm
      Cone / Diaphragm Material
      Black Anodized Aluminum Cone
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      Kapton® / Polyimide
      Basket / Frame Material
      Steel
      Magnet Material
      Neodymium
      Shielded
      Yes
      Overall Outside Diameter
      103.5 mm
      Overall Depth
      60.8 mm
      Baffle Cutout Diameter
      85 mm
      # Mounting Holes
      4
      Sealed Volume
      0.1 ft.³
      Sealed F3
      96 Hz
      Vented Volume
      0.15 ft.³
      Vented F3
      50 Hz
