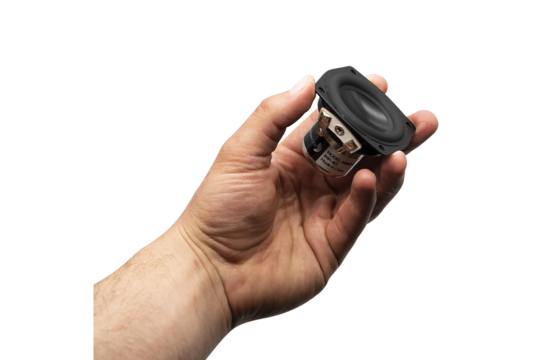

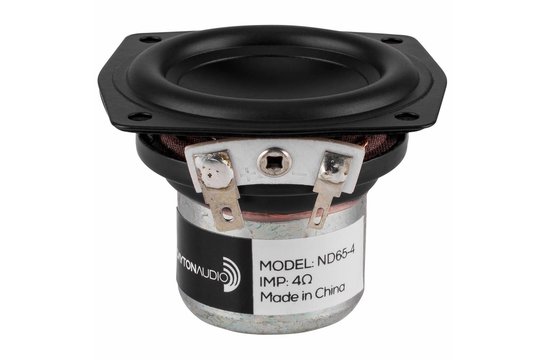

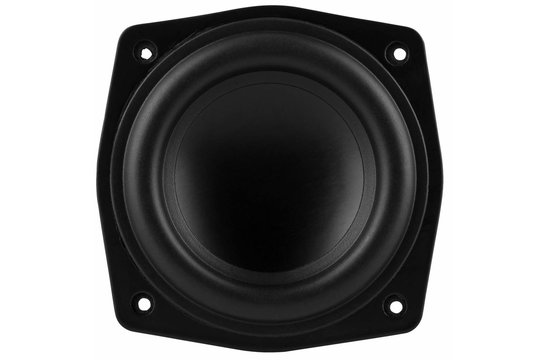

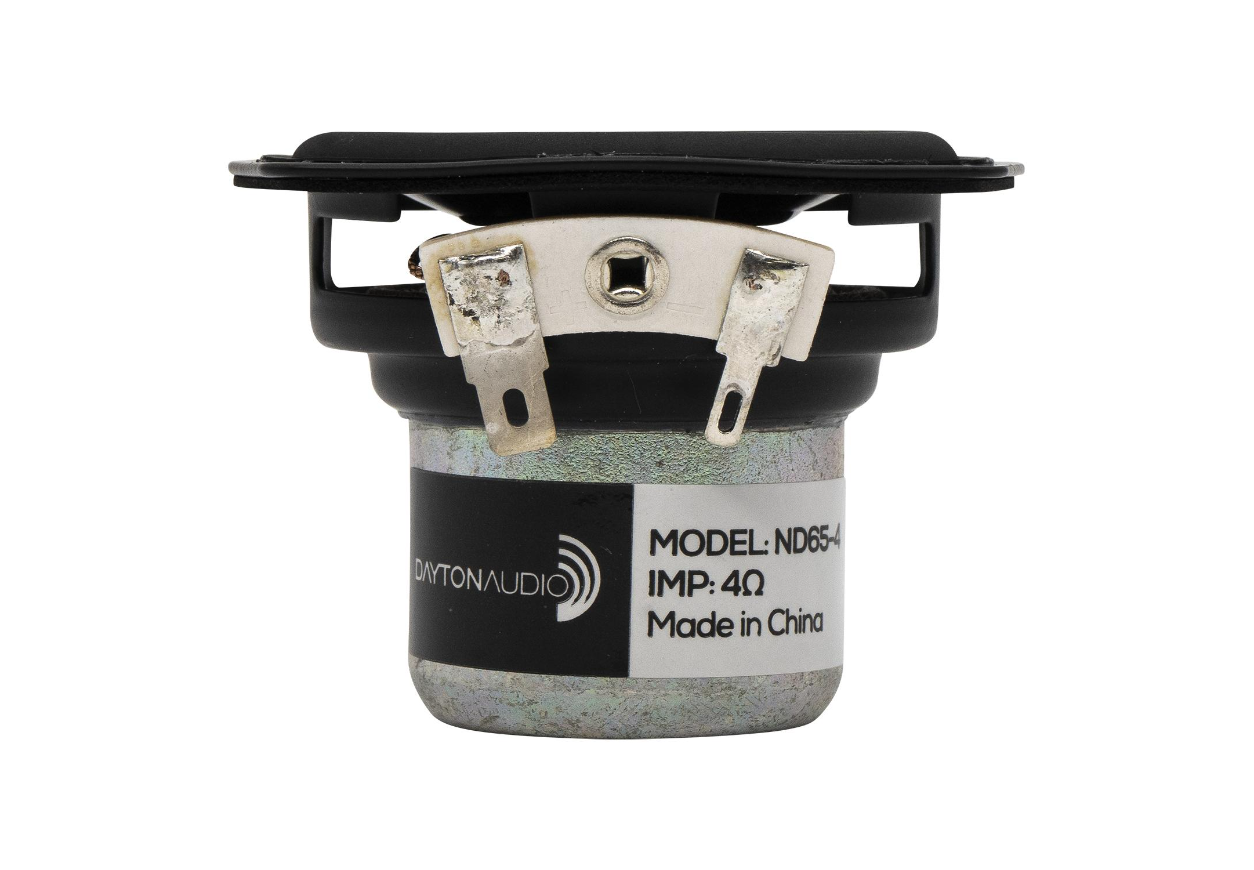

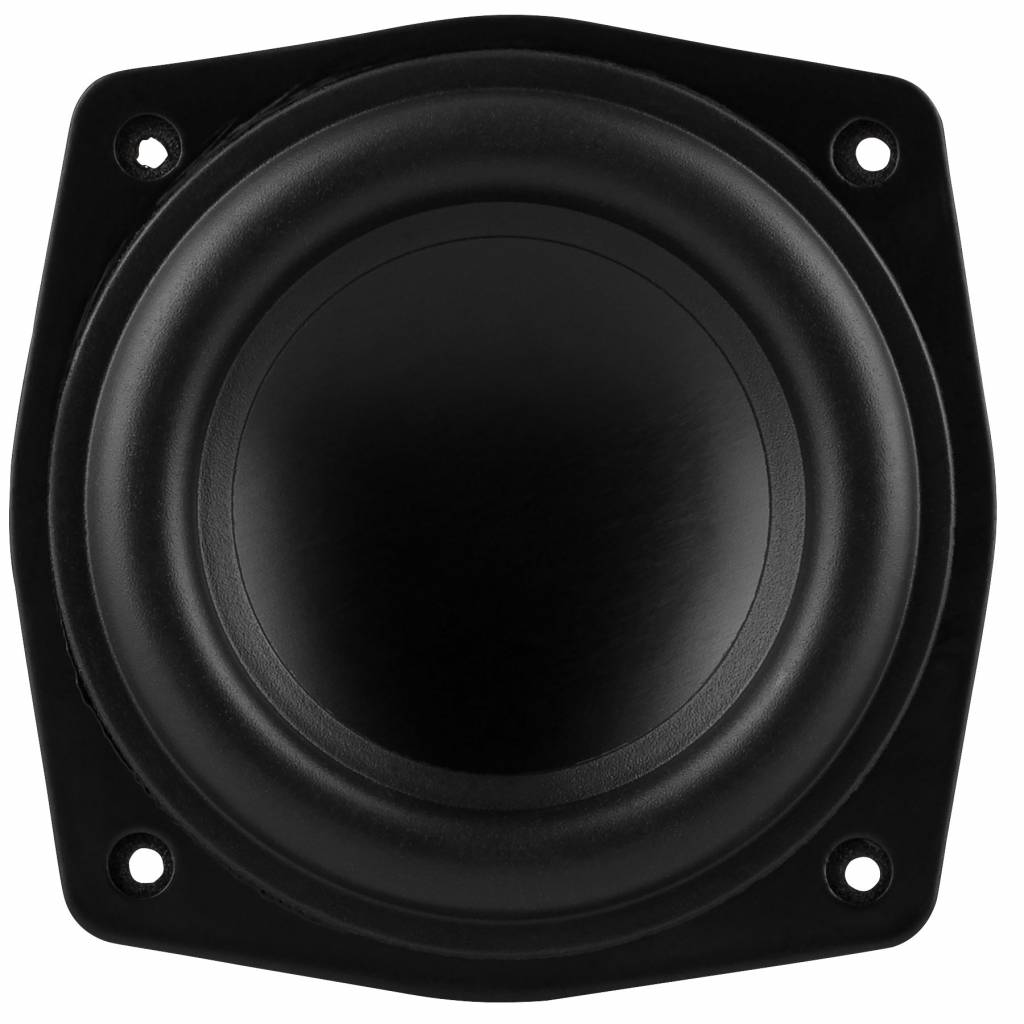

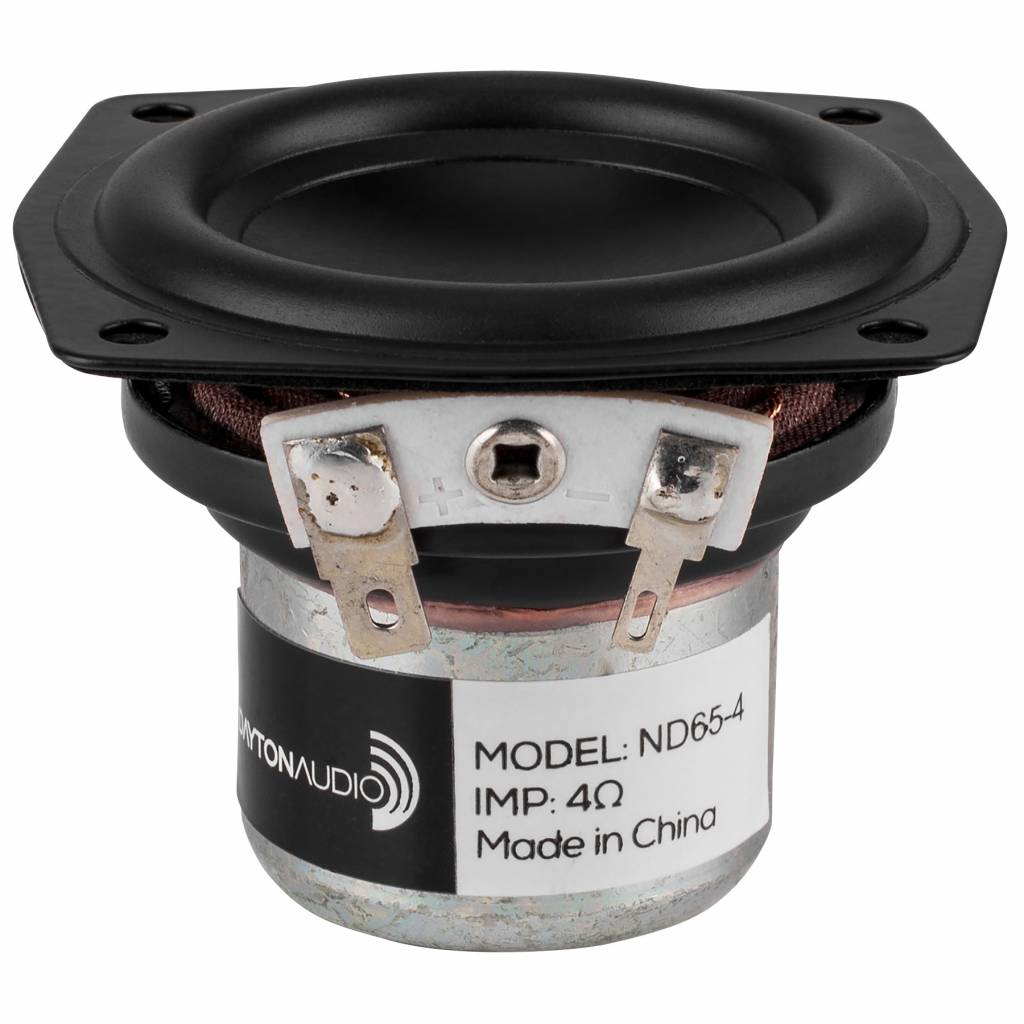

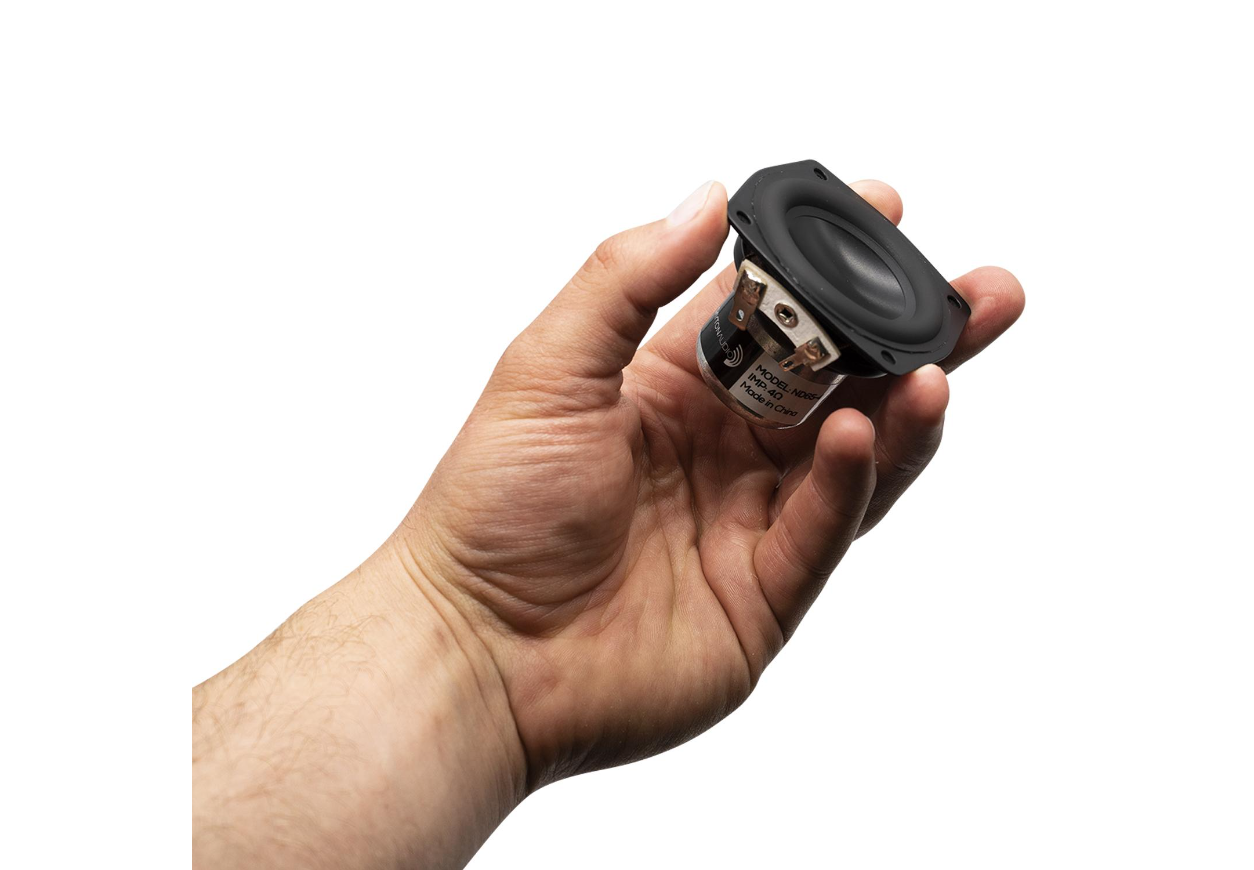

Dayton Audio ND65-4 2-1/2" Aluminum Cone Full-Range Driver 4 Ohm

Name: Dayton Audio ND65-4 2-1/2" Aluminum Cone Full-Range Driver 4 Ohm
Brand: Dayton Audio
SKU: ND65-4
Price: 24.95 EUR
Availability: InStock
Rating: 4.65 (8 reviews)

8 reviews

Brand: Dayton Audio

Show all Woofers

Compare

2.5" | 4 Ω

ND65-4 2-1/2" Aluminum Cone Full-Range Driver 4 Ohm

€ 20,62€ 24,95 >10 In stock: delivery time 1-4 business days

24h express shipping available
Low international shipping rates
Same day shipping*
In-house technical support

Product description

Dayton Audio's compact ND65-4 aluminum cone driver demonstrates the latest advances in high-excursion design processes.

Highlights

Rubber-edged aluminum alloy cone
Large excursion capability
Self-shielded Neo-Balanced motor structure
4-layer underhung voice coil with polyimide former
High power handling

Product details

Dayton Audio ND65-4 2-1/2" Aluminum Cone Full-Range Driver 4 Ohm

Dayton Audio's compact ND65-4 aluminum cone driver demonstrates the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples and line arrays.

Specifications

Article number: ND65-4
Woofer Series: ND Series
Woofer Type: Full-Range
Nominal Diameter: 2.50"
Power Handling (RMS): 15 watts
Power Handling (max): 30 watts
Impedance (Z): 4 ohms
Sensitivity: 83 dB @ 2.83V/1m
Frequency Response: 85 - 20,000 Hz
Voice Coil Diameter: 19 mm
DC Resistance (Re): 3.5 ohms
Voice Coil Inductance (Le): 0.44 mH @1 kHz
Resonant Frequency (Fs): 89.5 Hz
Mechanical Q (Qms): 5.56
Electromagnetic Q (Qes): 0.68
Total Q (Qts): 0.61
Diaphragm Mass Inc. Airload (Mms): 2.5g
Mechanical Compliance of Suspension (Cms): 1.26 mm/N
Surface Area of Cone (Sd): 15.6 cm²
Volume of Displacement (Vd): 5.4 cm³
BL Product (BL): 2.68 Tm
Compliance Equivalent Volume (Vas): 0.53 liters
Maximum Linear Excursion (Xmax): 3.5 mm
Cone / Diaphragm Material: Black Anodized Aluminum Cone
Surround Material: Rubber
Voice Coil Wire Material: Copper
Voice Coil Former: Kapton® / Polyimide
Basket / Frame Material: Steel
Magnet Material: Neodymium
Shielded: Yes
Overall Outside Diameter: 64 mm
Overall Depth: 48 mm
Baffle Cutout Diameter: 52 mm
# Mounting Holes: 4
Sealed Volume: 0.05 ft.³
Sealed F3: 102 Hz
Vented Volume: 0.08 ft.³
Vented F3: 53 Hz

Data sheet

Reviews

8 reviews

5 from 5Based on 8 reviews

Review this product

4 of 5

Just got my par of ND65-4 today. Really impressed with the speakers bass quality and would give it 5 stars right there, Though I wish it had a higher/clear treble sound since there is music where is sounds bit muddy on the higher tone whichs is why I give it 4 stars for them :)

By Ferdinand Brødløs on 23 February 2021

5 of 5

This is an awesome little driver for boomboxes. Tune it to 60Hz with a PR or a port and rock on. A true full range driver with crisp balanced sound and a surprising amount of punch if tuned right.

By Truls on 26 June 2020

3 of 5

Al di sotto delle aspettative, decente nei bassi, deludente negli alti, soprattutto in rapporto a quanto riportato nelle molteplici recensioni

By Daniele D. on 16 April 2019

5 of 5

I use them in 3L vented small radio box and sound is very good! But at higher frequencies, they are directional .

By Lucián Mikuláš on 12 November 2018

5 of 5

Beautiful design and great sound!

By Viktor K. on 17 July 2018

5 of 5

Sehr guter Bass
