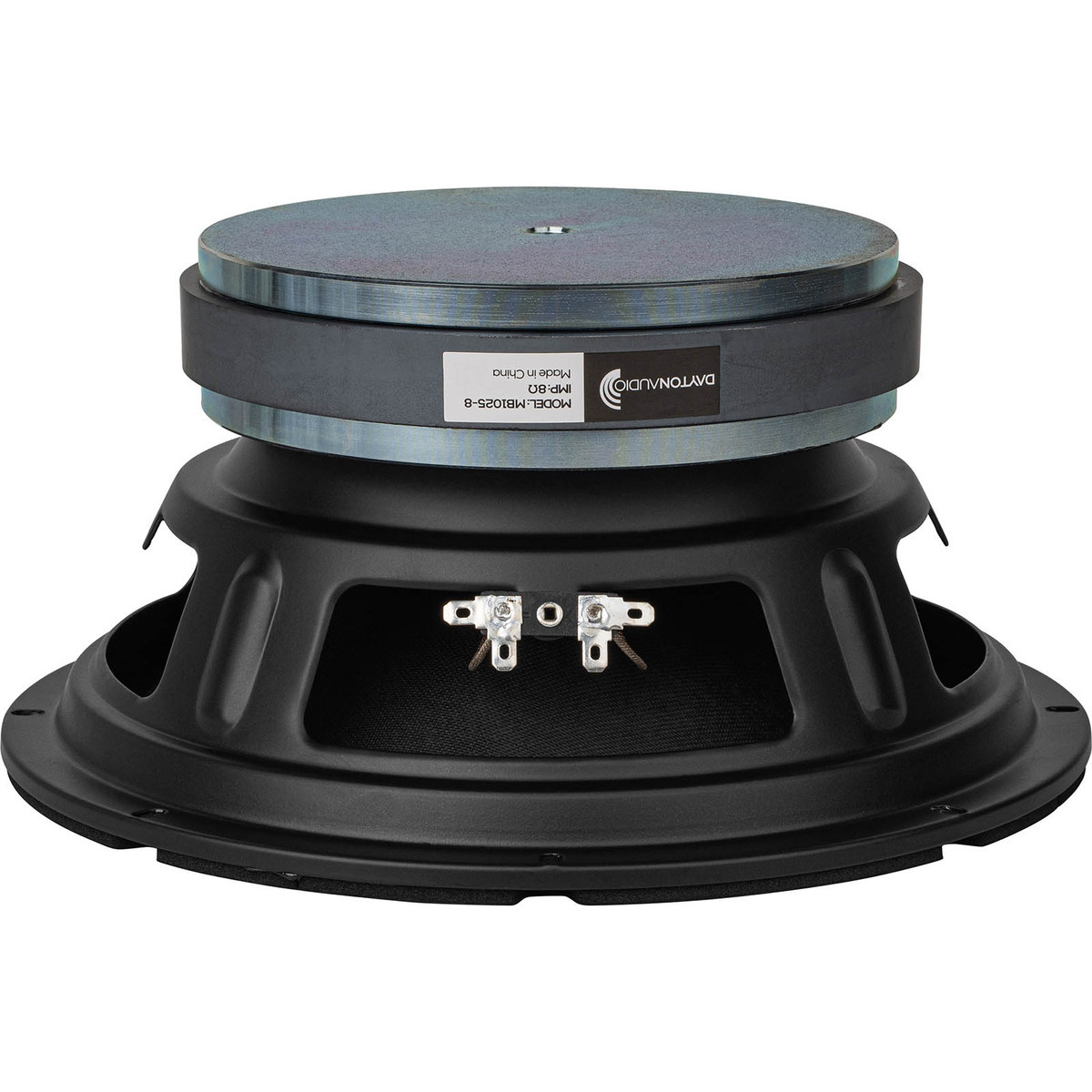

MB1025-8 Midbass Wofer

€73,45

Add to cart

Dayton Audio MB1025-8 Midbass Wofer

Name: Dayton Audio MB1025-8 Midbass Wofer
Brand: Dayton Audio
SKU: MB1025-8
Price: 73.45 EUR
Availability: BackOrder
Rating: 5 (1 reviews)

1 reviews

Brand: Dayton Audio

Show all Bass-mid woofer

10" | 8 Ω

€ 60,70€ 73,45 Out of stock2 expected on 23-04-2024

Backorder

We ship to
Ordered now, shipped on Monday
Five-year warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Built for high impact and low distortion, the MB1025-8 10” midbass is a great choice for use in dynamic, high output 2-way and 3-way designs. With a damped paper cone, treated cloth spider, and powerful ferrite motor these drivers will deliver incredible clarity and detail even when pushed to extreme SPL levels. Suitable for use in professional speakers, studio monitors, and even car audio systems, these are incredibly flexible mid-bass drivers.

Highlights

95dB sensitivity and 350 watt continuous power handling allows incredible output
2.5” voice coil and 70 oz ferrite magnet with vented pole-piece
Lightweight paper cone and cloth surround
Wide 60Hz-5.5kHz usable frequency response
Great for 2 or 3-way pro audio, car, or home hi-fi systems
Excellent choice for use in musical instrument applications

Product details

Dayton Audio MB1025-8 10" Professional High Power Midbass Driver 8 Ohm

Dayton Audio’s MB1025-8 10” professional mid-bass driver is engineered to provide maximum impact output while keeping distortion to a minimum. This mid-bass uses a powerful, vented ferrite magnetic motor and lightweight paper cone with cloth surround to achieve high SPL and loads of clarity. While optimized for 2-way pro audio systems, this driver is versatile enough for car audio and home hi-fi mid-bass work, and even musical instrument applications, such as bass guitar and keyboard. The MB1025-8 is an 8 ohm 10” with a 2.5” voice coil and a 40oz ferrite magnet design. It offers a lot of bang-for-the-buck at 95dB SPL and 350 watts of continuous power handling. The MB1025-8 has a wide and smooth usable frequency response from 60Hz-5.5kHz.

Specifications

Article number: MB1025-8
Woofer Type: Midbass Driver
Nominal Diameter: 10"
Power Handling (RMS): 350 Watts
Power Handling (max): 700 Watts
Impedance (Z): 8 Ohms
Sensitivity (SPL at 1m / 2.83V): 95 dB
Frequency Response: 60 to 5,500Hz
Voice Coil Diameter: 2.5"
DC Resistance (Re): 5.3Ω
Voice Coil Inductance (Le): 1.2mH
Resonant Frequency (Fs): 45 Hz
Mechanical Q (Qms): 6.47
Electromagnetic Q (Qes): 0.36
Total Q (Qts): 0.34
Diaphragm Mass Inc. Airload (Mms): 41.1g
Mechanical Compliance of Suspension (Cms): 0.3mm/N
Surface Area of Cone (Sd): 342.5cm²
BL Product (BL): 13.1T·m
Compliance Equivalent Volume (Vas): 1.79ft³
Maximum Linear Excursion (Xmax): 3 mm
Cone / Diaphragm Material: Paper
Surround Material: Cloth
Voice Coil Wire Material: CCA
Basket / Frame Material: Steel
Magnet Material: Ferrite
Overall Outside Diameter: 10"
Overall Depth: 4.25"
Baffle Cutout Diameter: 9.14"
# Mounting Holes: 8
Sealed Volume: 0.6ft³
Sealed F3: 103Hz
Vented Volume: 0.9ft³
Vented F3: 64Hz

Reviews

1 reviews

Review this product

5 of 5

Ein toller Tiefmitteltöner mit Profi-Parametern!!Wenn Sie ein Heimwerkerprojekt durchführen oder die alten Lautsprecher in Ihren Lautsprechern ersetzen müssen, ist dieser Dayton MB1025-8 dafür geeignet!!

By Draudio on 19 April 2023
