Dayton Audio LS10-44 10" Low Profile Subwoofer Dual 4 Ohm

In stock

  • Article code: LS10-44
  • Stock: 4 In stock

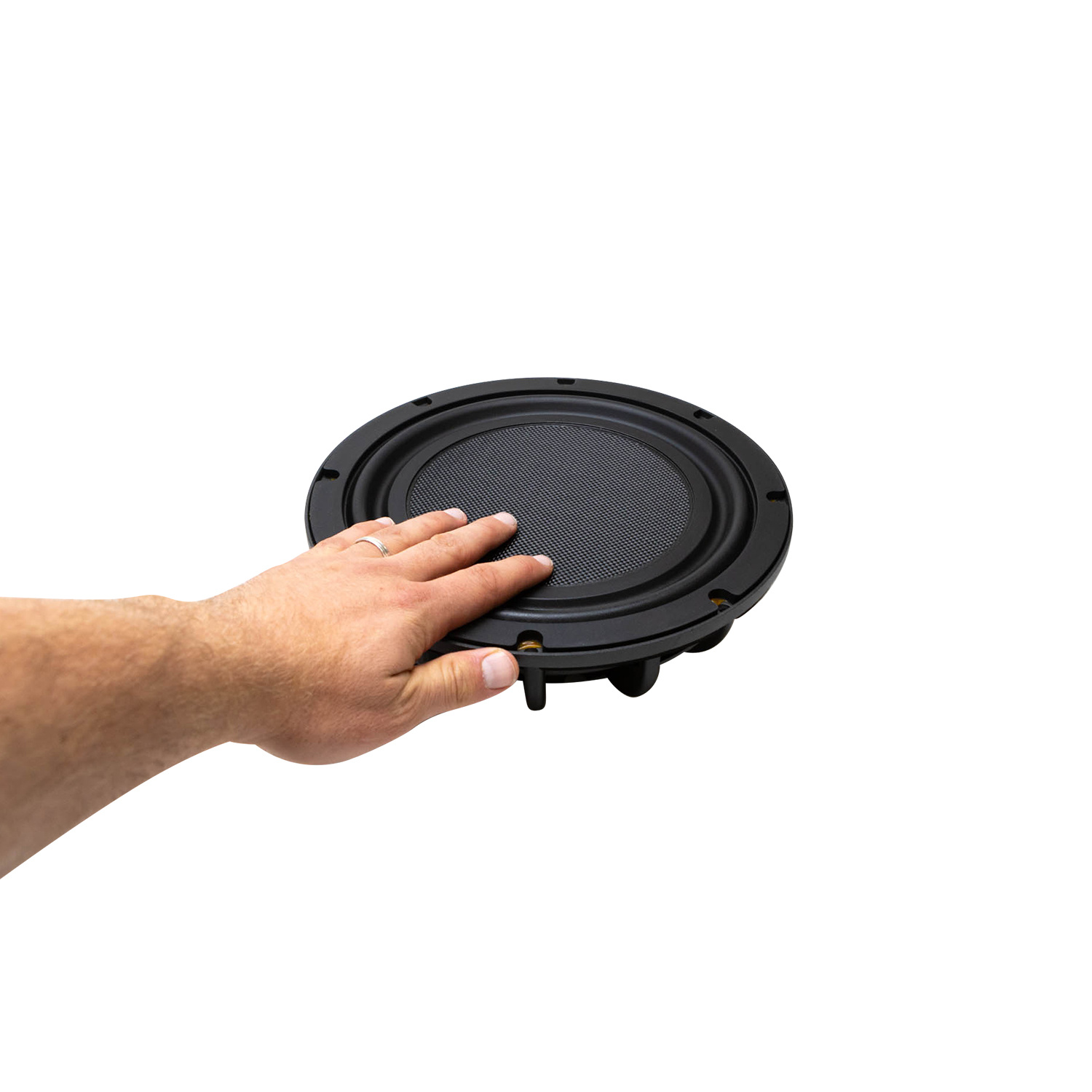

At a depth of less than 3.4", Dayton Audio's LS10-44 10" low profile subwoofer fits into shallow spaces that ordinary subs wouldn't dream of attempting! Dual 2" 4 ohm coils provide flexible wiring, while the flat cone and innovative suspension support 10

€ 139,95 Incl. 21% VAT

  • Buy 4 for €132,95 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio LS10-44 10" Low Profile Subwoofer Dual 4 Ohm

At a depth of less than 3.4", Dayton Audio's LS10-44 10" low profile subwoofer fits into shallow spaces that ordinary subs wouldn't dream of attempting! Dual 2" 4 ohm coils provide flexible wiring, while the flat cone and innovative suspension support 10 mm of Xmax!



Highlights

  • Innovative low-profile subwoofer – less than 3.4" thick!
  • 10 mm Xmax guarantees uncompromised bass performance
  • Dual 4 ohm voice coils, 6 layers total, for high BL force and multiple wiring options

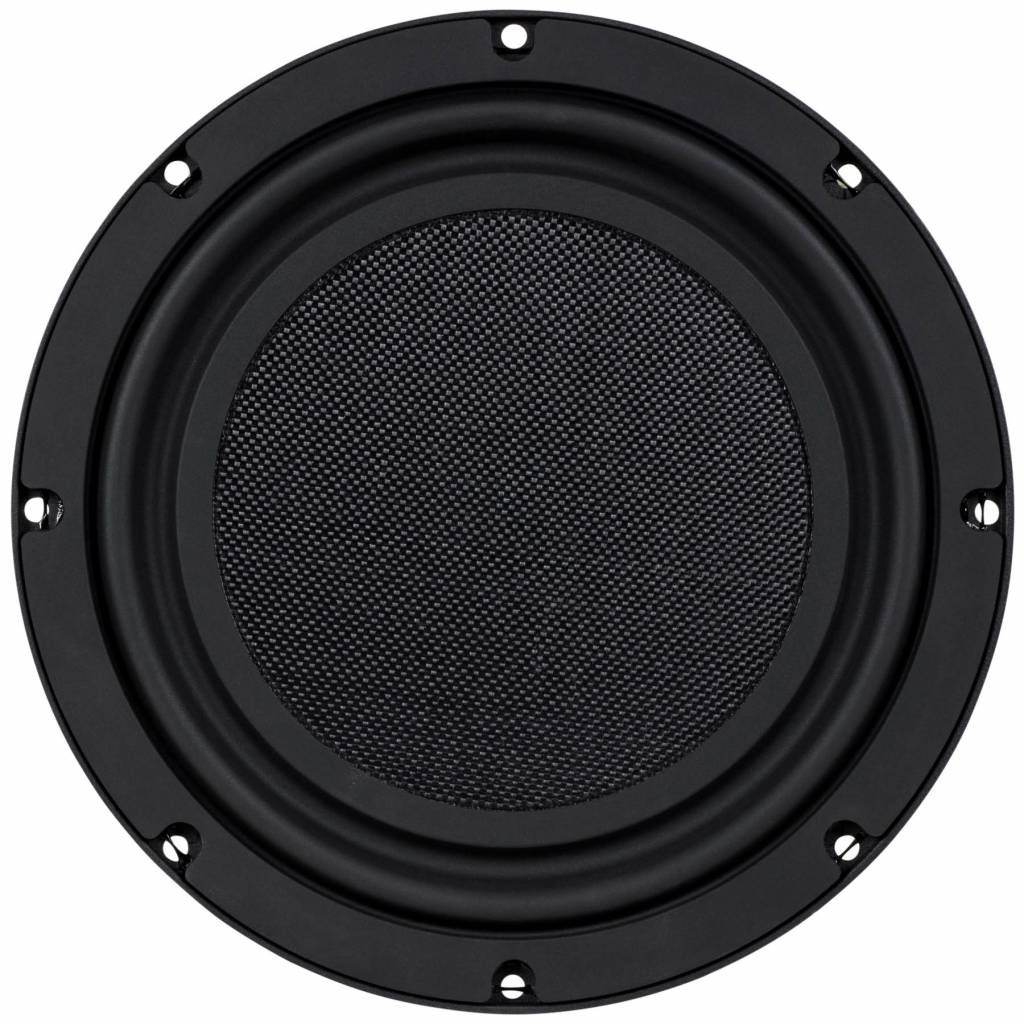

  • Rigid flat honeycomb fiberglass cone maintains linearity and high impact
  • Low distortion ferrite motor with dual aluminum shorting rings
  • Balanced rubber double-roll surround design improves stability and control



Product details

Dayton Audio LS10-44 10" Low Profile Subwoofer Dual 4 Ohm



Back with a new and improved design, Dayton Audio's shallow subwoofers let you put more bass into less space! The new LS10-44 Low Profile Subwoofer from Dayton Audio provides over 10 mm of controlled excursion, for bass that hits hard and goes deep -- even in places ordinary subwoofers just won't fit! These drivers are perfect for installation in walls, floors, and ceilings, or in limited-clearance automotive applications like the narrow space behind pickup truck seats. They might even fit under your chair or behind your sofa!

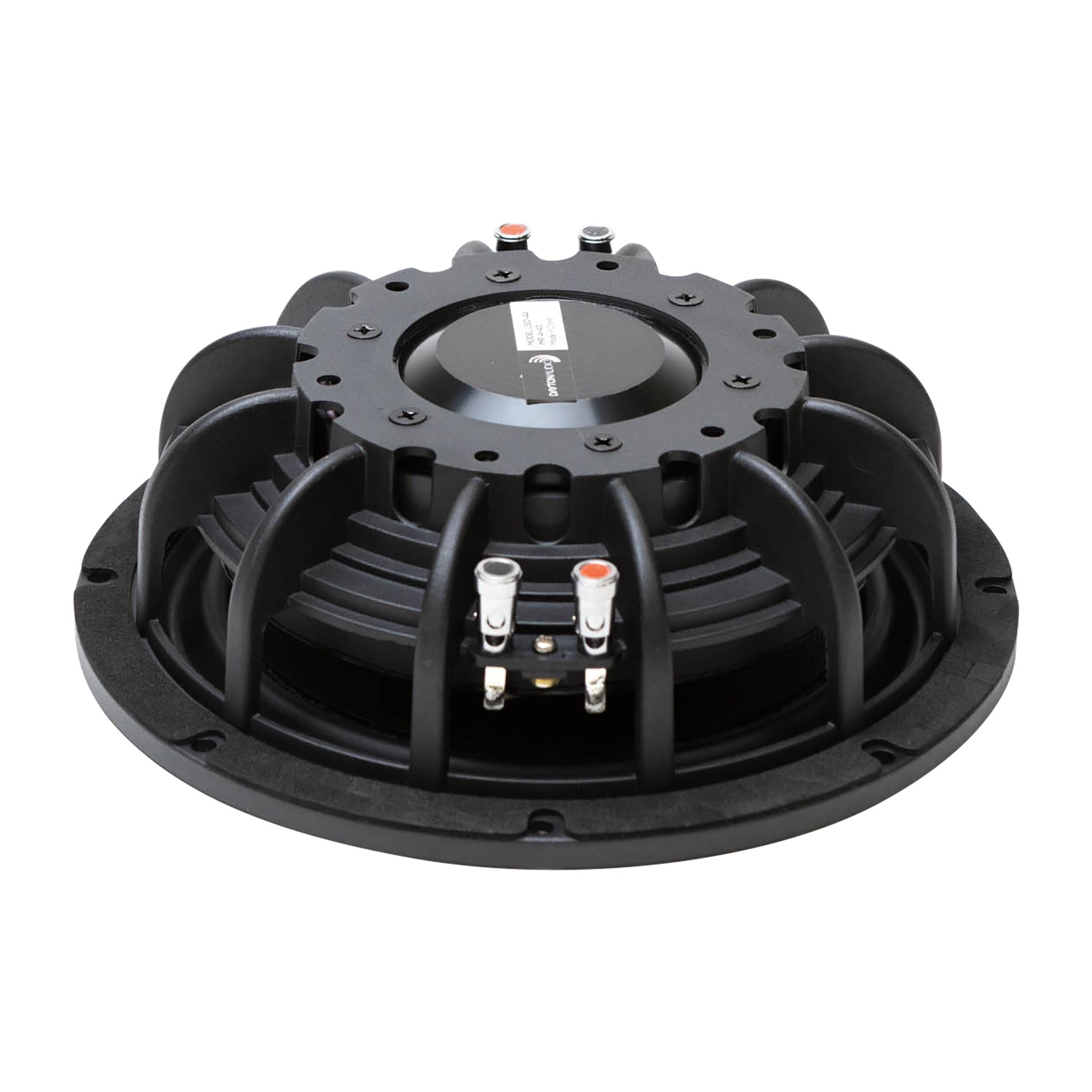

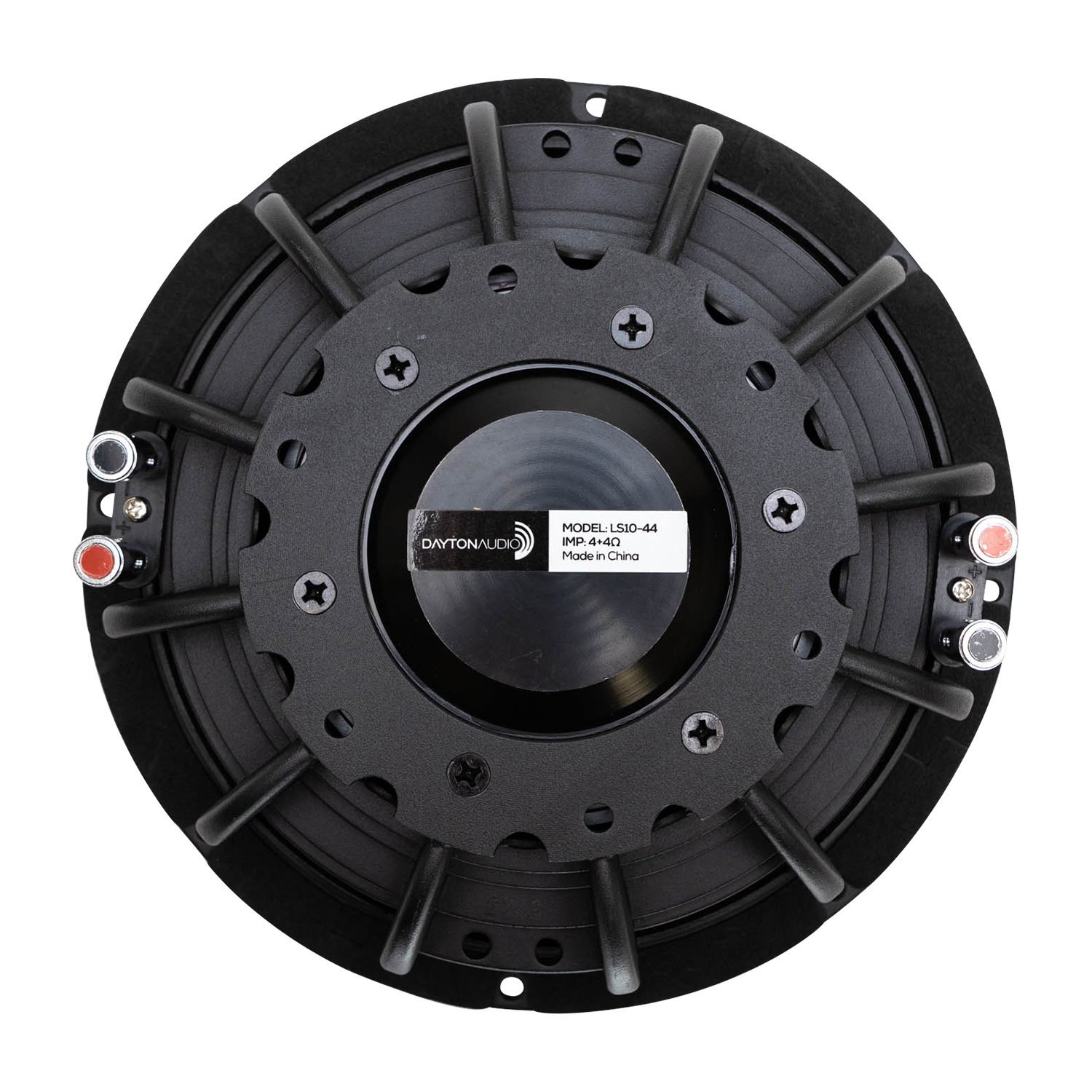

Innovative design makes the shallow form factor of the LS Series low profile subwoofers possible. A flat, rigid piston made of aluminum honeycomb with glass fiber skins replaces the conventional cone of most subwoofers, and a balanced double-roll surround design maximizes the stability of the moving symmetrical motion and minimizes distortion. The LS10-44 also features dual heavy-gauge aluminum shorting rings for low inductance and fast, impactful bass. Lastly, a 6-layer dual voice coil ensures maximum available force from the compact motor, featuring high-grade ceramic ferrite magnetic material, and enables 2 ohm or 8 ohm wiring.



Nothing has been sacrificed in creating these truly next-generation shallow subwoofers, capable of over 10 mm of linear excursion from an ultra-slim package. Trust the LS Series subwoofer drivers to deliver years of rugged, long-lasting enjoyment, wherever you install them. Wherever you would like to add more bass, Dayton Audio has you covered.



Note: All parameters derived with voice coils wired in series.



PRODUCT SPECIFICATIONS

Nominal Diameter

10"

Power Handling (RMS)

250 Watts

Power Handling (max)

500 Watts

Impedance

4+4 ohms

Frequency Response

30 to 300 Hz

Sensitivity

86.5 dB 2.83V/1m

Voice Coil Diameter

2"



THIELE-SMALL PARAMETERS

Resonant Frequency (Fs)

34.3 Hz

DC Resistance (Re)

7.4 ohms

Voice Coil Inductance (Le)

5.25 mH

Mechanical Q (Qms)

5.15

Electromagnetic Q (Qes)

0.47

Total Q (Qts)

0.43

Compliance Equivalent Volume (Vas)

1.08 ft.³

Mechanical Compliance of Suspension (Cms)

0.16 mm/N

BL Product (BL)

21.1 Tm

Diaphragm Mass Inc. Airload (Mms)

132g

Surface Area of Cone (Sd)

366.4 cm²



MATERIALS OF CONSTRUCTION

Cone Material

Fiberglass

Surround Material

Rubber

Basket / Frame Material

Cast Aluminum

Magnet Material

Ferrite



MOUNTING INFORMATION

Overall Outside Diameter

10.75"

Baffle Cutout Diameter

9.4375"

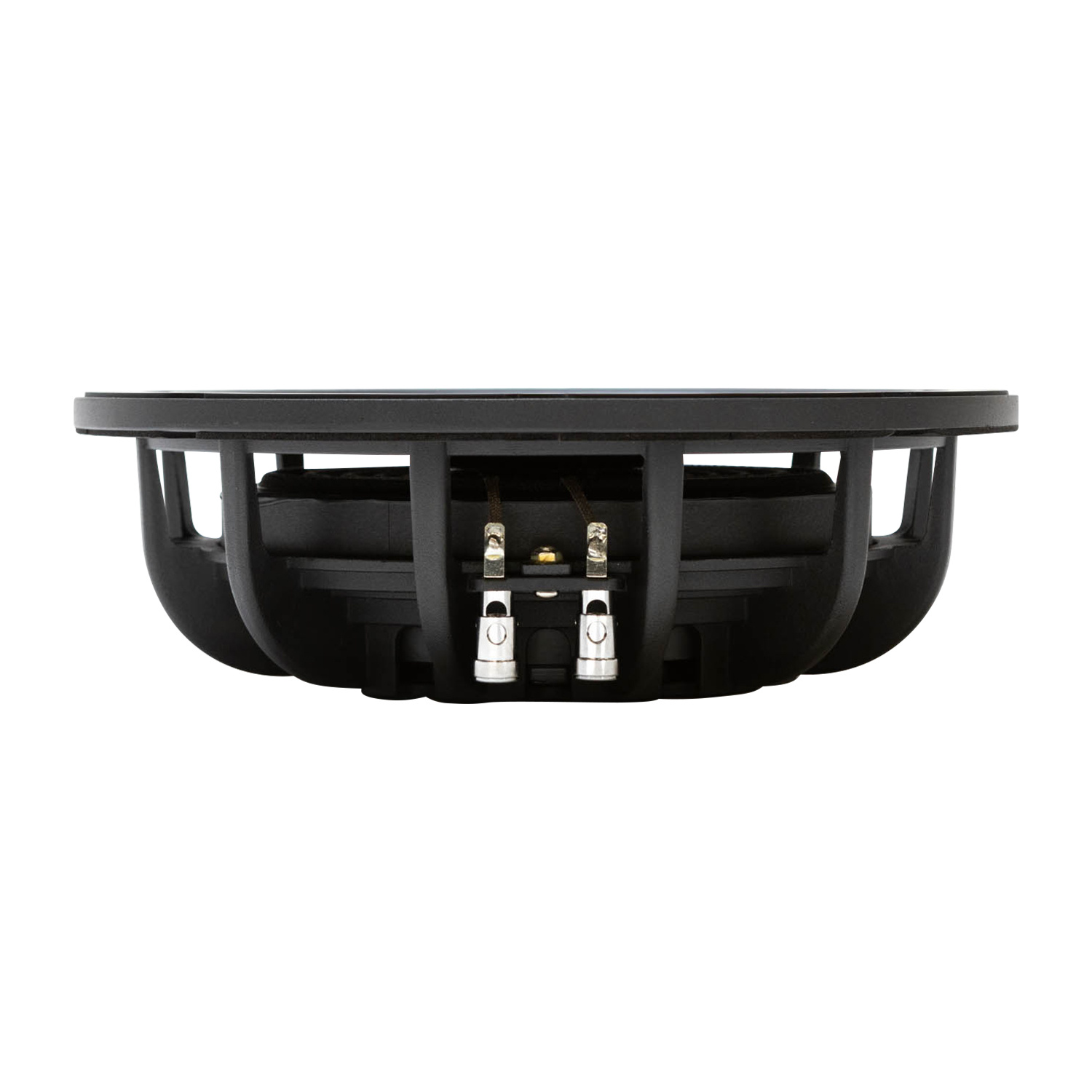

Depth

3,32"

Bolt Circle Diameter

10.125"

# Mounting Holes

8



OPTIMUM CABINET SIZE (DETERMINED USING BASSBOX 6 PRO HIGH FIDELITY SUGGESTION)

Sealed Volume

0.45 ft.³

Sealed F3

63 Hz

Vented Volume

1.1 ft.³

Vented F3

32 Hz

Specifications

Specifications for: LS10-44 10" Low Profile Subwoofer Dual 4 Ohm

  • Woofer Series Specific woofer production line of the manufacturer. Low Profile Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Subwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 10"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 250 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 500 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4+4 ohms
  • Sensitivity 86.5 dB @ 2.83V/1m
  • Frequency Response 30 - 300 Hz
  • Voice Coil Diameter 50 mm
  • Magnet Weight
  • DC Resistance (Re) 7.4 ohms
  • Voice Coil Inductance (Le) 5.25 mH @ 1 kHz
  • Resonant Frequency (Fs) 34.3 Hz
  • Mechanical Q (Qms) 5.15
  • Electromagnetic Q (Qes) 0.47
  • Total Q (Qts) 0.43
  • Diaphragm Mass Inc. Airload (Mms) 132g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.16 mm/N
  • Surface Area of Cone (Sd) 366.4 cm²
  • Volume of Displacement (Vd) 36.4 cm³
  • BL Product (BL) 21.1 Tm
  • Compliance Equivalent Volume (Vas) 30.8 liters
  • Maximum Linear Excursion (Xmax) 10 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Fiberglass Cone
  • Surround Material Rubber
  • Voice Coil Wire Material Cast Aluminum
  • Voice Coil Former Ferrite
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 272.2 mm
  • Overall Depth 84.5 mm
  • Baffle Cutout Diameter 238.5 mm
  • Bolt Circle Diameter
  • # Mounting Holes 8
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3

Documenten

Reviews

User reviews 4.65 / 5 Reviews: (3)

  • JF By Janko F. on 15-05-2020 14:55

    5 / 5

    Gemonteerd in de reservewiel ruimte. Komt belachelijk veel vermogen uit met de juiste versterker. Een echte Aanrader

  • PV By Philip V. on 10-02-2019 11:00

    4 / 5

    zeer robuust gebouwd, kwaliteitsvolle afwerking, ideaal indien inbouwdiepte beperkt is,

  • PF By Pascal F. on 06-08-2018 09:59

    5 / 5

    Exceptionally, tight, clear and clean up to at least 500hz without being too hard.
