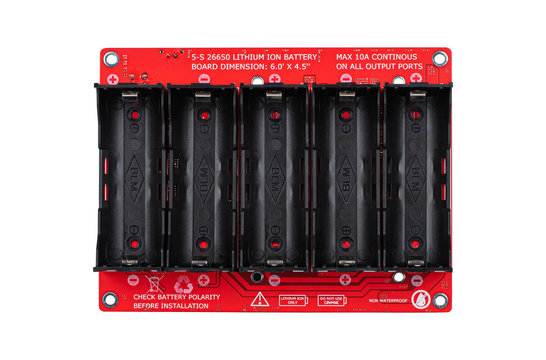

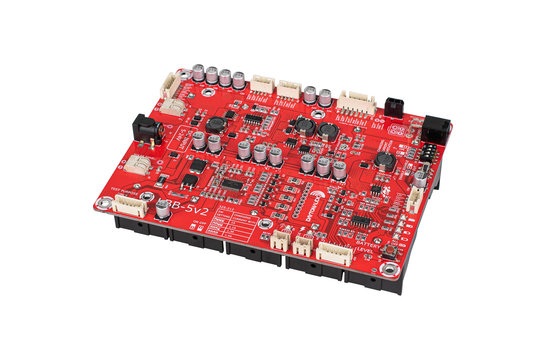

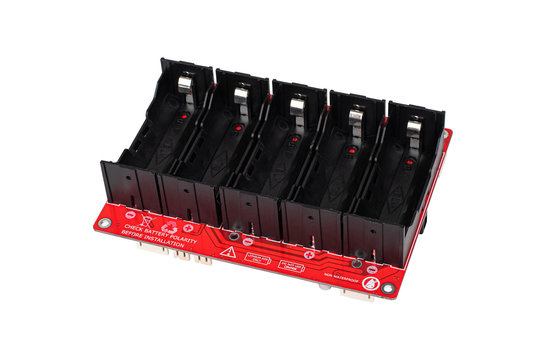

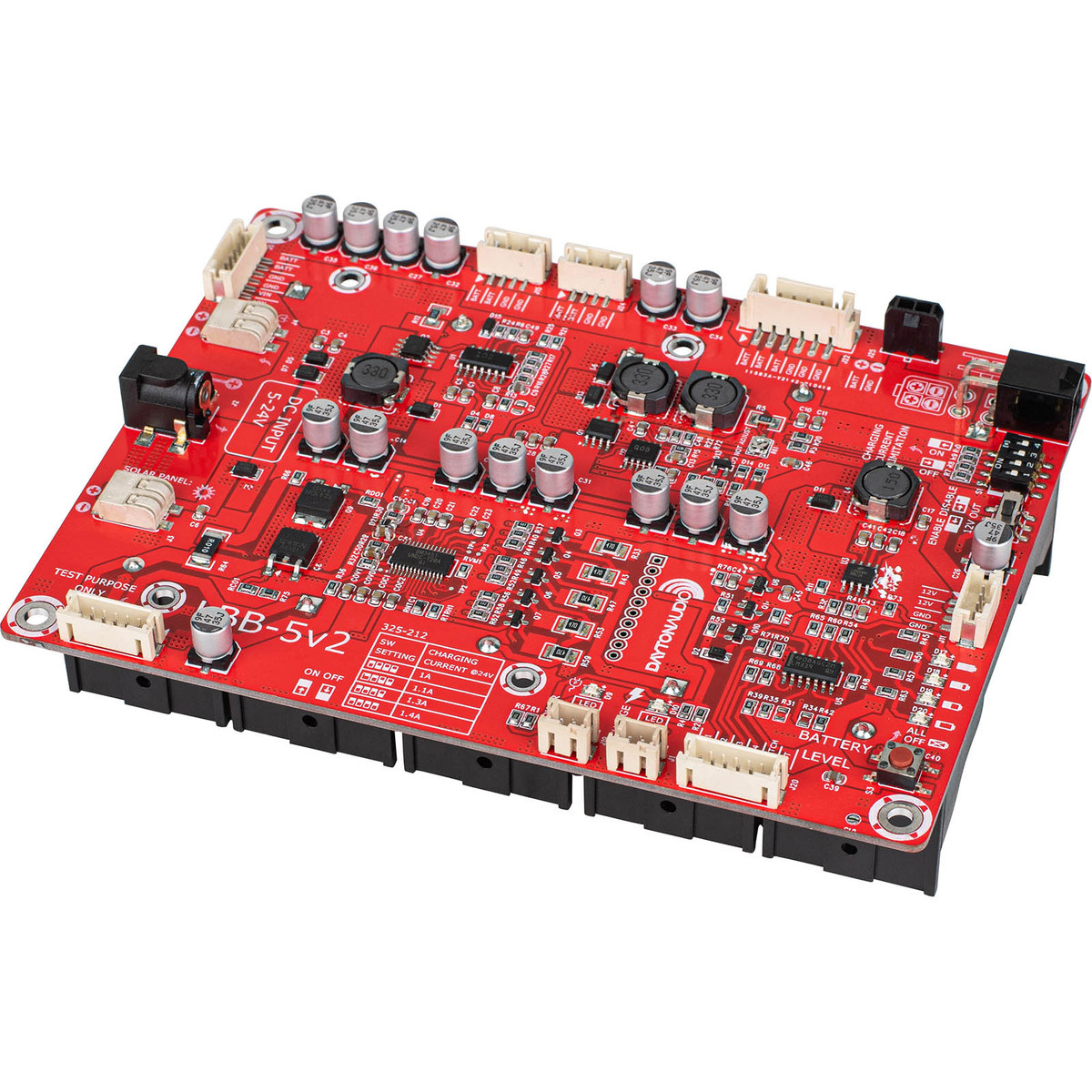

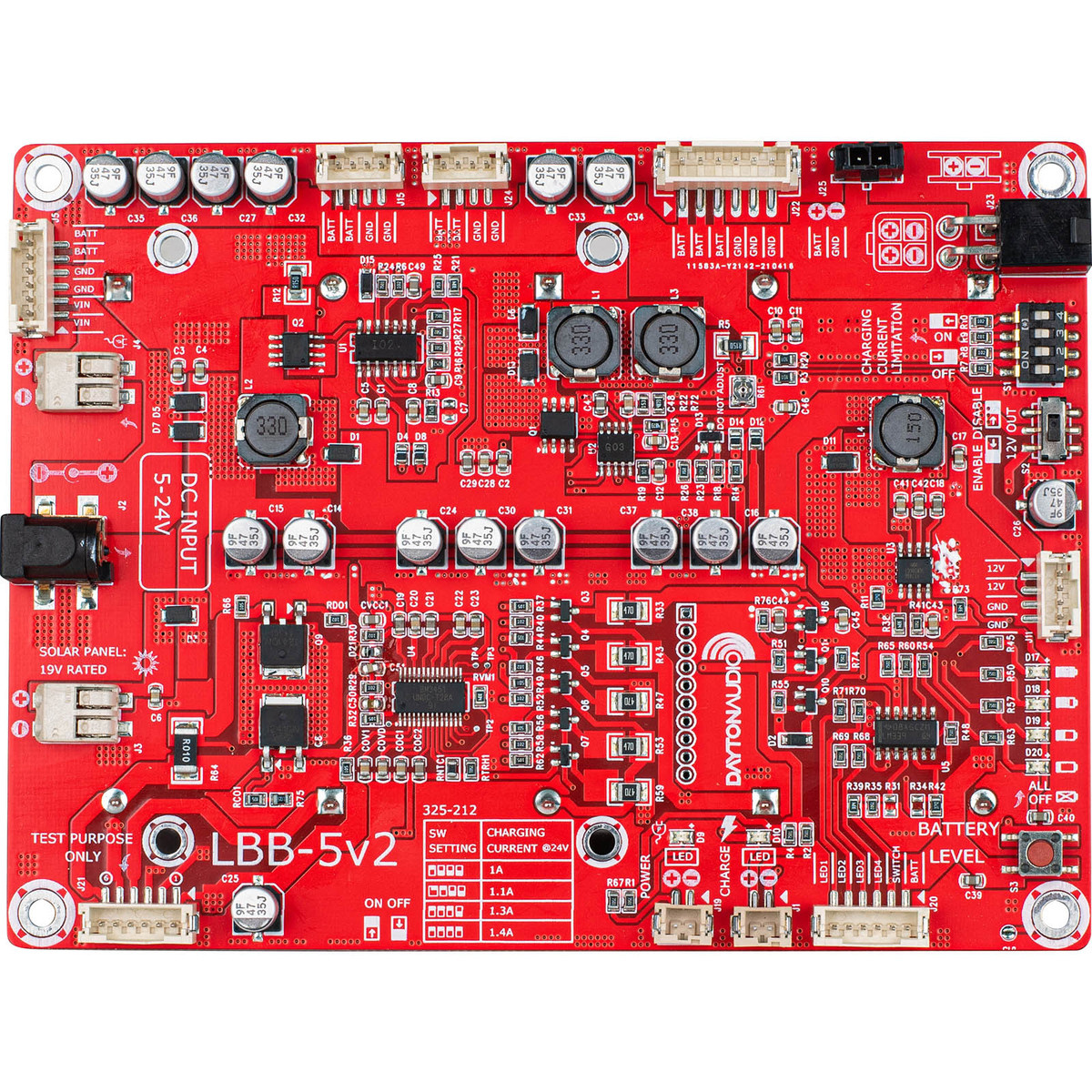

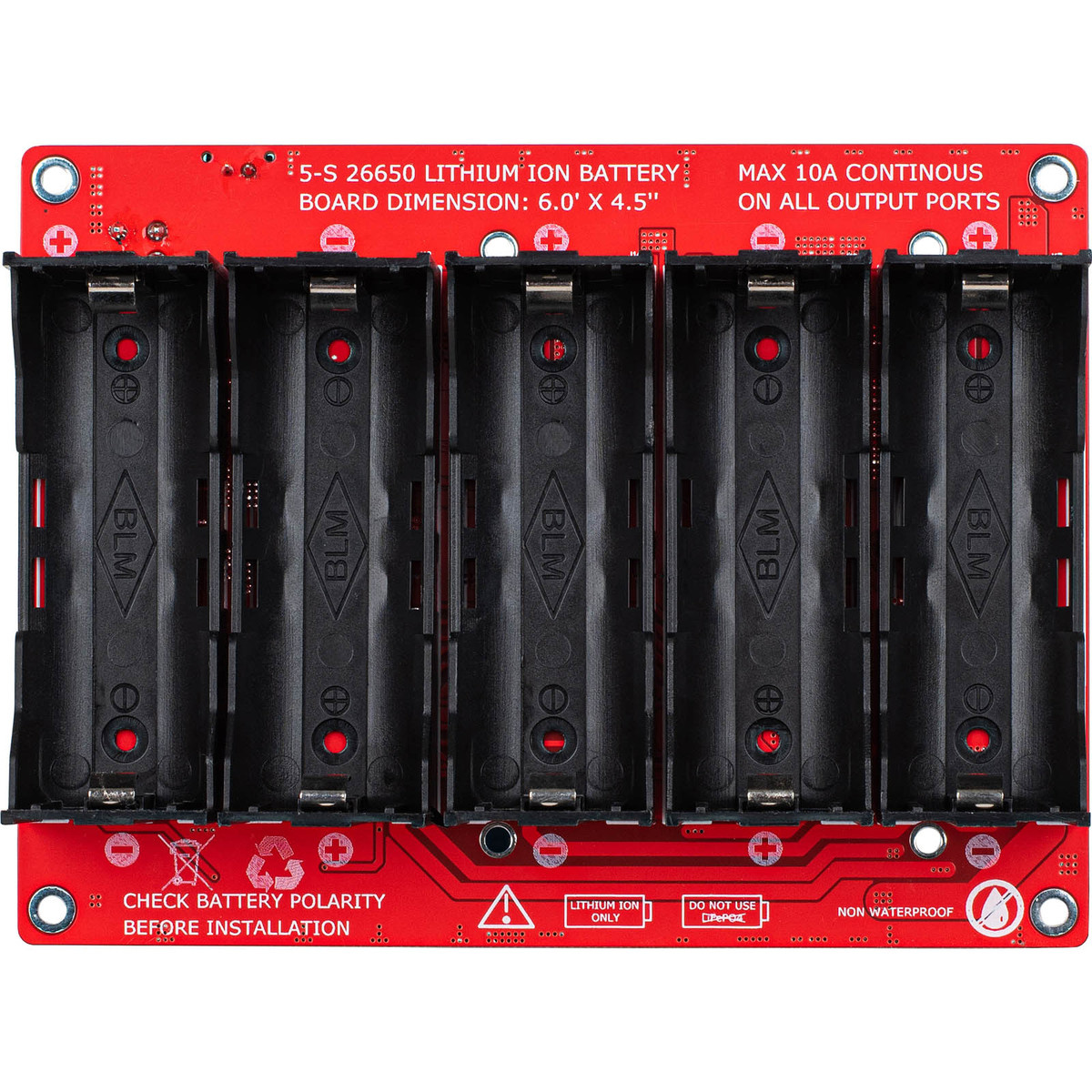

Dayton Audio LBB-5 5 x 26650 Lithium Battery Charger Board / Module
Dayton Audio's LBB-5 battery holder board delivers high current portable power to small amplifiers, 200W amp boards, or other 21 VDC projects by combining the voltage from five 26650 Li-Ion batteries (not included). It's small enough to fit inside a portable speaker and has multiple 21 VDC outputs to power an amp, tone control, Bluetooth, and other preamp component boards. It also has one output socket for 5 VDC devices. Enjoy the extended listening time you get from Li-Ion batteries on a single charge. 26650 Li-Ion batteries come in a variety of amperages, and to get the longest playtime from a 200W amplifier or amp board use at least 5000mAh batteries.
There's no need to remove the batteries from the holder because the Dayton Audio LBB-5 has a built-in charge circuit. Just plug in a power supply and the over/under charge circuit prevents correctly installed batteries from overcharging and fully discharging, shortening their life. The LBB-5 battery board needs a 5 to 24 VDC power supply (Not included) to start the charging process and to start its output power. This enables you to listen to music while the batteries are charging with this amazing battery holder. To view charging and battery status press the push button on the battery board. If you remove a battery, the power supply must be plugged into the holder for the battery board to start working again when the battery or batteries are reinstalled. The polarity of the batteries must match the polarity of the battery holder to prevent damage.
Note: The Dayton Audio LBB-5 is an independent battery holder board and its design does not work with Dayton Audio KAB board's built-in charge circuit. Use Dayton Audio battery board KAB-BE with Dayton Audio KAB Bluetooth amp boards.
Specifications: Output voltage: 21 VDC @ 10A Max and 5 VDC @ 2A • Input voltage required: 5 to 24 VDC at least 2A recommended • DC coax jack size: 2.1 x 5.5 mm center (+) polarity • Batteries: Five x 26650 Li-Ion (not included) • Dimensions: 6" W x 4.5" D x 1.71" H (152 x 114.5 x 43.5 mm) • Charge times to 90% capacity: 5V 2A 32 hrs., 12V 2A 6.5 hrs., 19V 2A 3.5 hrs., 24V 2A 3 hrs.
