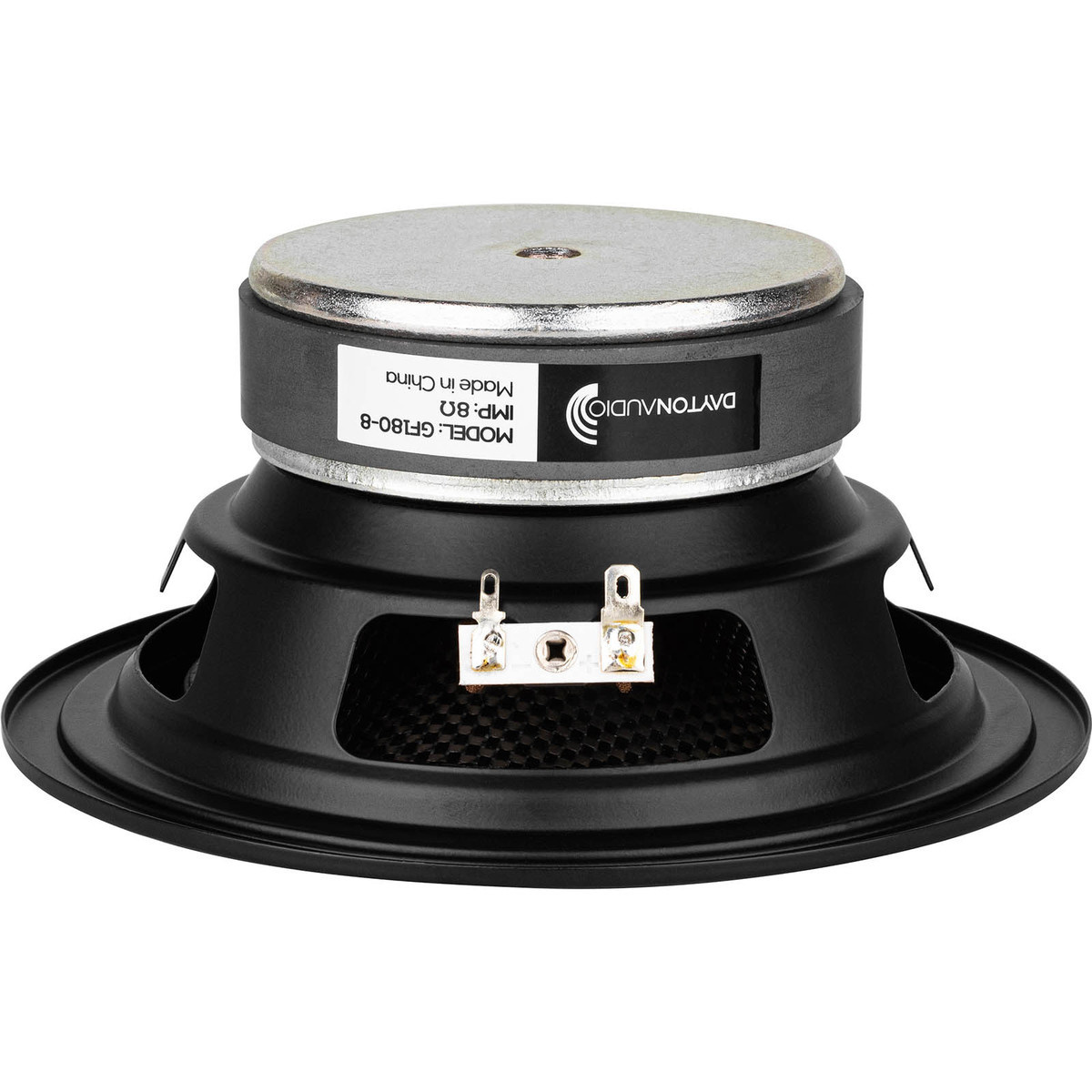

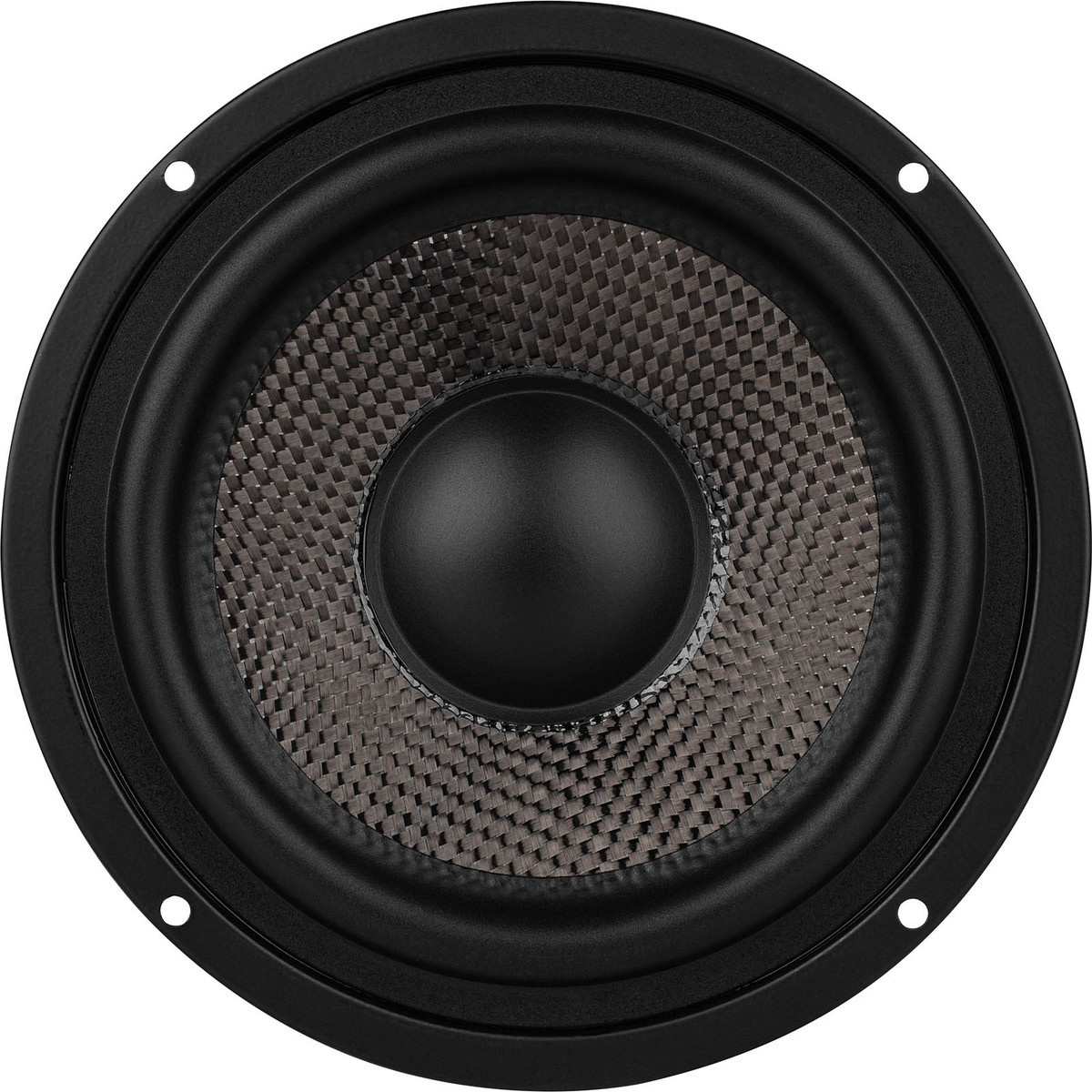

Dayton Audio GF180-8 6-1/2" Glass Fiber Cone Woofer 8 Ohm

Name: Dayton Audio GF180-8 6-1/2" Glass Fiber Cone Woofer 8 Ohm
Brand: Dayton Audio
SKU: GF180-8
Price: 38.45 EUR
Availability: InStock
Rating: 4 (1 reviews)

1 reviews

Brand: Dayton Audio

Show all Woofer

Compare

6.5" | 8 Ω

GF180-8 6-1/2" Glass Fiber Cone Woofer 8 Ohm

€ 31,78€ 38,45 6 In stock

24h express shipping available
Ordered now, shipped today
In-house technical support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Dayton Audio’s GF180-8 6-1/2” glass fiber cone woofer is built to produce powerful bass with smooth midrange response. The woven fiberglass cone and rubber surround damps cone resonances allowing an easy transition to tweeters when crossed over at 2,000 Hz. This affordable woofer is a great choice for 2-way bookshelf speaker designs.

Highlights

Woven fiberglass cone lowers resonances for smooth response and natural sound
Rubber surround helps damp the outside edge of the cone improving high frequency response
4-layer voice coil on an aluminum former provides excellent heat dissipation
Vented pole piece releases air trapped under the dustcap for quiet operation
Low-profile frame minimizes diffraction making these drivers suitable for surface mount applications

Product details

Dayton Audio GF180-8 6-1/2" Glass Fiber Cone Woofer 8 Ohm

With flat response to 4,000 Hz and excellent low frequency extension, the GF180-8 6-1/2” glass fiber cone woofer from Dayton Audio is ideal for use in low cost 2-ways speaker designs. The naturally damped woven fiberglass cone is driven by a 4-layer voice coil wound on an aluminum former. This driver is a great choice for you next bookshelf speaker, multiple driver tower, or even portable sound systems.

Specifications

Article number: GF180-8
Nominal Diameter: 6-1/2"
Power Handling (RMS): 40 Watts
Power Handling (max): 80 Watts
Impedance (Z): 8 Ohms
Sensitivity: 87.9dB 2.83V/1m
Frequency Response: 50 to 5,000Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 8Ω
Voice Coil Inductance (Le): 1.9mH
Resonant Frequency (Fs): 53Hz
Mechanical Q (Qms): 3.07
Electromagnetic Q (Qes): 0.6
Total Q (Qts): 0.5
Diaphragm Mass Inc. Airload (Mms): 13.9g
Mechanical Compliance of Suspension (Cms): 0.65mm/N
Surface Area of Cone (Sd): 130.2cm²
BL Product (BL): 7.9T·m
Compliance Equivalent Volume (Vas): 0.55ft³
Maximum Linear Excursion (Xmax): 4mm
Cone / Diaphragm Material: Fiberglass
Surround Material: Rubber
Voice Coil Wire Material: Copper
Voice Coil Former: Aluminum
Basket / Frame Material: Steel
Magnet Material: Ferrite
Overall Outside Diameter: 7"
Overall Depth: 3.19"
Baffle Cutout Diameter: 5.67"
# Mounting Holes: 4
Sealed Volume: 0.4ft³
Sealed F3: 85Hz
Vented Volume: 0.9ft³
Vented F3: 40Hz

Reviews

1 reviews

4 from 5Based on 1 reviews

Review this product

4 of 5

Schöner, bei mir als Mitteltöner (ab 200Hz) eingesetzter Lautsprecher, leider war bei beiden gekauften Lautsprechern das Anschlussterminal völlig lose und klapperig….mußte dieses erst mal vorsichtig befestigen

By Christian Scholz on 5 May 2022
