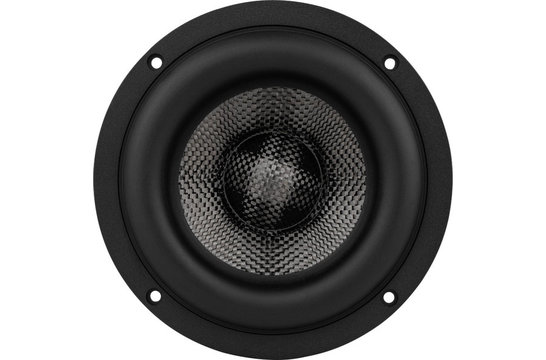

      Dayton Audio Epique E150HE-PR 5-1/2" Carbon Fiber Cone Passive Radiator

      € 37,15€ 44,95 Out of stock10+ expected on 30-12-2022
      • -5% Order 4 for only € 42,70 per piece

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped on Monday
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Dayton Audio’s ground breaking Epique E150HE-PR 5-1/2” with a carbon fiber cone is the perfect companion for the Epique Series MMAG Subwoofers while retaining the same family look. It was engineered for a low FS in order to replace the excessive port lengths required for low-tuned enclosures. The E150HE-PR passive radiator gives you the opportunity to create systems that provide extraordinary accuracy and fidelity, without the extraordinary size.



      Highlights

      • Passive radiators for the exceptional Epique Series enables you to use smaller boxes by replacing ports with excessive lengths
      • Carbon fiber cone is strong enough to handle the pressure of high output drivers
      • Incredibly linear 19mm xmech enhances output at low tunings
      • Incredible versatility, perfect compliment for any compact subwoofer
      • Cosmetically identical to the Epique MMAG subwoofers



      Product details

      Dayton Audio Epique E150HE-PR 5-1/2" Carbon Fiber Cone Passive Radiator



      Combining world class performance with a reasonable cost, the Epique E150HE-PR 5-1/2" carbon fiber cone passive radiator from Dayton Audio is the perfect companion for the Epique Series MMAG Subwoofers. Featuring a carbon fiber cone, custom tooled suspension, and cast aluminum frame, the low FS of the E150HE-PR enables speaker designers to use smaller and lower tuned boxes without the excessive port lengths.

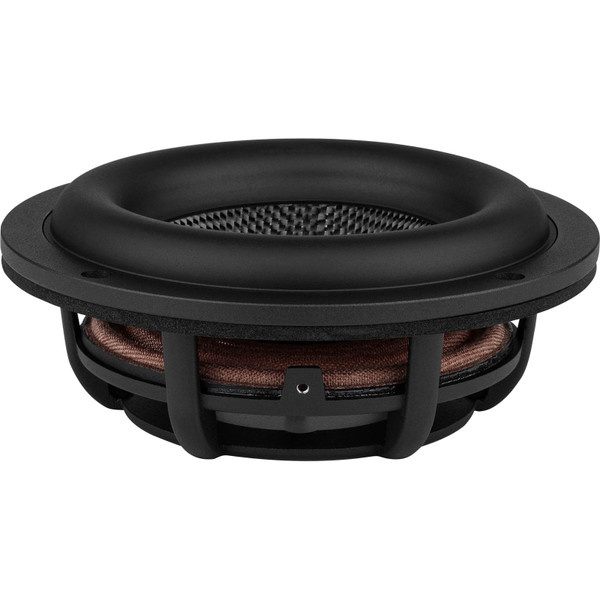

      When designing the E150HE-PR, Dayton Audio paid extra attention to optimizing the suspension to guarantee unrestricted excursion without limiting performance. The large roll rubber surround was custom tooled for high excursion and a custom weighted spider was created to lower the FS for maximum performance and easier tuning.

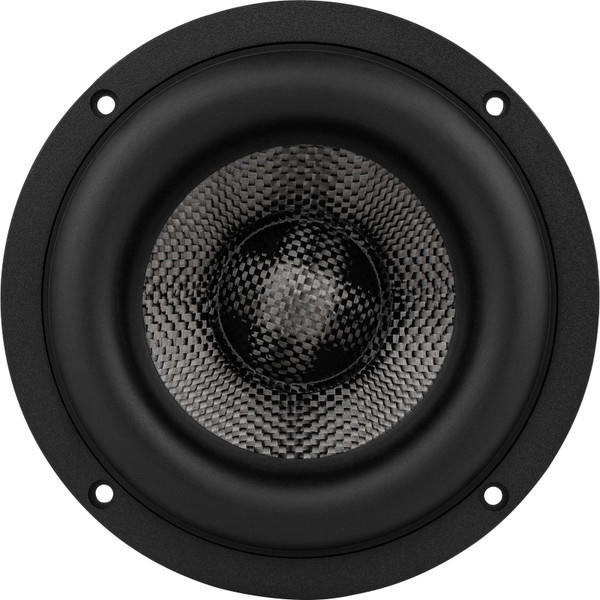

      The rigid carbon fiber cone gives the E150HE-PR retains a familiar look while offering a number of performance advantages. The woven cone has excellent damping properties which keep the active driver well controlled. Optimized cone and dustcap profiles make sure that there is no deformation when exposed to high stress so the smooth response and low distortion remain consistent even when pushed to high excursion

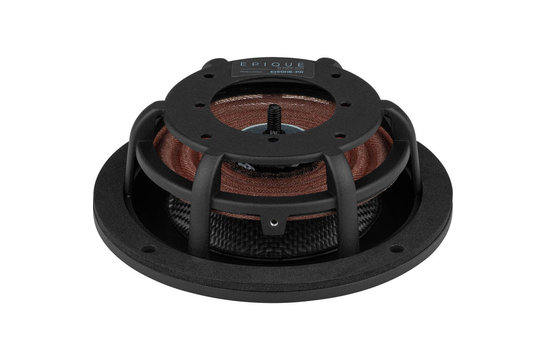

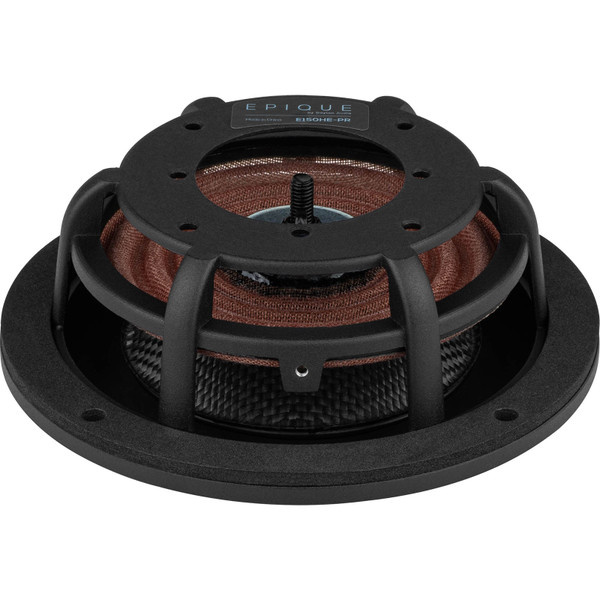

      In order to support its extreme excursion, the E150HE-PR uses a rugged cast aluminum frame. The minimalistic design of the frame both eliminates unwanted flex and provides ample room for the rear of the cone. 19mm of Xmech, and plenty of room behind the spider makes sure that you can push the limits of excursion without bottoming out.

      Show more

      Specifications

      Article number
      E150HE-PR
      Woofer Series
      Epique
      Woofer Type
      Passive Radiator
      Nominal Diameter
      5-1/2”
      Volume of Displacement (Vd)
      180.5 cm3
      Maximum Linear Excursion (Xmax)
      19 mm

      Show more
