Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB DAC IR Remote and Sub Output

In stock

  • Article code: DTA-PRO
  • Stock: 7 In stock

The Dayton Audio DTA Pro provides a rich feature set including Bluetooth, USB DAC, and even a wireless remote control. With 50 watts per channel at 4 ohms, the DTA-Pro provides enough power to run even the most demanding speakers. High efficiency paired w

€ 199,95 Incl. 21% VAT

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB DAC IR Remote and Sub Output

The Dayton Audio DTA Pro provides a rich feature set including Bluetooth, USB DAC, and even a wireless remote control. With 50 watts per channel at 4 ohms, the DTA-Pro provides enough power to run even the most demanding speakers. High efficiency paired with low THD offers up an impeccably clean, uncolored audio experience.



Highlights

  • Powerful remote controlled amplifier and DAC all in a small package
  • Several input options: Bluetooth, 3.5 mm, coaxial, optical, and USB
  • Wireless remote controls source input, EQ, and volume
  • High speed 192 kHz/24-bit DAC sampling rate





Product details

Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB DAC IR Remote and Sub Output

Rediscover your favorite music with the DTA-PRO. This all-in-one amplifier starts with a refined, brushed aluminum case and fills it chock full of features. This powerful 50 watt per channel amplifier offers clean and precise sound with a number of convenient input options. For convenience and usability the DTA-PRO comes equipped with Bluetooth 4.2 with aptX. For the very best in audio quality the DTA-PRO offers an optical / coaxial input capable of 192 kHz/24-bit sampling rate. Other input methods also include USB and a 3.5mm stereo jack.

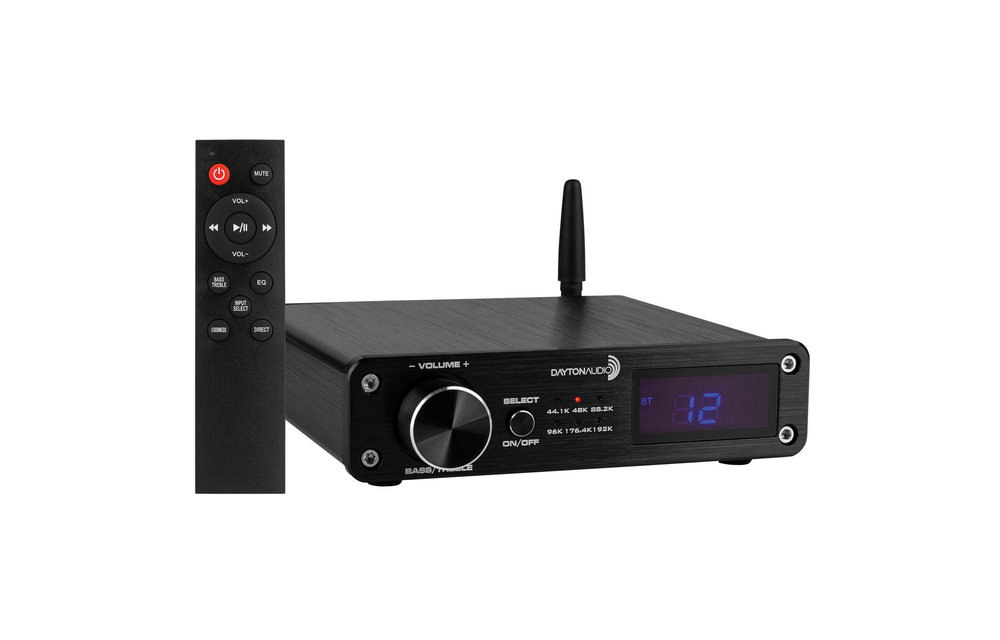

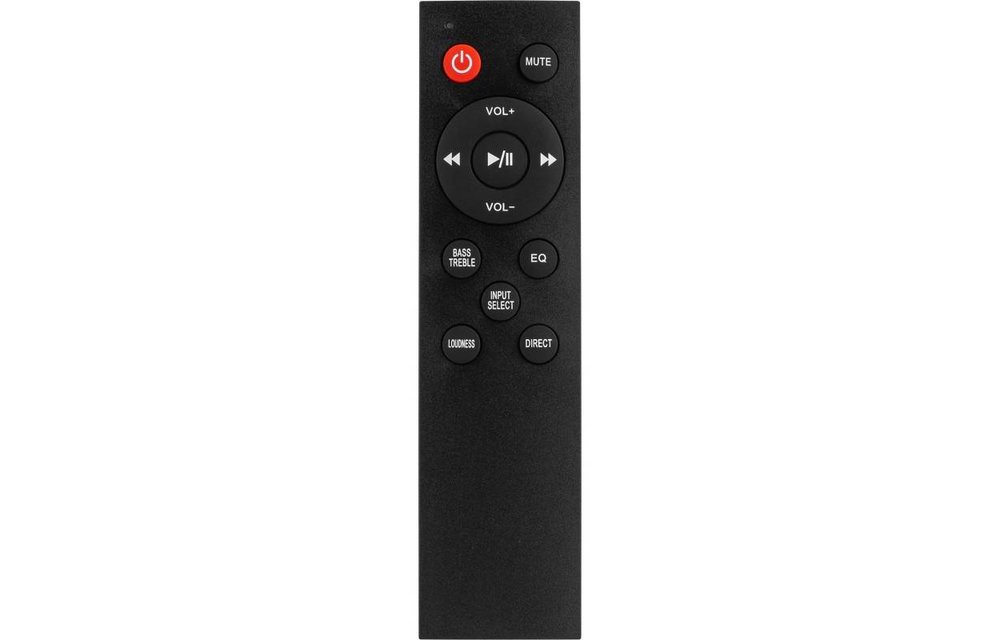

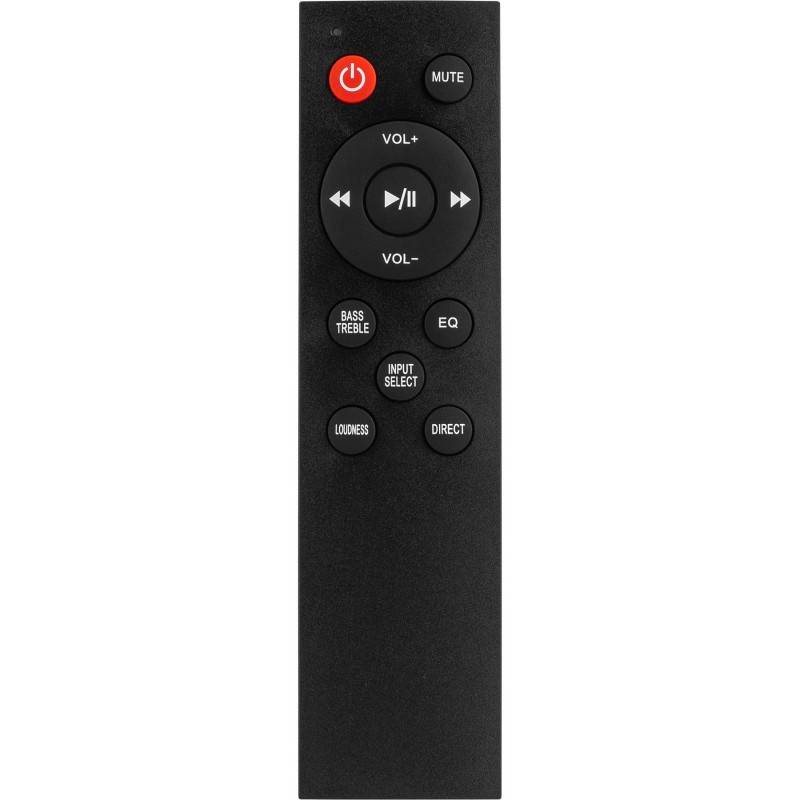

Included with the DTA-PRO is a full function wireless remote which allows for total control over the amplifiers number of presets and features including EQ presets, bass / treble adjustment, and even track control when utilizing the Bluetooth or DAC input.



The DTA-PRO also offers a powerful line level output for connecting a powered subwoofer. At nearly 3 VRMS the subwoofer output provides a powerful signal to give your powered subwoofer the signal it needs to really pound.

Specifications

Specifications for: DTA-PRO 100W Class D Bluetooth Amplifier with USB DAC IR Remote and Sub Output

  • Rated power output (RMS) The electrical power measured in watts (W) that an amplifier can output per channel, without damaging the amplifier or the output signal is çlipped'. RMS = Root Mean Square. 2 x 50 Watts at 4 ohms
  • Bridged power output (RMS) The electrical power expressed in watts (W) that an amplifier can output per bridged channel (2 x stereo to 1 x mono output), without damaging the amplifier or the output signal is çlipped'. RMS = Root Mean Squeare. -
  • Minimum load Shows the minimum load that an amplifier can control in ohms. A lower impedance of a speaker is not recommended if it is lower than the minimum impedance of an amplifier. An amplifier works best when the impedance of the speaker falss within the impedance range that the amplifier prescribes (for example, 4 to 8 ohms). 4 ohms
  • Signal-to-noise ratio (SNR) Shows the strength level of signal power compares to a level of noise power. Generally, higher values ​​means better specification. -107dB (at 1KHz)
  • Distortion SPEC Distortion 0.09% at 100 mV input THD+N
  • View all specifications
  • Distortion bridged -
  • Efficiency 88%
  • Frequency response 20 - 20,000 kHz (-1.5 dB)
  • Input impedance 20 Kohms (AUX)
  • Input sensitivity 1.1 - 2.5 V
  • Auto turn-on sensitivity -
  • DSP -
  • DAC
  • Maximum sampling rate

    Coaxial/optical: 192 kHz / 24 bit
    USB: 96 kHz / 24 bit

  • Circuit Topology

    SA9023, CS8416, TAS5342A, TAS5508C
    DAC PCM1808, NE5532

  • Amplifier classification D
  • Speaker output channels 2
  • Subwoofer output channel -
  • Analog in/out -/-
  • Optical S/PDIF in/out 1/-
  • Coaxial in/out 1/-
  • RCA in/out -/-
  • AUX in/out 1/-
  • Bus in/out -/-
  • XLR in/out -/-
  • USB
  • Memory card slot -
  • Network connection -
  • Headphone jack -
  • Subwoofer pre-out
  • Bluetooth 4.2 aptX
  • NFC -
  • Wi-Fi -
  • Banana plug compatible
  • Remote control
  • App control -
  • Auto turn-on -
  • Accepted file formats -
  • Equalizer (EQ) adjustment
  • Equalizer (EQ) profiles
  • Multi zone/room -
  • Crossover frequency adjustment 150 Hz fixed low pass
  • Bridge mode -
  • Power requirements 24V - 32 VDC
  • Power inlet connector DC jack
  • Power consumption -
  • Stand-by power consumption -
  • Dimensions (D x W x H) 127 x 132 x 30.5 mm
  • Case material Brushed aluminum

Documenten

Reviews

User reviews 4.5 / 5 Reviews: (4)

  • DM By David M. on 02-06-2020 14:28

    5 / 5

    No description was given

  • JB By jorgen b. on 29-05-2020 22:57

    5 / 5

    No description was given

  • GK By G. K. on 15-12-2019 19:56

    5 / 5

    Geweldig geluid vanaf mijn PC via TOSLINK naar een setje bookshelf speakers van Sansui die ik nog had staan. Speakers worden nog vervangen maar zelfs nu klinkt het dus al goed.

  • PL By Paul Leigh Edwards on 10-06-2019 16:24

    3 / 5

    Good product - sounds great, but beware the highest sampling rates e.g. 192k only seem to be available via the optical input. USB would only go to 98k, BT would not connect, and I had to use optical in the end to get 192K.
