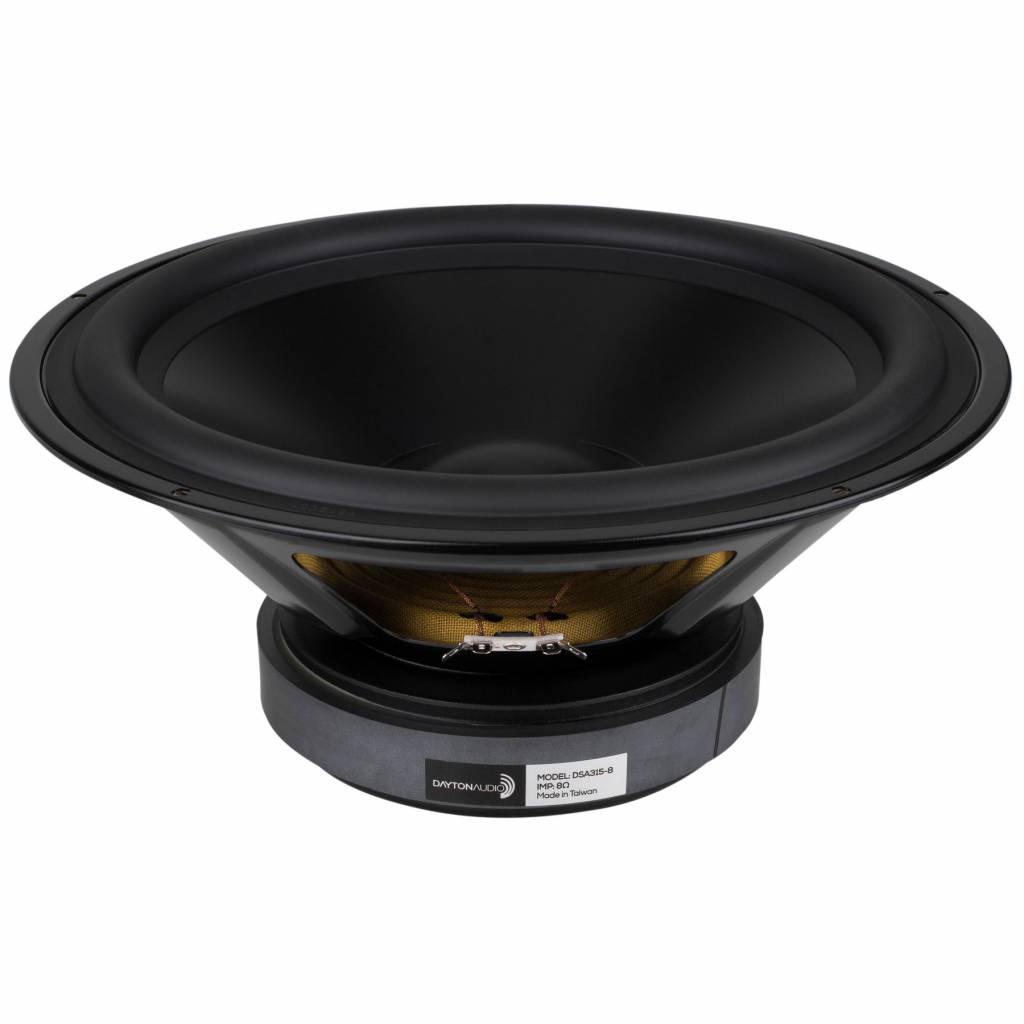

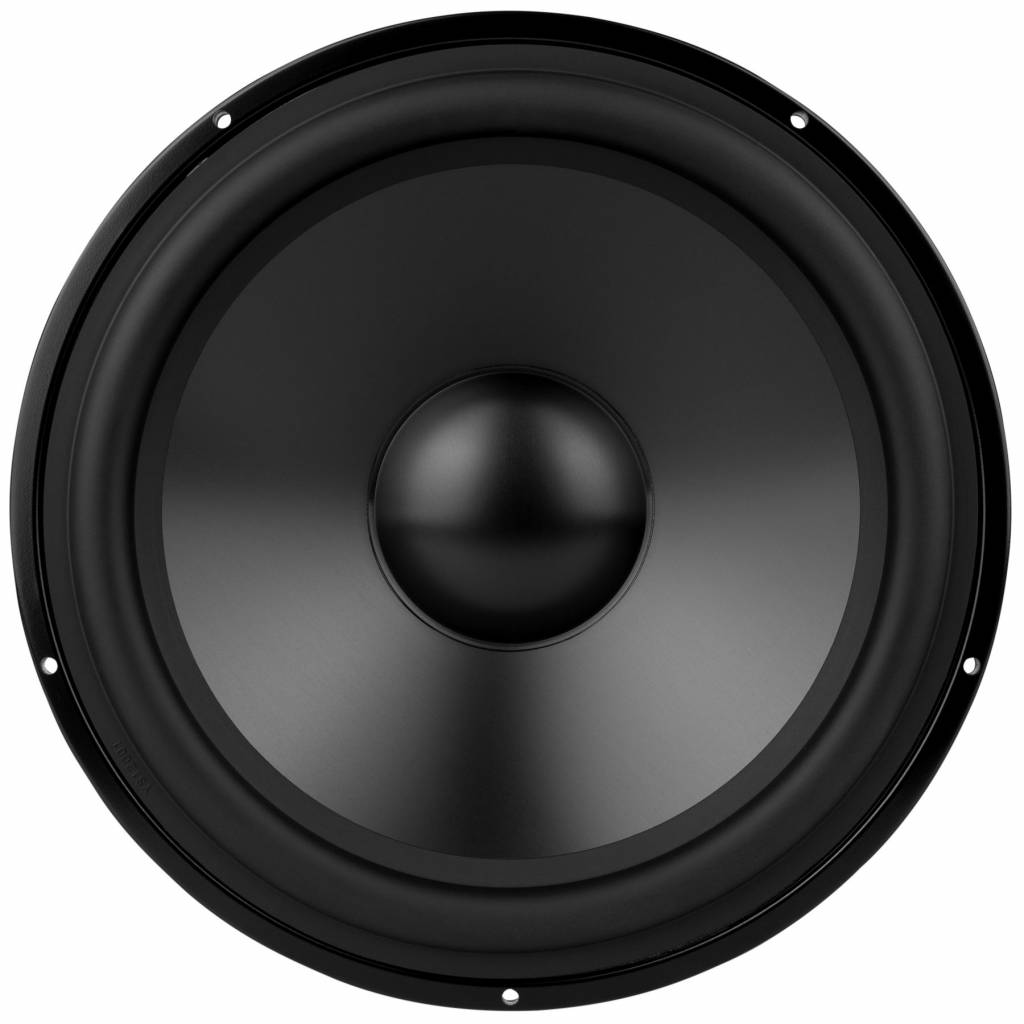

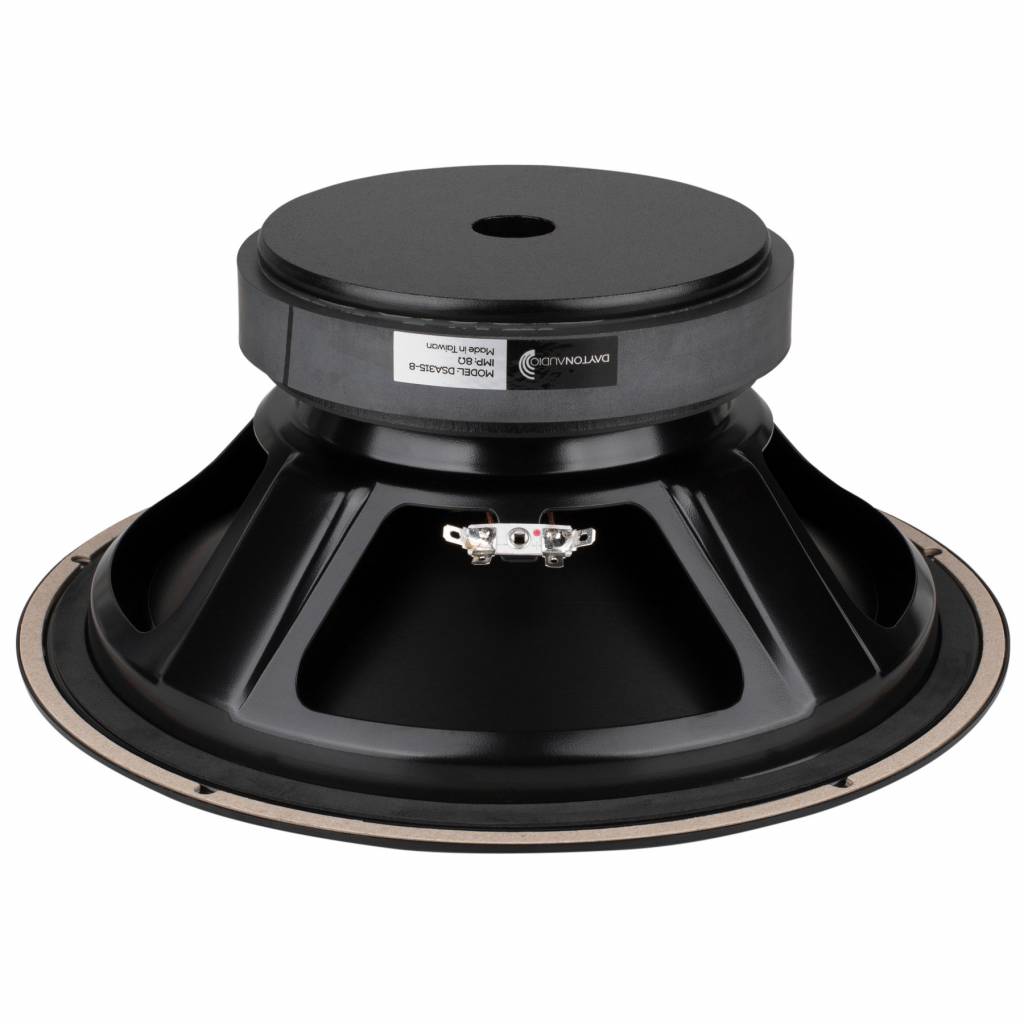

Dayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer

Special order only. Delivery time is 3-6 weeks

  • Article code: DSA315-8
  • Out of stock

Great looks, high efficiency, and clean bass are notable attributes of Dayton Audio's Designer Series DSA315-8 12" woofer.

€ 124,95 Incl. 21% VAT

  • Buy 4 for €118,70 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer

Great looks, high efficiency, and clean bass are notable attributes of Dayton Audio's Designer Series DSA315-8 12" woofer.



Highlights

  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Low distortion motor system with copper shorting ring
  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Smooth frequency response and linear roll-off simplify filter design
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response



Product details

Dayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer



The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.



These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Specifications

Specifications for: DSA315-8 12" Designer Series Aluminum Cone Woofer

  • Woofer Series Specific woofer production line of the manufacturer. Designer Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Midwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 12"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 120 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 240 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 90.3 dB @ 2.83V/1m
  • Frequency Response 24 - 2,000 Hz
  • Voice Coil Diameter 49.5 mm
  • Magnet Weight 77 oz.
  • DC Resistance (Re) 6 ohms
  • Voice Coil Inductance (Le) 1.11 mH @ 1 kHz
  • Resonant Frequency (Fs) 24.23 Hz
  • Mechanical Q (Qms) 1.89
  • Electromagnetic Q (Qes) 0.40
  • Total Q (Qts) 0.33
  • Diaphragm Mass Inc. Airload (Mms) 113.1g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.38 mm/N
  • Surface Area of Cone (Sd) 506.7 cm²
  • Volume of Displacement (Vd) 276.7 cm³
  • BL Product (BL) 16.1 Tm
  • Compliance Equivalent Volume (Vas) 147 liters
  • Maximum Linear Excursion (Xmax) 5.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminum Cone
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 314 mm
  • Overall Depth 130 mm
  • Baffle Cutout Diameter 272 mm
  • Bolt Circle Diameter
  • # Mounting Holes 5
  • Mounting Hole Diameter
  • Sealed Volume 0.86 ft.³
  • Sealed F3 62 Hz
  • Vented Volume 2.11 ft.³
  • Vented F3 27 Hz
