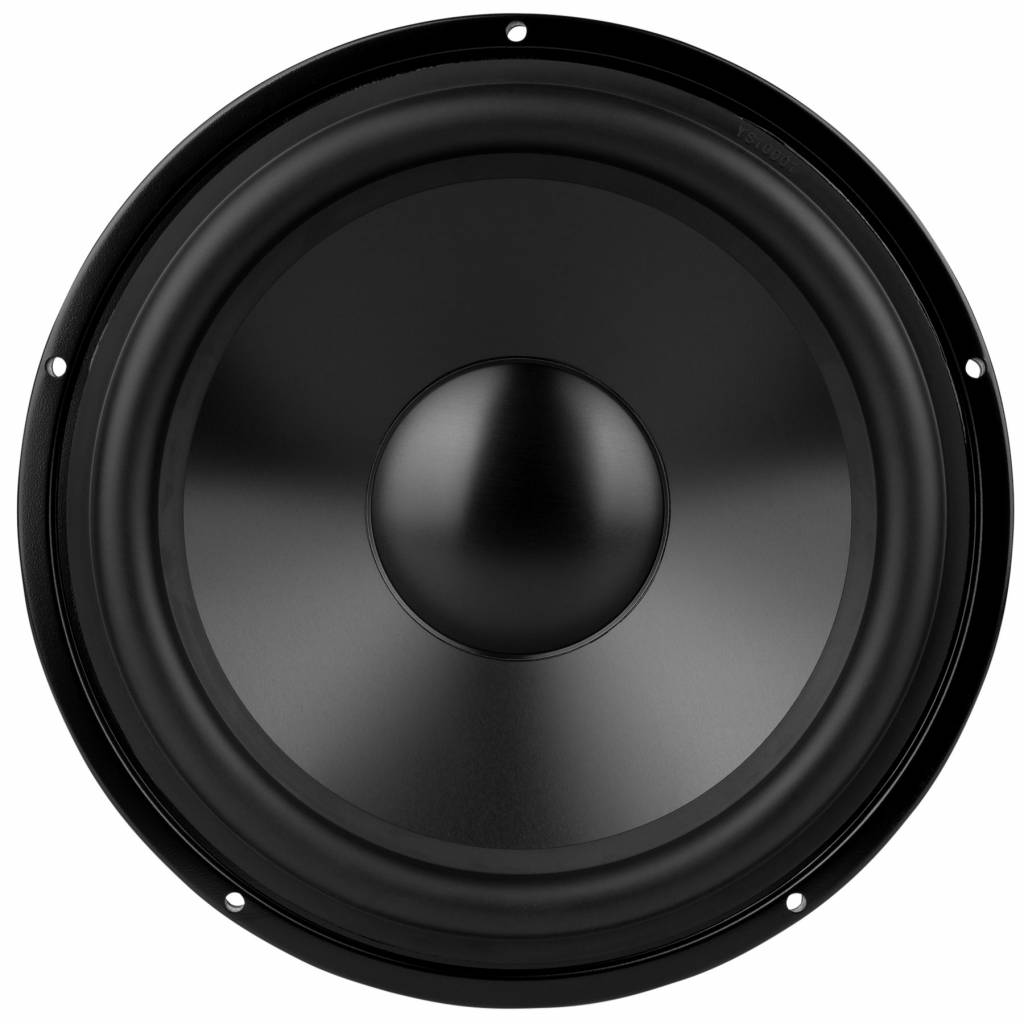

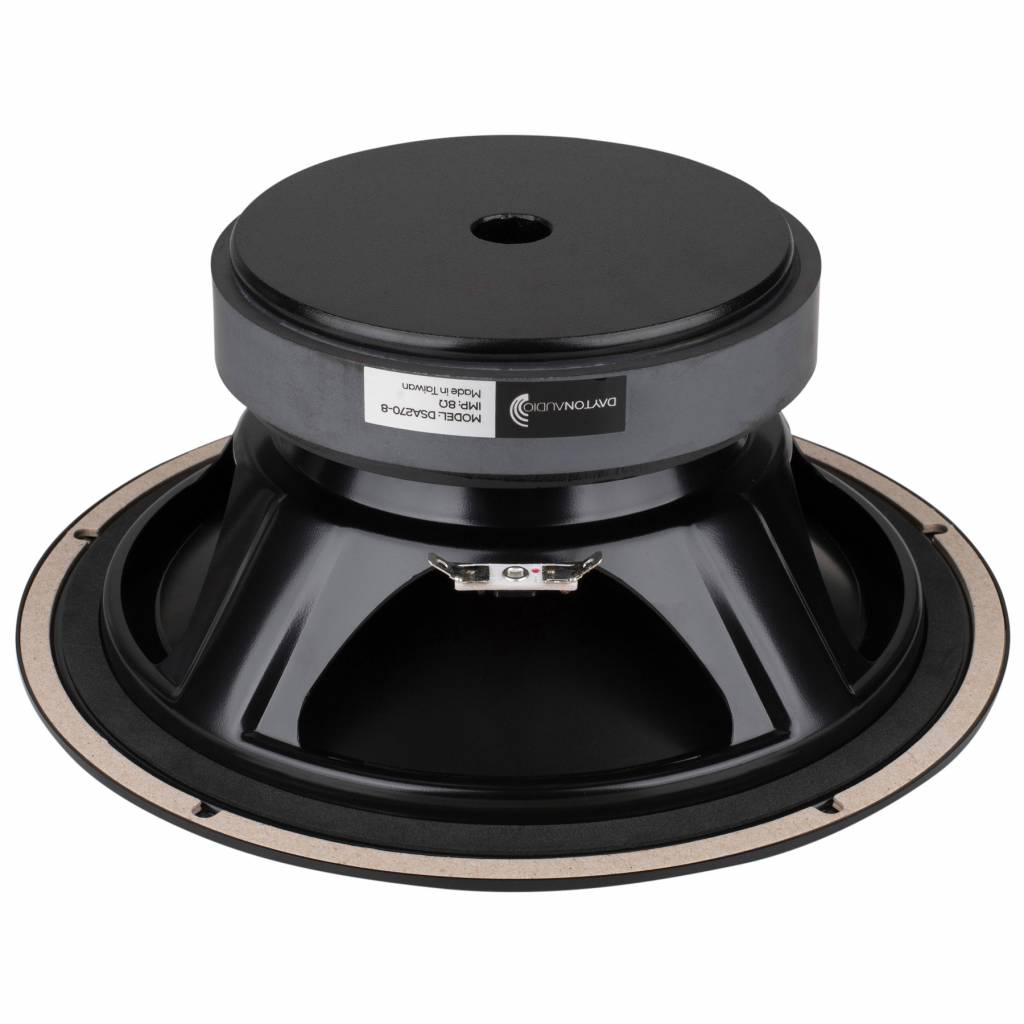

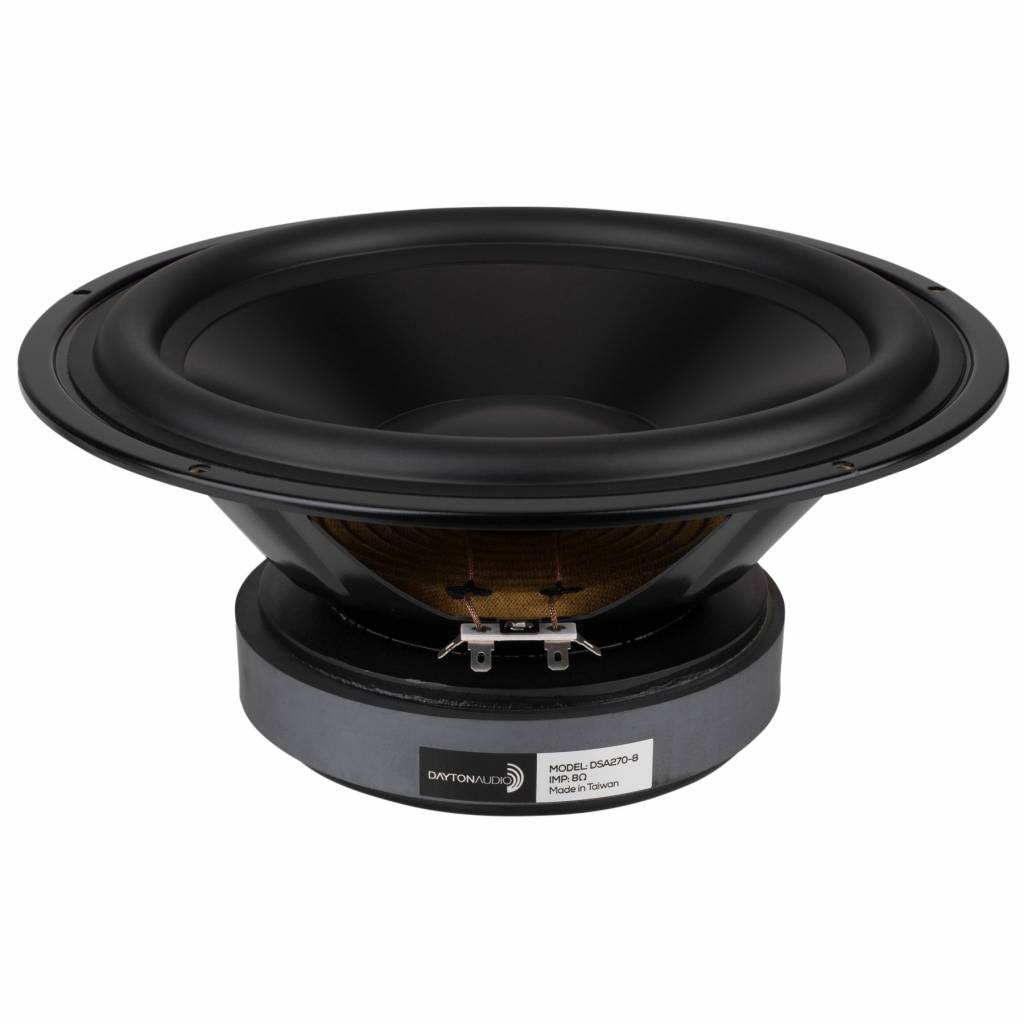

        DSA270-8 10" Designer Series Aluminum Cone Woofer

        DSA270-8 10" Designer Series Aluminum Cone Woofer

        €134,95

        Dayton Audio DSA270-8 10" Designer Series Aluminum Cone Woofer

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 111,53€ 134,95 6 In stock
        • -5% Purchase 4 for only € 128,20 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The Dayton Audio Designer Series DSA270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax!



        Highlights

        • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
        • Low distortion motor system with copper shorting ring
        • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
        • Smooth frequency response and linear roll-off simplify filter design
        • Vented pole piece for minimized power compression and maximized reliability
        • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
        • Generous Xmax capability encourages use of moderate bass boost to tailor the response



        Product details

        Dayton Audio DSA270-8 10" Designer Series Aluminum Cone Woofer



        The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.



        These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

        Show more

        Specifications

        Article number
        DSA270-8
        Woofer Series
        Designer Series
        Woofer Type
        Midwoofer
        Nominal Diameter
        10"
        Power Handling (RMS)
        100 watts
        Power Handling (max)
        200 watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        90.4 dB
        Frequency Response
        29 - 6,000 Hz
        Voice Coil Diameter
        38.5 mm
        Magnet Weight
        62 oz.
        DC Resistance (Re)
        5.4 ohms
        Voice Coil Inductance (Le)
        1.07 mH @ 1 kHz
        Resonant Frequency (Fs)
        29.6 Hz
        Mechanical Q (Qms)
        2.09
        Electromagnetic Q (Qes)
        0.47
        Total Q (Qts)
        0.39
        Diaphragm Mass Inc. Airload (Mms)
        59.6g
        Mechanical Compliance of Suspension (Cms)
        0.49 mm/N
        Surface Area of Cone (Sd)
        353 cm²
        Volume of Displacement (Vd)
        194.1 cm³
        BL Product (BL)
        11.2 Tm
        Compliance Equivalent Volume (Vas)
        88.1 liters
        Maximum Linear Excursion (Xmax)
        5.5 mm
        Cone / Diaphragm Material
        Aluminum Cone
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        270 mm
        Overall Depth
        112 mm
        Baffle Cutout Diameter
        227 mm
        # Mounting Holes
        5
        Sealed Volume
        0.75 ft.³
        Sealed F3
        65 Hz
        Vented Volume
        2.13 ft.³
        Vented F3
        37 Hz

        Show more

        5 of 5
        Great sub. Works well in my home built mini scoop. Performs great at low end, noticeable upgrade from previous cheap driver.
        By Joe Sharp on 2 October 2022
        5 of 5
        Met de Specs van deze luidspreker in de juiste kast en aan deze prijs, zeker een aanrader. Verwacht uiteraard geen highend ,maar doet prima zijn ding.
        By Frank C. on 26 November 2020
