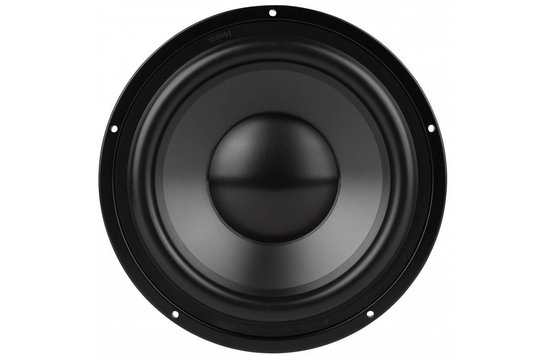

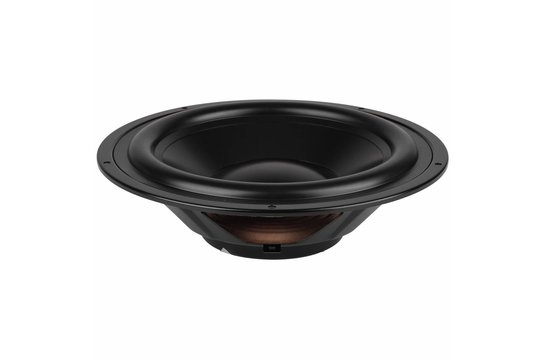

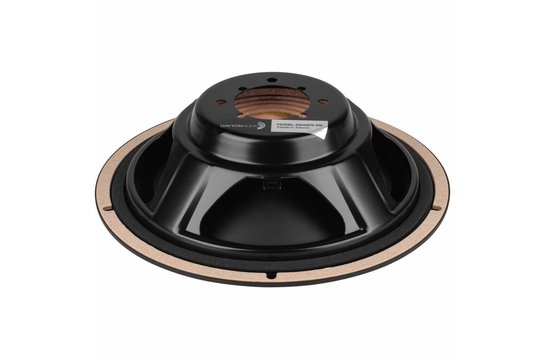

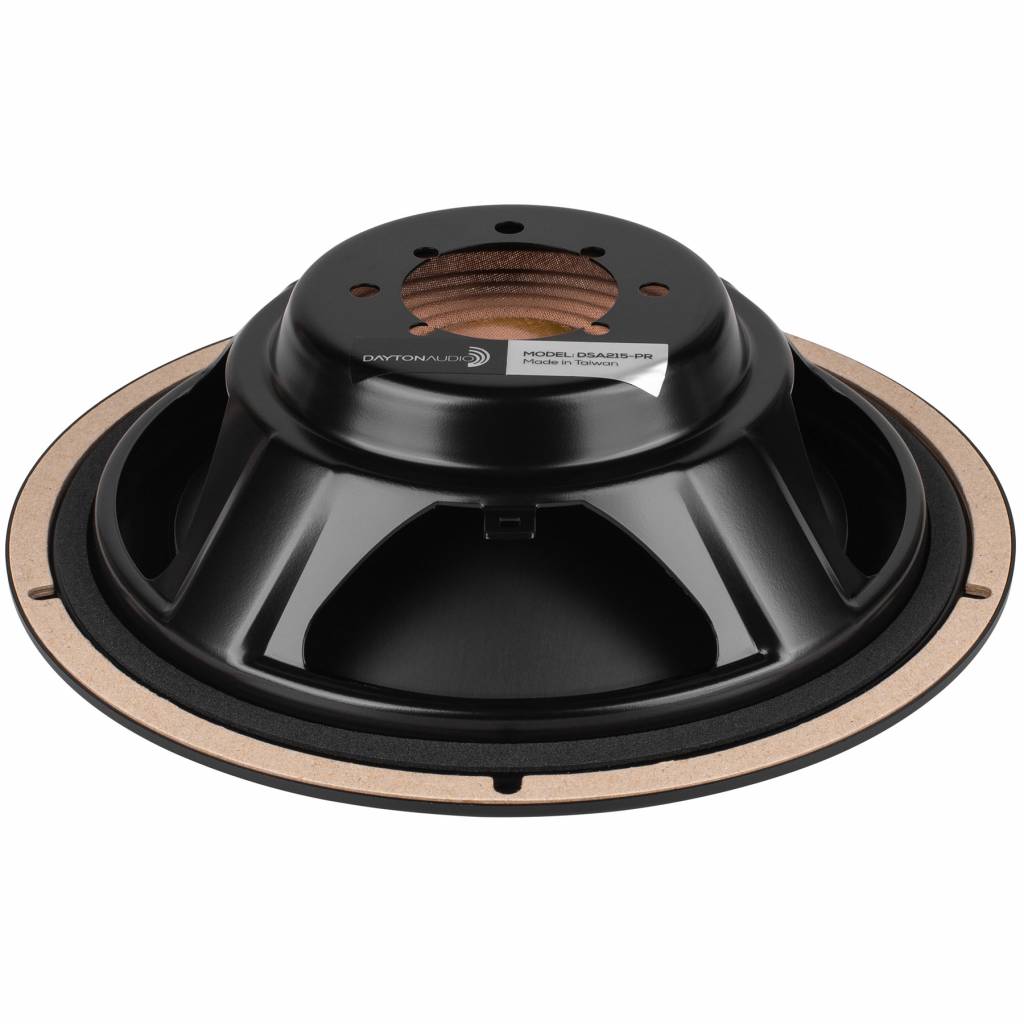

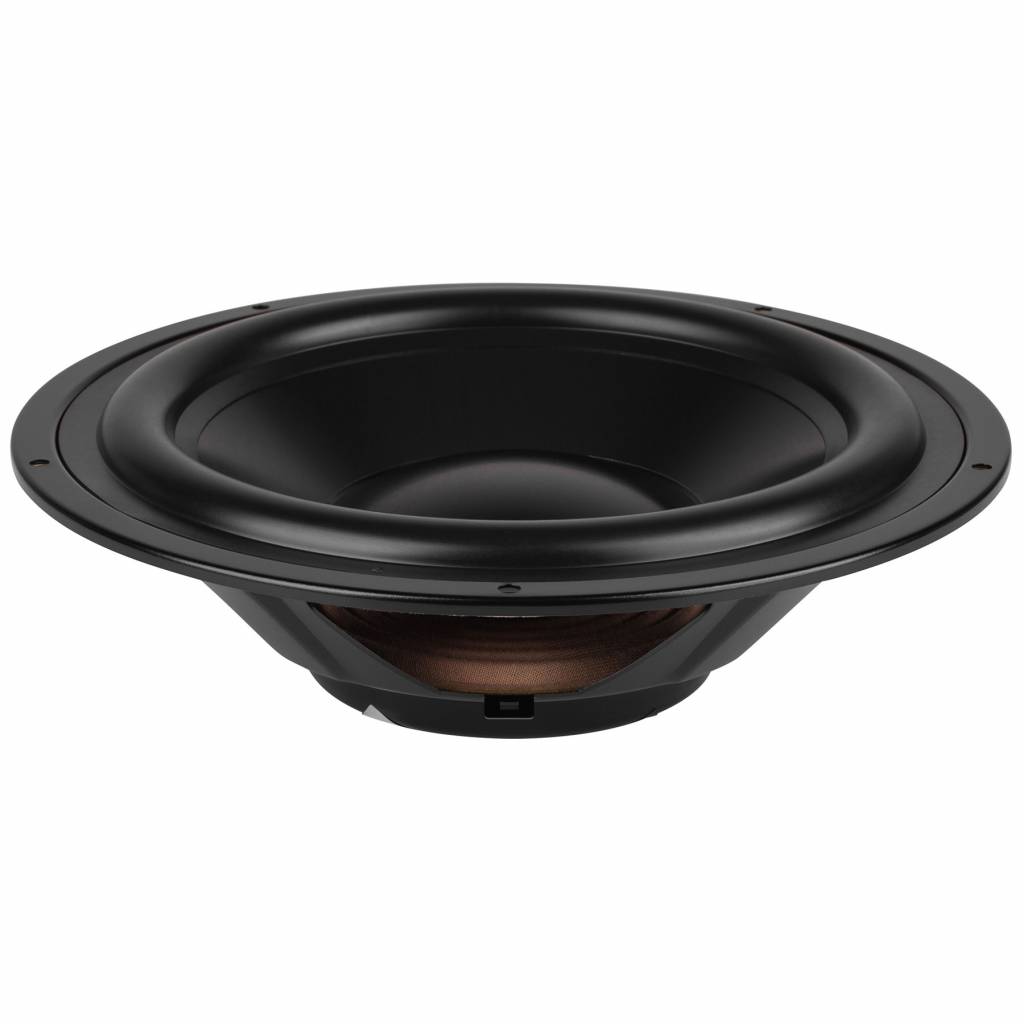

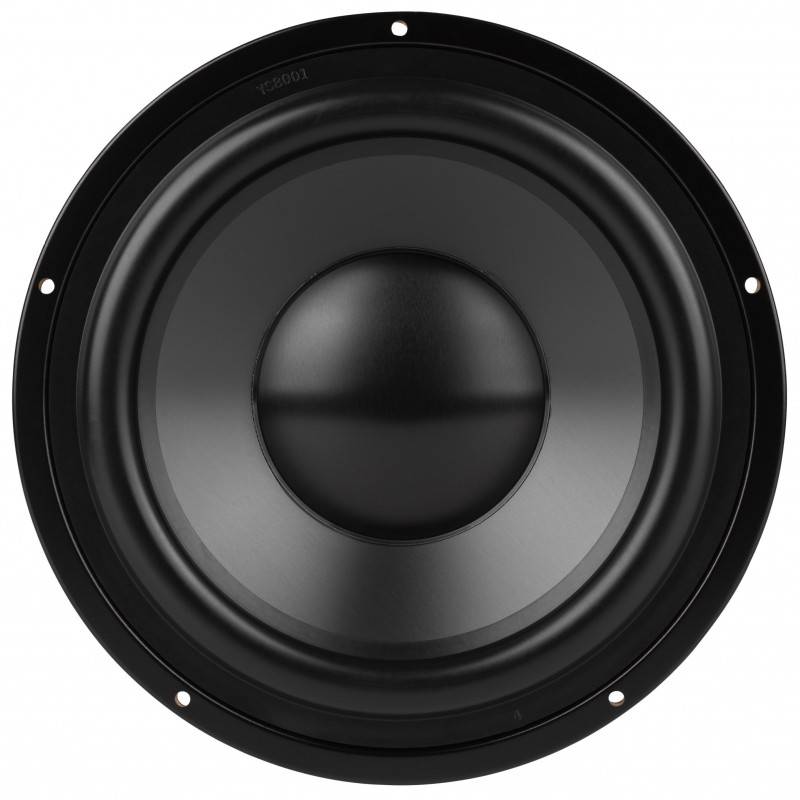

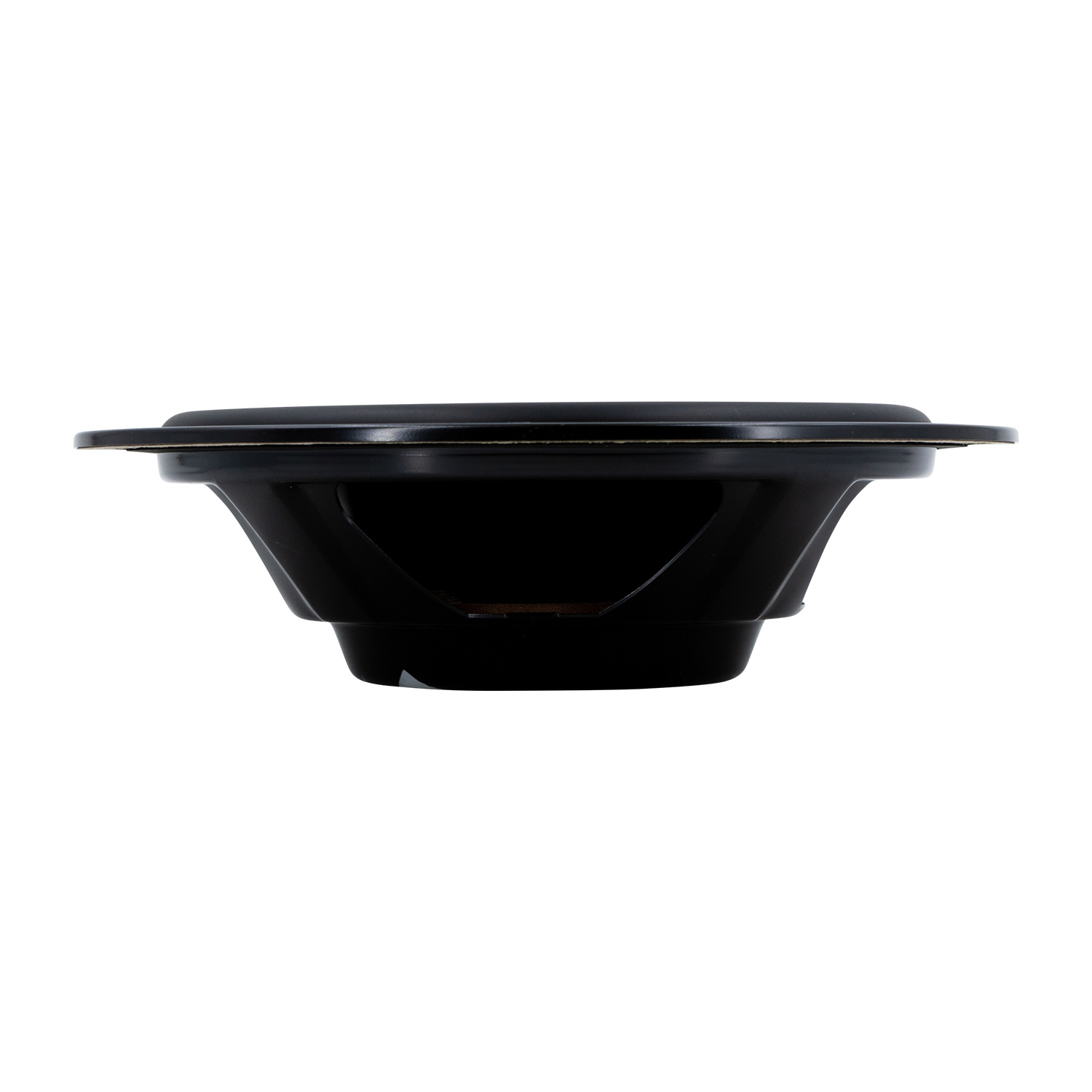

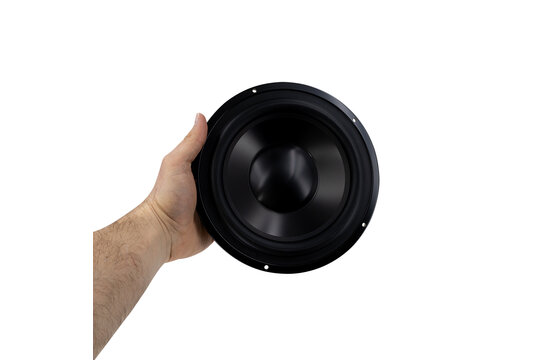

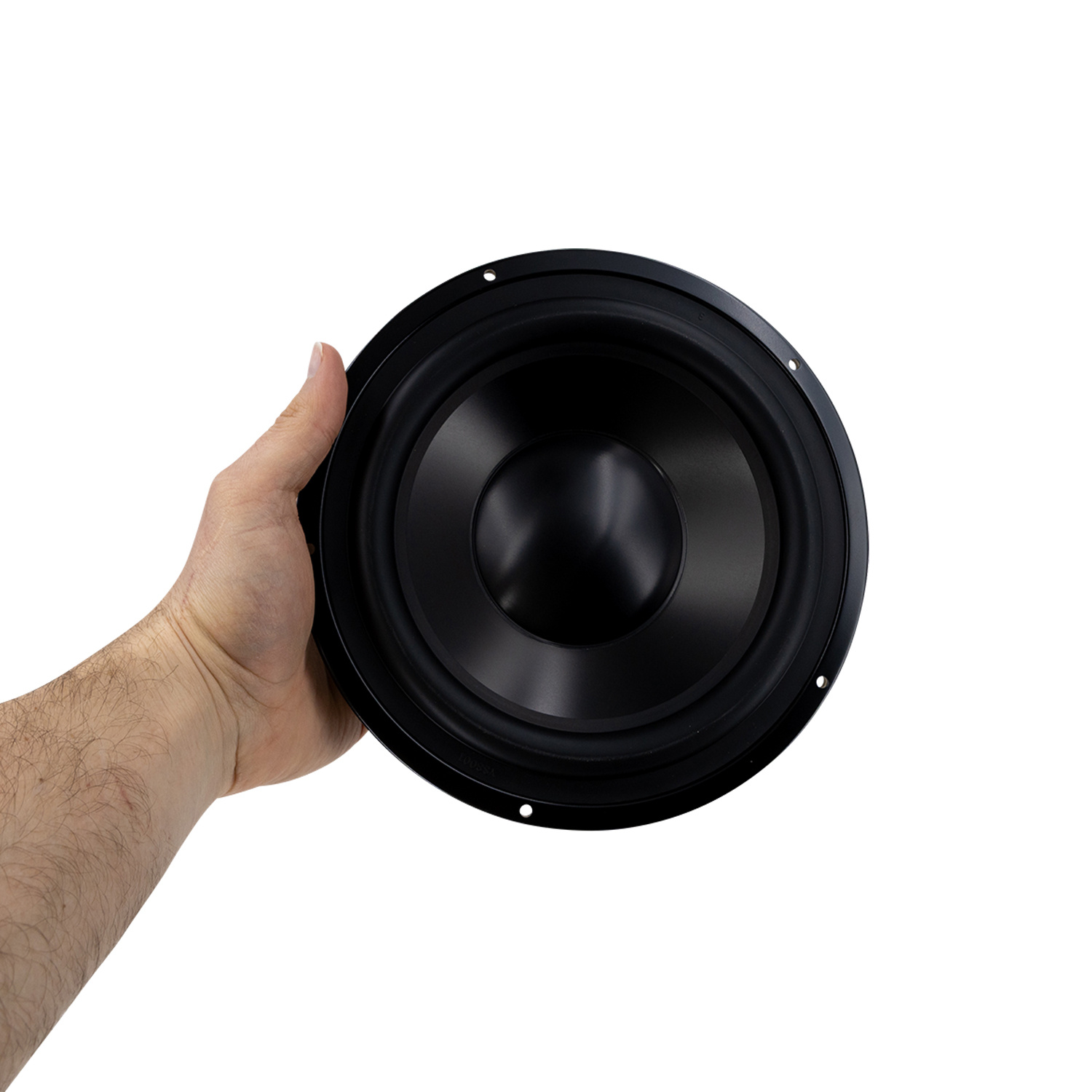

Dayton Audio DSA215-PR 8" Designer Series Aluminum Cone Passive Radiator

In stock

  • Article code: DSA215-PR
  • Stock: 7 In stock

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame,

€ 29,95 Incl. 21% VAT

  • Buy 4 for €28,45 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-days the right to cancel
  • International payment options

Product description

Dayton Audio DSA215-PR 8" Designer Series Aluminum Cone Passive Radiator

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.



Highlights

  • Perfect match for Dayton Audio's aluminum cone Designer Series drivers
  • Allows tuning small enclosures lower than using conventional ports
  • Rear mounted screw allows easy mass adjustment for custom tuning
  • Cosmetic frame edge looks great even when surface mounted



Product details

Dayton Audio DSA215-PR 8" Designer Series Aluminum Cone Passive Radiator

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from stand mount two-ways to compact subwoofer systems.



Specifications: • Fs: 25.6 Hz • Vas: 1.3 cu. ft. • Qms: 7.66 • Cms: 0.58 mm/N • Rms: 1.4 kg/s • Mms: 67 g • Sd: 211.2 sq. cm. • Xmax: 11 mm • Dimensions: Overall diameter: 8.50", Cutout diameter: 7.01", Depth: 2.30".



Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.

To calculate Vd: Sd x Xmax = Vd

Specifications

Specifications for: DSA215-PR 8" Designer Series Aluminum Cone Passive Radiator

  • Woofer Series Specific woofer production line of the manufacturer. Designer Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Passive Radiator
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 8"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged.
  • View all specifications
  • Continuous Program Power
  • Impedance
  • Sensitivity
  • Frequency Response
  • Voice Coil Diameter
  • Magnet Weight
  • DC Resistance (Re)
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 25.6 Hz
  • Mechanical Q (Qms) 7.66
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Diaphragm Mass Inc. Airload (Mms) 67g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.58 mm/N
  • Surface Area of Cone (Sd) 211.2 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL)
  • Compliance Equivalent Volume (Vas) 1.30 ft.³
  • Maximum Linear Excursion (Xmax) 11 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminum
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 8.50"
  • Overall Depth 2.30"
  • Baffle Cutout Diameter 7.01"
  • Bolt Circle Diameter 8.11"
  • # Mounting Holes 5
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3

Documenten

Reviews

User reviews 5 / 5 Reviews: (1)

  • MT By Myrddin T. on 12-04-2019 11:36

    5 / 5

    Geweldige passive radiator. Heel mooi en makkelijk te monteren omdat je hem niet hoeft te verzinken voor een mooie afwerking. 5 sterren!
