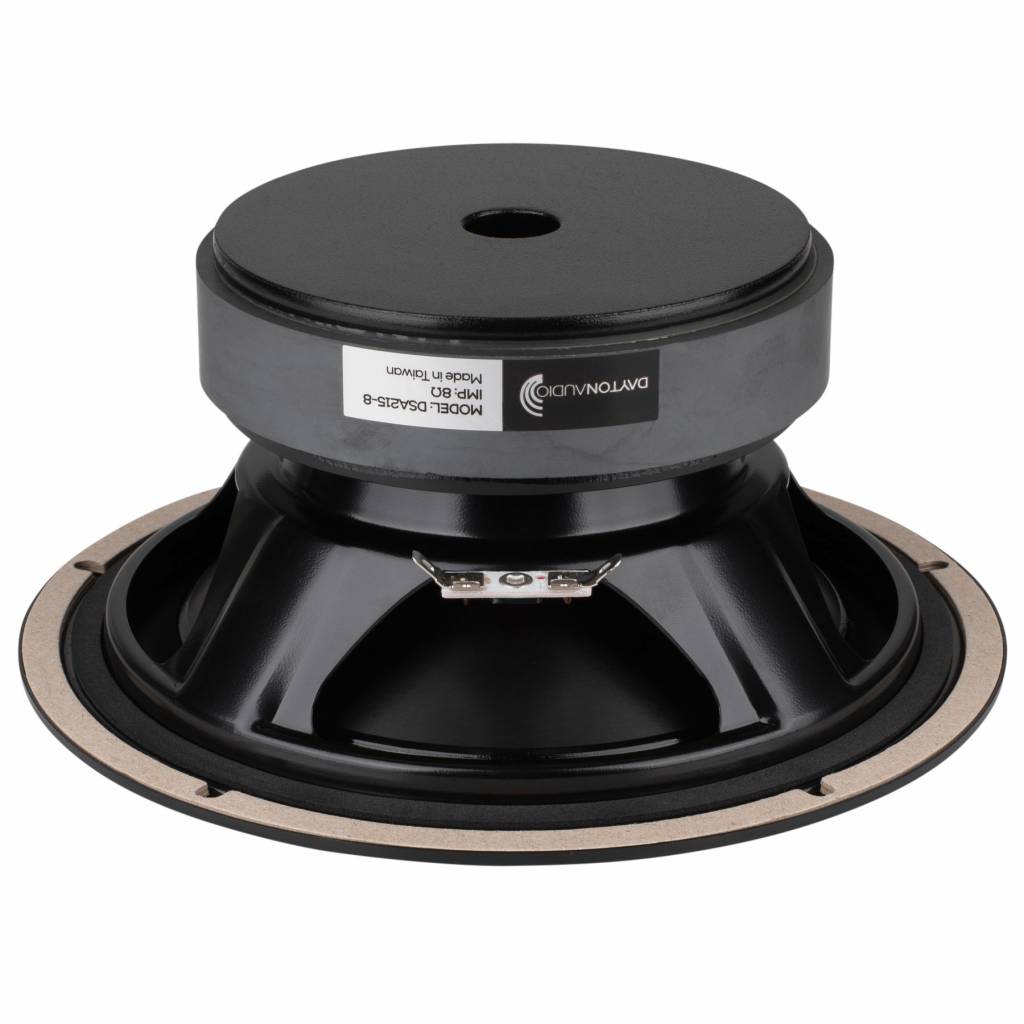

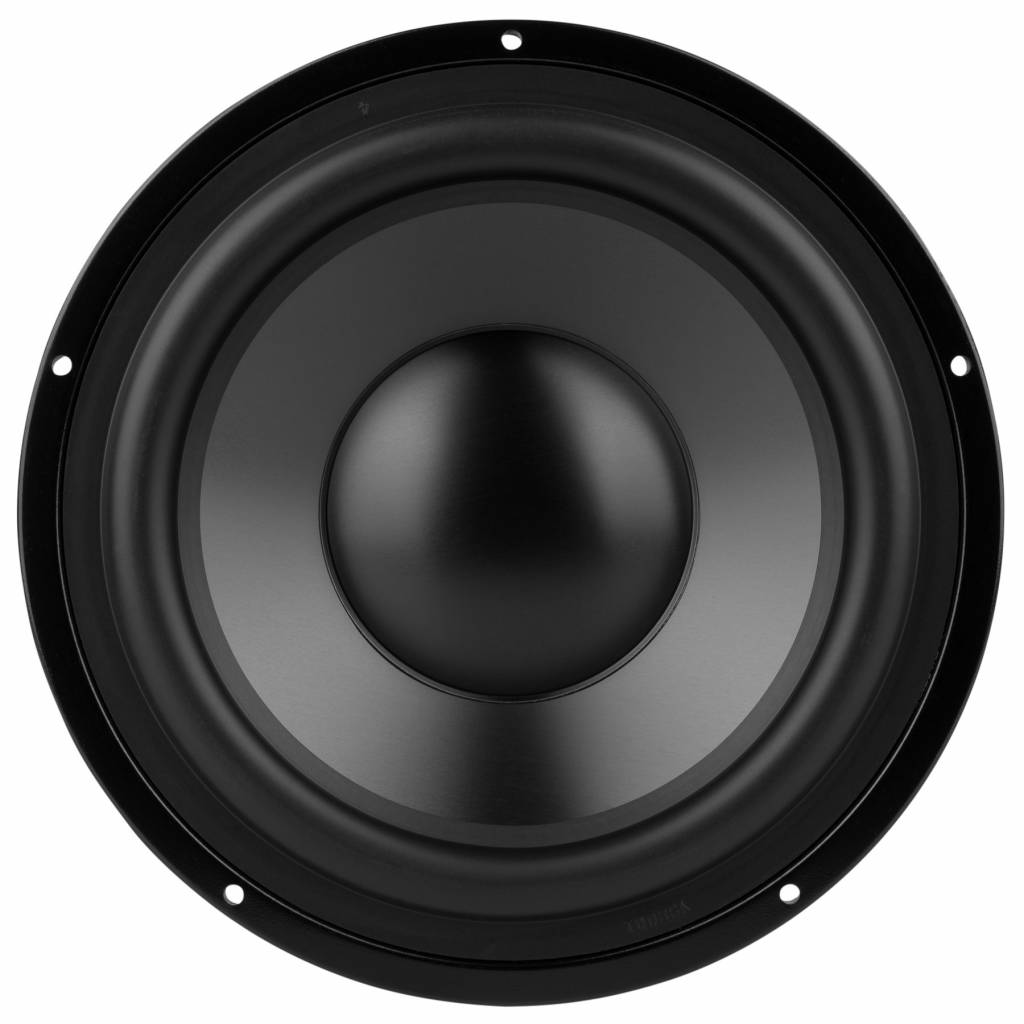

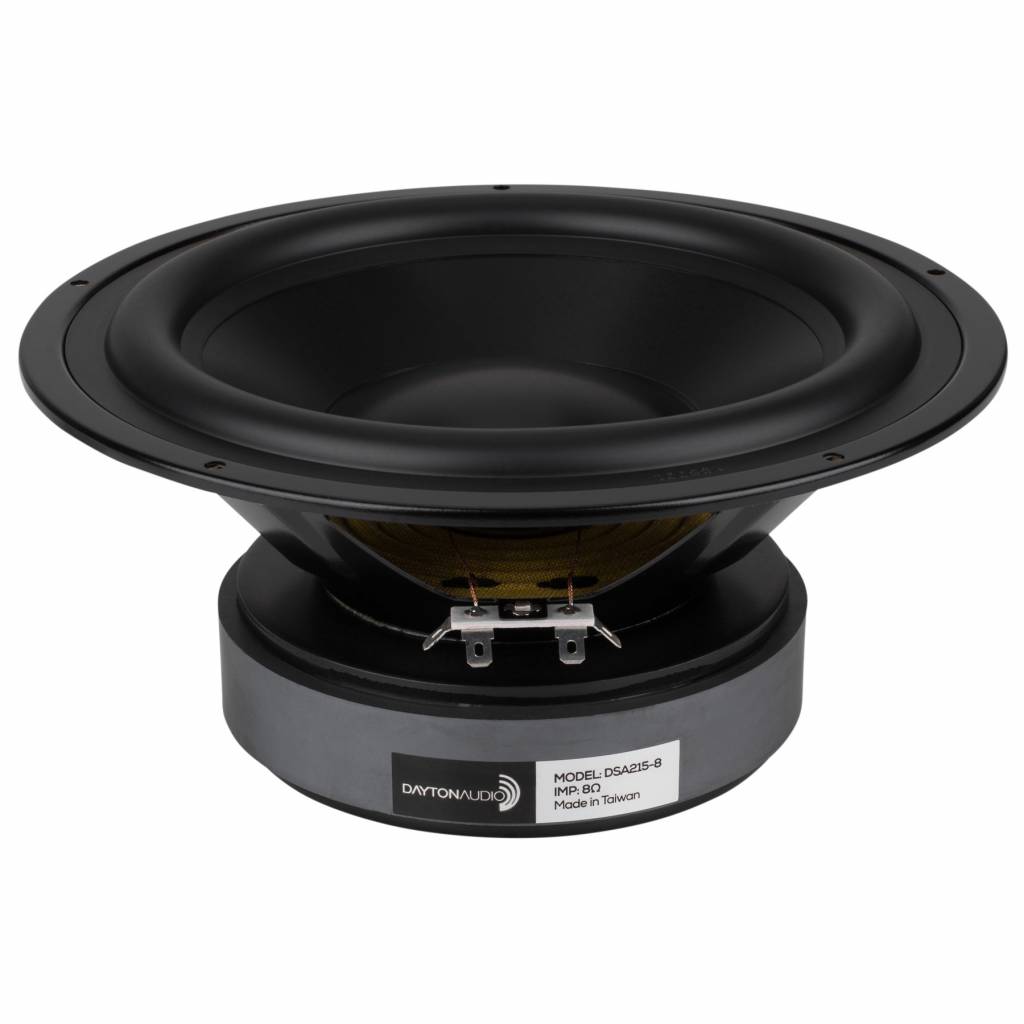

        DSA215-8 8" Designer Series Aluminum Cone Woofer

        DSA215-8 8" Designer Series Aluminum Cone Woofer

        €94,45

        Dayton Audio DSA215-8 8" Designer Series Aluminum Cone Woofer

        6 reviews
        5 from 5
        6 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 78,06€ 94,45 1 In stock9 expected on 30-08-2024
        • -5% Purchase 4 for only € 89,73 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Dayton Audio's Designer Series DSA215-8 8" woofer combines smooth response, excellent bass performance, and a stylish visual presentation.



        Highlights

        • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
        • Low distortion motor system with copper shorting ring
        • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
        • Smooth frequency response and linear roll-off simplify filter design
        • Vented pole piece for minimized power compression and maximized reliability
        • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
        • Generous Xmax capability encourages use of moderate bass boost to tailor the response



        Product details

        Dayton Audio DSA215-8 8" Designer Series Aluminum Cone Woofer



        The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.



        These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

        Show more

        Specifications

        Article number
        DSA215-8
        Woofer Series
        Designer Series
        Woofer Type
        Midwoofer
        Nominal Diameter
        8"
        Power Handling (RMS)
        80 watts
        Power Handling (max)
        160 watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        89.2 dB
        Frequency Response
        35 - 7,000 Hz
        Voice Coil Diameter
        38.5 mm
        Magnet Weight
        49 oz.
        DC Resistance (Re)
        5.9 ohms
        Voice Coil Inductance (Le)
        1 mH @ 1 kHz
        Resonant Frequency (Fs)
        35 Hz
        Mechanical Q (Qms)
        1.87
        Electromagnetic Q (Qes)
        0.40
        Total Q (Qts)
        0.33
        Diaphragm Mass Inc. Airload (Mms)
        34.6g
        Mechanical Compliance of Suspension (Cms)
        0.6 mm/N
        Surface Area of Cone (Sd)
        211.2 cm²
        Volume of Displacement (Vd)
        116.2 cm³
        BL Product (BL)
        10.6 Tm
        Compliance Equivalent Volume (Vas)
        37.4 liters
        Maximum Linear Excursion (Xmax)
        5.5 mm
        Cone / Diaphragm Material
        Aluminum Cone
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        216 mm
        Overall Depth
        95.5 mm
        Baffle Cutout Diameter
        180 mm
        # Mounting Holes
        5
        Sealed Volume
        0.28 ft.³
        Sealed F3
        89 Hz
        Vented Volume
        0.54 ft.³
        Vented F3
        55 Hz

        Show more

        5 of 5
        zum Shop: Netter Kontakt , gute faire Beratung und Super schnell geliefert. zum Artikel : Wie schon in der Beschreibung Stahlblechkorb , was aber nicht negativ bewertet werden sollte. Dafür ein super trocken und klarer Klang dank der Alu-Membran mit softer Gummisickenaufhänung. Ich trenne über eine 12DB- Weiche bei ca.2400 Hz und verwende ein 25L BR-Gehäuse mit mittlerer Dämmung . Das Chassis spielt bei mir am Messmikro bis auf 31Hz (-3DB)...

        Show more

        By Kai Haun on 29 March 2022
        5 of 5
        Der Lautsprecher macht einen sehr guten Eindruck, ist gut verarbeitet. Die Lieferszeit war sehr gut. Insgesamt kann ich das weiterempfehlen.
        By Peter P. on 3 November 2020
