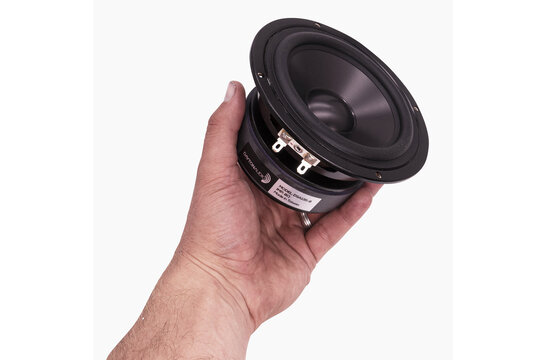

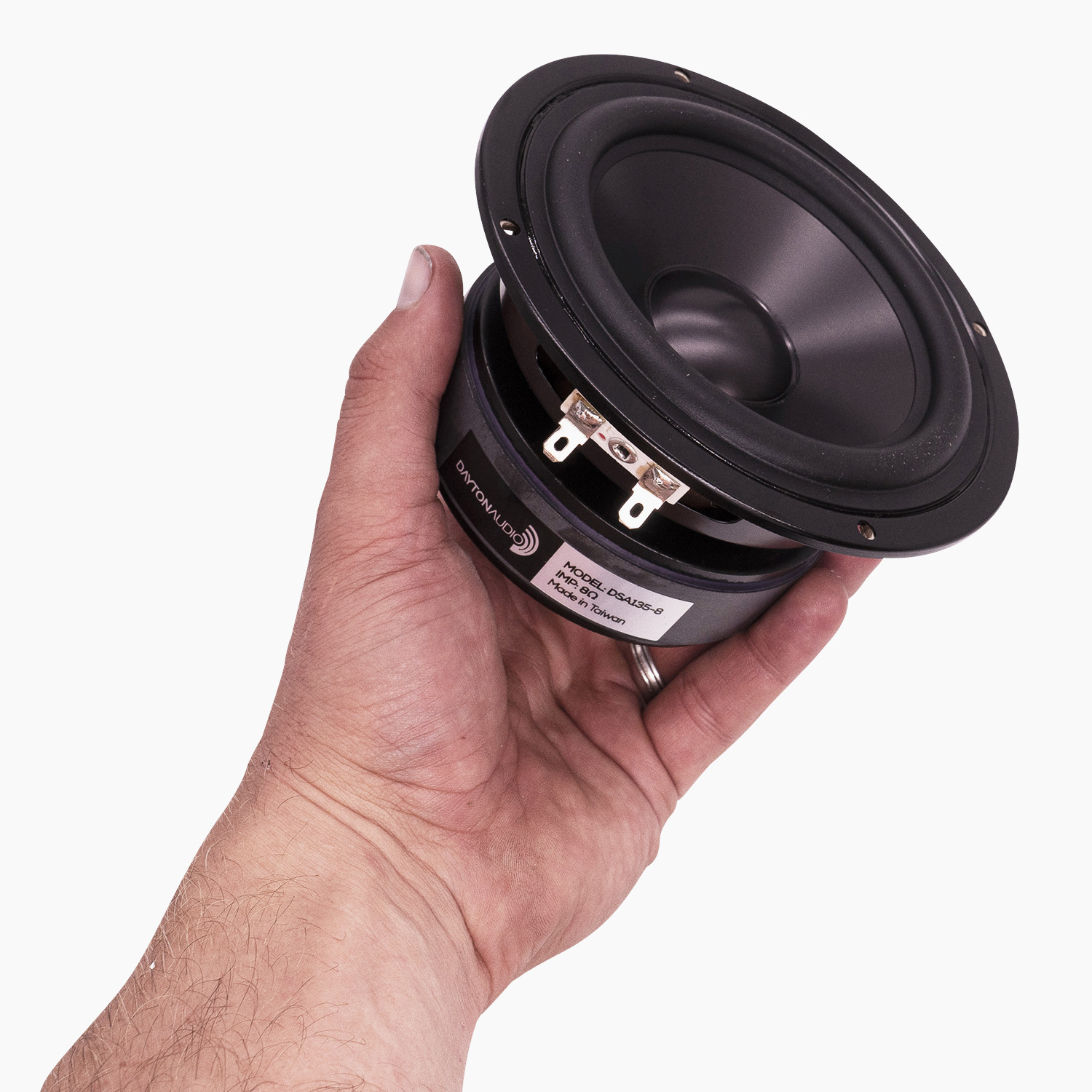

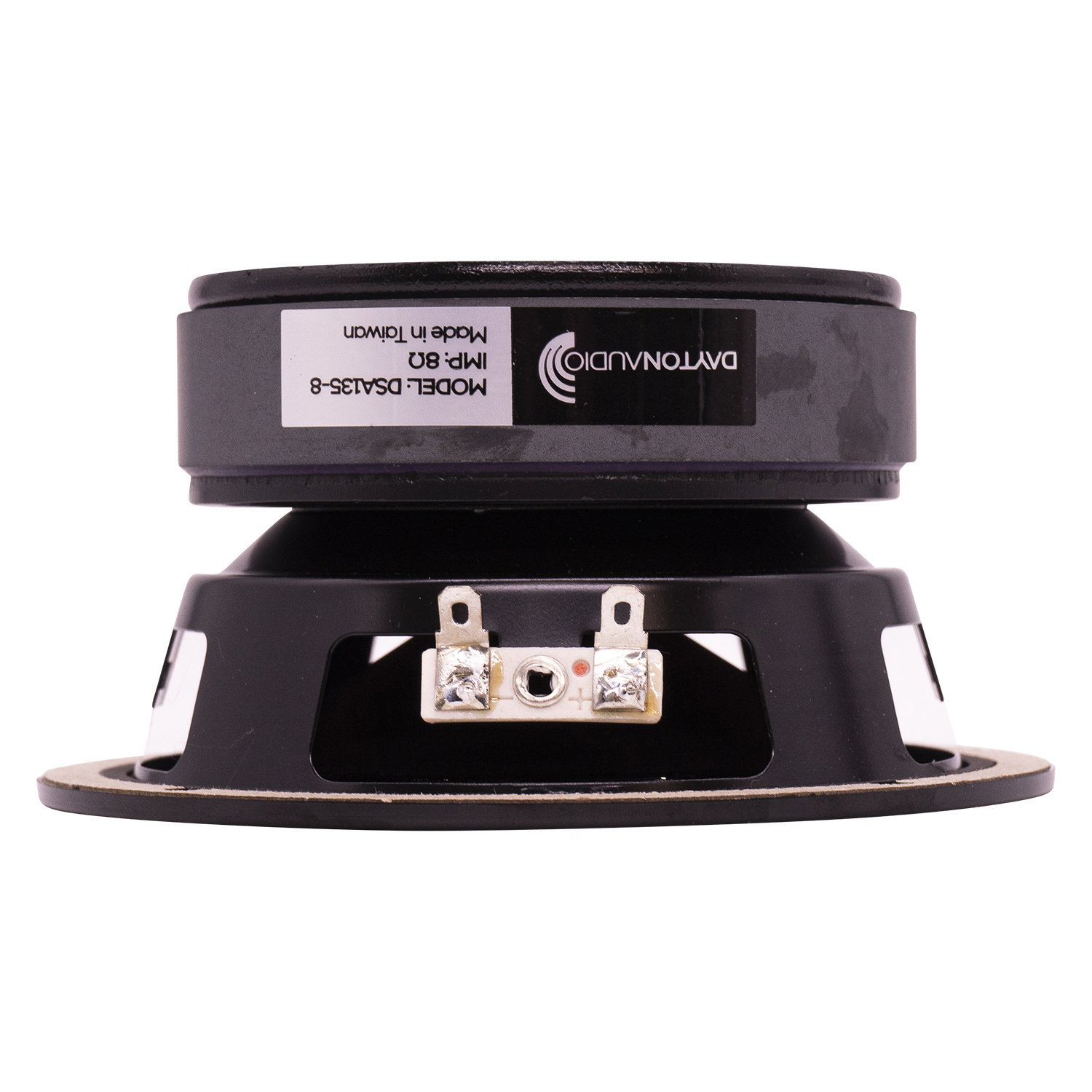

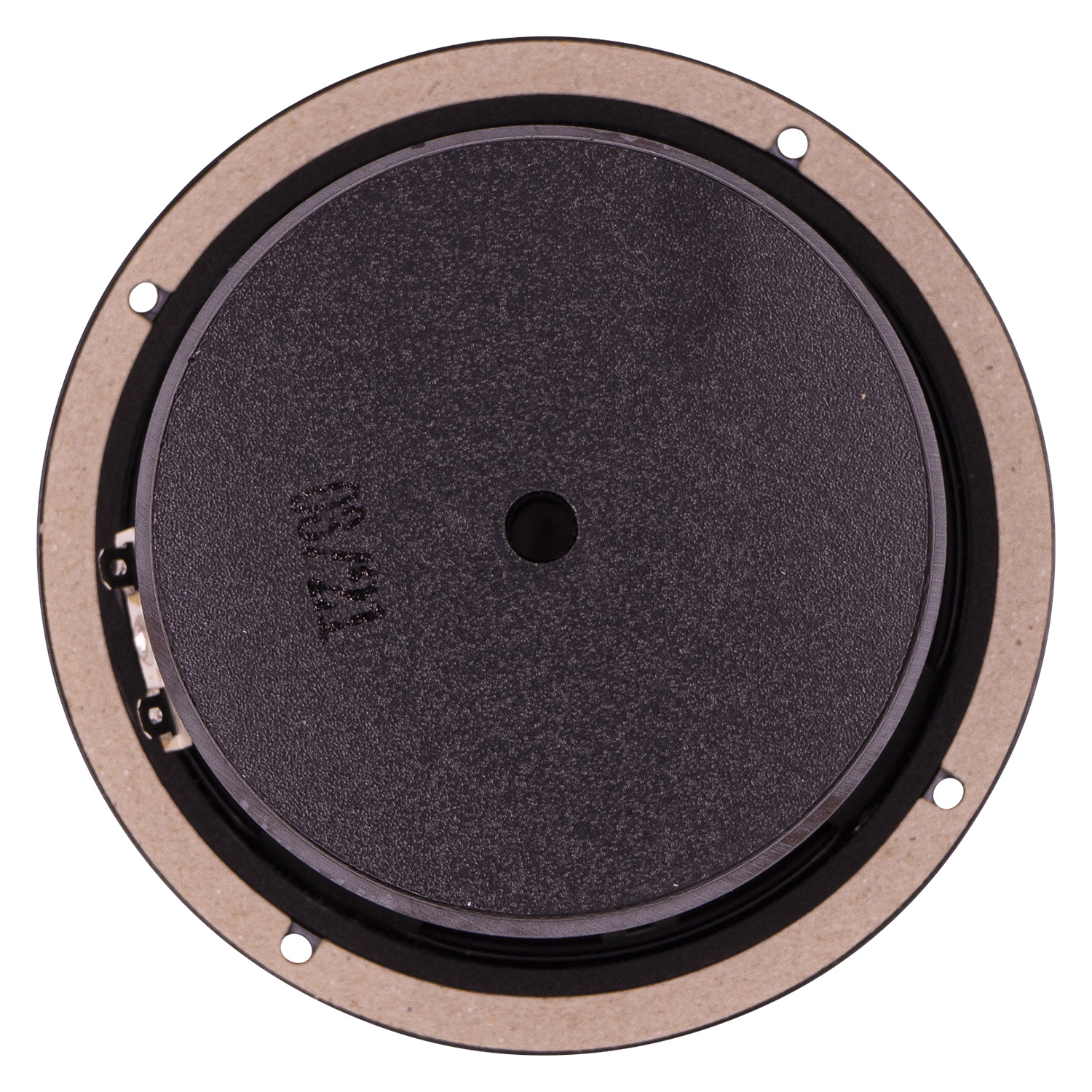

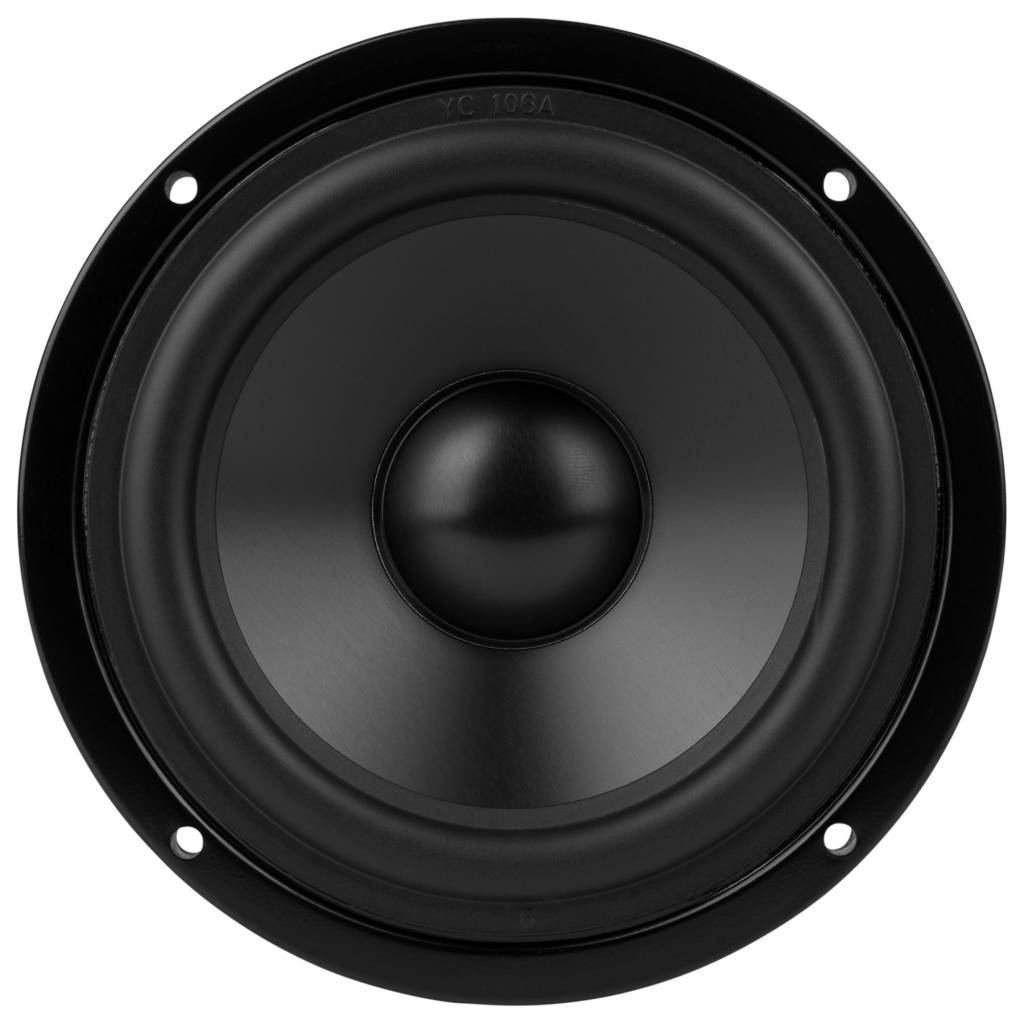

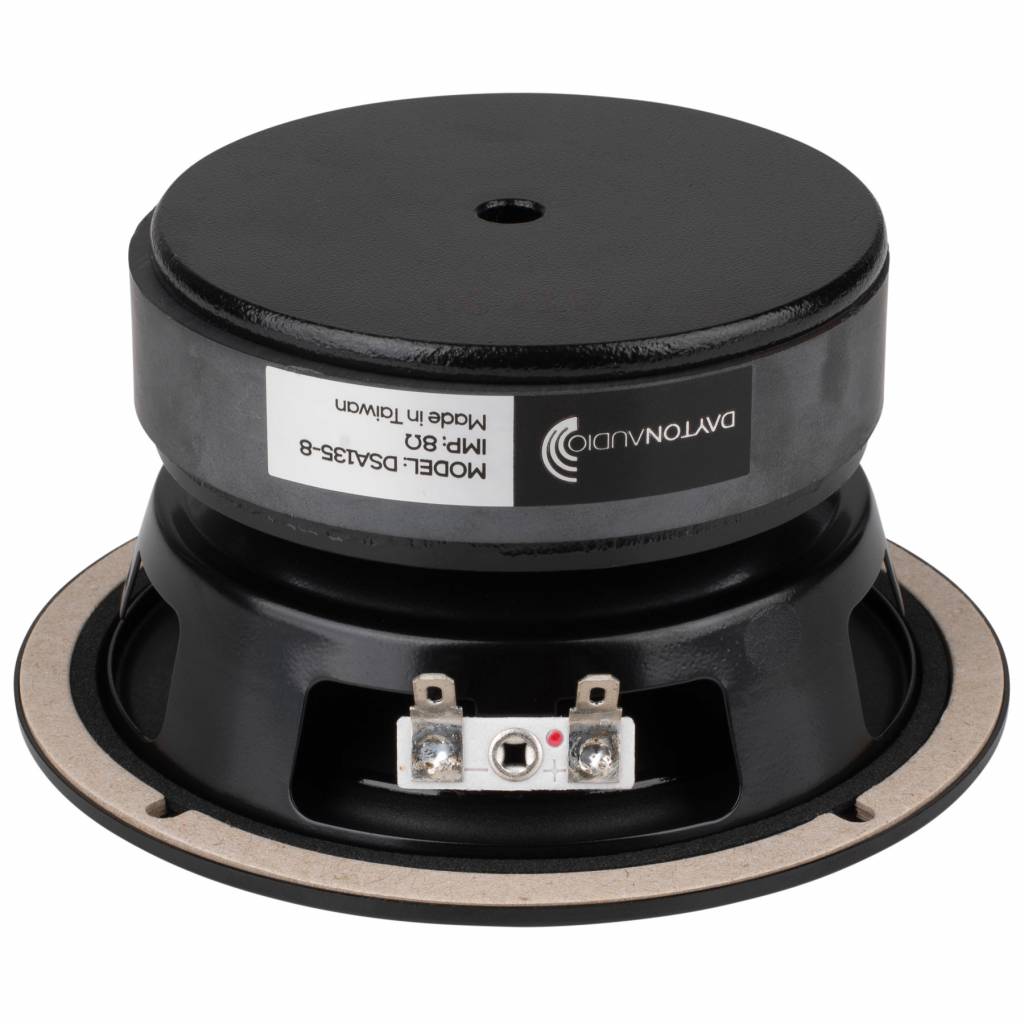

        DSA135-8 5" Designer Series Aluminum Cone Woofer

        DSA135-8 5" Designer Series Aluminum Cone Woofer


        Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer

        2 reviews
        5 from 5
        2 reviews
        5 stars
        4 stars
        3 stars
        2 stars
        1 star
        View all reviews
        € 34,67€ 41,95 10+ In stock
        • -5% Purchase 4 for only € 39,85 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The Designer Series DSA135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category.



        • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
        • Low distortion motor system with copper shorting ring
        • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
        • Smooth frequency response and linear roll-off simplify filter design
        • Vented pole piece for minimized power compression and maximized reliability
        • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
        • Generous Xmax capability encourages use of moderate bass boost to tailor the response


        Product details

        Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer


        The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.


        These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

        Show more


        Article number
        Woofer Series
        Specialty Drivers Series
        Woofer Type
        Nominal Diameter
        Power Handling (RMS)
        50 watts
        Power Handling (max)
        100 watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        87 dB
        Frequency Response
        51 ­- 9,000 Hz
        Voice Coil Diameter
        25.4 mm
        DC Resistance (Re)
        5.9 ohms
        Voice Coil Inductance (Le)
        0.78 mH @ 1 kHz
        Resonant Frequency (Fs)
        51.8 Hz
        Mechanical Q (Qms)
        Electromagnetic Q (Qes)
        Total Q (Qts)
        Diaphragm Mass Inc. Airload (Mms)
        Mechanical Compliance of Suspension (Cms)
        0.99 mm/N
        Surface Area of Cone (Sd)
        75.4 cm²
        Volume of Displacement (Vd)
        36.6 cm³
        BL Product (BL)
        6.22 Tm
        Compliance Equivalent Volume (Vas)
        7.93 liters
        Maximum Linear Excursion (Xmax)
        4.9 mm
        Cone / Diaphragm Material
        Aluminum Cone
        Surround Material
        Voice Coil Wire Material
        Voice Coil Former
        Basket / Frame Material
        Magnet Material
        Overall Outside Diameter
        135 mm
        Overall Depth
        63.1 mm
        Baffle Cutout Diameter
        111.5 mm
        # Mounting Holes
        Sealed Volume
        2.2 liters
        Sealed F3
        108 Hz
        Vented Volume
        5.7 liters
        Vented F3
        60 Hz

        Show more

        5 of 5
        Perfect bass-midwofer. I used it in BT soudbar medium power.
        By Boris R. on 29 December 2020
        5 of 5
        Great replacement for my damaged speaker.
        By Jon F. on 9 December 2020
