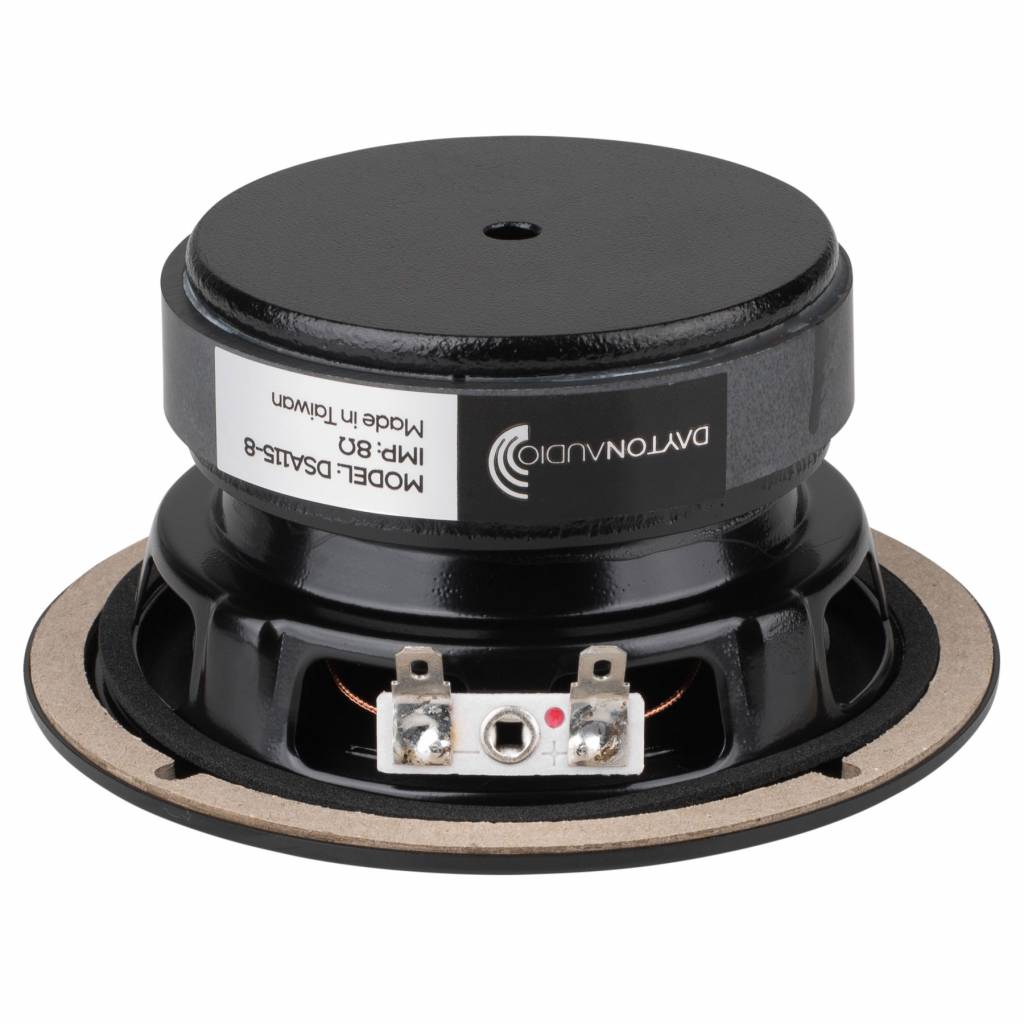

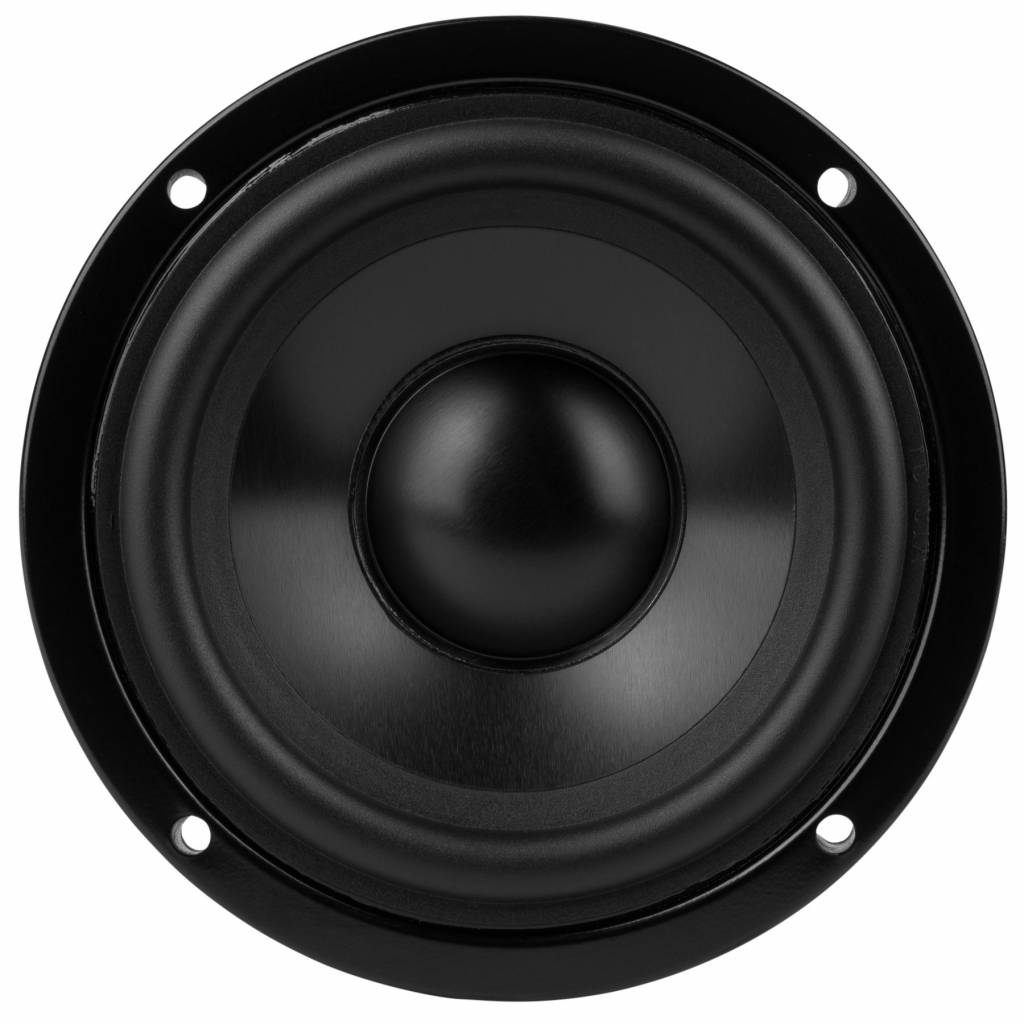

      Dayton Audio DSA115-8 4" Designer Series Aluminum Cone Woofer

      € 30,12€ 36,45 10+ In stock
      • -5% Order 4 for only € 34,63 per piece

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped today
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      More than just a pretty speaker, the Dayton Audio Designer Series DSA115-8 4" woofer features an extremely neutral response and high Xmax capability.



      Highlights

      • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
      • Low distortion motor system with copper shorting ring
      • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
      • Smooth frequency response and linear roll-off simplify filter design
      • Vented pole piece for minimized power compression and maximized reliability
      • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
      • Generous Xmax capability encourages use of moderate bass boost to tailor the response



      Product details

      Dayton Audio DSA115-8 4" Designer Series Aluminum Cone Woofer



      The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.



      These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

      Show more

      Specifications

      Article number
      DSA115-8
      Woofer Series
      Designer Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      4"
      Power Handling (RMS)
      35 watts
      Power Handling (max)
      70 watts
      Impedance (Z)
      8 ohms
      Sensitivity
      86.1 dB @ 2.83V/1m
      Frequency Response
      63 - 11,000 Hz
      Voice Coil Diameter
      25.4 mm
      Magnet Weight
      11 oz.
      DC Resistance (Re)
      5.9 ohms
      Voice Coil Inductance (Le)
      0.63 mH @ 1 kHz
      Resonant Frequency (Fs)
      63.25 Hz
      Mechanical Q (Qms)
      2.00
      Electromagnetic Q (Qes)
      0.53
      Total Q (Qts)
      0.42
      Diaphragm Mass Inc. Airload (Mms)
      6.7g
      Mechanical Compliance of Suspension (Cms)
      0.94 mm/N
      Surface Area of Cone (Sd)
      54.1 cm²
      Volume of Displacement (Vd)
      22.2 cm³
      BL Product (BL)
      5.44 Tm
      Compliance Equivalent Volume (Vas)
      3.96 liters
      Maximum Linear Excursion (Xmax)
      4.1 mm
      Cone / Diaphragm Material
      Aluminum Cone
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      Aluminum
      Basket / Frame Material
      Steel
      Magnet Material
      Ferrite
      Overall Outside Diameter
      115.6"
      Overall Depth
      54.7"
      Baffle Cutout Diameter
      93.6"
      # Mounting Holes
      4
      Sealed Volume
      0.06 ft.³
      Sealed F3
      127 Hz
      Vented Volume
      0.13 ft.³
      Vented F3
      70 Hz

      Show more

      Reviews

      5 from 5Based on 2 reviews
      Review this product
      5 of 5
      Gekocht ter vervanging van de TCP 115-8 vanwege het groter frekwentie- bereik van de DSA. Uitstekende spea- ker, echt waar voor geld.
      By HJJM j. on 11 October 2019
      5 of 5
      Is een goede allround. Samen met kab-250v3 gebruikt, en werkt perfect. Klinkt goed. Heb nu een mooie en goed klinkende bt speaker
      By Marco R. on 2 April 2019
