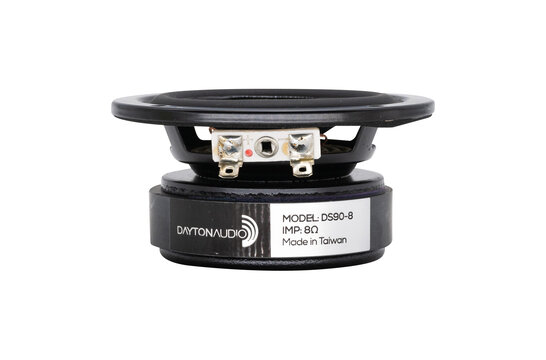

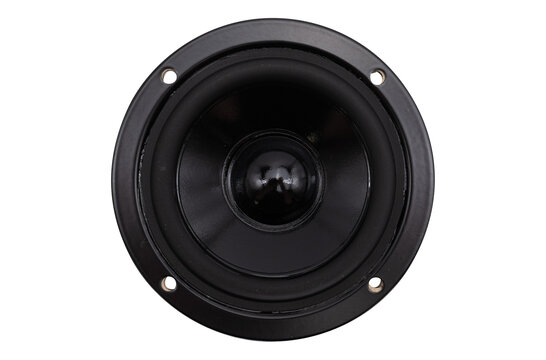

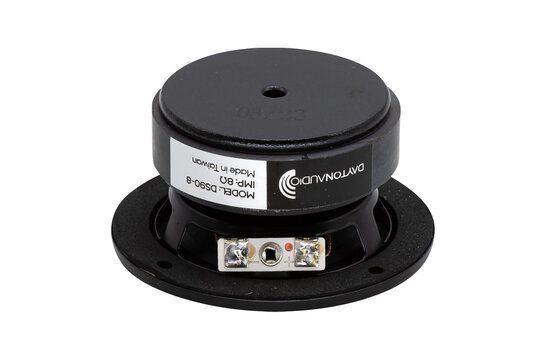

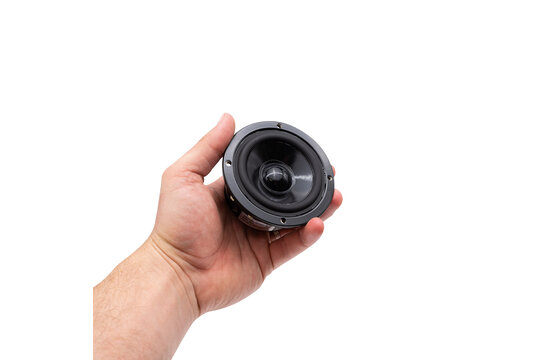

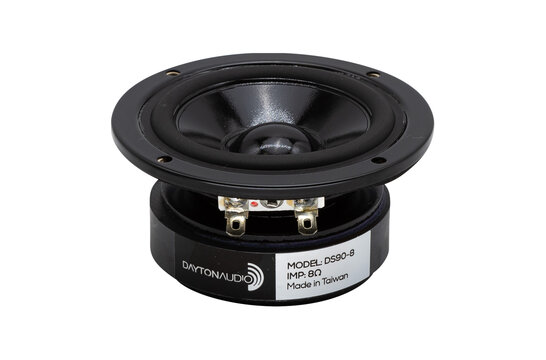

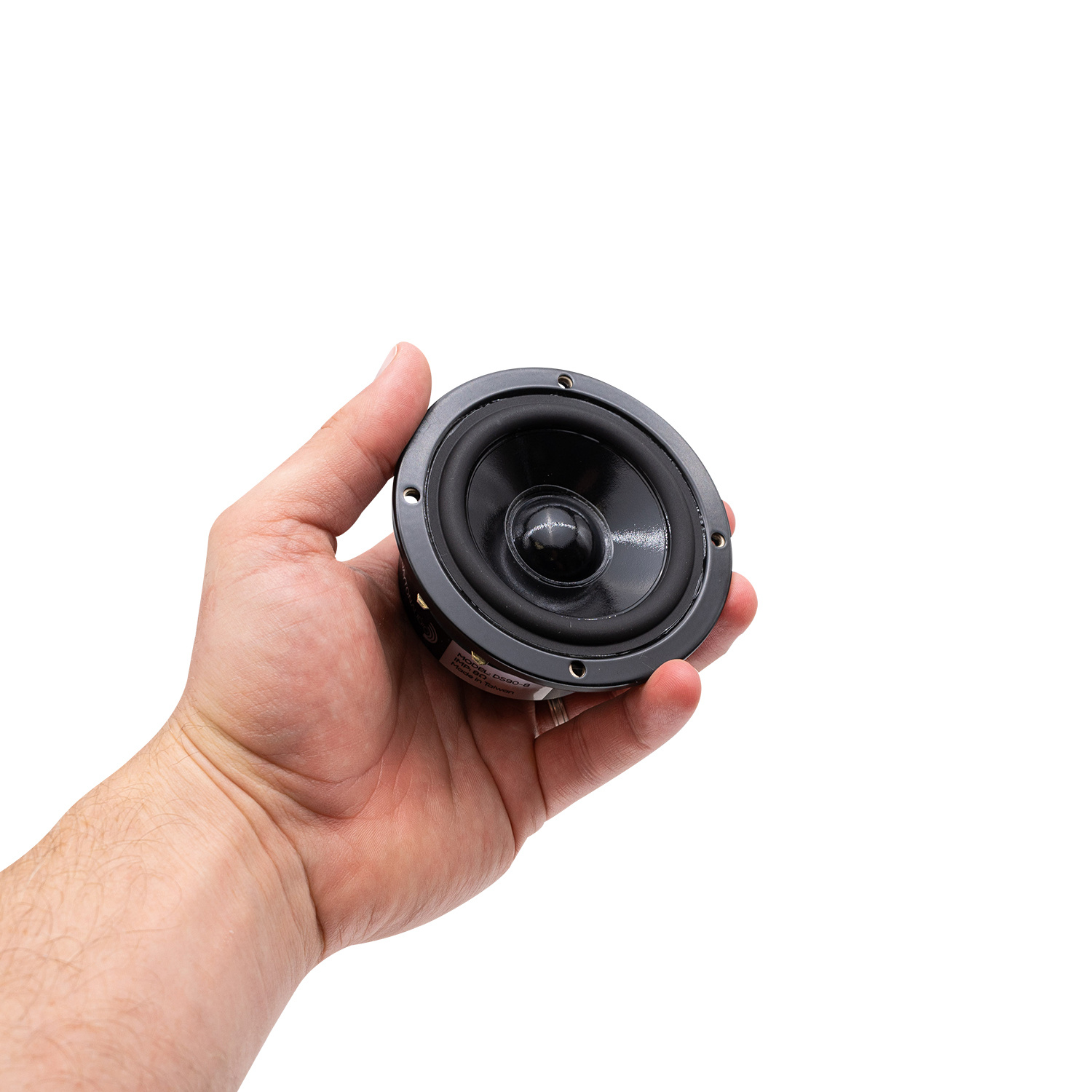

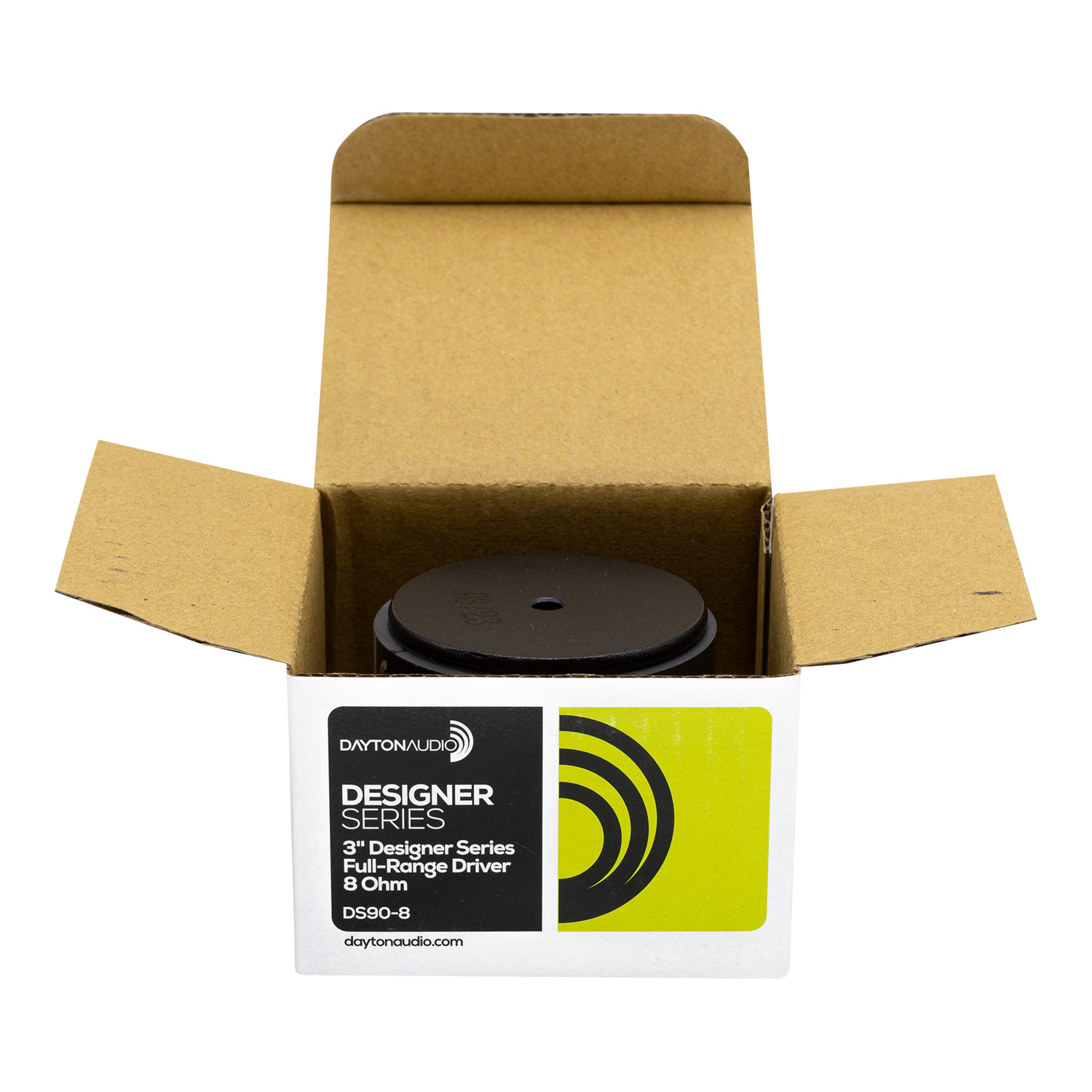

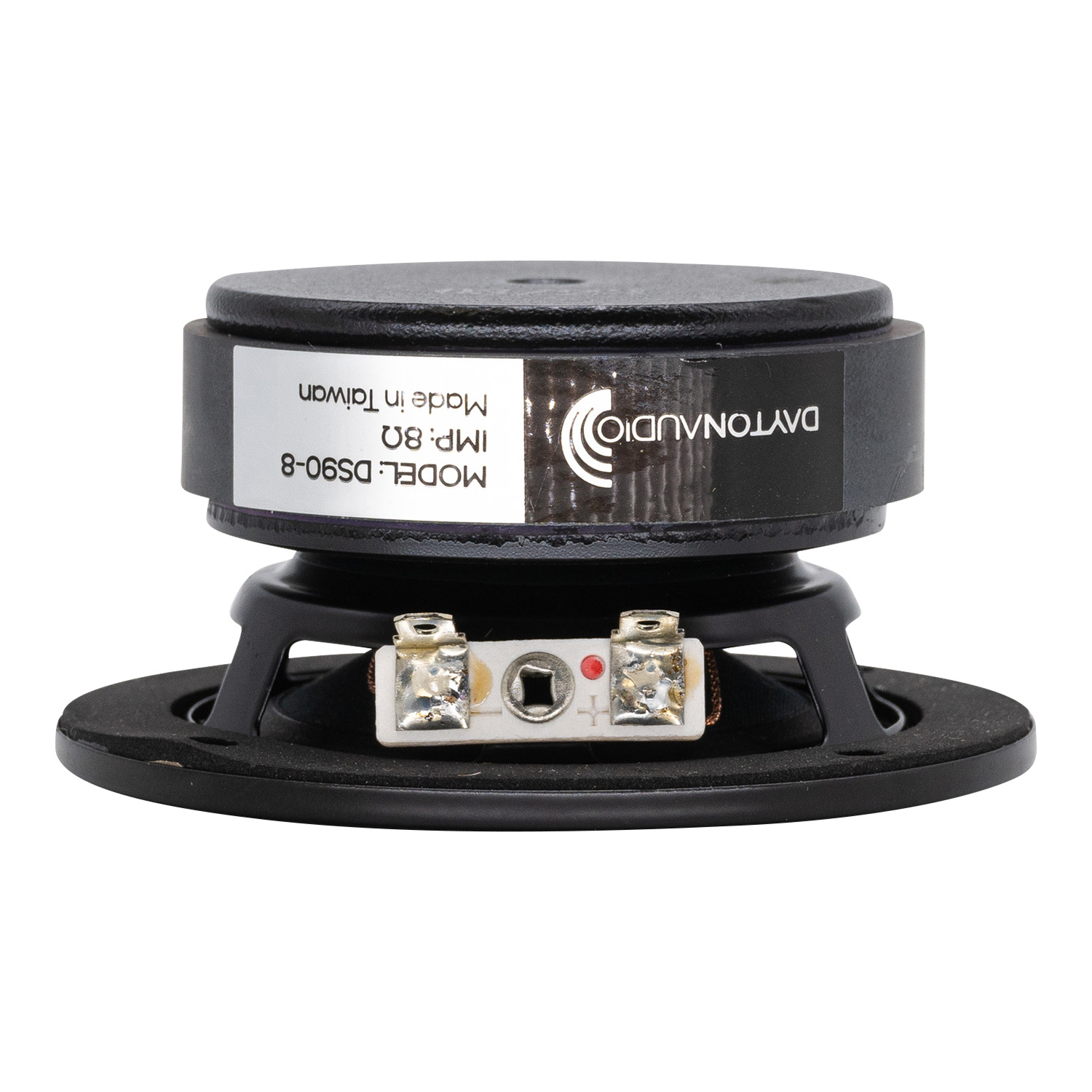

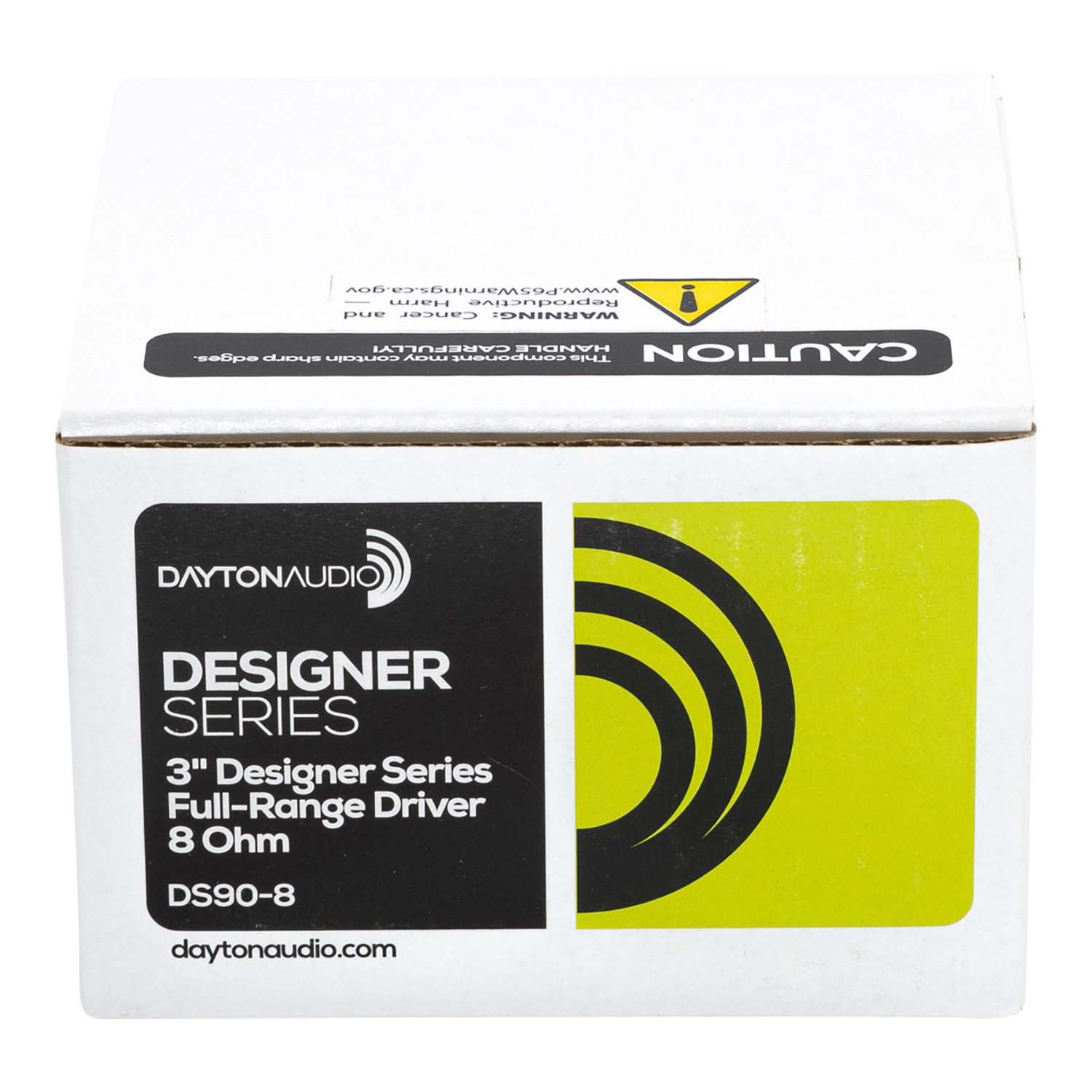

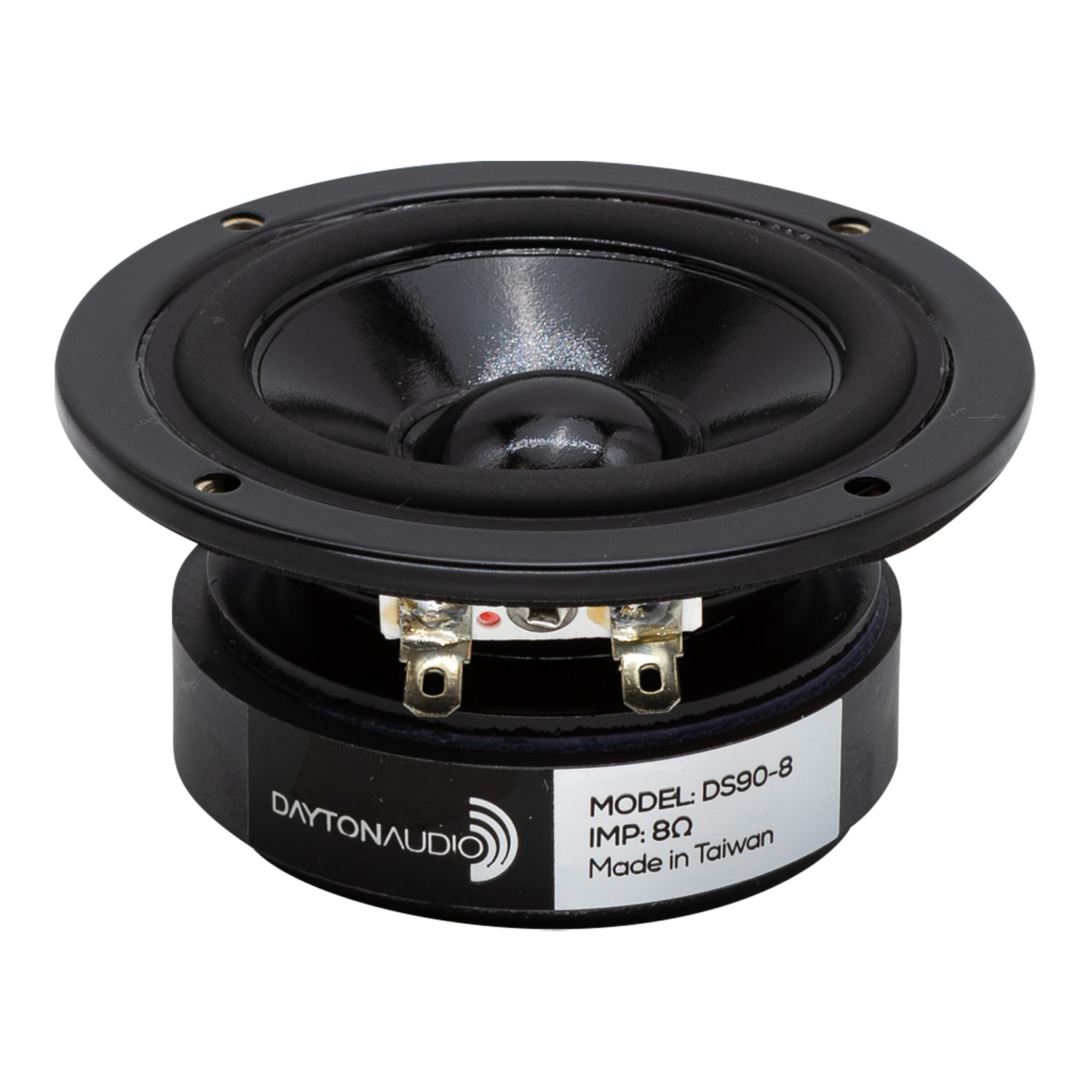

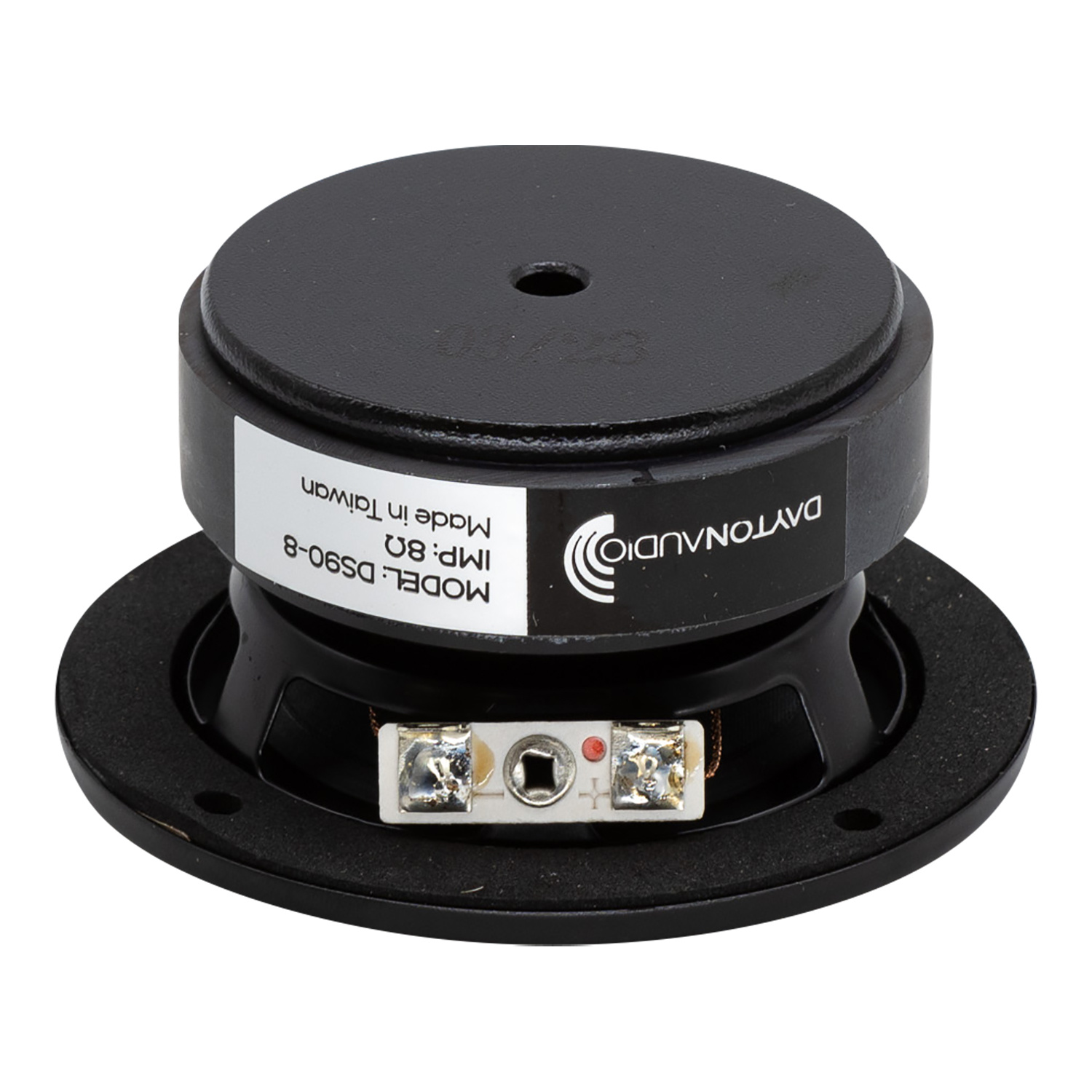

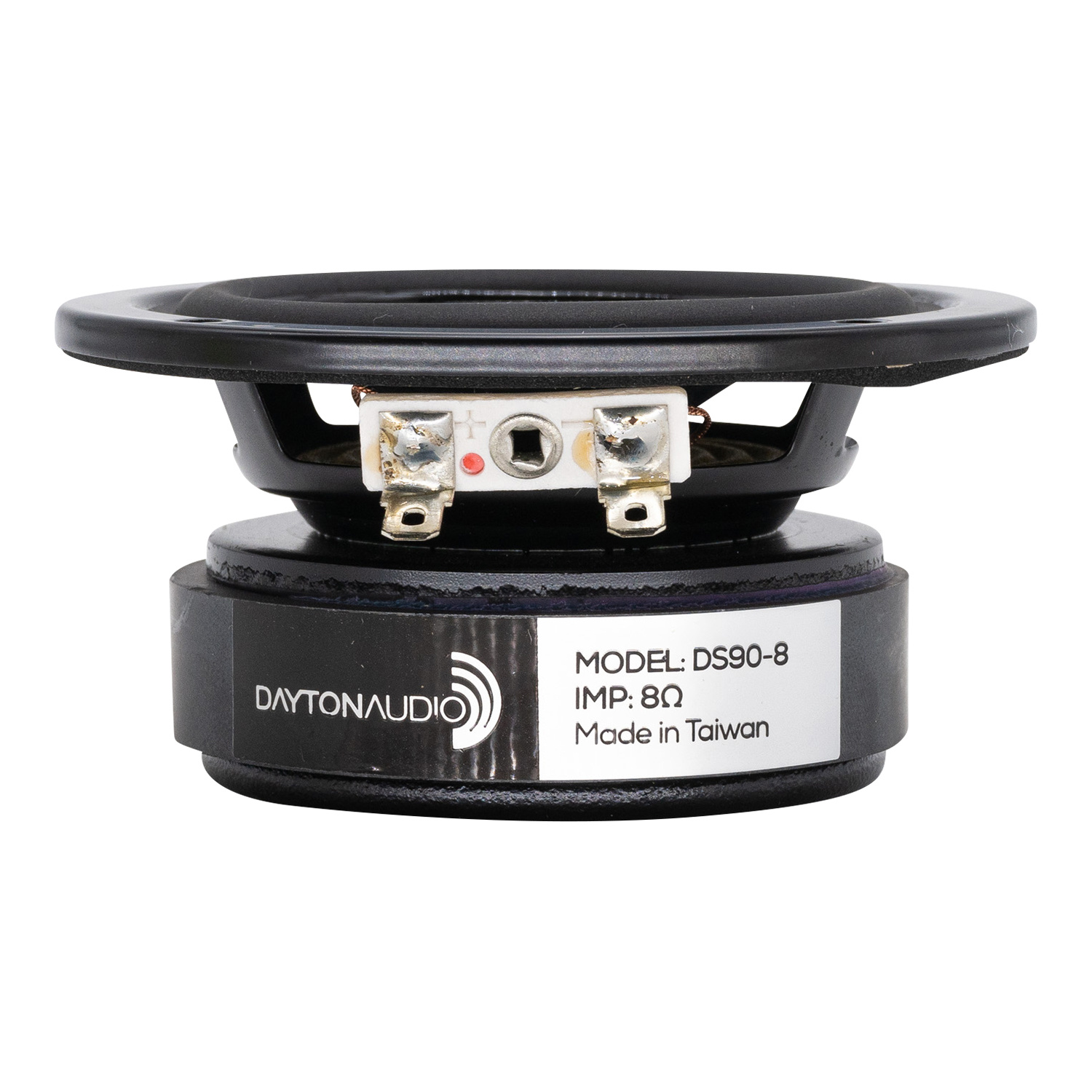

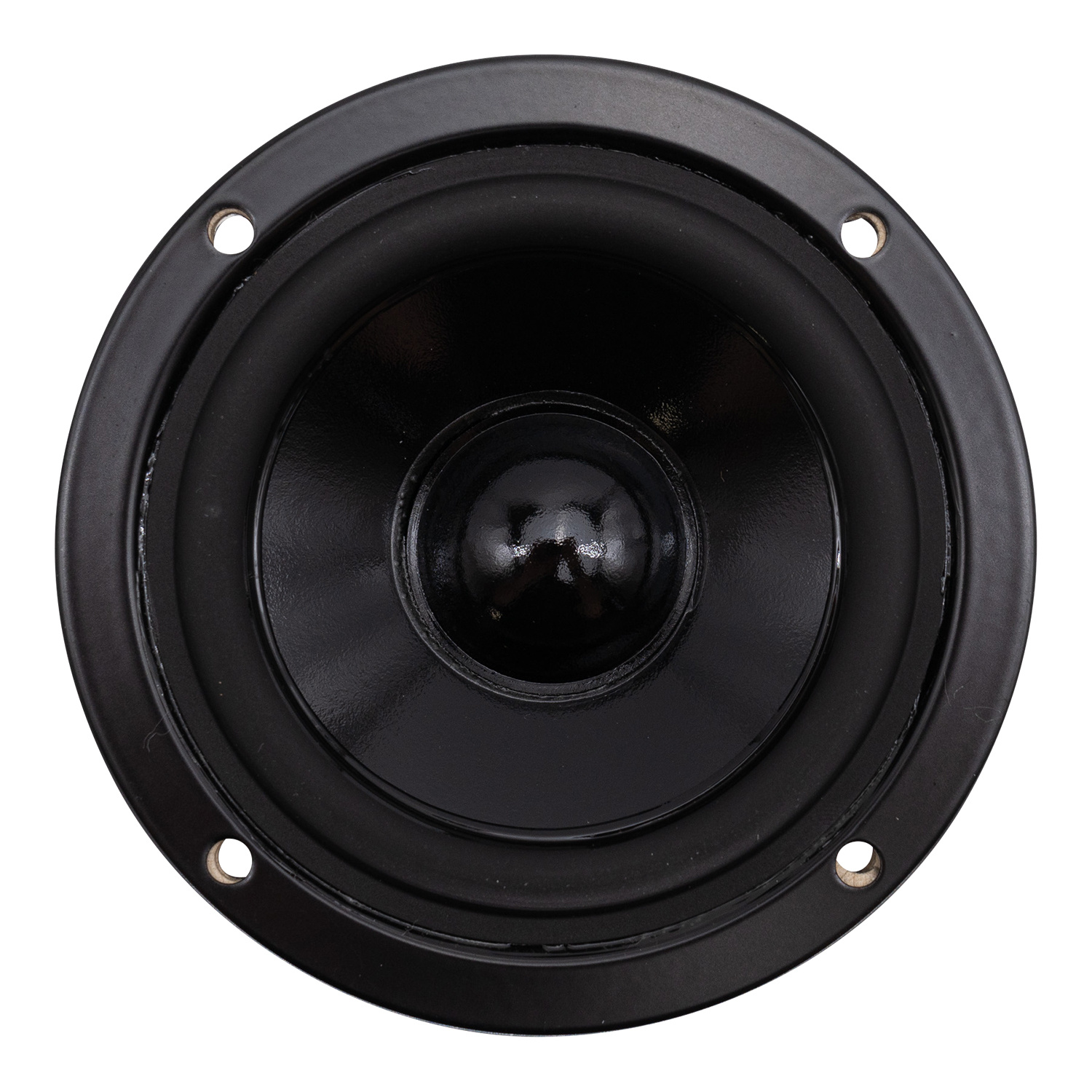

Dayton Audio DS90-8 3" Designer Series Extended-Range Speaker

In stock

  • Article code: DS90-8
  • Stock: >10 In stock

The Dayton Audio Designer Series DS90-8 3" driver adds extended high frequency response to its outstanding mini-woofer performance.

€ 19,95 Incl. 21% VAT

  • Buy 4 for €18,95 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-days the right to cancel
  • International payment options

Product description

Dayton Audio DS90-8 3" Designer Series Extended-Range Speaker

The Dayton Audio Designer Series DS90-8 3" driver adds extended high frequency response to its outstanding mini-woofer performance.



Highlights

  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Coated paper cone, half roll rubber surround for durability and accurate reproduction
  • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
  • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
  • Vented pole piece for minimized power compression and maximized reliability
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators



Product details

Dayton Audio DS90-8 3" Designer Series Extended-Range Speaker



The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.



These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.



  • Suggested enclosures:

Sealed cabinet: Type: Acoustic suspension (alpha 3.5), Qtc 0.69; Size (internal) including volume displaced by driver: 0.03 ft³; Internal cabinet dimensions (golden ratio): 6-1/4"H x 3-7/8"W x 2-3/8"D. Typical results: 3 dB down-point (f3): 158 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 90 Hz.



Vented cabinet: Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.12 ft³; Internal cabinet dimensions (golden ratio): 7-3/4"H x 4-3/4"W x 3"D; Port dimensions (with flared exit): 1" dia. x 6"L. Typical results: 3 dB down-point (f3): 73 Hz; Tuning frequency (fb): 69 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 70 Hz.



Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.



Specifications

Specifications for: DS90-8 3" Designer Series Extended-Range Speaker

  • Woofer Series Specific woofer production line of the manufacturer. Designer Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Full-Range/Midwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 3"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 20 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 40 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 84.1 dB @ 2.83V/1m
  • Frequency Response 80 - 13,000 Hz
  • Voice Coil Diameter 20.4 mm
  • Magnet Weight 8 oz.
  • DC Resistance (Re) 6.3 ohms
  • Voice Coil Inductance (Le) 0.56 mH @ 1kHz
  • Resonant Frequency (Fs) 81.4 Hz
  • Mechanical Q (Qms) 2.19
  • Electromagnetic Q (Qes) 0.53
  • Total Q (Qts) 0.43
  • Diaphragm Mass Inc. Airload (Mms) 3.8g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.02 mm/N
  • Surface Area of Cone (Sd) 31.2 cm²
  • Volume of Displacement (Vd) 7.8 cm³
  • BL Product (BL) 4.76 Tm
  • Compliance Equivalent Volume (Vas) 1.31 liters
  • Maximum Linear Excursion (Xmax) 2.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Coated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 92.3 mm
  • Overall Depth 44.6 mm
  • Baffle Cutout Diameter 70 mm
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.2 ft.³
  • Sealed F3 148 Hz
  • Vented Volume 0.05 ft.³
  • Vented F3 80 Hz

Documenten

Reviews

User reviews 4.65 / 5 Reviews: (3)

  • JV By Jordy V. on 25-11-2018 10:57

    4 / 5

    Best geluid voor zo’n kleine luidspreker .

  • PM By Patuk Mihail Nikolaevich on 14-11-2018 15:37

    5 / 5

    I like to listen to beautiful music long ago, but the modest budget didn't allow to buy the high-quality speaker system. In my budget I didn't find acceptable quality in shop...
    I long selected the project for independent production, and stopped on it: the author - Aleksey Aleksandrov from Orenburg.
    I found woofers separately and bought other loudspeakers here.
    After assembly of the speaker system I was delighted! The cleanest timbre and high detail of a sound! I listened to my favourite compositions and found in them a lot of new! I didn't expect such magnificence for such modest cost.

  • HB By Harm B. on 26-06-2018 16:05

    5 / 5

    -
