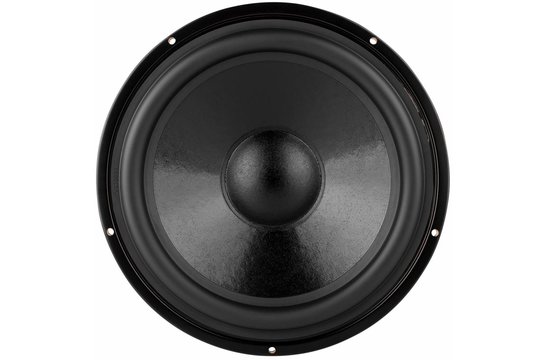

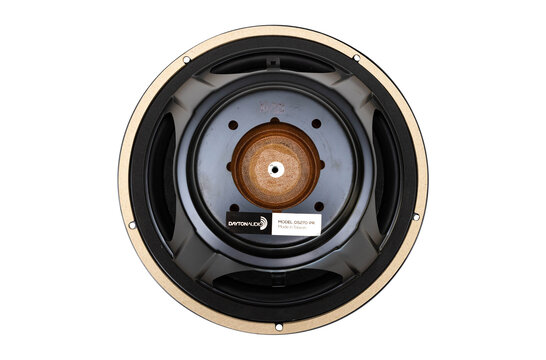

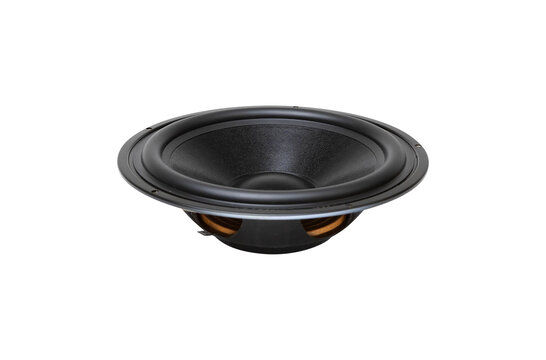

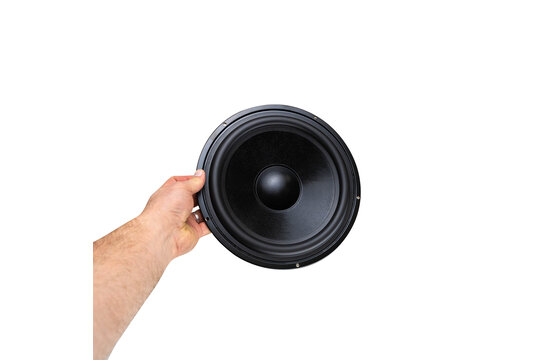

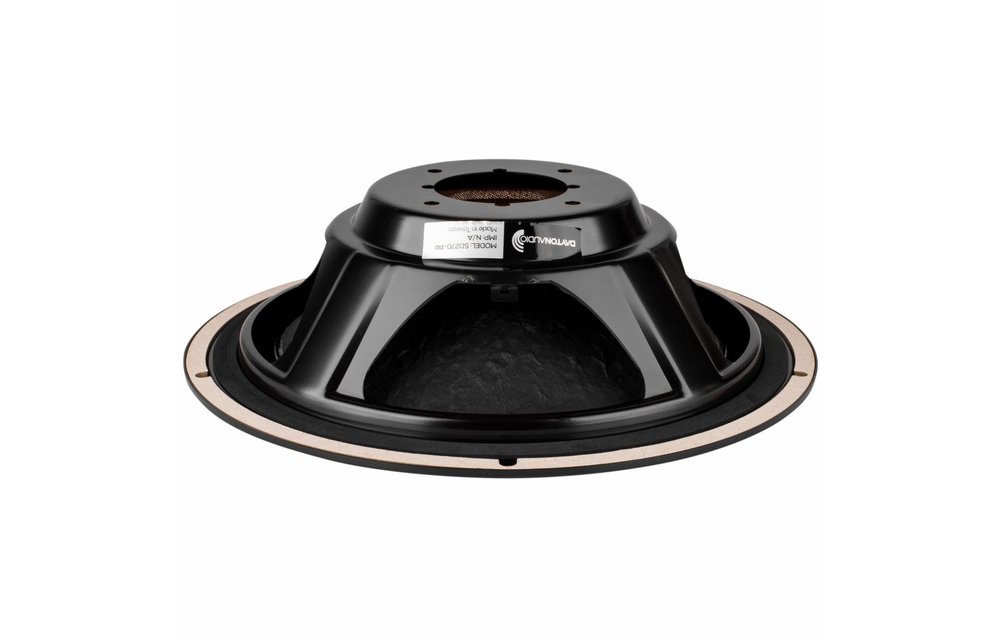

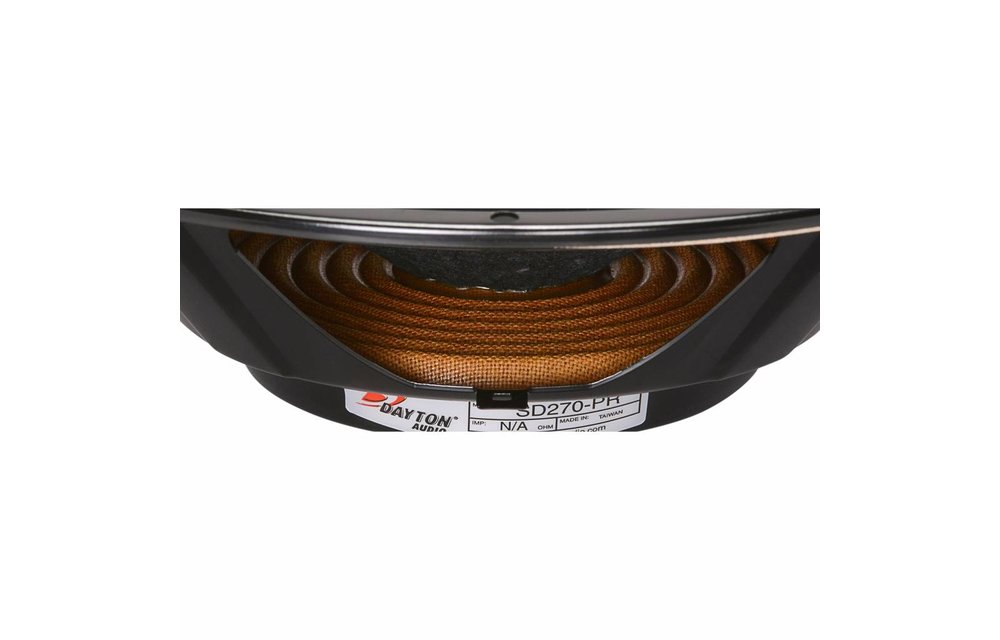

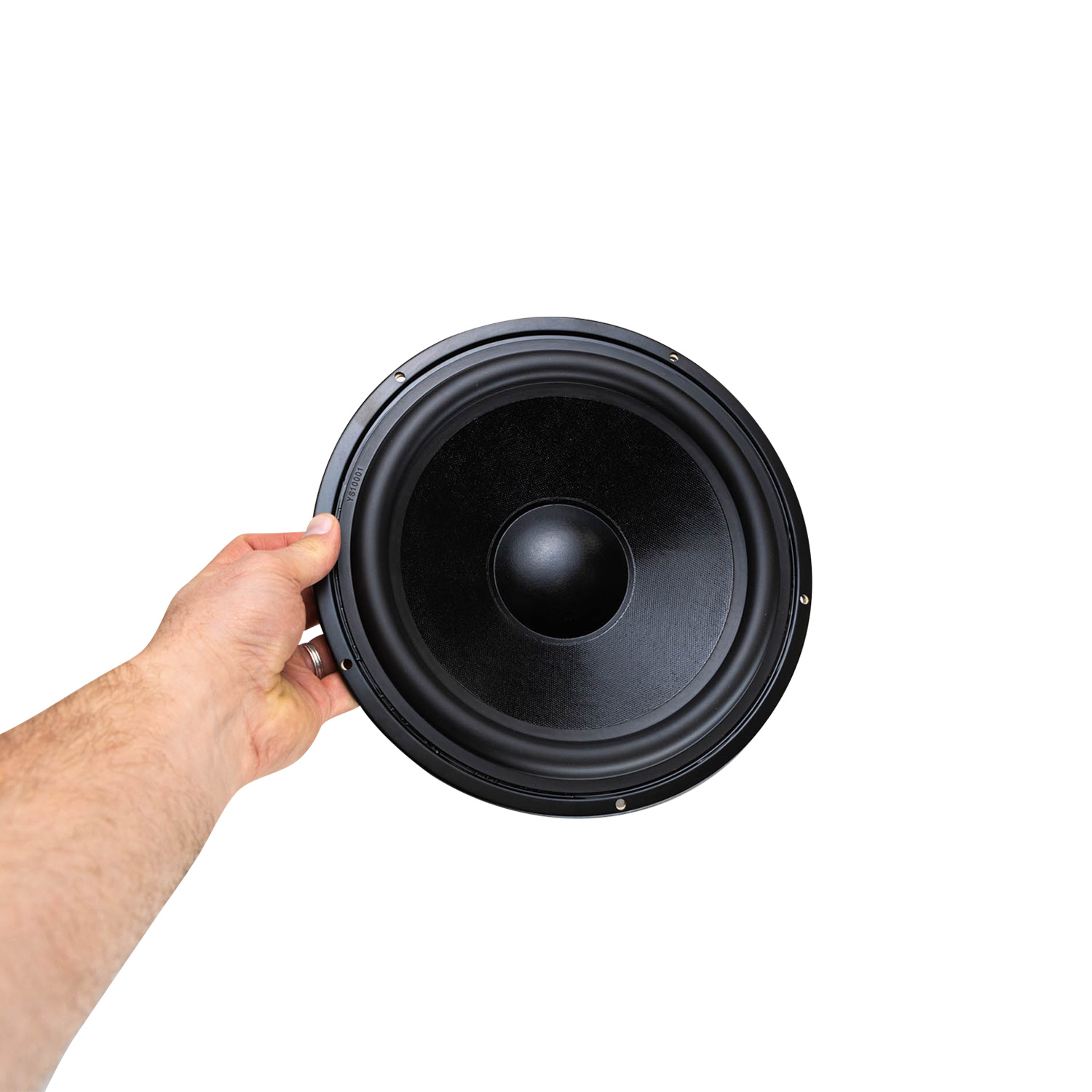

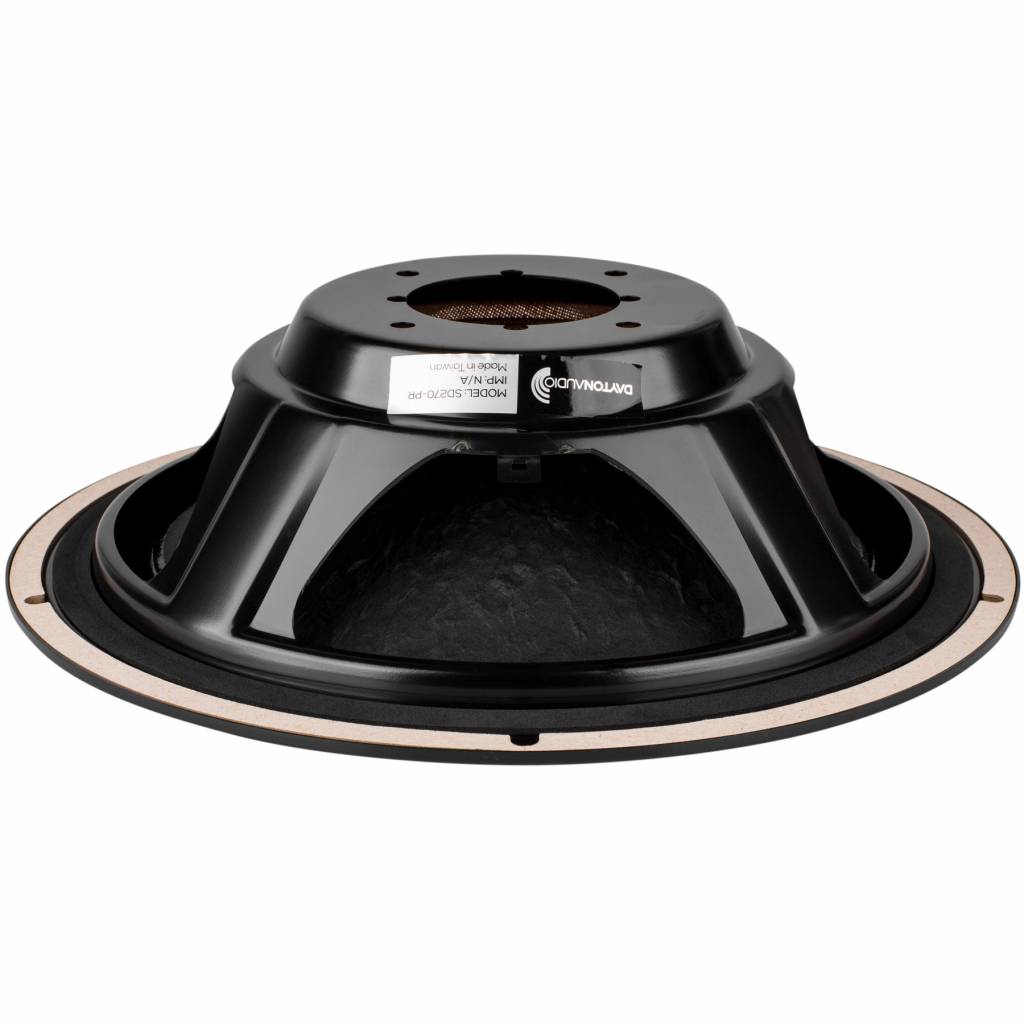

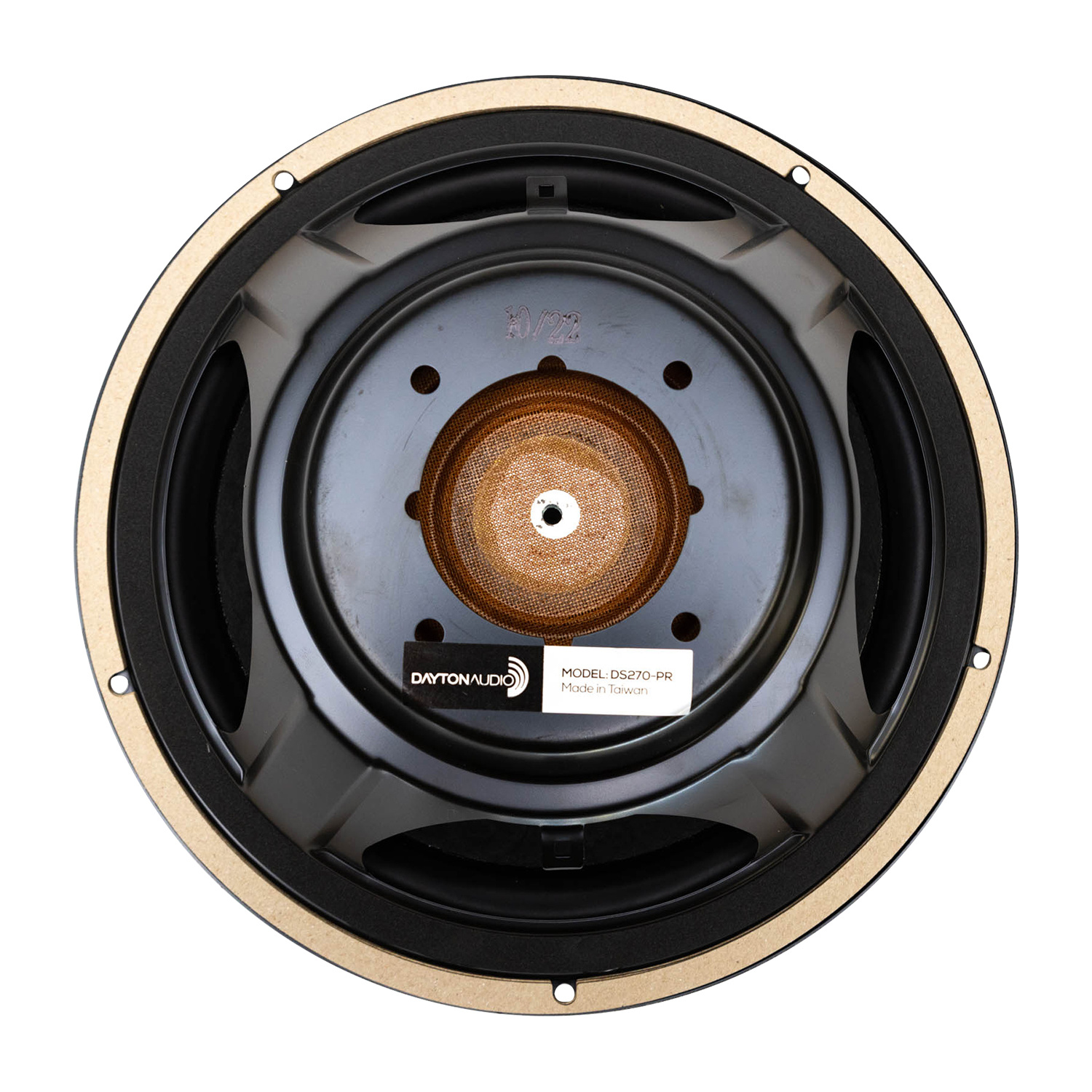

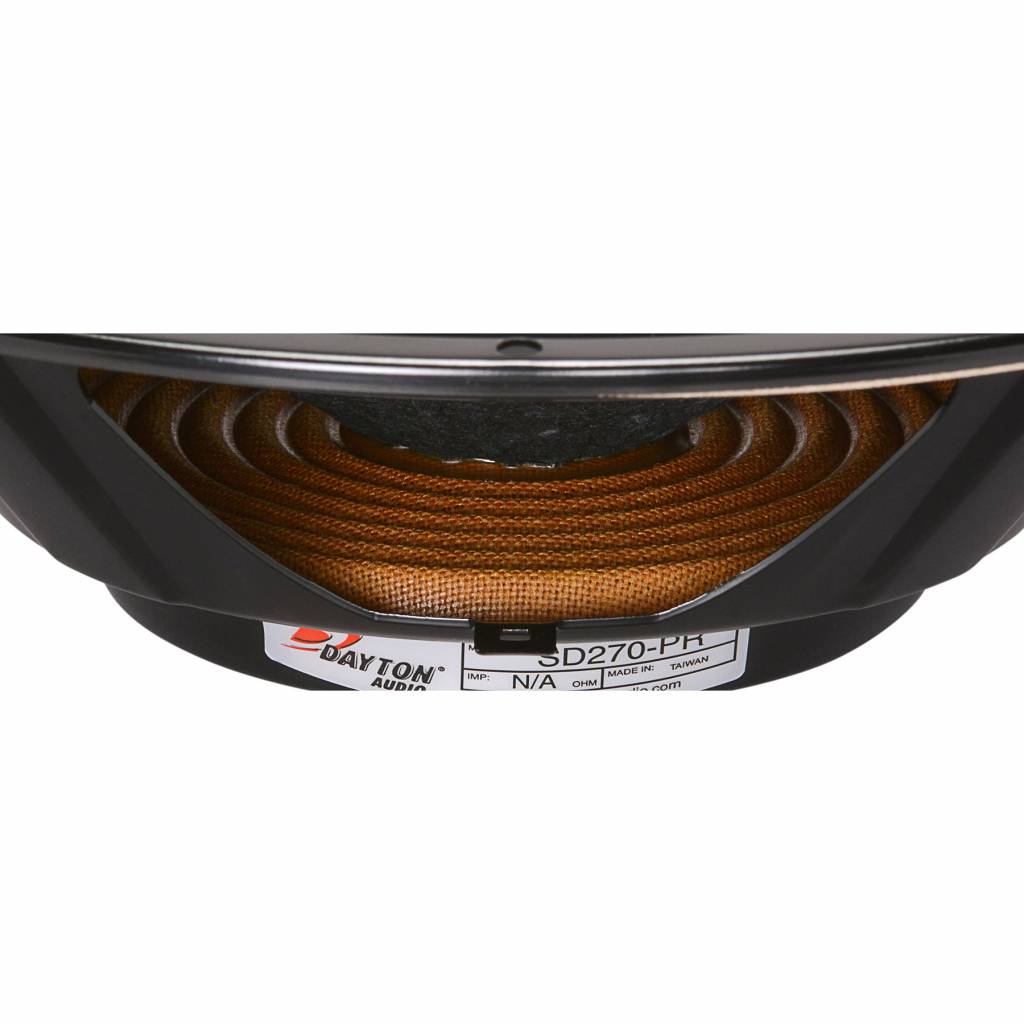

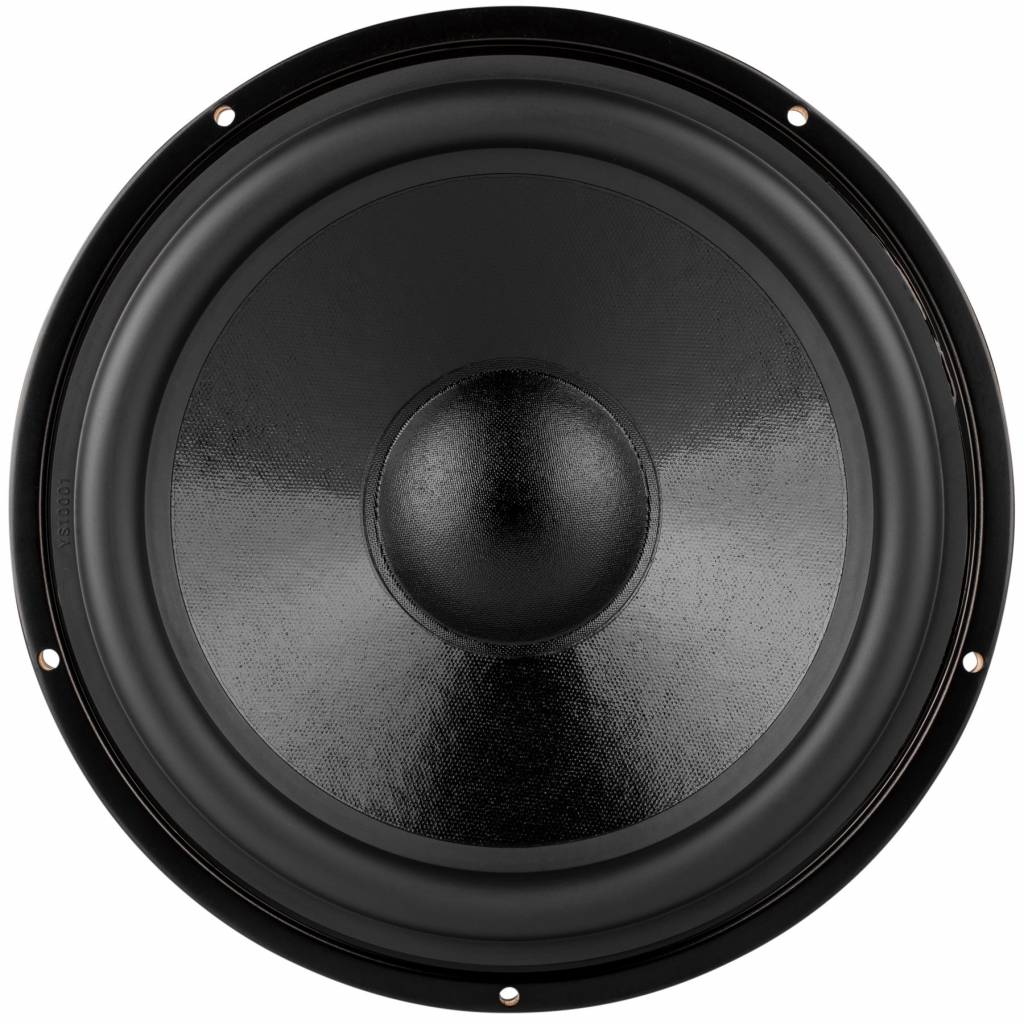

Dayton Audio DS270-PR 10" Passive Radiator

In stock

  • Article code: DS270-PR
  • Stock: 6 In stock

The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction.

€ 38,45 Incl. 21% VAT

  • Buy 4 for €36,53 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio DS270-PR 10" Passive Radiator

The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction.



Product details

Dayton Audio DS270-PR 10" Passive Radiator



The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Shielded DVC line of subwoofers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems.



Specifications: • Fs: 19.5 Hz • Vas: 3.90 cu. ft. • Qms: 2.50 • Cms: 0.67 mm/N • Mms: 100 g • Rms: 4.89 kg/s • Sd: 340 sq. cm. • Xmax: 10 mm • Dimensions: Overall diameter: 10.63", Cutout diameter: 8.94", Depth: 2.81".



Note: Adding mass to the passive radiator will decrease Fs and increase Qms.



Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 10" woofer/subwoofer that has 10mm of X-max would require 2-10" passive radiators with 10mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).



Specifications

Specifications for: DS270-PR 10" Passive Radiator

  • Woofer Series Specific woofer production line of the manufacturer. DVC Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Passive Radiator
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 10"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged.
  • View all specifications
  • Continuous Program Power
  • Impedance
  • Sensitivity
  • Frequency Response
  • Voice Coil Diameter
  • Magnet Weight
  • DC Resistance (Re)
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 19.5 Hz
  • Mechanical Q (Qms) 2.5
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Diaphragm Mass Inc. Airload (Mms) 100.00 g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.67 mm/N
  • Surface Area of Cone (Sd) 340.0 cm²
  • Volume of Displacement (Vd) 340.0 cm³
  • BL Product (BL)
  • Compliance Equivalent Volume (Vas) 110.4 liters
  • Maximum Linear Excursion (Xmax) 10.0 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Coated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 270 mm
  • Overall Depth 71.4 mm
  • Baffle Cutout Diameter 227 mm
  • Bolt Circle Diameter
  • # Mounting Holes 5
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
