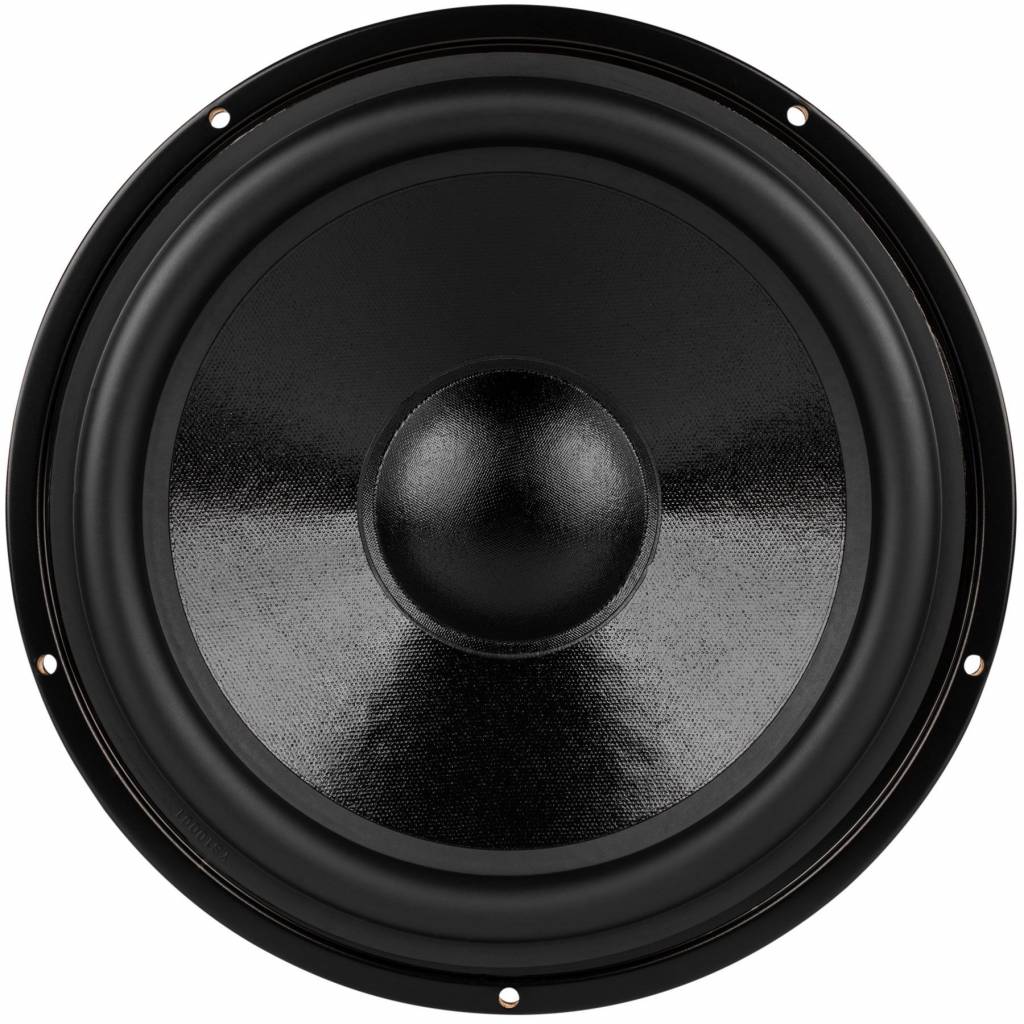

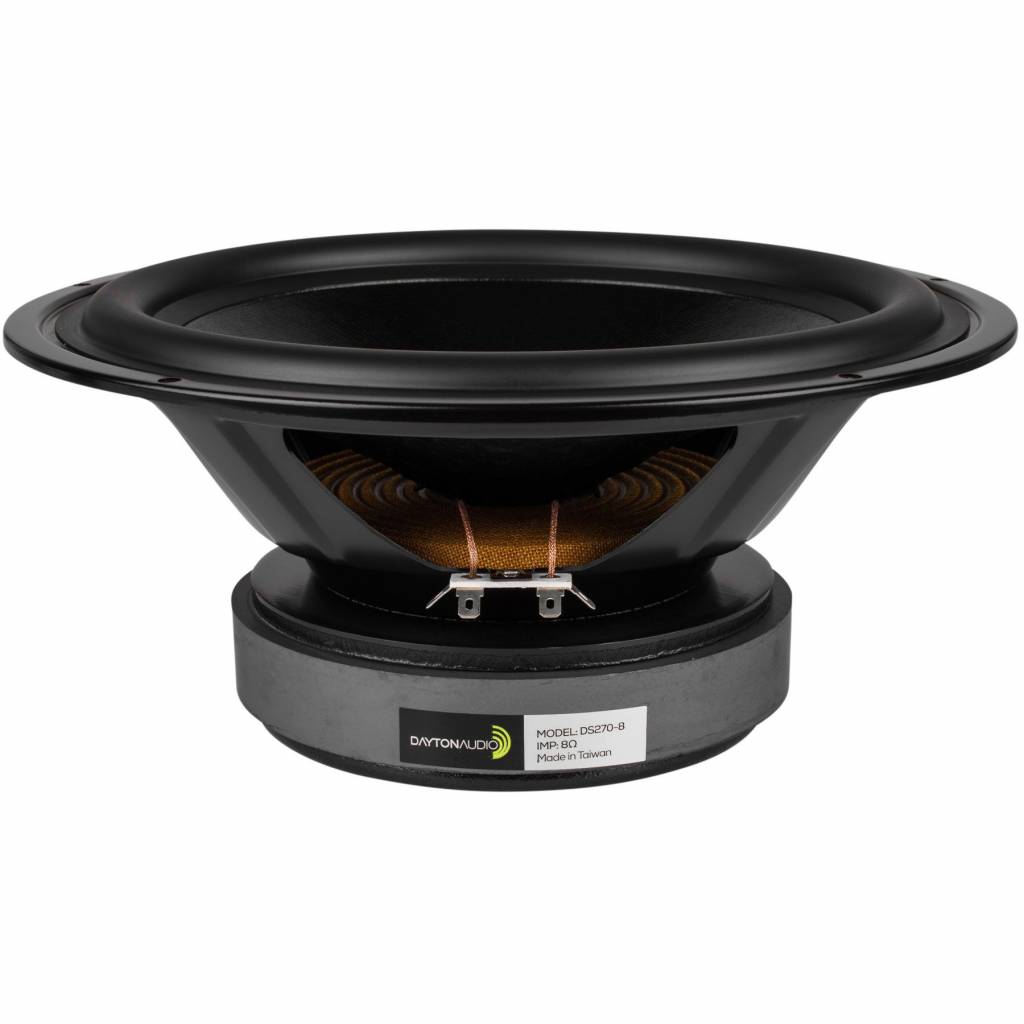

Dayton Audio DS270-8 10" Designer Series Woofer Speaker

In stock

  • Article code: DS270-8
  • Stock: 6 In stock

The Dayton Audio Designer Series DS270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax!

€ 83,45 Incl. 21% VAT

  • Buy 4 for €79,28 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio DS270-8 10" Designer Series Woofer Speaker

The Dayton Audio Designer Series DS270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax!



Highlights

  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Coated paper cone, half roll rubber surround for durability and accurate reproduction
  • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
  • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
  • Vented pole piece for minimized power compression and maximized reliability
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators



Product details

Dayton Audio DS270-8 10" Designer Series Woofer Speaker



The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.



These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.



Specifications

Specifications for: DS270-8 10" Designer Series Woofer Speaker

  • Woofer Series Specific woofer production line of the manufacturer. Designer Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Midwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 10"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 100 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 200 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 90.7 dB @ 2.83V/1m
  • Frequency Response 30 - 3,000 Hz
  • Voice Coil Diameter 38.5 mm
  • Magnet Weight 62 oz.
  • DC Resistance (Re) 5.4 ohms
  • Voice Coil Inductance (Le) 1.25 mH @ 1 kHz
  • Resonant Frequency (Fs) 31.6 Hz
  • Mechanical Q (Qms) 2.40
  • Electromagnetic Q (Qes) 0.54
  • Total Q (Qts) 0.44
  • Diaphragm Mass Inc. Airload (Mms) 51.5g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.49 mm/N
  • Surface Area of Cone (Sd) 353.0 cm²
  • Volume of Displacement (Vd) 194.1 cm³
  • BL Product (BL) 10.1 Tm
  • Compliance Equivalent Volume (Vas) 87.7 liters
  • Maximum Linear Excursion (Xmax) 5.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Coated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 270 mm
  • Overall Depth 112 mm
  • Baffle Cutout Diameter 227 mm
  • Bolt Circle Diameter
  • # Mounting Holes 5
  • Mounting Hole Diameter
  • Sealed Volume 1.28 ft.³
  • Sealed F3 55 Hz
  • Vented Volume 3.38 ft.³
  • Vented F3 28 Hz

Documenten

Reviews

User reviews 5 / 5 Reviews: (2)

  • MC By Mike C. on 24-09-2018 12:02

    5 / 5

    I bought these as a replacement for some old Peerless woofers whose foam surround had worn out. They are a huge improvement and provide really clear bass with lots of punch. This is despite being installed in a 1 cubic foot sealed cabinet which is smaller than recommended so they would probably sound even better in a larger or ported cabinet. I highly recommend these woofers!

  • GV By Gerrie V. on 31-08-2018 14:03

    5 / 5

    very nice woofer for its money, with rubber instead of foam. The right specs to replace old Akai woofers with worn foam. The big magnet compensates the rubber and makes the sensivity just right.
