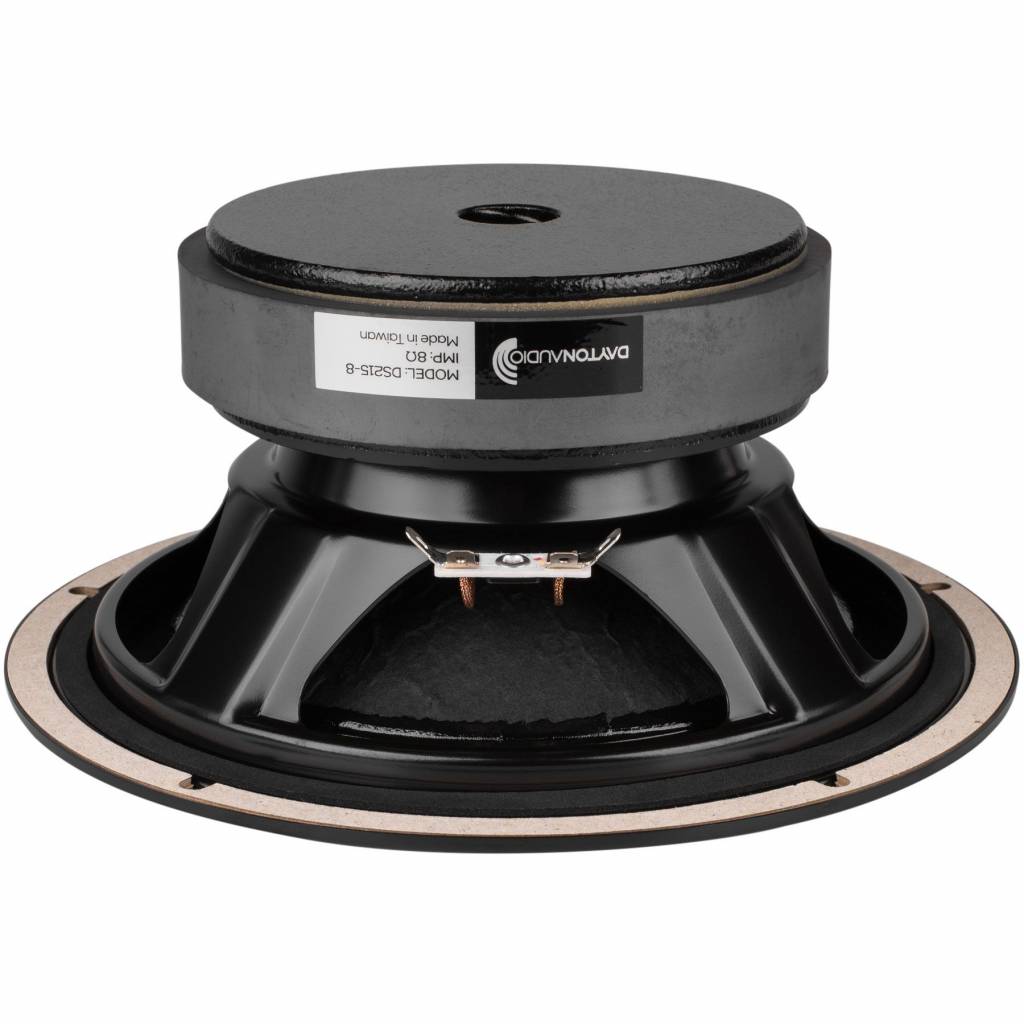

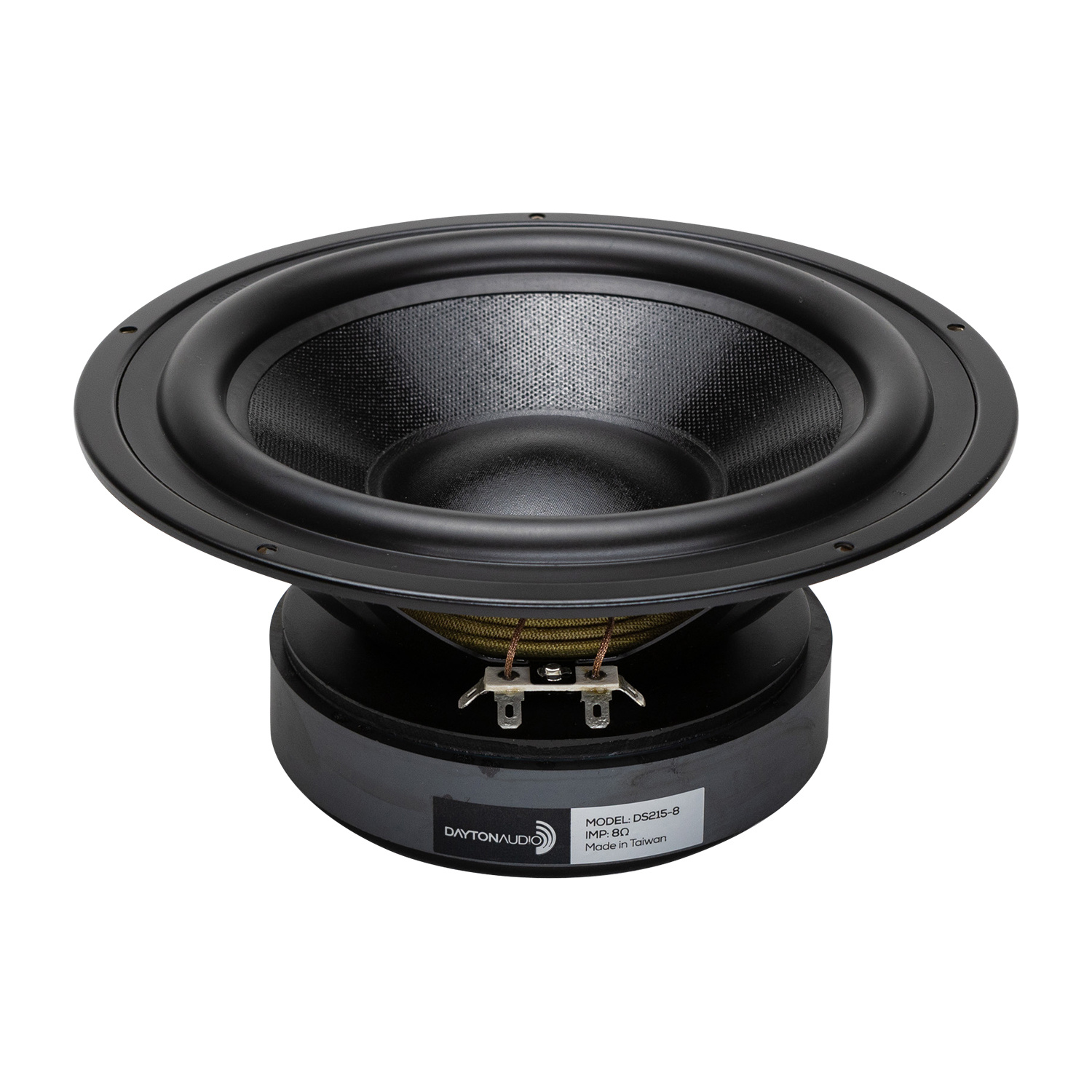

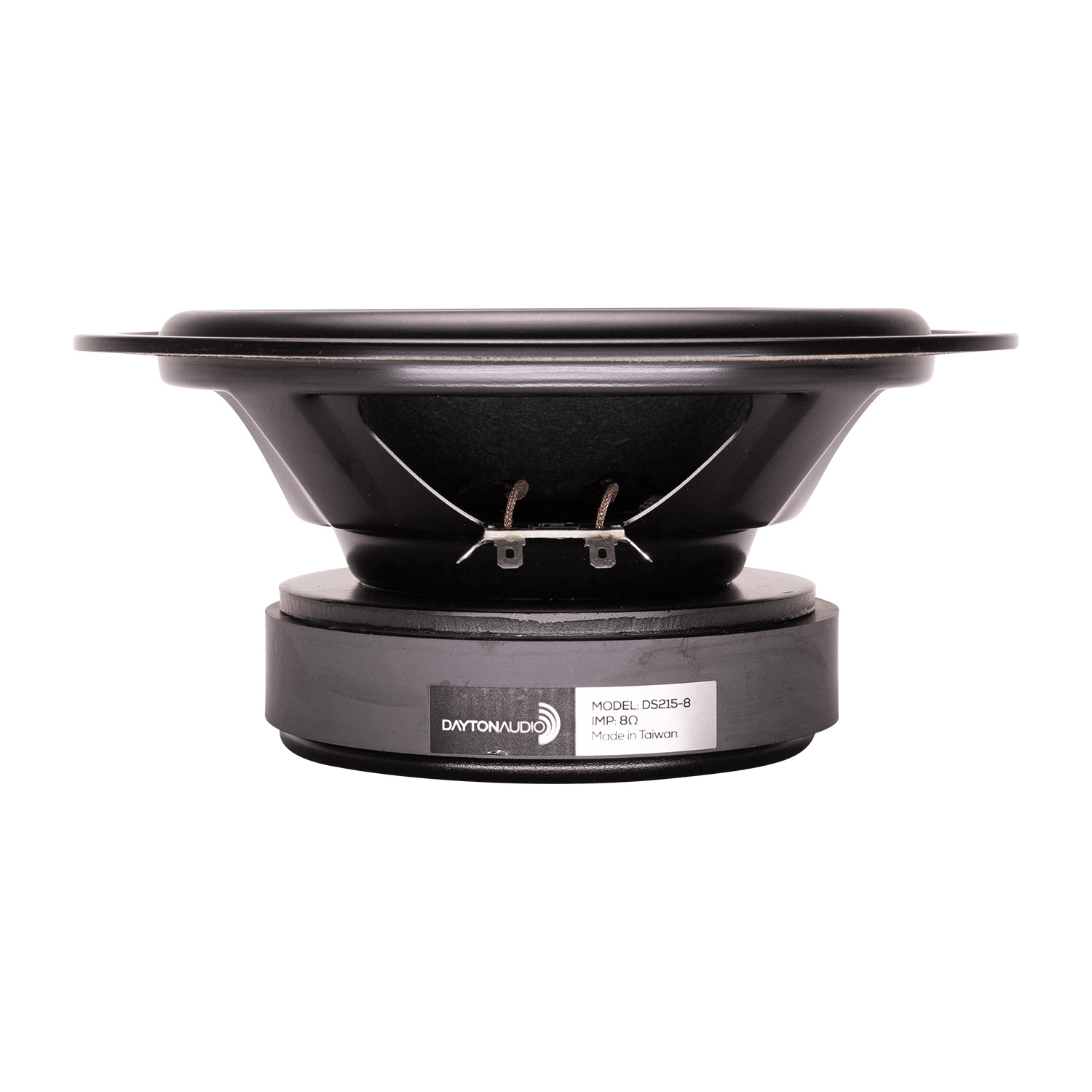

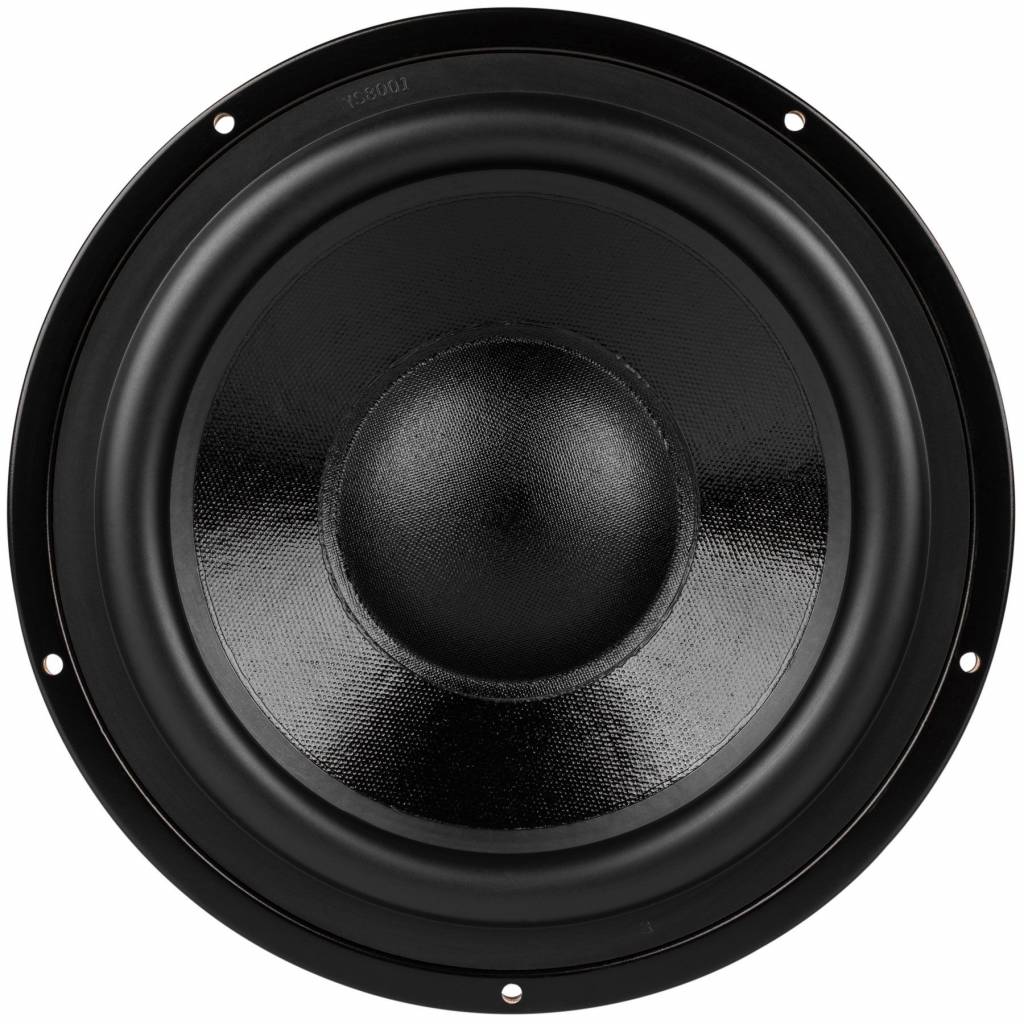

      Dayton Audio DS215-8 8" Designer Series Woofer Speaker

      € 62,77€ 75,95 9 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 72,15 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Dayton Audio's Designer Series DS215-8 8" woofer combines smooth response, excellent bass performance, and a stylish visual presentation.



      Highlights

      • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
      • Coated paper cone, half roll rubber surround for durability and accurate reproduction
      • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
      • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
      • Vented pole piece for minimized power compression and maximized reliability
      • Generous Xmax capability encourages use of moderate bass boost to tailor the response
      • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators



      Product details

      Dayton Audio DS215-8 8" Designer Series Woofer Speaker



      The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.



      These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.



      Specifications

      Article number
      DS215-8
      Woofer Series
      Designer Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      8"
      Power Handling (RMS)
      80 watts
      Power Handling (max)
      160 watts
      Impedance (Z)
      8 ohms
      Sensitivity
      89.9 dB @ 2.83V/1m
      Frequency Response
      35 - 4,000 Hz
      Voice Coil Diameter
      38.5 mm
      Magnet Weight
      49 oz.
      DC Resistance (Re)
      5.8 ohms
      Voice Coil Inductance (Le)
      1.25 mH @ 1 kHz
      Resonant Frequency (Fs)
      34.3 Hz
      Mechanical Q (Qms)
      1.75
      Electromagnetic Q (Qes)
      0.38
      Total Q (Qts)
      0.31
      Diaphragm Mass Inc. Airload (Mms)
      29.7g
      Mechanical Compliance of Suspension (Cms)
      0.72 mm/N
      Surface Area of Cone (Sd)
      211.2 cm²
      Volume of Displacement (Vd)
      116.2 cm³
      BL Product (BL)
      9.89 Tm
      Compliance Equivalent Volume (Vas)
      43.1 liters
      Maximum Linear Excursion (Xmax)
      5.5 mm
      Cone / Diaphragm Material
      Coated Paper
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      Aluminum
      Basket / Frame Material
      Steel
      Magnet Material
      Ferrite
      Overall Outside Diameter
      216 mm
      Overall Depth
      95.5 mm
      Baffle Cutout Diameter
      180 mm
      # Mounting Holes
      5
      Sealed Volume
      0.28 ft.³
      Sealed F3
      87 Hz
      Vented Volume
      0.6 ft.
      Vented F3
      52 Hz

      Show more

      Reviews

      5 from 5Based on 4 reviews
      Review this product
      5 of 5
      I´ve to say the product is wonderful. I chose this model after many simulations to replace the mid-woofers of a pair of Wharfedale AT-500, 2.5 way floorstanding speakers. The result was great. The performance of the speakers improved 300%, great bass extension compared with the previous speakers, good mid-frequencies and presence effect. I just adjusted the hipass filter to better match the wharfedale tweeter with the Dayton DS2015 mid-woofer, and the result is 100!
      By Antonino Sindona on 8 July 2021
      5 of 5
      They are exact what they said they are, a bass-mid woofer, with a proper enclosure and filters can sounds really great.
      By Razvan B. on 16 March 2021
