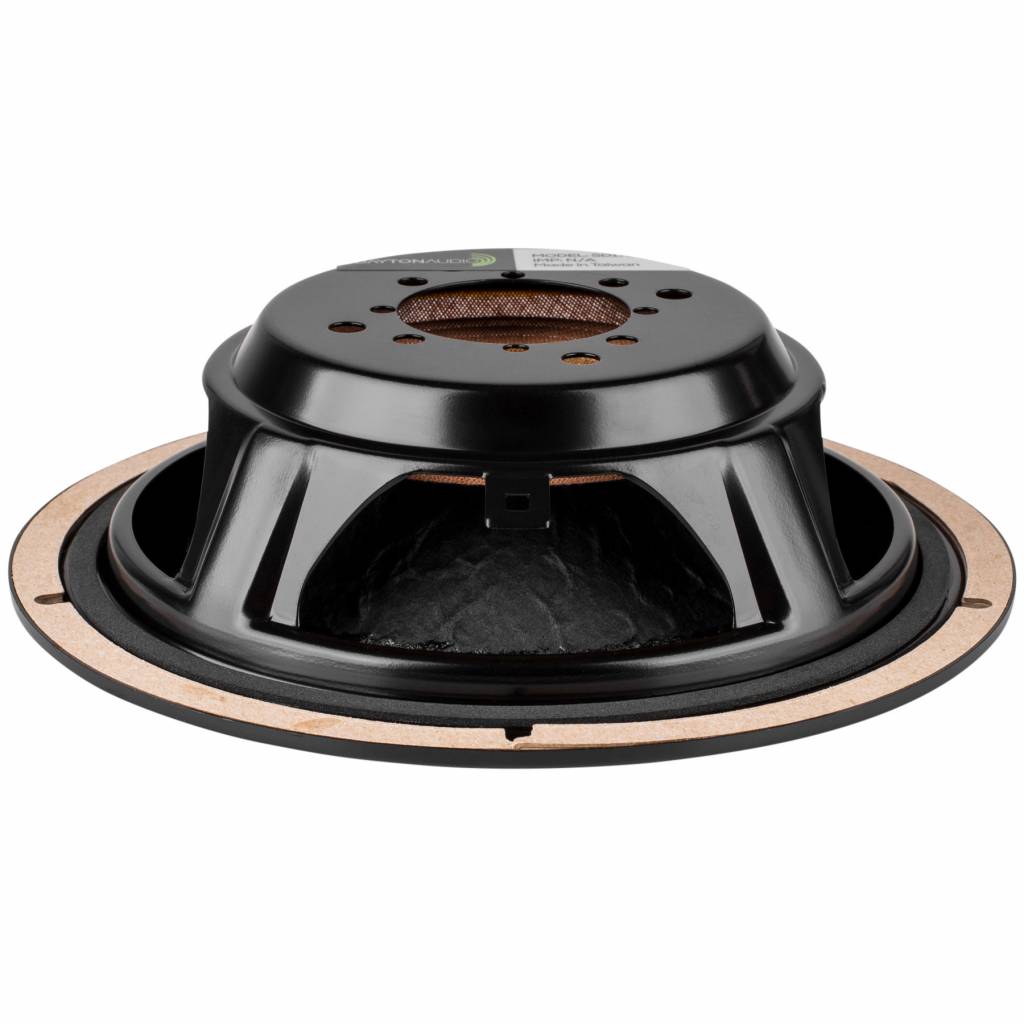

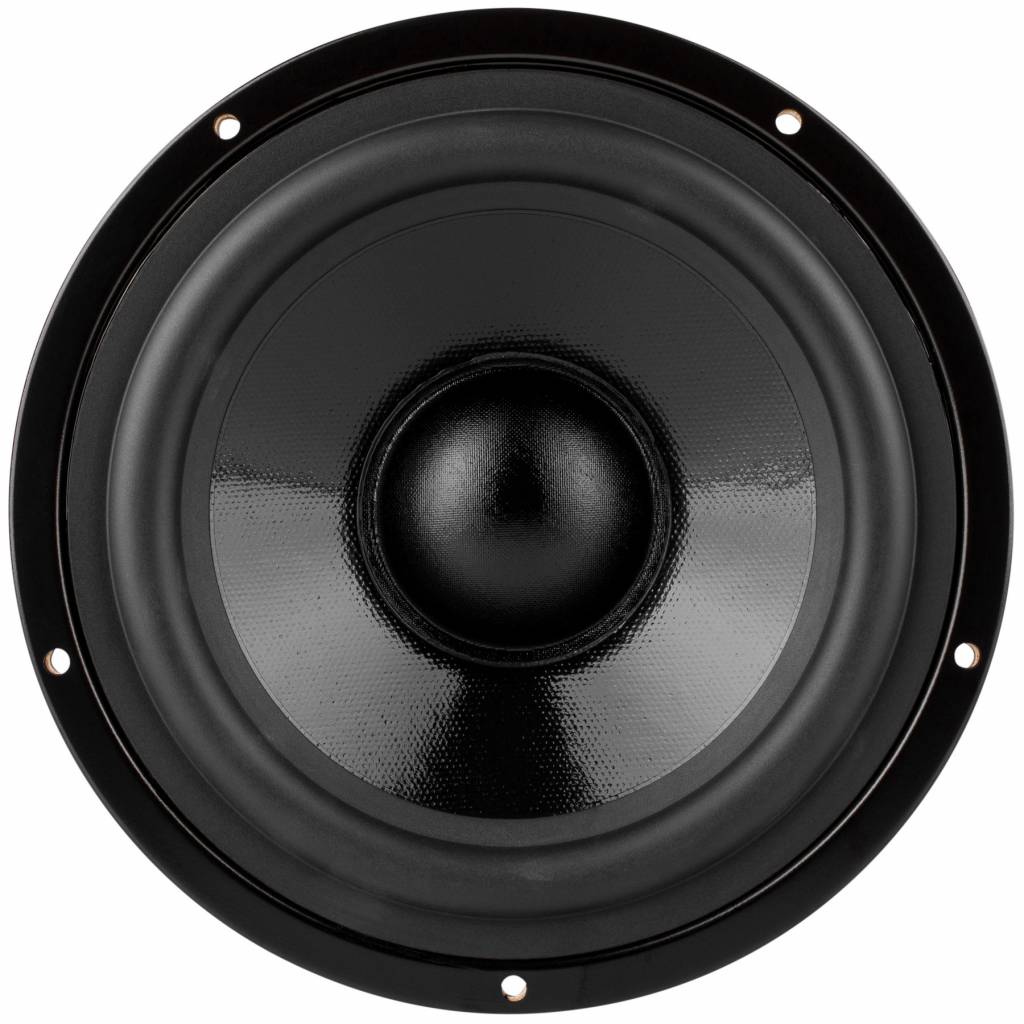

Dayton Audio DS175-PR 6-1/2" Passive Radiator

In stock

  • Article code: DS175-PR
  • Stock: 9 In stock

The Dayton Audio DS175-PR 6-1/2" passive radiator is excellent general-purpose radiator which allows lower tuning frequencies in smaller enclosures, suitable for replacement or for new construction.

€ 24,95 Incl. 21% VAT

  • Buy 4 for €23,70 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio DS175-PR 6-1/2" Passive Radiator

The Dayton Audio DS175-PR 6-1/2" passive radiator is excellent general-purpose radiator which allows lower tuning frequencies in smaller enclosures, suitable for replacement or for new construction.



Highlights

  • Long-throw suspension system for clean excursion
  • Rugged stamped frame design with rear spider for stability
  • Durable coated paper cone and rubber surround
  • M5 threaded hole simplifies adding mass for lower tuning frequency



Product details

Dayton Audio DS175-PR 6-1/2" Passive Radiator



The Dayton Audio DS175-PR 6-1/2" passive radiator is an excellent general-purpose radiator suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Designer Series line of drivers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems.



Recommended for use in passive radiator enclosure alignments with active drivers from 3" to 6.5" in diameter. Dual passive radiators are recommended for use with 6.5" active drivers.



Specifications: • Fs: 30.2 Hz • Vas: 0.61 cu. ft. • Qms: 1.8 • Cms: 0.74 mm/N • Mms: 37.5 g • Sd: 128.7 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 6.94", Cutout diameter: 5.63", Depth: 1.88"



Note: Adding mass to the passive radiator will decrease Fs and increase Qms.



Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 6-1/2" woofer/subwoofer that has 8 mm of X-max would require 2-6-1/2" passive radiators with 8 mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).

Specifications

Specifications for: DS175-PR 6-1/2" Passive Radiator

  • Woofer Series Specific woofer production line of the manufacturer. DVC Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Passive Radiator
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 6.50"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged.
  • View all specifications
  • Continuous Program Power
  • Impedance
  • Sensitivity
  • Frequency Response
  • Voice Coil Diameter
  • Magnet Weight
  • DC Resistance (Re)
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 24.5 Hz
  • Mechanical Q (Qms) 5.57
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Diaphragm Mass Inc. Airload (Mms) 36.6g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.15 mm/N
  • Surface Area of Cone (Sd) 128.7 cm²
  • Volume of Displacement (Vd) 103 cm³
  • BL Product (BL)
  • Compliance Equivalent Volume (Vas) 27.1 liters
  • Maximum Linear Excursion (Xmax) 8 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 176.3 mm
  • Overall Depth 47.8 mm
  • Baffle Cutout Diameter 143 mm
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
