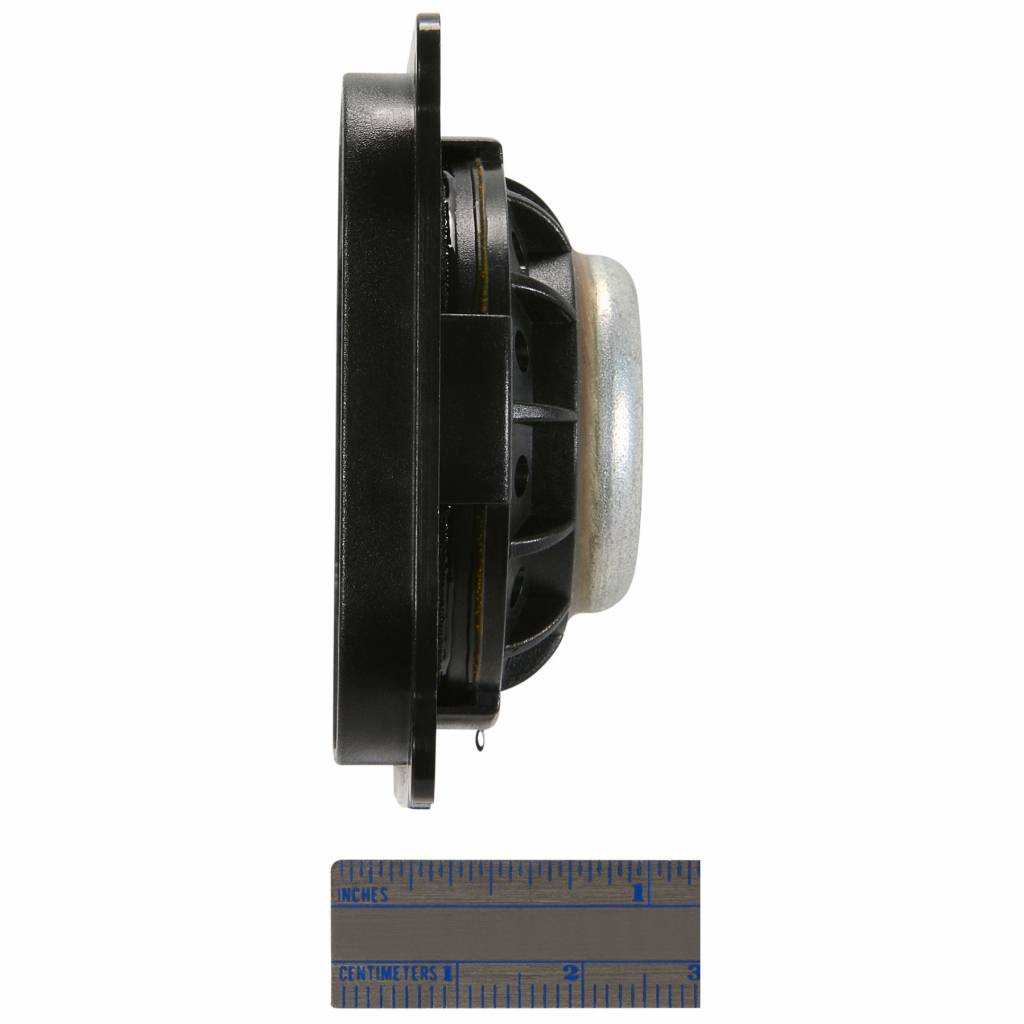

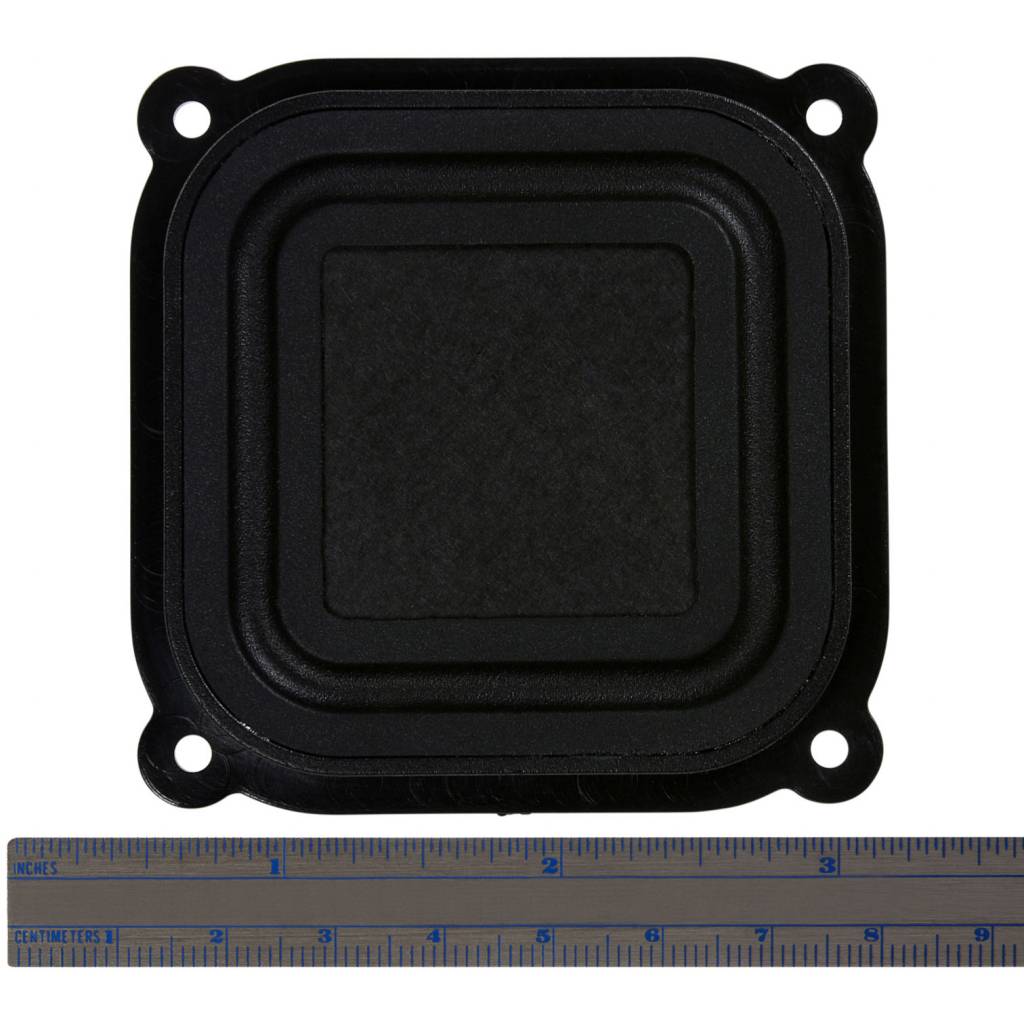

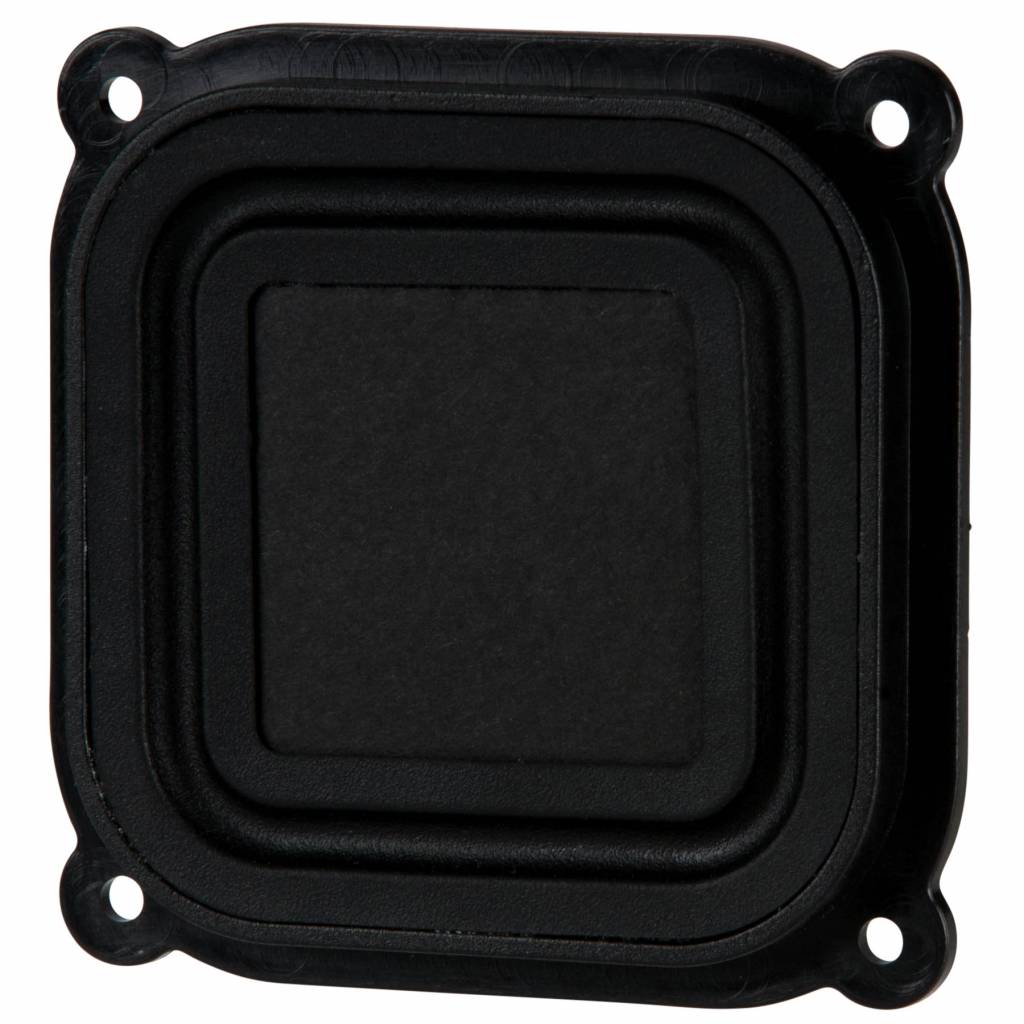

        DML25-4  2" Distributed Mode Loudspeaker Transducer 20W 4 Ohm

        DML25-4 2" Distributed Mode Loudspeaker Transducer 20W 4 Ohm

        €20,95

        Dayton Audio DML25-4 2" Distributed Mode Loudspeaker Transducer 20W 4 Ohm

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 17,31€ 20,95 Out of stock2 expected on 03-07-2024
        • -5% Purchase 4 for only € 19,90 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Dayton Audio's DML (Distributed Mode Loudspeaker) full-range speaker combines the compactness of an exciter with the pistonic air modulation of a standard speaker, making it perfect for use in sound bars.



        Highlights

        • Unique, square-shaped from for tight driver-to-driver placement
        • Extended frequency response up to 15,000 Hz due to low a inductance motor
        • Wide off-axis dispersion for placement flexibility
        • Perfect for modern audio applications such as speaker bars and line arrays



        Product details

        Dayton Audio DML25-4 2" Distributed Mode Loudspeaker 20W 4 Ohm



        The DML25-4 2" full-range transducer, from Dayton Audio, produces an amazing amount of quality sound while maintaining a small form factor. Designed to move air like a traditional speaker, this driver's unique shape lends itself to modern audio applications, such as a speaker bars, docking stations, and satellite speakers, where sound is to be heard without the source being seen.



        Great off-axis directivity enables flexible placement options, while the wide frequency response (that extends from 150 Hz up to 15,000 Hz) delivers cost savings to engineers... no crossover components or frequency-specific drivers are required. The Dayton Audio DML25-4 is a natural selection for designing and building thin column line array speakers.



        Dayton Audio DML outperforms the competition!



        Show more

        Specifications

        Article number
        DML25-4
        Nominal Diameter
        2"
        Power Handling (RMS)
        20 Watts
        Power Handling (max)
        40 Watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        82.1 dB
        Frequency Response
        150 to 15,000 Hz
        Voice Coil Diameter
        0.98"
        DC Resistance (Re)
        4.30 ohms
        Voice Coil Inductance (Le)
        0.09 mH
        Resonant Frequency (Fs)
        212 Hz
        Mechanical Q (Qms)
        3.83
        Electromagnetic Q (Qes)
        1.50
        Total Q (Qts)
        1.10
        Diaphragm Mass Inc. Airload (Mms)
        3.70g
        Mechanical Compliance of Suspension (Cms)
        0.15 mm/N
        Surface Area of Cone (Sd)
        4.64 cm²
        BL Product (BL)
        3.86 Tm
        Compliance Equivalent Volume (Vas)
        0.0001 ft.³
        Maximum Linear Excursion (Xmax)
        1.5 mm
        Cone / Diaphragm Material
        Paper
        Surround Material
        Rubber
        Basket / Frame Material
        Polymer
        Magnet Material
        Neodymium
        Overall Outside Diameter
        2.63" x 2.63"
        Overall Depth
        1.04"
        Baffle Cutout Diameter
        2.34" x 2.34"
        # Mounting Holes
        4

        Show more

        5 of 5
        No description was given
        By Kinda H. on 23 July 2019
