        DMA58-PR 2" Aluminum Cone Passive Radiator

        DMA58-PR 2" Aluminum Cone Passive Radiator

        €10,95

        Dayton Audio DMA58-PR 2" Aluminum Cone Passive Radiator

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 9,05€ 10,95 8 In stock
        • -5% Purchase 4 for only € 10,40 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Dayton Audio's DMA58-PR 2" aluminum cone passive radiator allows you to tune small enclosures lower than possible using conventional ports. Matching the DMA series of drivers drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speakers, sound bars, and portable Bluetooth speakers.



        Highlights

        • Perfect match for the Dayton Audio DMA series drivers
        • Allows tuning small enclosures lower than using conventional ports
        • Rear mounted threaded post allows easy mass adjustment for custom tuning
        • DIY friendly, oversized mounting flange makes installation simple



        Product details

        Dayton Audio DMA58-PR 2" DMA Series Passive Radiator

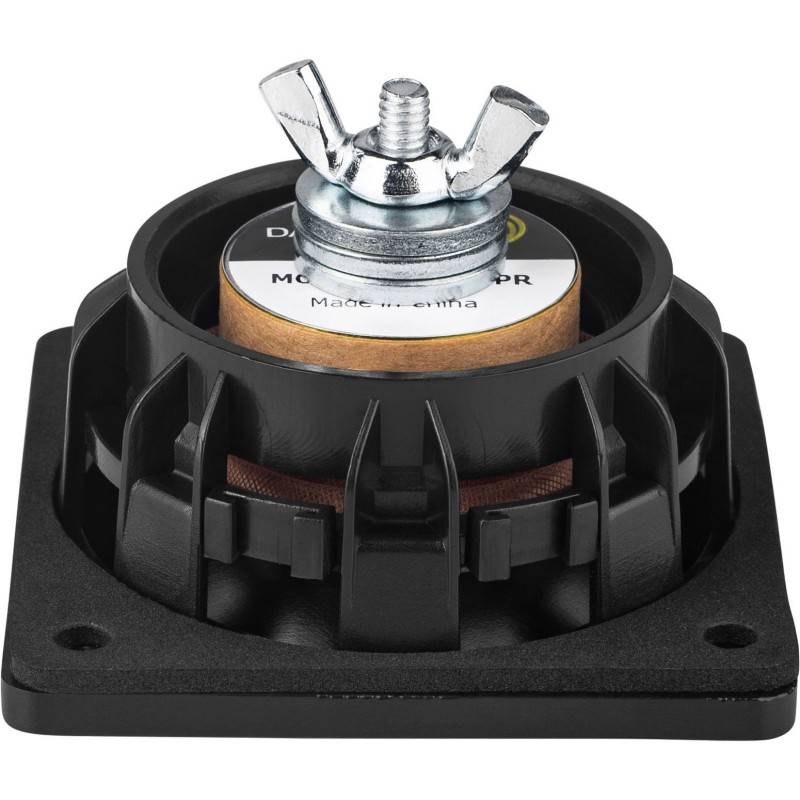

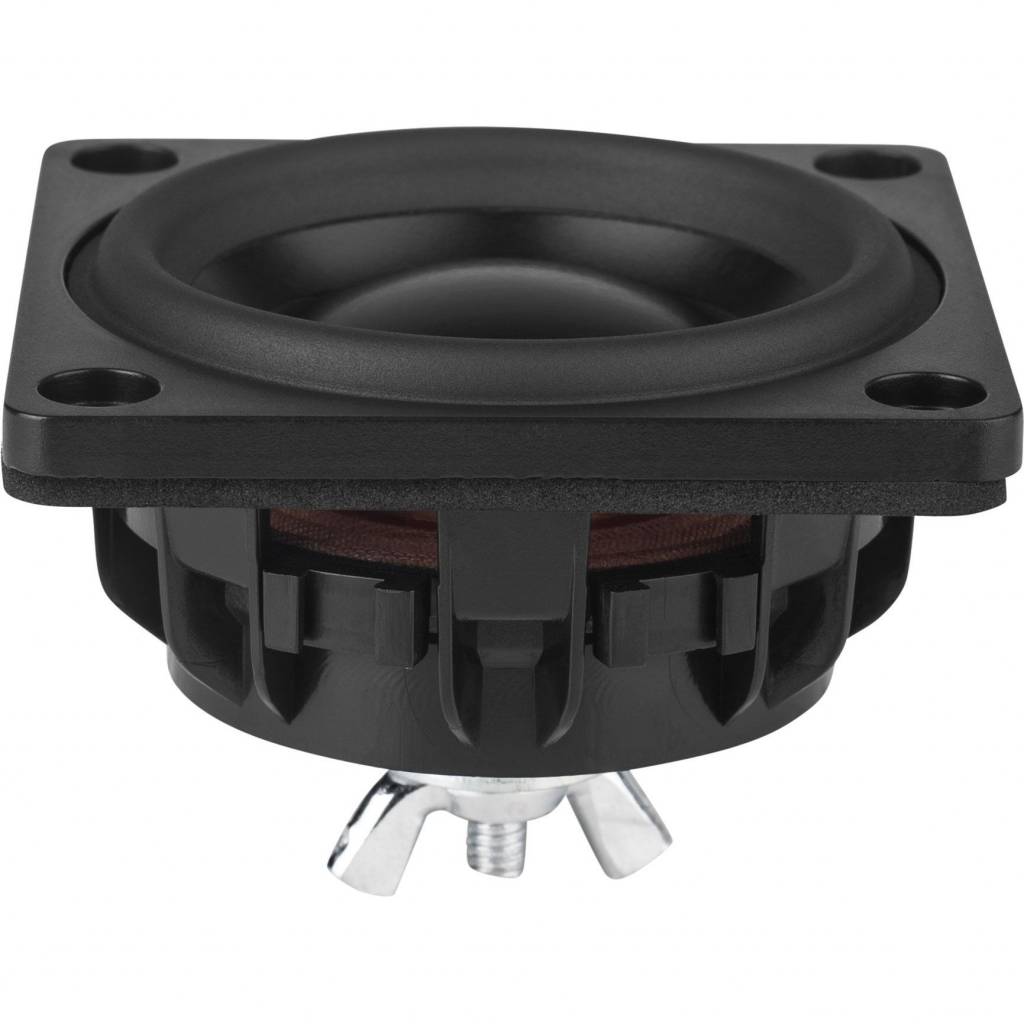

        The DMA58-PR 2" passive radiator from Dayton Audio is the perfect option for achieving low tuning frequencies from the smallest enclosure designs. This incredibly small passive radiator has all the features you would expect lager units including adjustable mass, aluminum cone, and rubber surround. Visually identical to Dayton Audio's full-range DMA series drivers, the DMA58-PR can also be used with any small driver that requires a low tuning frequency. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a smart speaker, sound bar, or portable Bluetooth speaker, the Dayton Audio DMA58-PR introduces a new range of possibilities.



        Specifications: • Fs: 39.8 Hz • Vas: 0.025 ft³ (0.72 liters) • Qms: 3.93 • Cms: 2.4 mm/N • Mms: 6.7 g • Rms: 0.432 kg/s • Sd: 14.5 cm² • Xmech: 7 mm • Dimensions: Overall diameter: 2.2" x 2.2", Cutout diameter: 1.97", Depth: 1.5".



        Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
        To calculate Vd: Sd x Xmax = Vd

        Show more

        Specifications

        Article number
        DMA58-PR
        Woofer Series
        DMA series
        Woofer Type
        Passiver radiator
        Nominal Diameter
        2"
        Resonant Frequency (Fs)
        39.8 Hz
        Mechanical Q (Qms)
        3.93
        Diaphragm Mass Inc. Airload (Mms)
        6.7 g
        Mechanical Compliance of Suspension (Cms)
        2.4 mm/N
        Surface Area of Cone (Sd)
        14.5 cm²
        Compliance Equivalent Volume (Vas)
        0.025 ft³ (0.72 liters)
        Maximum Linear Excursion (Xmax)
        7 mm
        Driver's Mechanical Losses (Rms)
        0.432 kg/s
        Cone / Diaphragm Material
        Aluminum
        Basket / Frame Material
        Polymer
        Overall Outside Diameter
        2.2" x 2.2"
        Overall Depth
        1.5"
        Baffle Cutout Diameter
        1.97"
        Bolt Circle Diameter
        2.56"
        # Mounting Holes
        4

        Show more

        5 of 5
        Es wurde keine Beschreibung gegeben.
        By Benjamin M. on 7 April 2020
