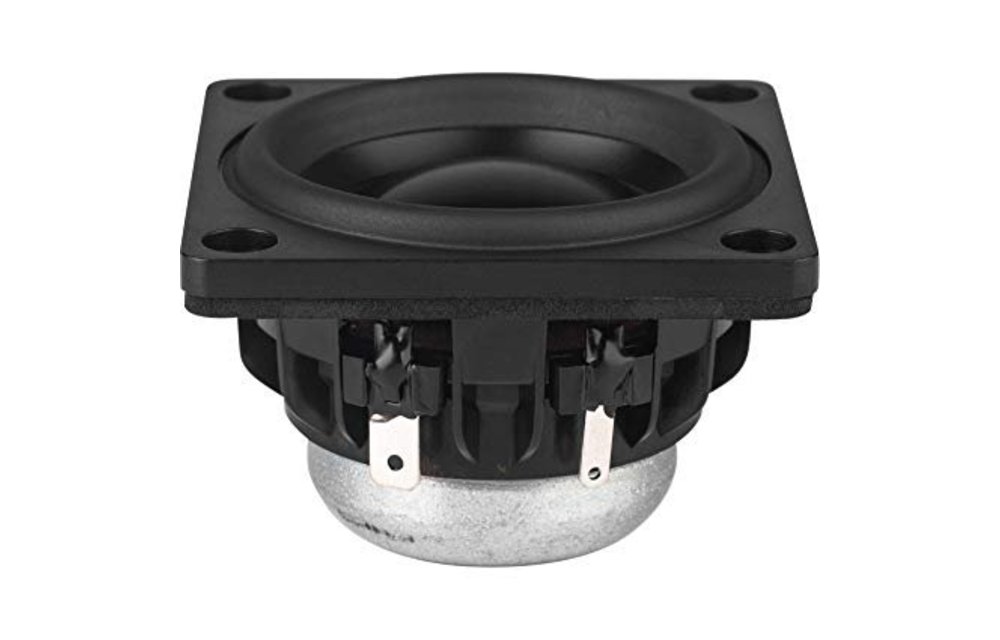

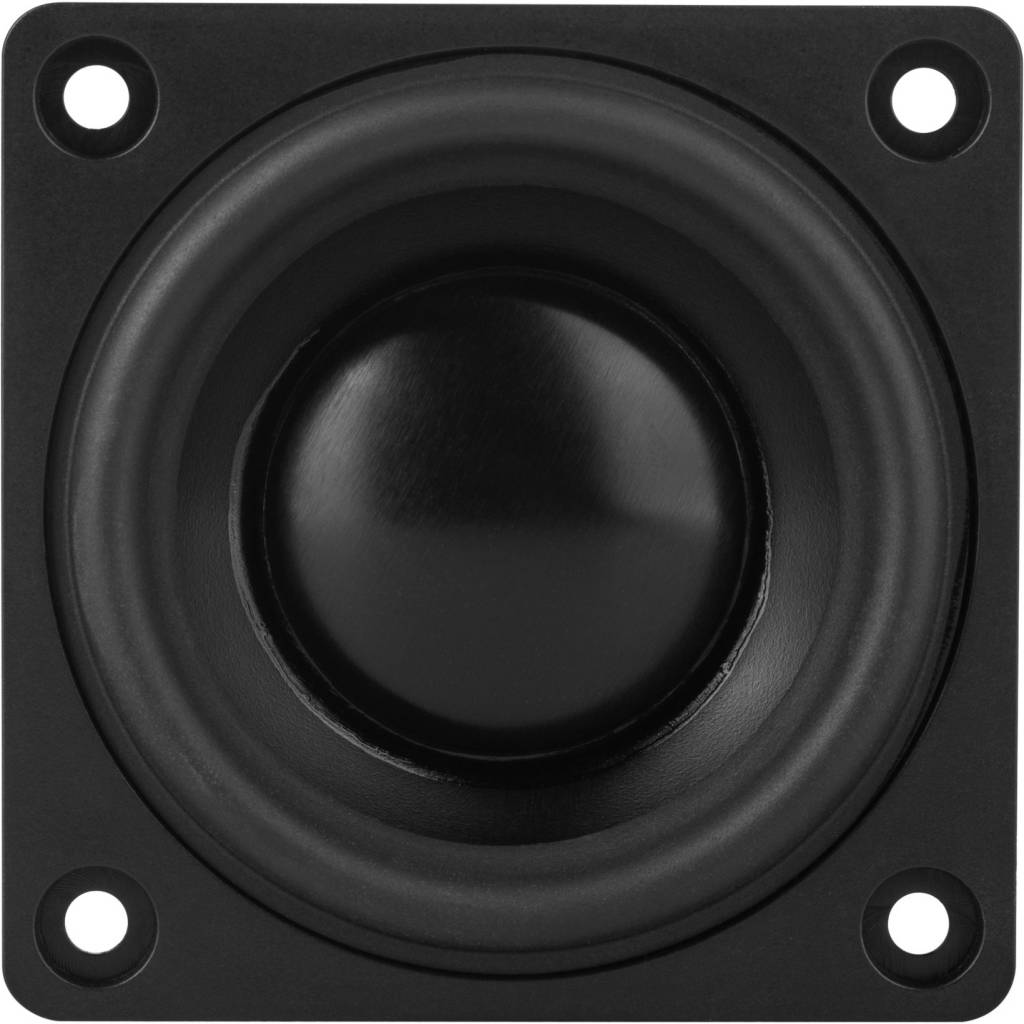

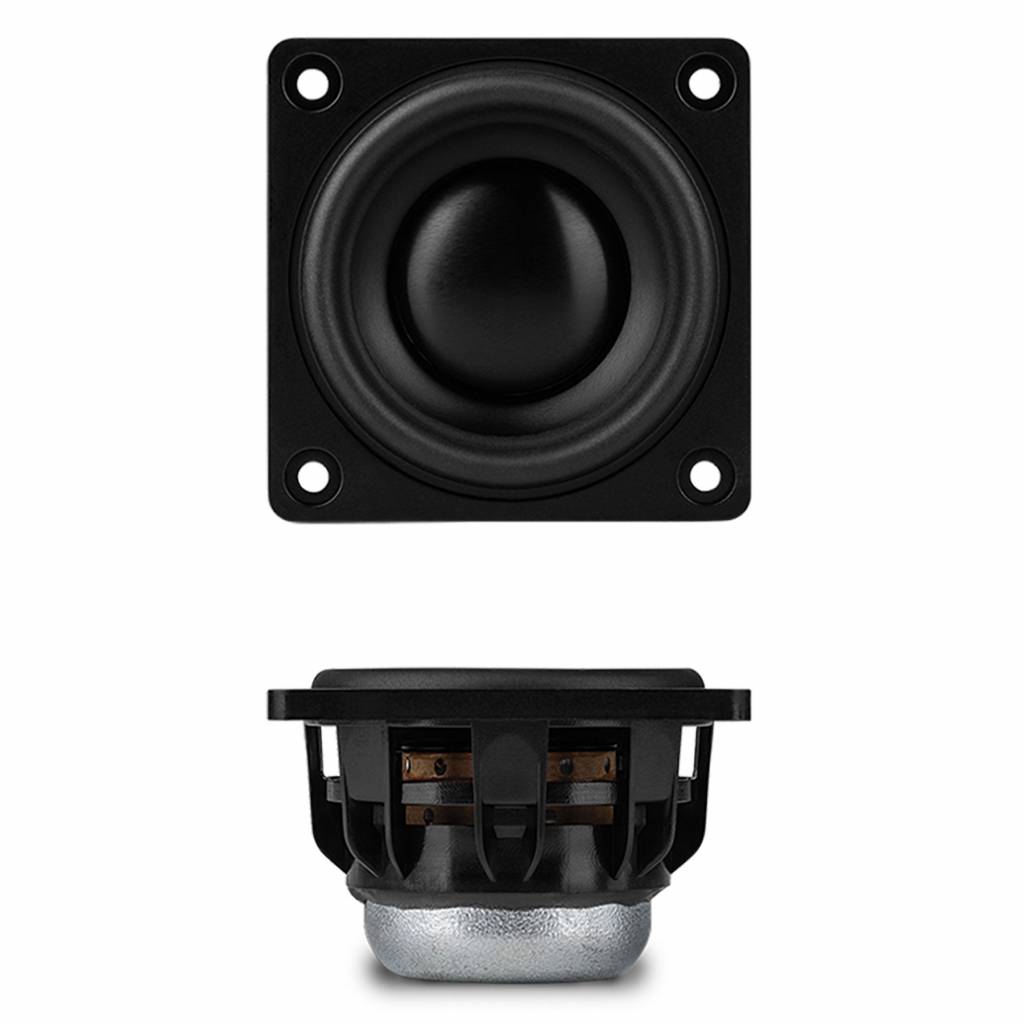

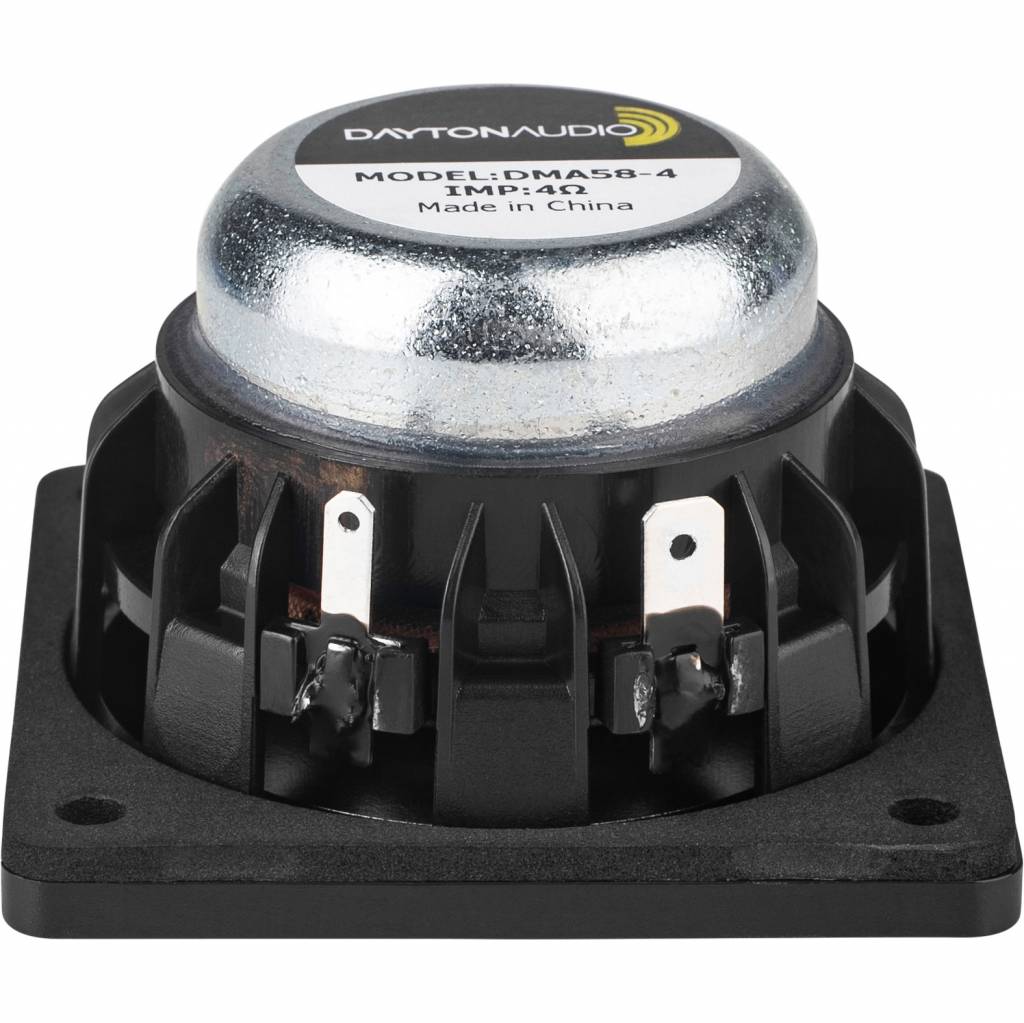

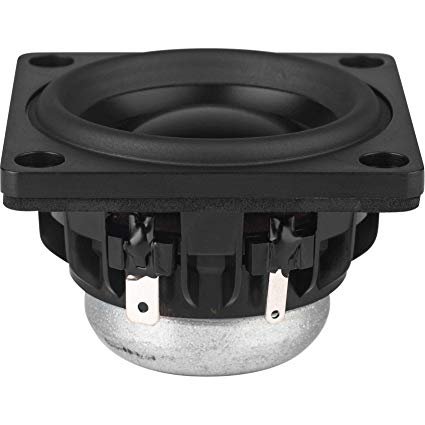

      Dayton Audio DMA58-4 2" Aluminum Cone Full-Range Driver

      € 16,49€ 19,95 Out of stock: please contact us for accurate delivery times

      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €18,95 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Dayton Audio's DMA58-4 2" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA58-4 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design.



      Highlights

      • Excellent high frequency response for true full-range applications
      • Dual neodymium motor to create a symmetrical magnetic field for superb control
      • Large copper cap lowers distortion while improving high frequency response
      • Vented aluminum voice coil former with exceptional heat dissipation for high power handling
      • Exclusive 8-spoke open frame design provides extensive venting and minimal reflection
      • DIY friendly, oversized mounting flange makes installation simple
      • Matching tunable passive radiators also available!



      Product details

      Dayton Audio DMA58-4 2" Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm



      Providing high efficiency with low distortion, Dayton Audio's DMA58-4 2" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA58-4 is the perfect full-range for the job.

      Designed for the highest performance while delivering maximum value, the no compromise design of the DMA58-4 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on an extensively vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion.

      Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.

      Specifications

      Article number
      DMA58-4
      Woofer Series
      DMA series
      Woofer Type
      Full-range
      Nominal Diameter
      2"
      Power Handling (RMS)
      15 Watts
      Power Handling (max)
      30 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      86.2 dB 2.83V/1m
      Frequency Response
      160 to 20,000 Hz
      Voice Coil Diameter
      1"
      DC Resistance (Re)
      3.55 ohms
      Voice Coil Inductance (Le)
      0.2 mH
      Resonant Frequency (Fs)
      165.5 Hz
      Mechanical Q (Qms)
      2.4
      Electromagnetic Q (Qes)
      0.56
      Total Q (Qts)
      0.45
      Diaphragm Mass Inc. Airload (Mms)
      2.05g
      Mechanical Compliance of Suspension (Cms)
      0.45 mm/N
      Surface Area of Cone (Sd)
      14.5 cm²
      BL Product (BL)
      3.67 Tm
      Compliance Equivalent Volume (Vas)
      0.005 ft.³
      Maximum Linear Excursion (Xmax)
      2.0 mm
      Cone / Diaphragm Material
      Aluminum
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      Aluminum
      Basket / Frame Material
      Polymer
      Magnet Material
      Neodymium
      Overall Outside Diameter
      2.20" x 2.20"
      Overall Depth
      1.25"
      Baffle Cutout Diameter
      1.96"
      # Mounting Holes
      4
      Sealed Volume
      0.0019 ft.³
      Sealed F3
      310 Hz
      Vented Volume
      0.019 ft.³
      Vented F3
      110 Hz

      Show more

      Reviews

      5 from 5Based on 2 reviews
      Review this product
      4 of 5
      No description was given
      By Fabio P. on 11 February 2020
      5 of 5
      Sehr hochwertig verarbeitetes Chassis Die anschlüsse lassen sich gut löten und der sound in den mitten und höhen wirklich sehr gut Der bass ist wie von der Größe zu erwarten oder ? Nein stellt man den bass am Verstärker hoch kann man von diesen Chassis schon ein bisschen bass erwarten so kommen die Chassis aber schneller an ihre hohe 15 watt Leistung [ ich habe je 2 chassis in ein geschlossenes Gehäuse gebaut (form wie die bose 3-2-1 Satellitenlautsprecher)]
      By Jemand on 10 November 2019
