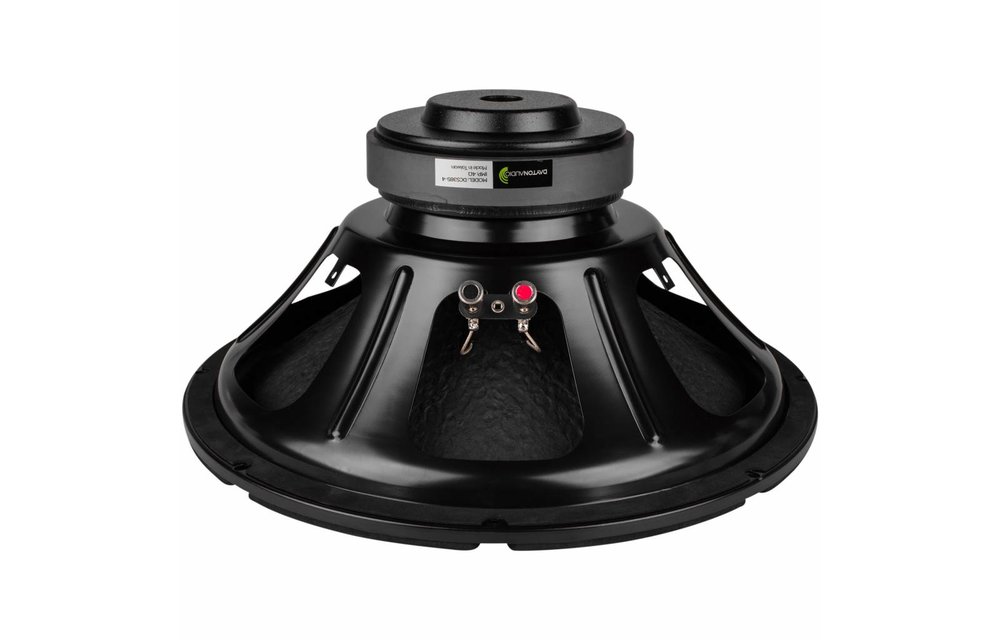

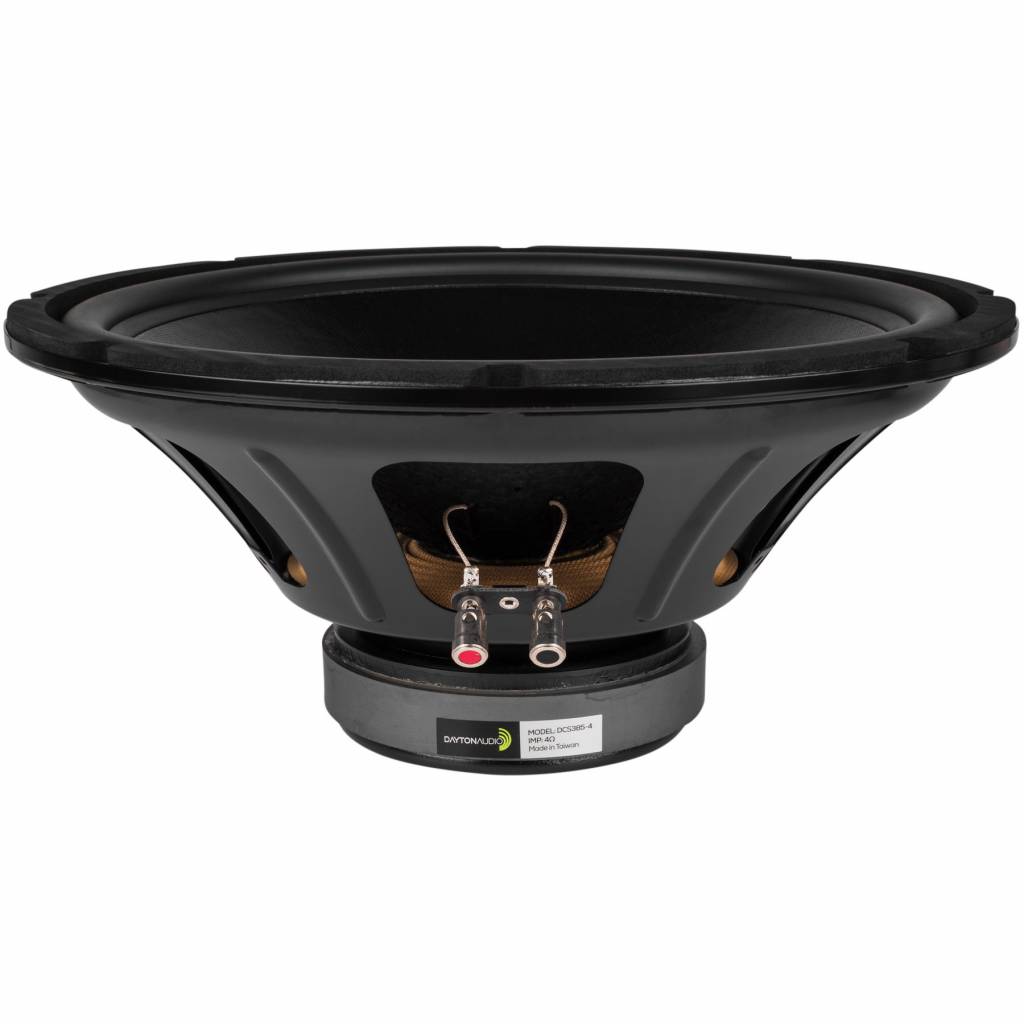

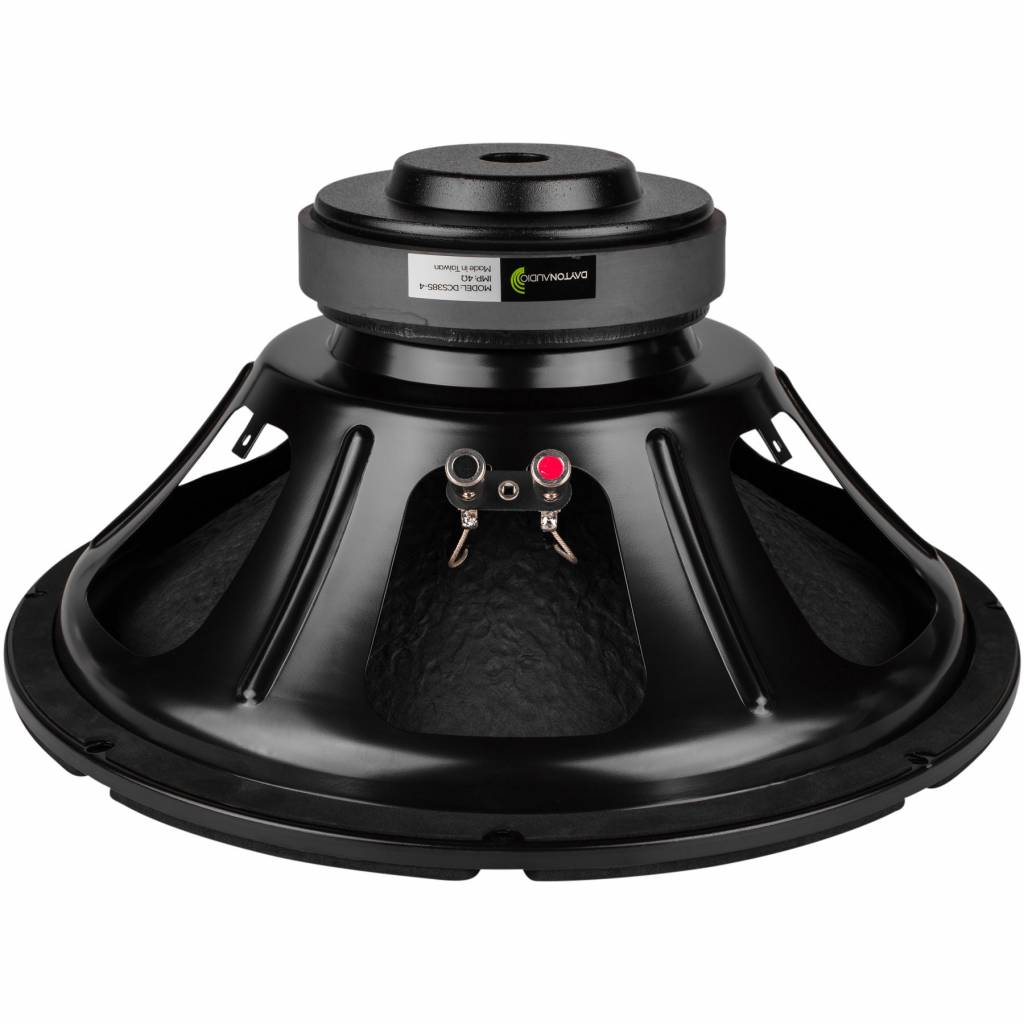

Dayton Audio DCS385-4 15" Classic Subwoofer 4 Ohm

In stock

  • Article code: DCS385-4
  • Stock: 2 In stock

The Dayton Audio Classic Series subwoofers offer solid value at lower price points. No compromises were made in the design, materials, or construction of these rugged 4-ohm powerhouses.

€ 158,25 Incl. 21% VAT

  • Buy 4 for €150,34 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-days the right to cancel
  • International payment options

Product description

Dayton Audio DCS385-4 15" Classic Subwoofer 4 Ohm

The Dayton Audio Classic Series subwoofers offer solid value at lower price points. No compromises were made in the design, materials, or construction of these rugged 4-ohm powerhouses.



Highlights

  • Sturdy stamped steel frame
  • Vented pole piece and bumped back plate
  • Inductance-reducing copper pole piece cap
  • Treated non-pressed paper/Kevlar cone with rubber surround
  • 4-layer VC with polyimide former
  • Great for home and automotive applications



Product details

Dayton Audio DCS385-4 15" Classic Subwoofer 4 Ohm



The Dayton Audio Classic Series subwoofers offer solid value at lower price points. No compromises were made in the design, materials, or construction of these rugged 4-ohm powerhouses. The drivers feature a vented pole piece with copper cap, bumped back plate for improved excursion capability, Kevlar reinforced cone with rubber half-roll surround, and a high-temperature 4-layer copper voice coil wound on a polyimide former.

Specifications

Specifications for: DCS385-4 15" Classic Subwoofer 4 Ohm

  • Woofer Series Specific woofer production line of the manufacturer. Classic Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Subwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 15"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 300 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 600 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 91.7 dB @ 2.83V/1m
  • Frequency Response 19 - 200 Hz
  • Voice Coil Diameter 65.5 mm
  • Magnet Weight
  • DC Resistance (Re) 3.3 ohms
  • Voice Coil Inductance (Le) 2.2 mH @ 1 kHz
  • Resonant Frequency (Fs) 17.5 Hz
  • Mechanical Q (Qms) 5.27
  • Electromagnetic Q (Qes) 0.42
  • Total Q (Qts) 0.39
  • Diaphragm Mass Inc. Airload (Mms) 273g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.3 mm/N
  • Surface Area of Cone (Sd) 850.1 cm²
  • Volume of Displacement (Vd) 790.6 cm³
  • BL Product (BL) 15.4 Tm
  • Compliance Equivalent Volume (Vas) 311 liters
  • Maximum Linear Excursion (Xmax) 9.3 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper / Kevlar Cone
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Kapton® / Polyimide
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 387.2 mm
  • Overall Depth 185.5 mm
  • Baffle Cutout Diameter 350 mm
  • Bolt Circle Diameter
  • # Mounting Holes 8
  • Mounting Hole Diameter
  • Sealed Volume 3.83 ft.³
  • Sealed F3 39 Hz
  • Vented Volume 12.26 ft.³
  • Vented F3 22 Hz
