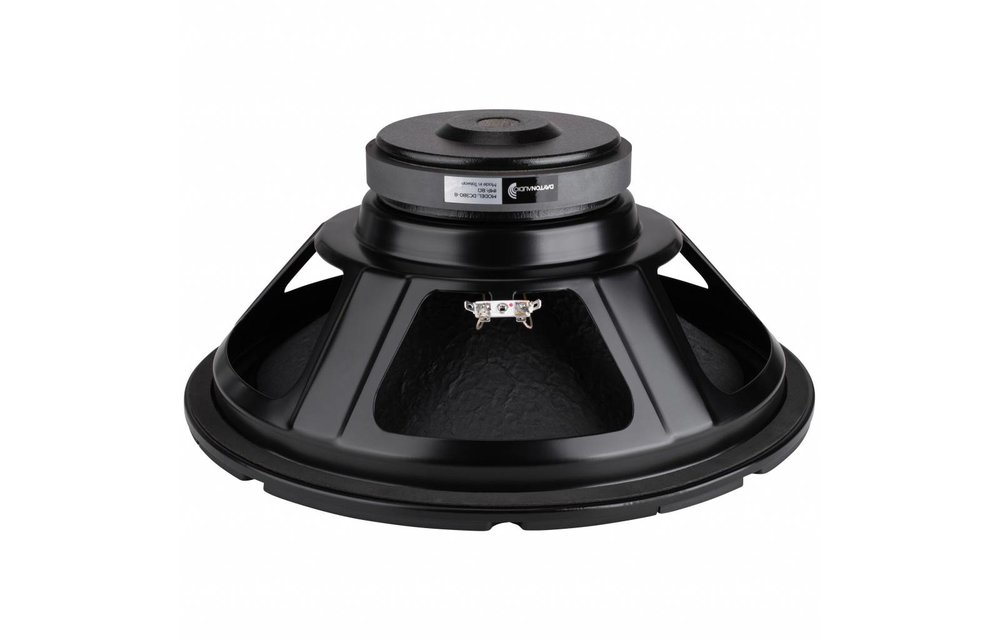

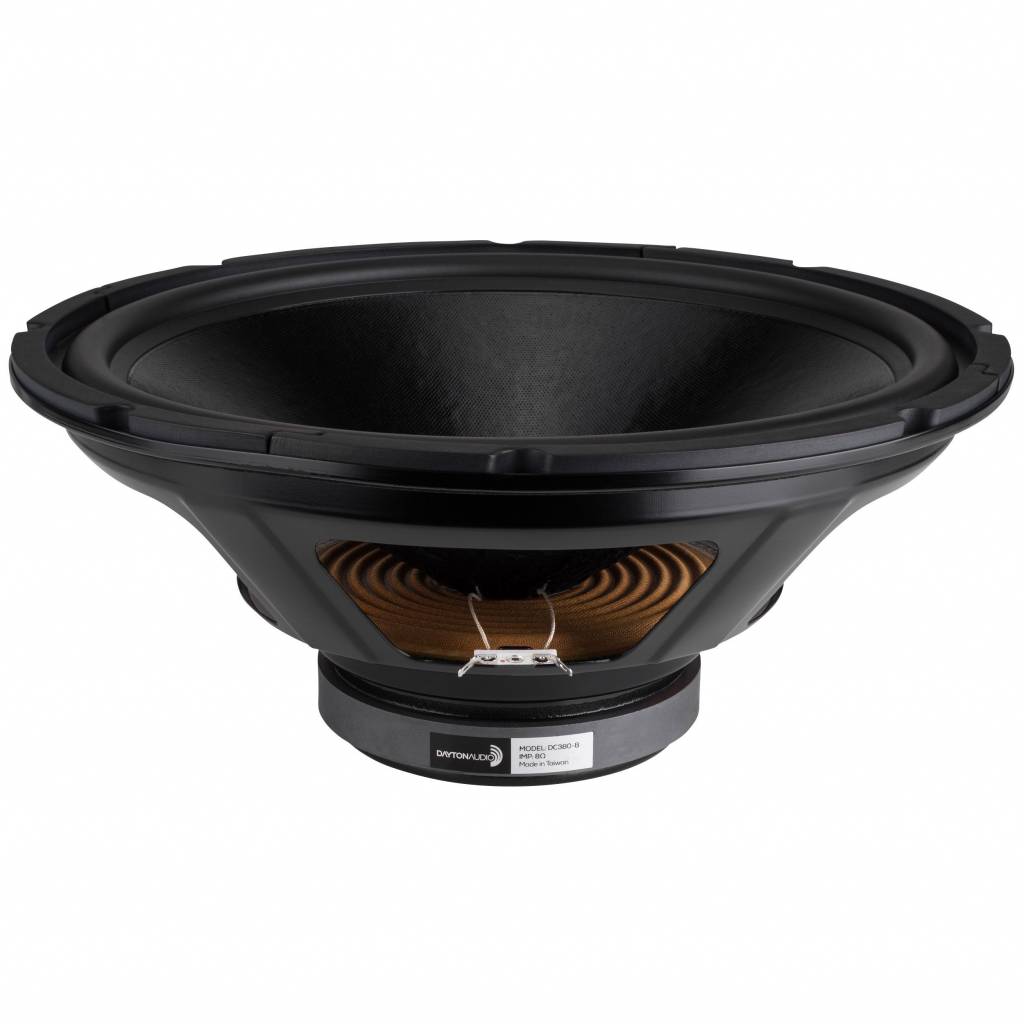

Dayton Audio DC380-8 15" Classic Woofer

In stock

  • Article code: DC380-8
  • Stock: 1 In stock

The Dayton Audio Classic Series 15" woofer is excellent as a replacement driver or for new system design and construction. The versatile set of parameters makes it suitable for sealed or vented enclosure designs.

€ 96,45 Incl. 21% VAT

  • Buy 4 for €91,63 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-days the right to cancel
  • International payment options

Product description

Dayton Audio DC380-8 15" Classic Woofer

The Dayton Audio Classic Series 15" woofer is excellent as a replacement driver or for new system design and construction. The versatile set of parameters makes it suitable for sealed or vented enclosure designs.



Highlights

  • Treated paper cone provides smooth response and low energy storage
  • Aluminum former, vented pole piece, and porous dustcap for high power handling
  • Large diameter flat spider and healthy Xmax for clean bass
  • Bring those old vintage speakers back to life



Product details

Dayton Audio DC380-8 15" Classic Woofer



Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC380-8 15" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. Smooth frequency response and extended bass performance make this driver ideal for use in large format two-way and classic three-way loudspeaker designs. A Qts of 0.35 allows the DC300-8 to work well in both sealed and ported speaker enclosures.



A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.



Specifications

Specifications for: DC380-8 15" Classic Woofer

  • Woofer Series Specific woofer production line of the manufacturer. Classic Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Midwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 15"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 100 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 200 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 91.8 dB @ 2.83V/1m
  • Frequency Response 20 - 1,500 Hz
  • Voice Coil Diameter 51 mm
  • Magnet Weight
  • DC Resistance (Re) 6.4 ohms
  • Voice Coil Inductance (Le) 3.09 mH @ 1 kHz
  • Resonant Frequency (Fs) 18.8 Hz
  • Mechanical Q (Qms) 2.87
  • Electromagnetic Q (Qes) 0.34
  • Total Q (Qts) 0.30
  • Diaphragm Mass Inc. Airload (Mms) 182.9g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.39 mm/N
  • Surface Area of Cone (Sd) 834.7 cm²
  • Volume of Displacement (Vd) 363.1 cm³
  • BL Product (BL) 20.4 Tm
  • Compliance Equivalent Volume (Vas) 391.4 liters
  • Maximum Linear Excursion (Xmax) 4.35 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 385 mm
  • Overall Depth 162 mm
  • Baffle Cutout Diameter 349 mm
  • Bolt Circle Diameter
  • # Mounting Holes 8
  • Mounting Hole Diameter
  • Sealed Volume 2 ft.³
  • Sealed F3 53 Hz
  • Vented Volume 5.27 ft.³
  • Vented F3 32 Hz
