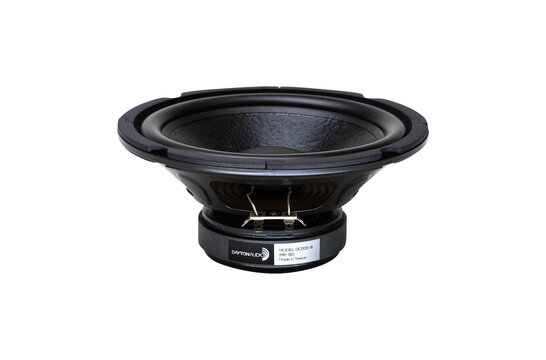

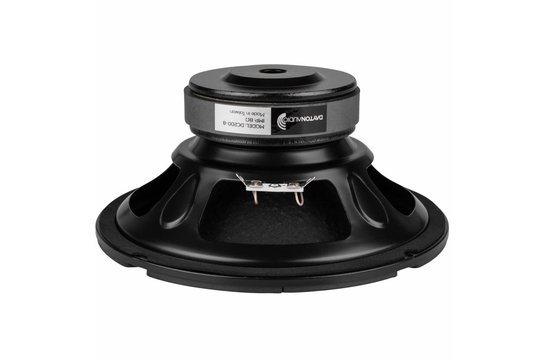

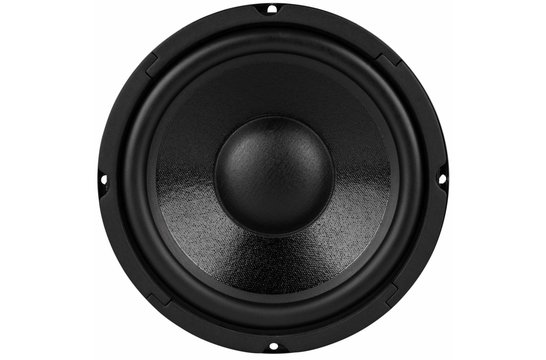

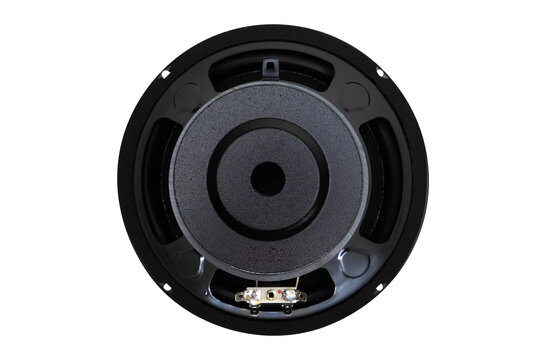

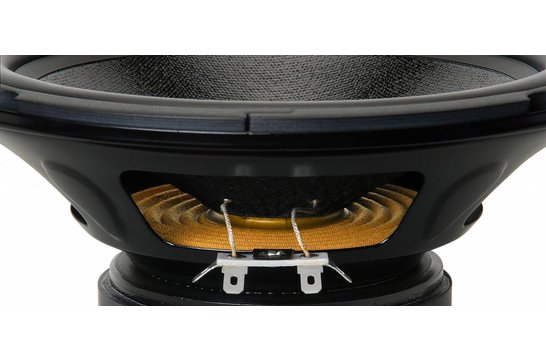

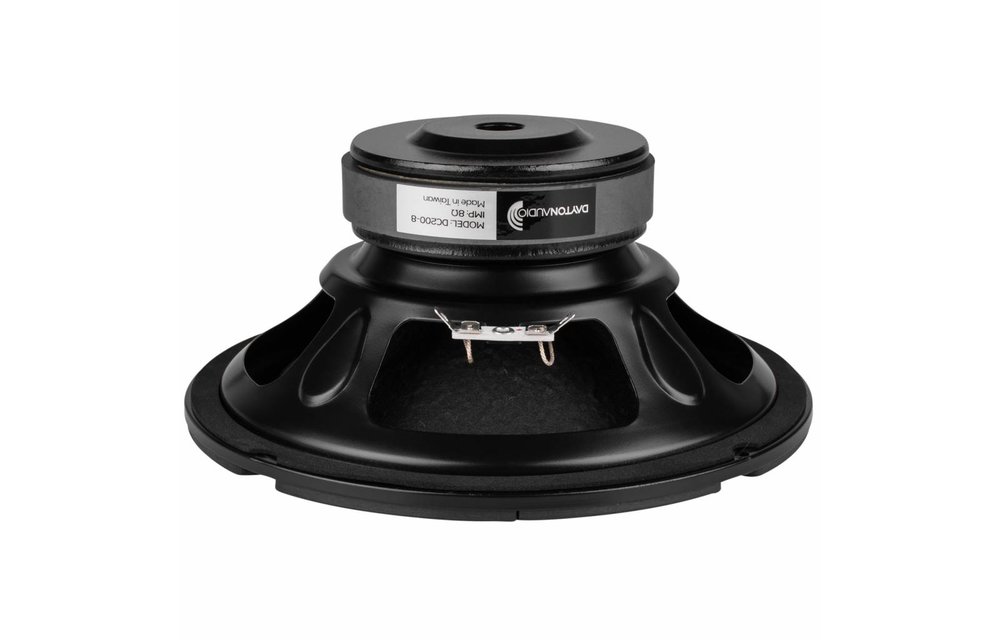

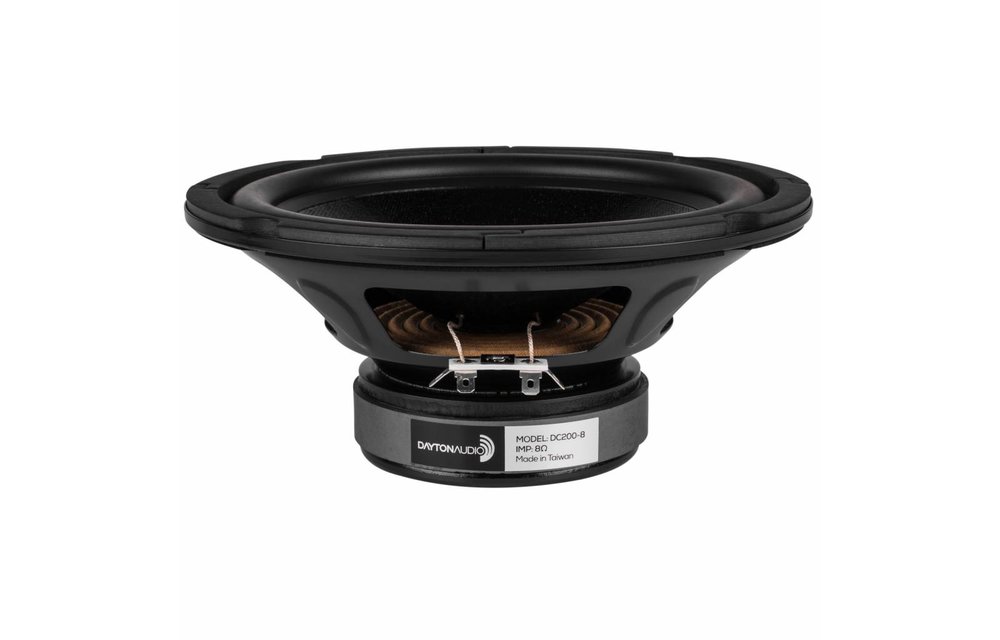

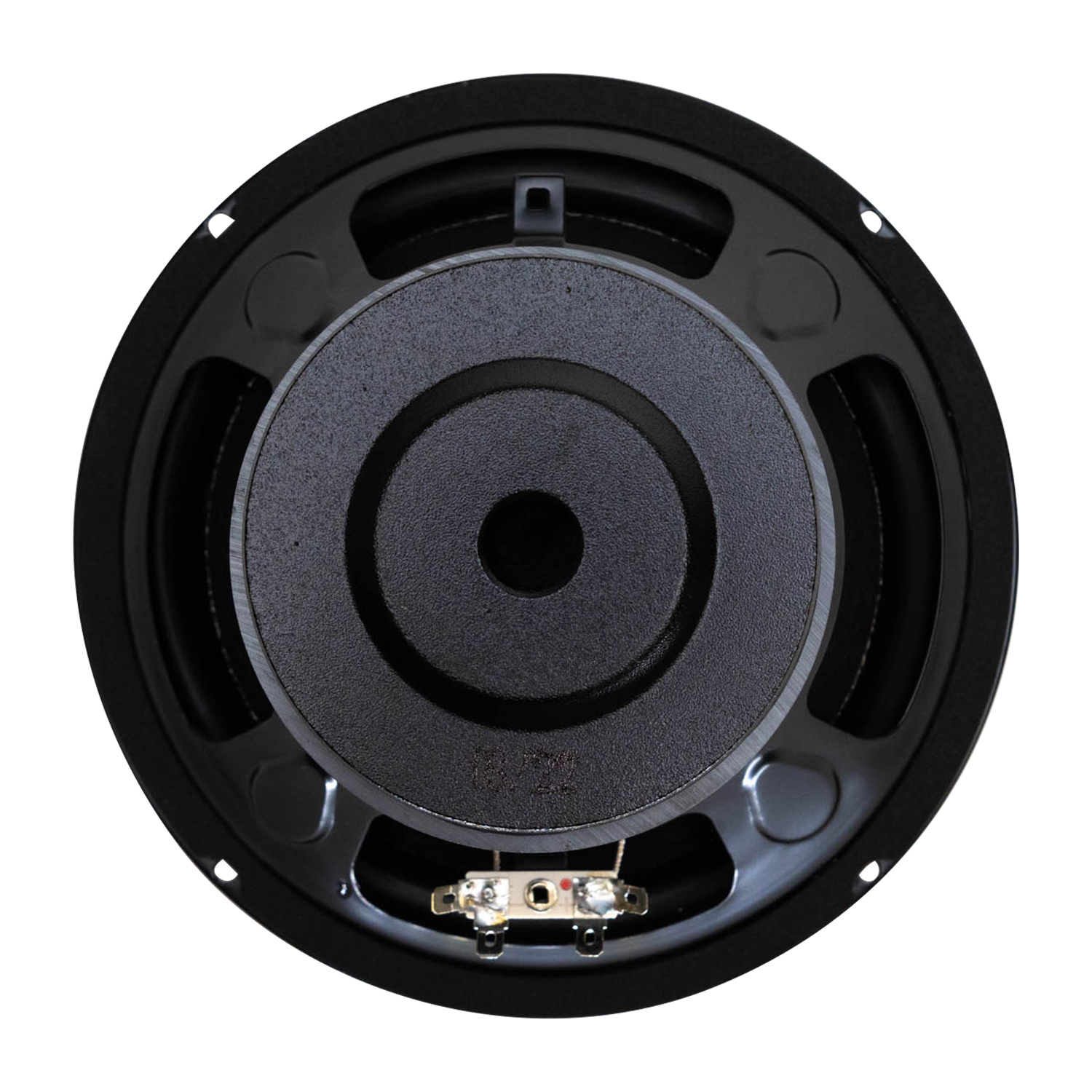

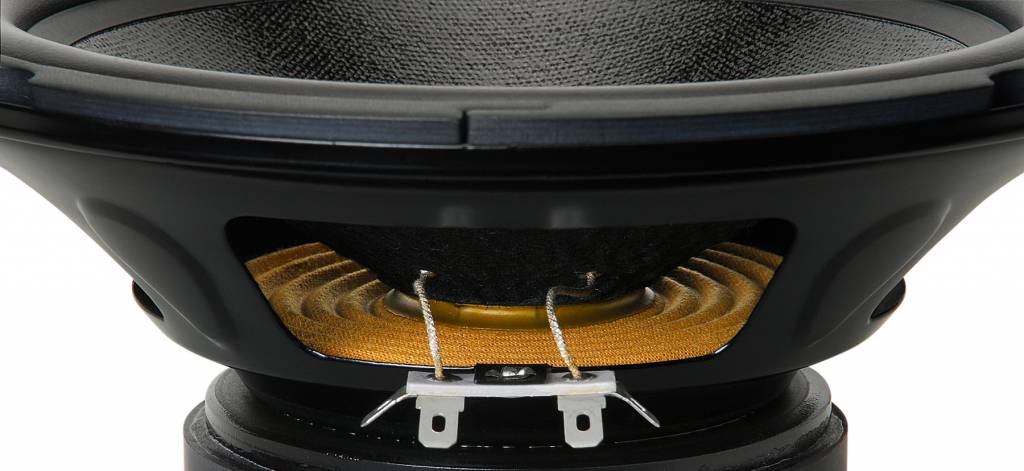

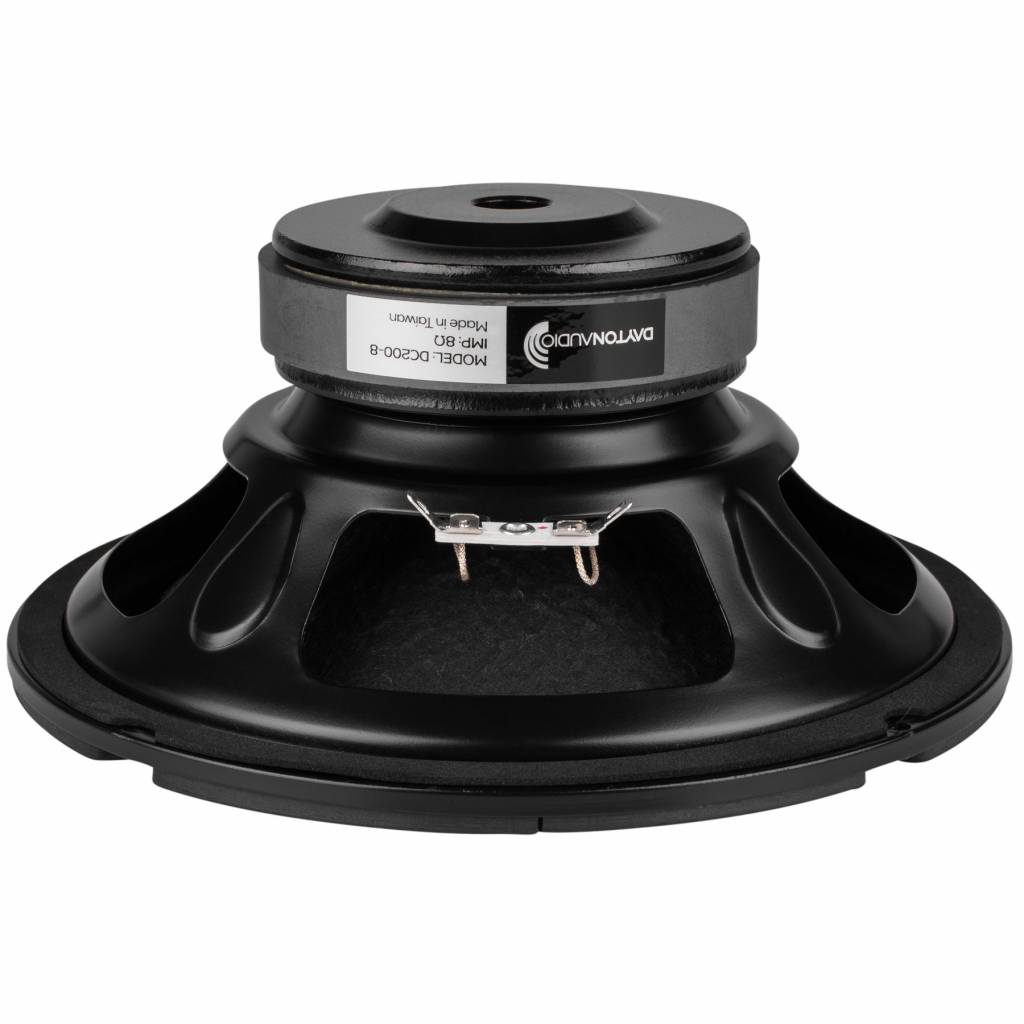

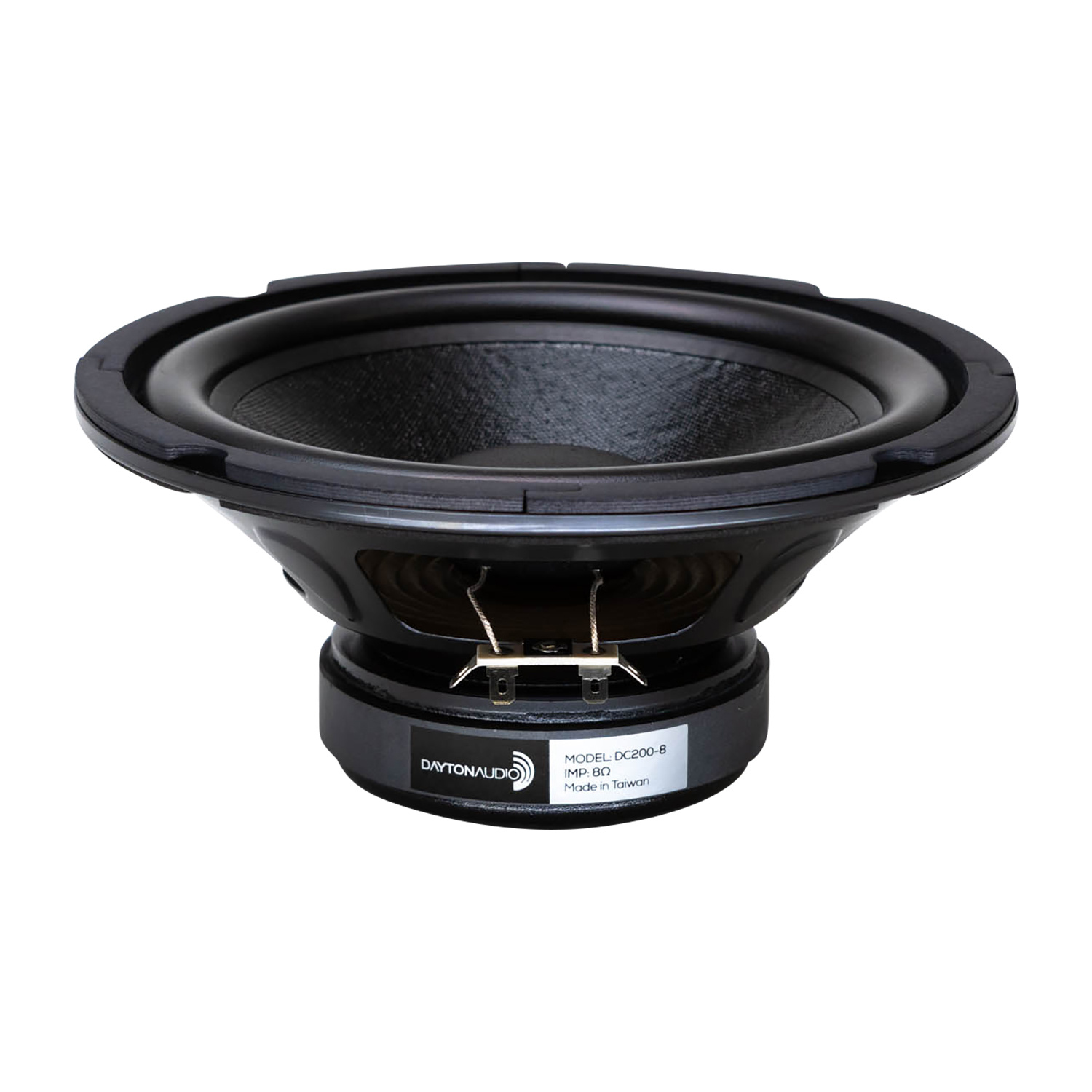

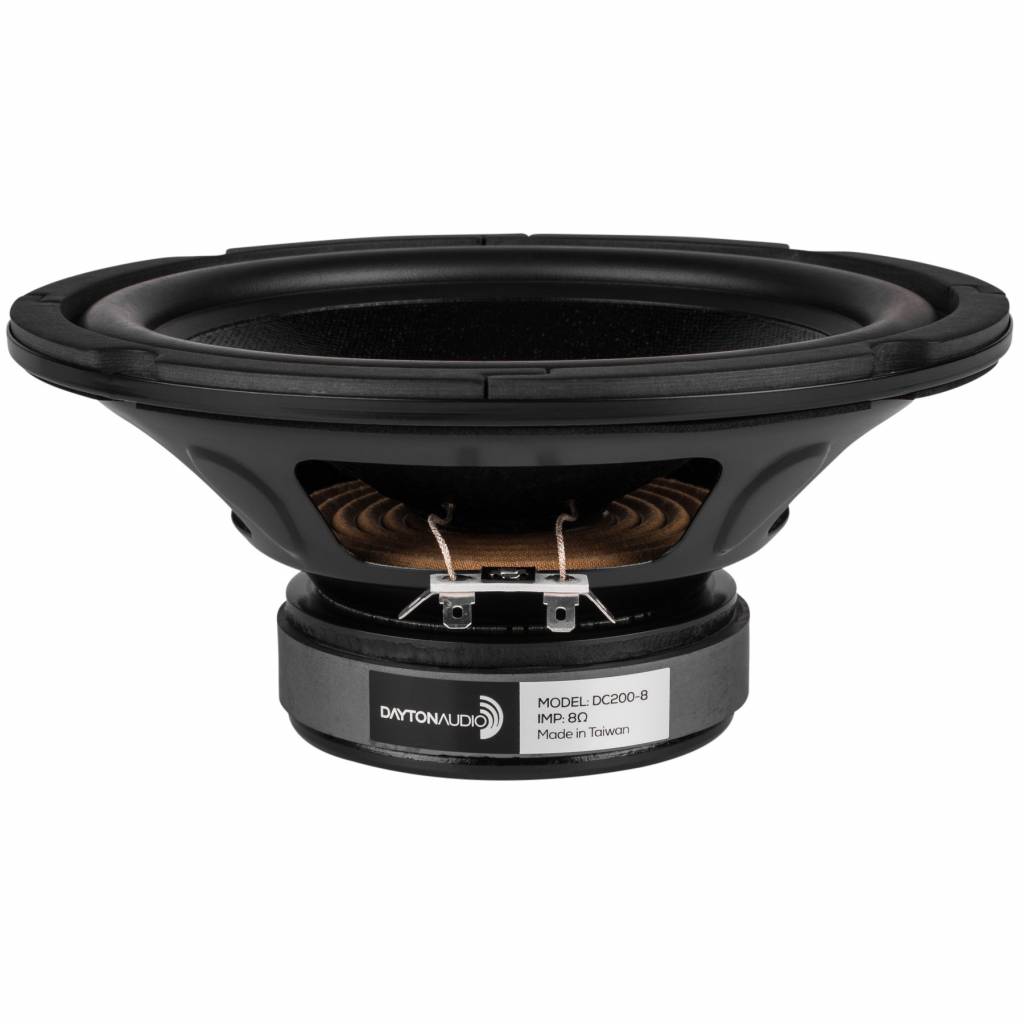

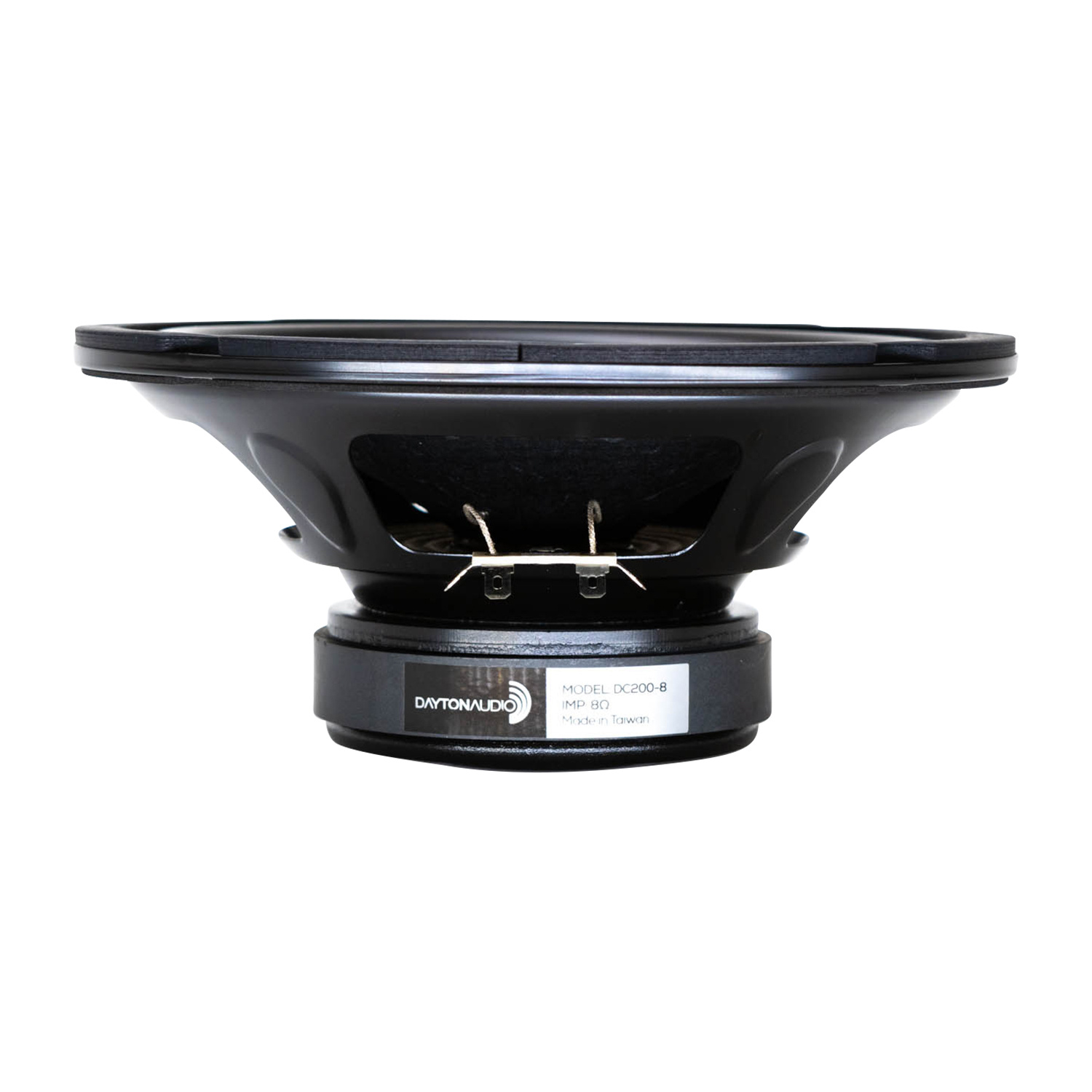

Dayton Audio DC200-8 8" Classic Woofer

Specifications for: DC200-8 8" Classic Woofer

• Woofer SeriesSpecific woofer production line of the manufacturer. Classic Series
• Woofer TypeThe driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Midwoofer
• Nominal DiameterThe approximate diameter of the driver, measured in inches. 8"
• Power Handling (RMS)The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 60 watts
• Power Handling (max)The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 120 watts
• View all specifications
• Continuous Program Power
• Impedance 8 ohms
• Sensitivity 87 dB @ 2.83V/1m
• Frequency Response 29 - 3,000 Hz
• Voice Coil Diameter 35 mm
• Magnet Weight 15 oz
• DC Resistance (Re) 6.41 ohms
• Voice Coil Inductance (Le) 2.32 mH @ 1 kHz
• Resonant Frequency (Fs) 30.3 Hz
• Mechanical Q (Qms) 3.06
• Electromagnetic Q (Qes) 0.49
• Total Q (Qts) 0.42
• Diaphragm Mass Inc. Airload (Mms) 36.1g
• Moving Mass Of Diaphragm (Mmd)
• Mechanical Compliance of Suspension (Cms) 0.77 mm/N
• Surface Area of Cone (Sd) 211.2 cm²
• Volume of Displacement (Vd) 95.1 cm³
• BL Product (BL) 9.5 Tm
• Compliance Equivalent Volume (Vas) 45.7 liters
• Maximum Linear Excursion (Xmax) 4.5 mm
• Driver's Mechanical Losses (Rms)
• Cone / Diaphragm Material Treated Paper
• Surround Material Rubber
• Voice Coil Wire Material Copper
• Voice Coil Former Aluminum
• Dual Voice Coil
• Basket / Frame Material Steel
• Magnet Material Ferrite
• Shielded
• Overall Outside Diameter 205 mm
• Overall Depth 93.5 mm
• Baffle Cutout Diameter 183 mm
• Bolt Circle Diameter
• # Mounting Holes 4
• Mounting Hole Diameter
• Sealed Volume 0.46 ft.³
• Sealed F3 66 Hz
• Vented Volume 1.36 ft.³
• Vented F3 37 Hz
