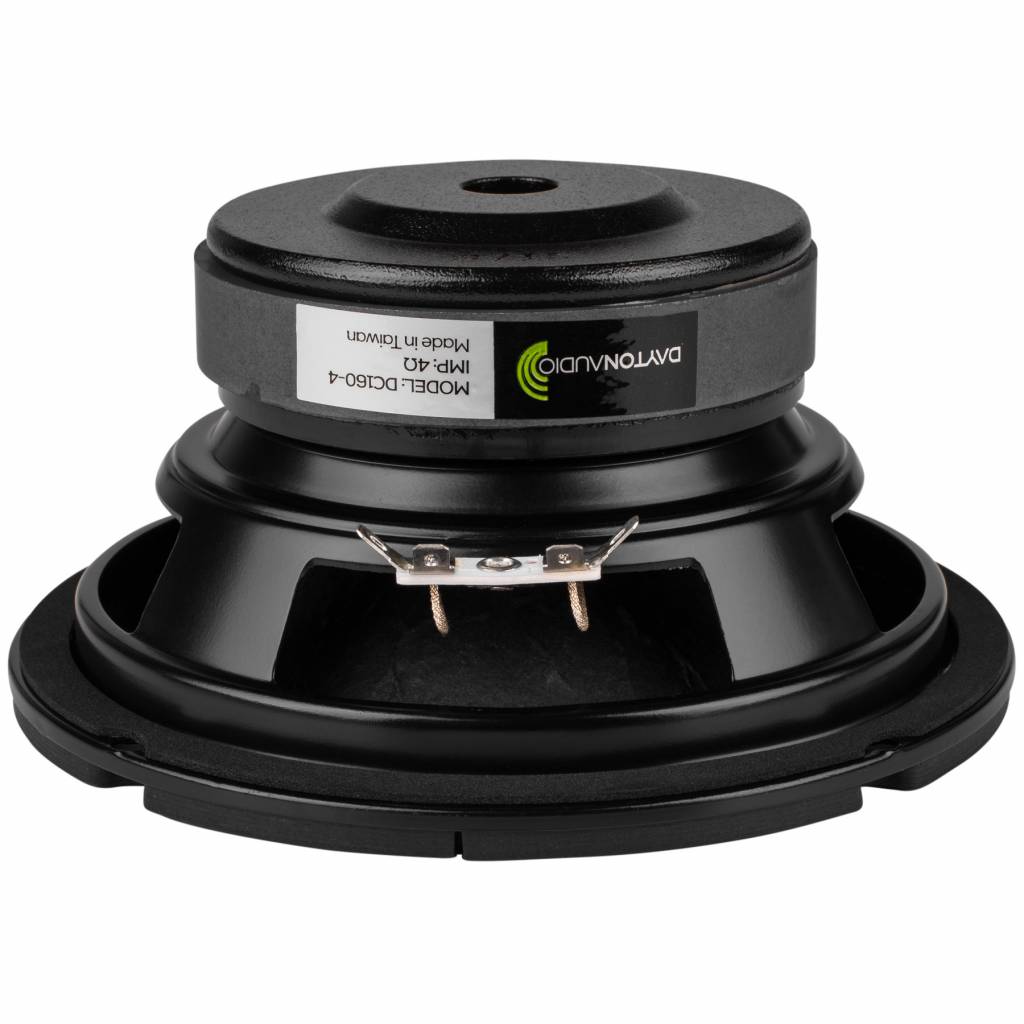

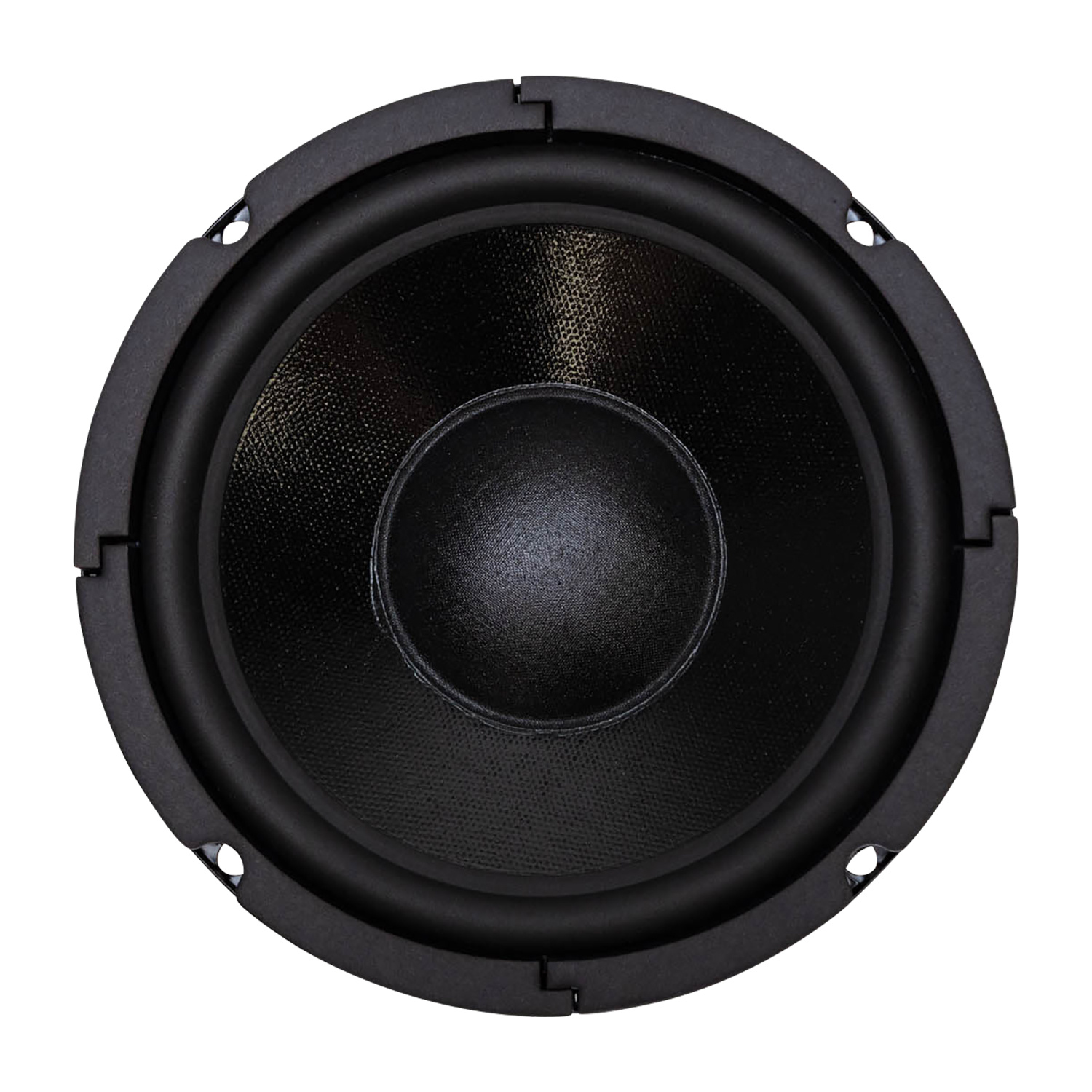

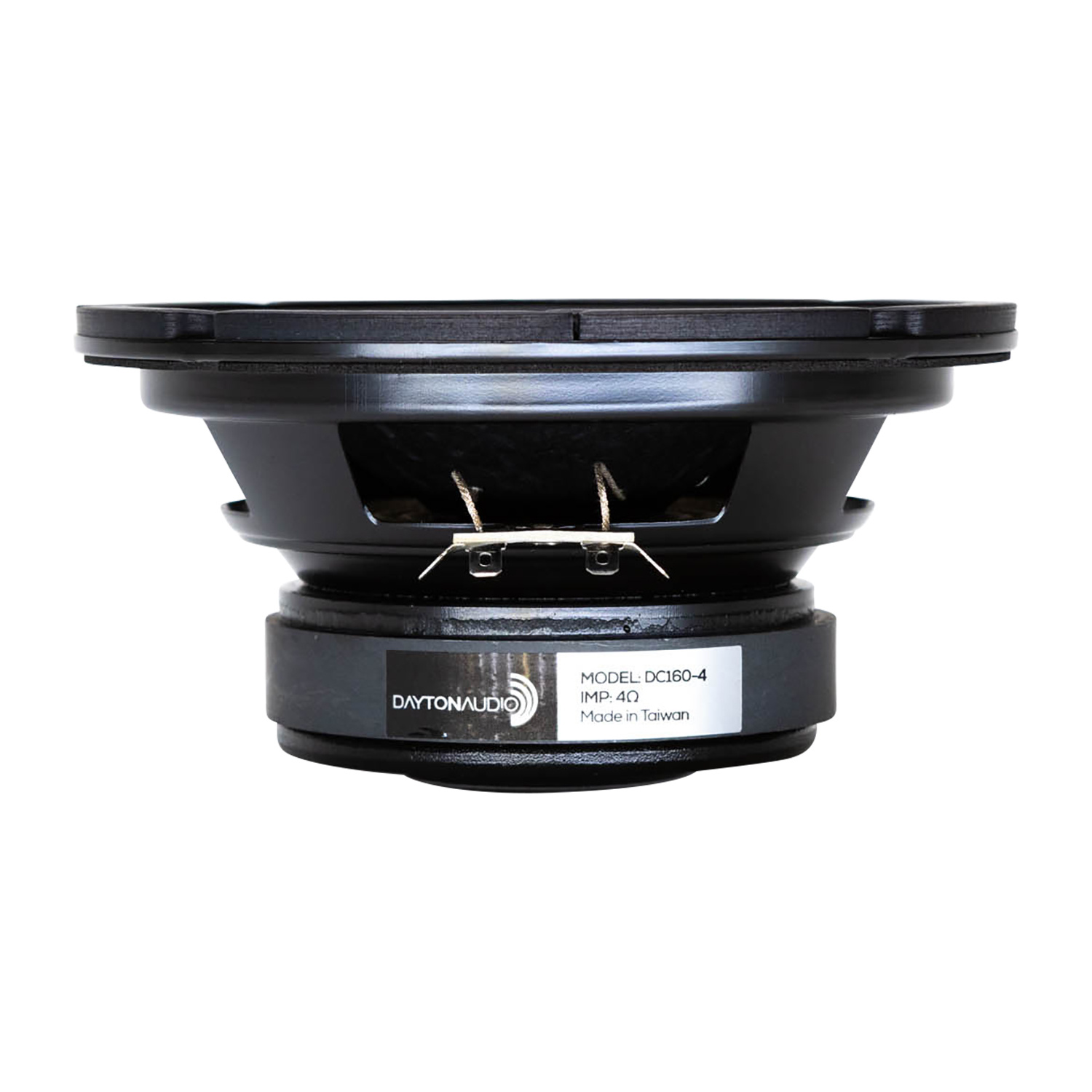

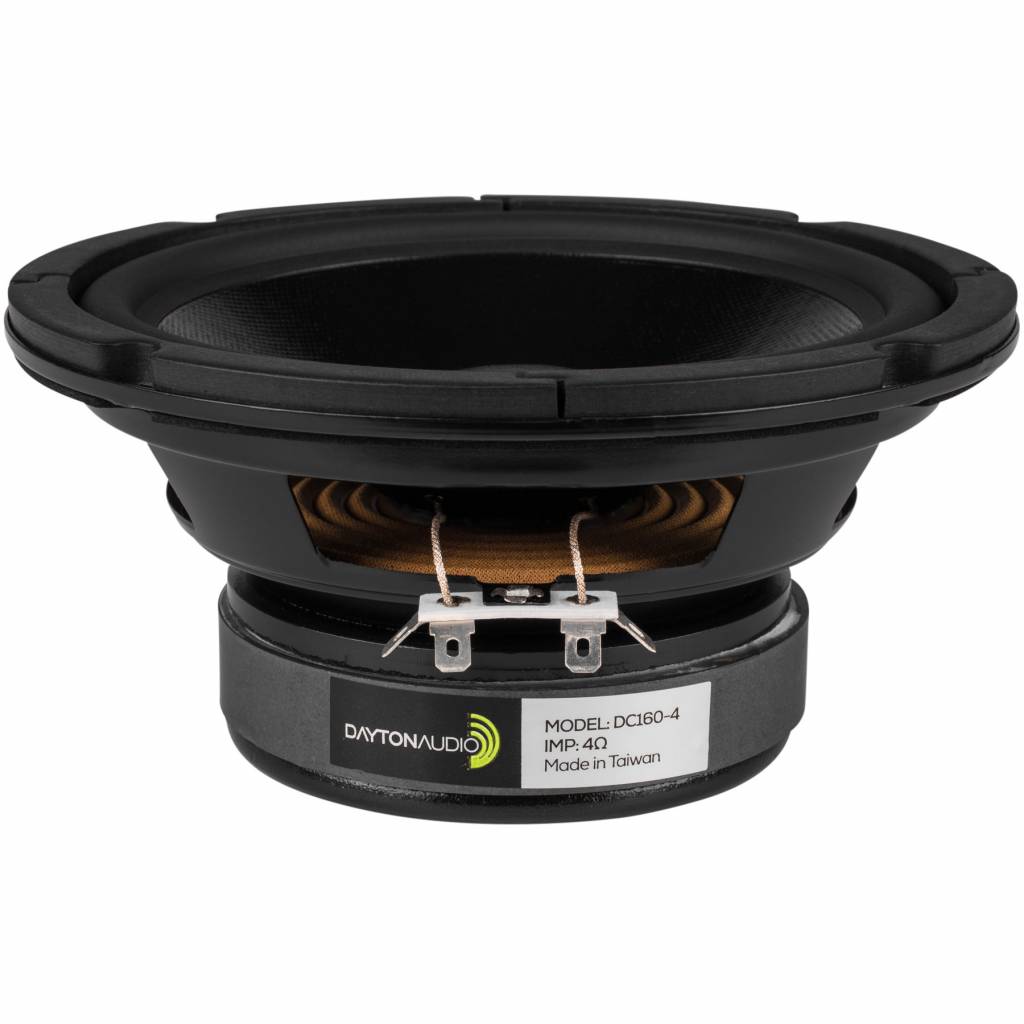

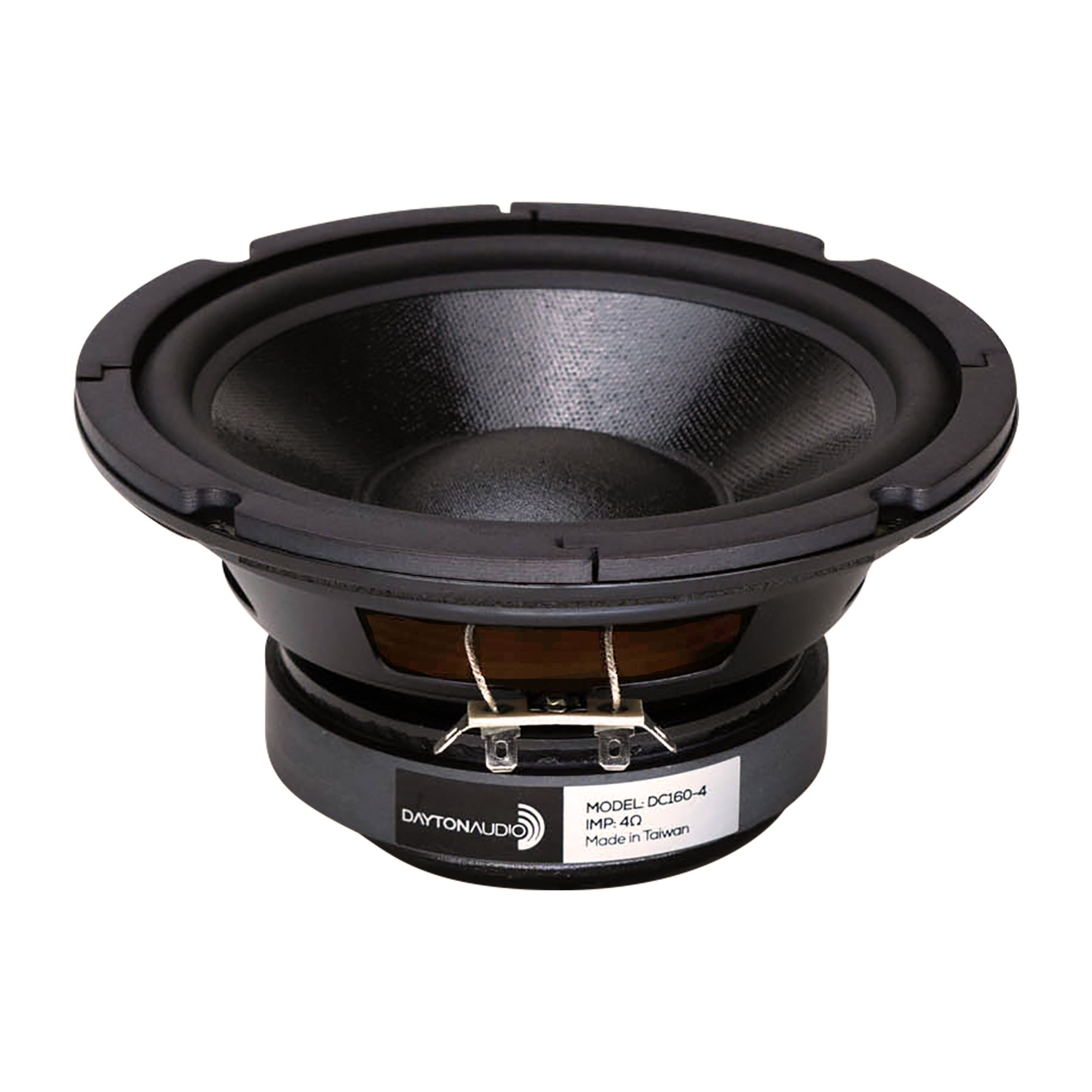

Dayton Audio DC160-4 6-1/2" Classic Woofer Speaker

In stock

  • Article code: DC160-4
  • Stock: 3 In stock

Designed to offer premium results on a moderate budget, the Dayton Audio DC160-4 6-1/2" 4 ohm woofer provides solid bass and clean midrange response when used in sealed, vented, or transmission line speaker systems.

€ 39,95 Incl. 21% VAT

  • Buy 4 for €37,95 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio DC160-4 6-1/2" Classic Woofer Speaker

Designed to offer premium results on a moderate budget, the Dayton Audio DC160-4 6-1/2" 4 ohm woofer provides solid bass and clean midrange response when used in sealed, vented, or transmission line speaker systems.



Highlights

  • Sturdy, easy-to-countersink round steel frame
  • 4 ohm impedance offers alternative load possibilities
  • Coated paper cone provides smooth response and reduced cone breakup
  • Aluminum VC former and vented pole piece for high power handling
  • Large diameter flat spider and good Xmax for clean bass
  • Suitable for sealed or vented enclosures



Product details

Dayton Audio DC160-4 6-1/2" Classic Woofer Speaker



One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC160-4 6-1/2" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, vented pole piece, coated cloth dust cap, and excellent low frequency response.

Specifications

Specifications for: DC160-4 6-1/2" Classic Woofer Speaker

  • Woofer Series Specific woofer production line of the manufacturer. Classic Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Midwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 6.50"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 60 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 120 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 88.3 dB @ 2.83V/1m
  • Frequency Response 30 - 4,000 Hz
  • Voice Coil Diameter 35.5 mm
  • Magnet Weight 15 oz.
  • DC Resistance (Re) 3.4 ohms
  • Voice Coil Inductance (Le) 0.99 mH @ 1 kHz
  • Resonant Frequency (Fs) 39 Hz
  • Mechanical Q (Qms) 3.31
  • Electromagnetic Q (Qes) 0.49
  • Total Q (Qts) 0.43
  • Diaphragm Mass Inc. Airload (Mms) 29.2g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.57 mm/N
  • Surface Area of Cone (Sd) 136.8 cm²
  • Volume of Displacement (Vd) 46.5 cm³
  • BL Product (BL) 7.02 Tm
  • Compliance Equivalent Volume (Vas) 15 liters
  • Maximum Linear Excursion (Xmax) 3.4 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Coated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 165 mm
  • Overall Depth 82.2 mm
  • Baffle Cutout Diameter 144.6 mm
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.23 ft.³
  • Sealed F3 73 Hz
  • Vented Volume 0.48 ft.³
  • Vented F3 45 Hz
