        DC130BS-8 5-1/4" Classic Shielded Woofer

        DC130BS-8 5-1/4" Classic Shielded Woofer

        €31,45

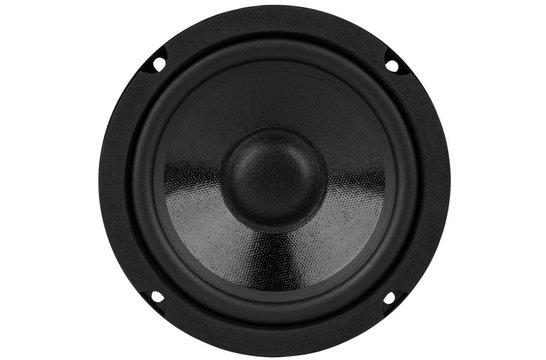

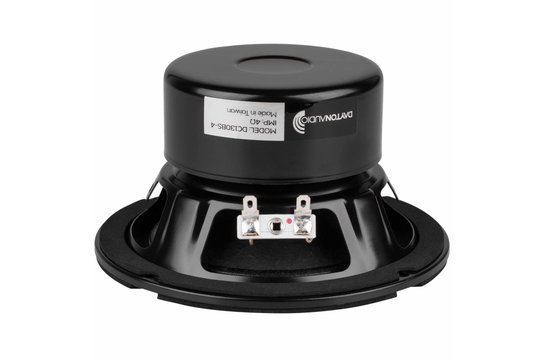

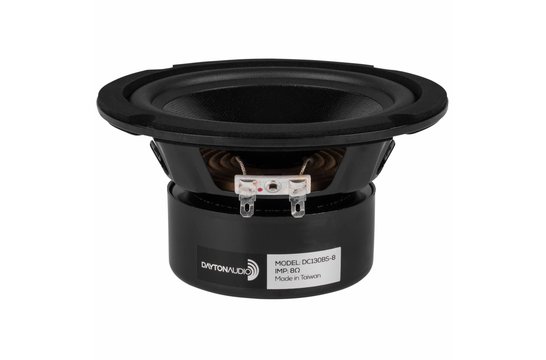

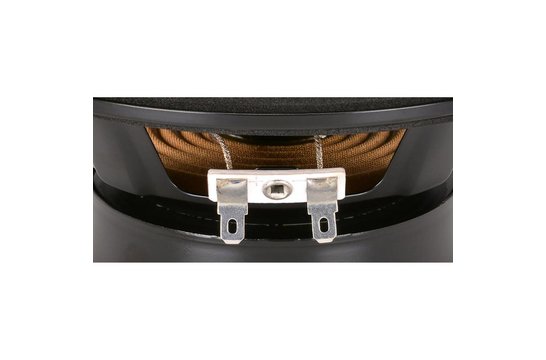

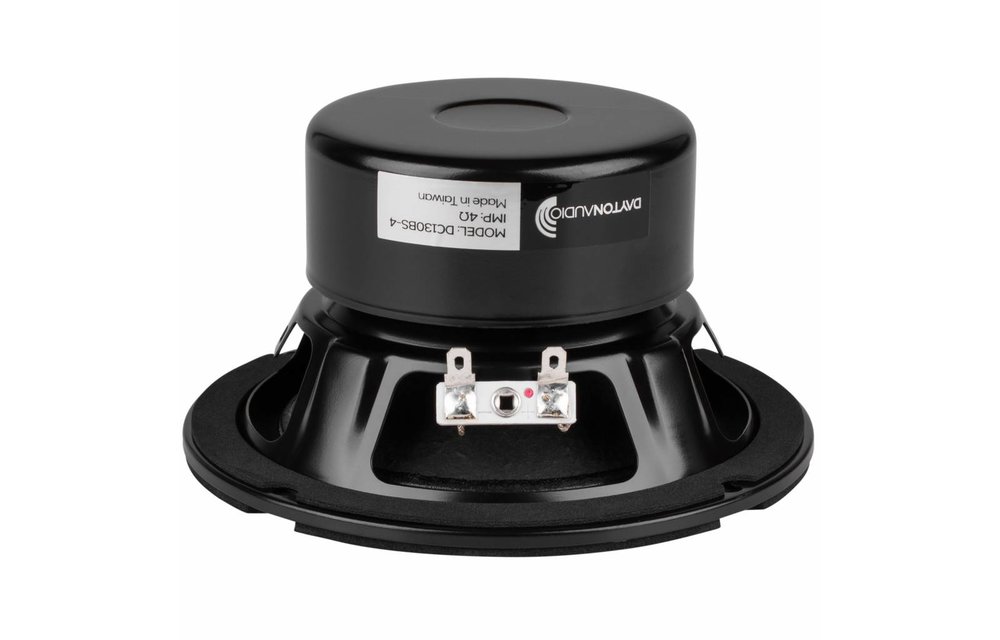

        Dayton Audio DC130BS-8 5-1/4" Classic Shielded Woofer

        1 reviews
        4 from 5
        1 reviews
        5 stars
        0%
        4 stars
        100%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 25,99€ 31,45 2 In stock6 expected on 19-04-2024
        • -5% Purchase 4 for only € 29,88 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Choose the Dayton Audio DC130BS-8 Classic Series 5-1/4" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.



        Highlights

        • Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer!
        • Smooth frequency response up to 2 kHz and great bass response
        • Rubber surround, aluminum voice coil, and extended bump plate
        • Shielded design increases performance and allows it to be used near tube TVs



        Product details

        Dayton Audio DC130BS-8 5-1/4" Classic Shielded Woofer



        Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC130BS-8 5-1/4" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC130BS-8 as a small subwoofer! The excellent low frequency performance will amaze you.



        A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil increases power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

        Show more

        Specifications

        Article number
        DC130BS-8
        Woofer Series
        Classic Series
        Woofer Type
        Midwoofer
        Nominal Diameter
        5.25"
        Power Handling (RMS)
        30 Watts
        Power Handling (max)
        60 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88.9 dB
        Frequency Response
        55 to 4,000 Hz
        Voice Coil Diameter
        25 mm
        Magnet Weight
        10 oz.
        DC Resistance (Re)
        5.8 ohms
        Voice Coil Inductance (Le)
        0.82 mH @ 1 kHz
        Resonant Frequency (Fs)
        50.5 Hz
        Mechanical Q (Qms)
        1.82
        Electromagnetic Q (Qes)
        0.49
        Total Q (Qts)
        0.39
        Diaphragm Mass Inc. Airload (Mms)
        8.8g
        Mechanical Compliance of Suspension (Cms)
        1.13 mm/N
        Surface Area of Cone (Sd)
        91.6 cm²
        Volume of Displacement (Vd)
        22.9 cm³
        BL Product (BL)
        5.71 Tm
        Compliance Equivalent Volume (Vas)
        13.8 liters
        Maximum Linear Excursion (Xmax)
        2.5 mm
        Cone / Diaphragm Material
        Treated Paper
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Shielded
        Yes
        Overall Outside Diameter
        145 mm
        Overall Depth
        77.4 mm
        Baffle Cutout Diameter
        120 mm
        Bolt Circle Diameter
        5.24"
        # Mounting Holes
        4
        Sealed Volume
        0.11 ft.³
        Sealed F3
        116 Hz
        Vented Volume
        0.35 ft.³
        Vented F3
        61 Hz

        Show more

        4 of 5
        lastig te beoordelen hij zit achter een te lichte versterker. deze bass midwoffer wil wel graag zijn 30 rms hebben zeg maar.
        By michel t. on 30 January 2021
