- Article number

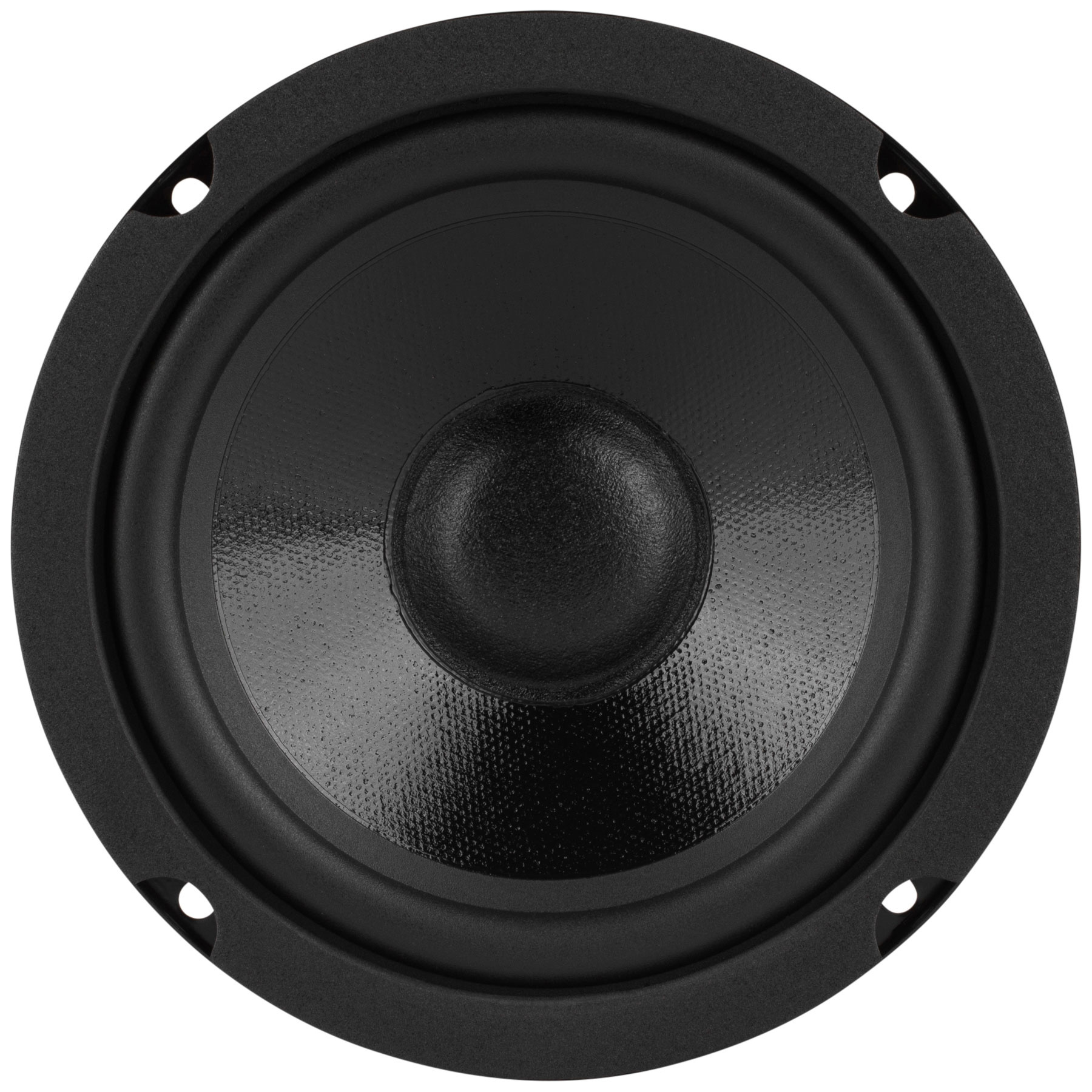

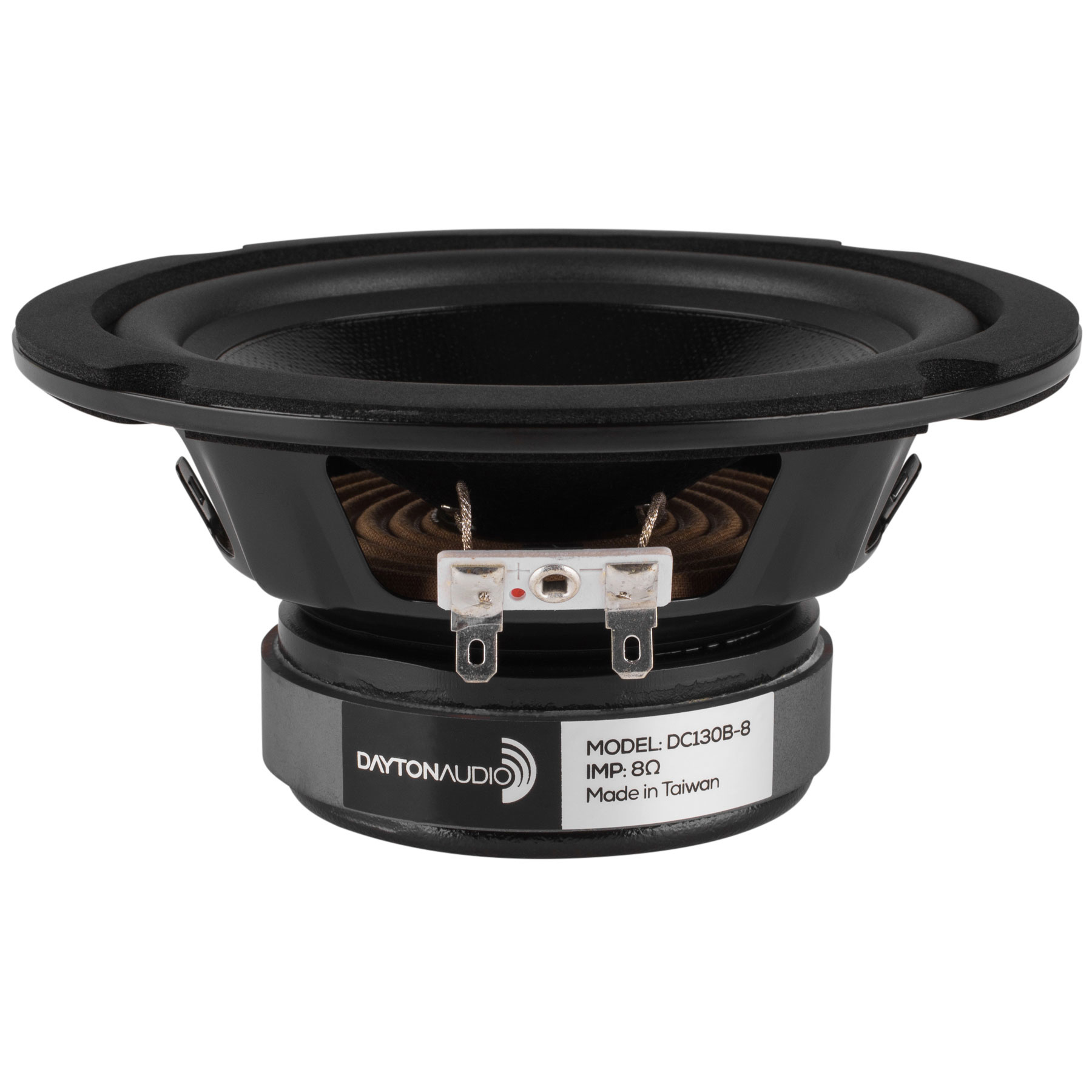

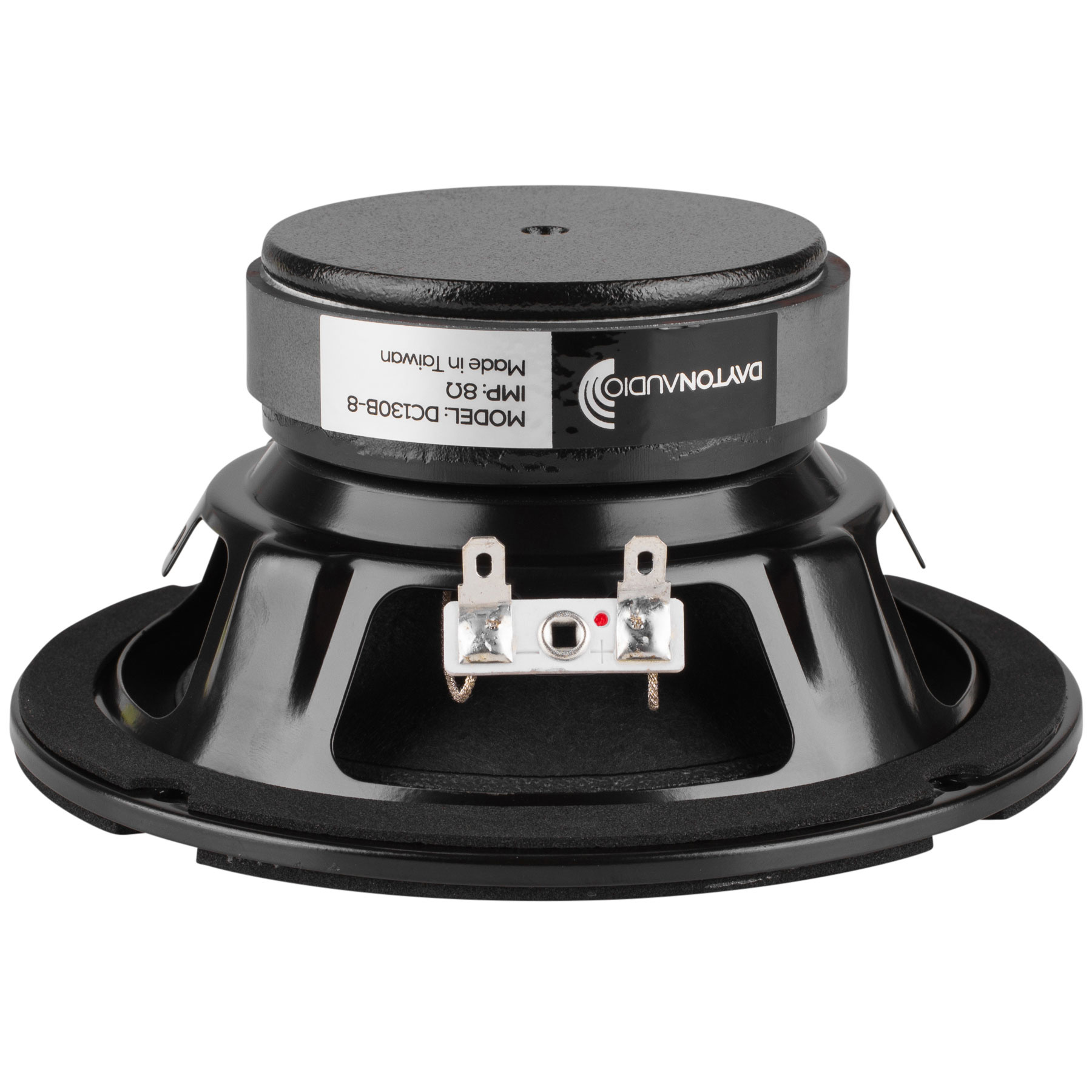

- DC130B-8
- Woofer Series
- Classic Woofer
- Nominal Diameter
- 5-1/4"
- Power Handling (RMS)
- 40 Watts
- Power Handling (max)
- 80 Watts
- Impedance (Z)
- 8 ohms
- Sensitivity
- 89.1 dB 2.83V/1m
- Frequency Response
- 50 to 5,000 Hz
- Voice Coil Diameter
- 1"
- DC Resistance (Re)
- 5.7 ohms
- Voice Coil Inductance (Le)
- 0.77 mH
- Resonant Frequency (Fs)
- 52.5 Hz
- Mechanical Q (Qms)
- 1.85
- Electromagnetic Q (Qes)
- 0.48
- Total Q (Qts)
- 0.38
- Diaphragm Mass Inc. Airload (Mms)
- 9.1g
- Mechanical Compliance of Suspension (Cms)
- 1.01 mm/N
- Surface Area of Cone (Sd)
- 91.6 cm²
- BL Product (BL)
- 5.94 Tm
- Compliance Equivalent Volume (Vas)
- 0.43 ft.³
- Maximum Linear Excursion (Xmax)
- 2.5 mm
- Cone / Diaphragm Material
- Coated Paper
- Surround Material
- Rubber
- Voice Coil Wire Material
- Copper
- Voice Coil Former
- Aluminum
- Basket / Frame Material
- Steel
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 5.71"
- Overall Depth
- 2.67"
- Baffle Cutout Diameter
- 4.72"
- Bolt Circle Diameter
- 5.24"
- # Mounting Holes
- 4
- Sealed Volume
- 0.14 ft.³
- Sealed F3
- 107 Hz
- Vented Volume
- 0.32 ft.³
- Vented F3
- 60 Hz
