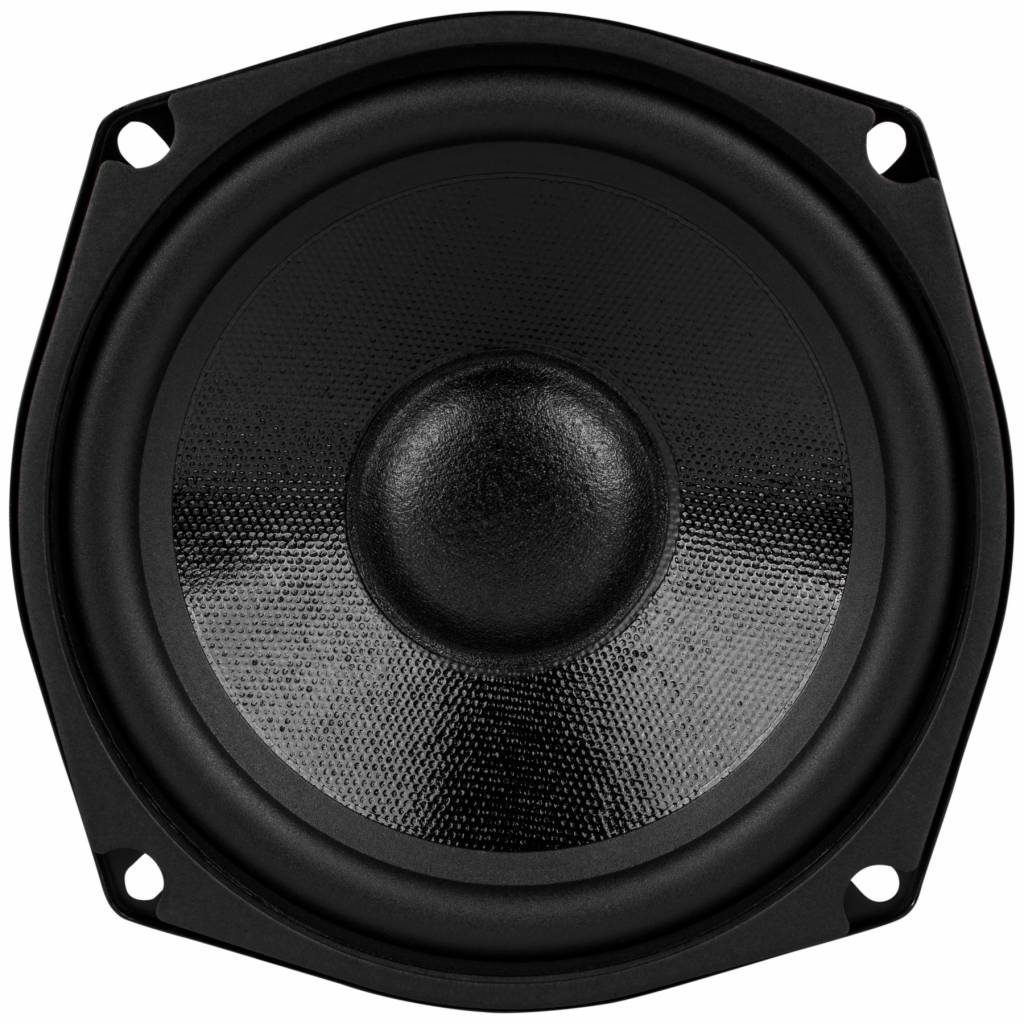

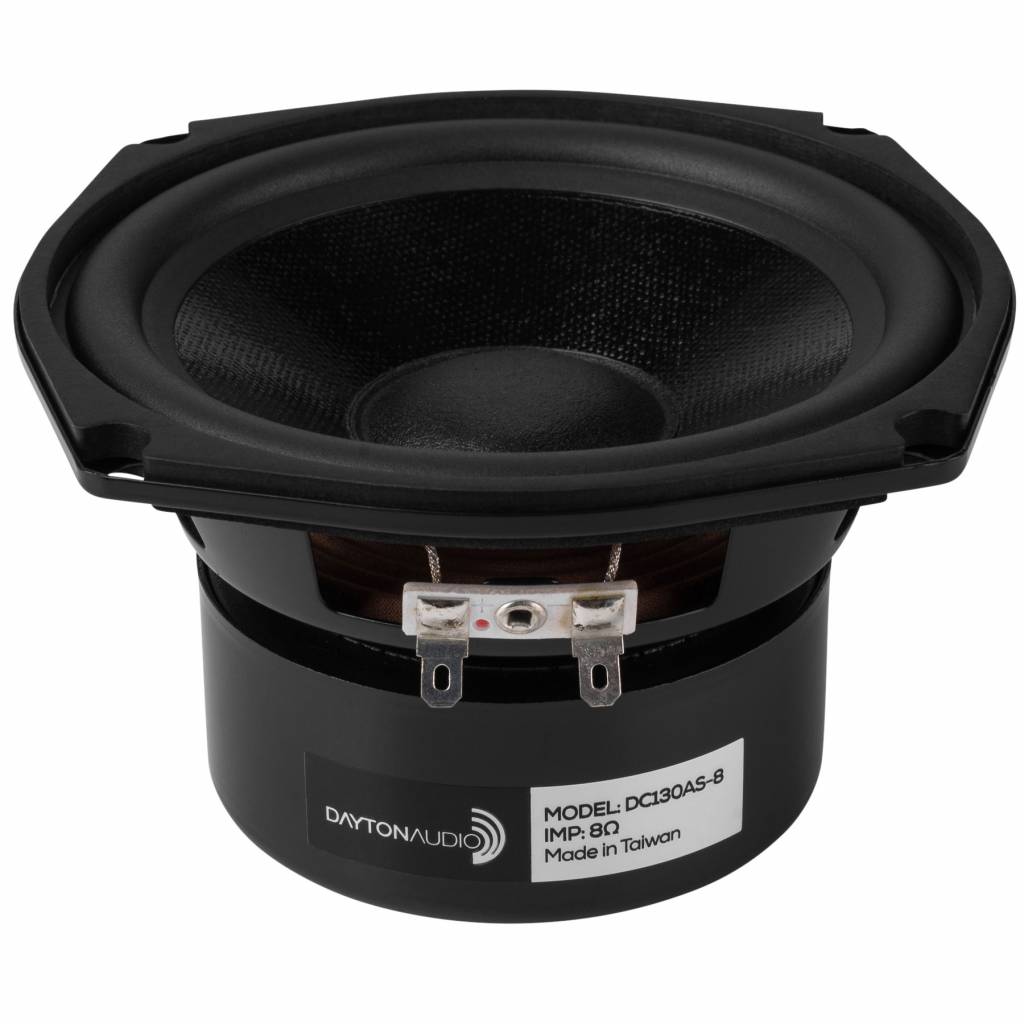

Dayton Audio DC130AS-8 5-1/4" Classic Shielded Woofer

In stock

  • Article code: DC130AS-8
  • Stock: 6 In stock

Choose the Dayton Audio DC130AS-8 Classic Series 5-1/4" woofer for use as a great replacement bookshelf speaker, midrange in 3-way designs, or even as a small subwoofer. The shielded design allows for use near tube TVs and focuses the magnetic flux in the

€ 29,95 Incl. 21% VAT

  • Buy 4 for €28,45 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio DC130AS-8 5-1/4" Classic Shielded Woofer

Choose the Dayton Audio DC130AS-8 Classic Series 5-1/4" woofer for use as a great replacement bookshelf speaker, midrange in 3-way designs, or even as a small subwoofer. The shielded design allows for use near tube TVs and focuses the magnetic flux in the gap for high sensitivity.



Highlights

  • Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer!
  • Smooth frequency response up to 2 kHz and great bass response
  • Rubber surround, aluminum voice coil, and extended bump plate
  • Shielded design increases performance and allows it to be used near tube TVs
  • 4 ohm impedance for series pair use in MTMs and center channel speakers



Product details

Dayton Audio DC130AS-8 5-1/4" Classic Shielded Woofer



Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC130AS-8 shielded 5-1/4" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC130AS-8 as a small subwoofer! The excellent low frequency performance will amaze you.



A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil increases power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

Specifications

Specifications for: DC130AS-8 5-1/4" Classic Shielded Woofer

  • Woofer Series Specific woofer production line of the manufacturer. Classic Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Midwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 5.25"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 30 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 60 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 88.5 dB @ 2.83V/1m
  • Frequency Response 55 - 4,000 Hz
  • Voice Coil Diameter 25 mm
  • Magnet Weight 10 oz.
  • DC Resistance (Re) 5.6 ohms
  • Voice Coil Inductance (Le) 0.84 mH @ 1 kHz
  • Resonant Frequency (Fs) 57.2 Hz
  • Mechanical Q (Qms) 2.01
  • Electromagnetic Q (Qes) 0.58
  • Total Q (Qts) 0.45
  • Diaphragm Mass Inc. Airload (Mms) 9.7g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.8 mm/N
  • Surface Area of Cone (Sd) 91.6 cm²
  • Volume of Displacement (Vd) 22.9 cm³
  • BL Product (BL) 5.83 Tm
  • Compliance Equivalent Volume (Vas) 9.73 liters
  • Maximum Linear Excursion (Xmax) 2.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded Yes
  • Overall Outside Diameter 134 mm
  • Overall Depth 78.4 mm
  • Baffle Cutout Diameter 120 mm
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.19 ft.³
  • Sealed F3 95 Hz
  • Vented Volume 0.6 ft.³
  • Vented F3 47 Hz

Documenten

Reviews

User reviews 5 / 5 Reviews: (2)

  • SA By Stanford A. on 19-05-2020 23:21

    5 / 5

    Perfect mid.

  • OF By Oskar F. on 16-08-2018 15:23

    5 / 5

    Used this as a midwoofer in a 3way system, souds great!
