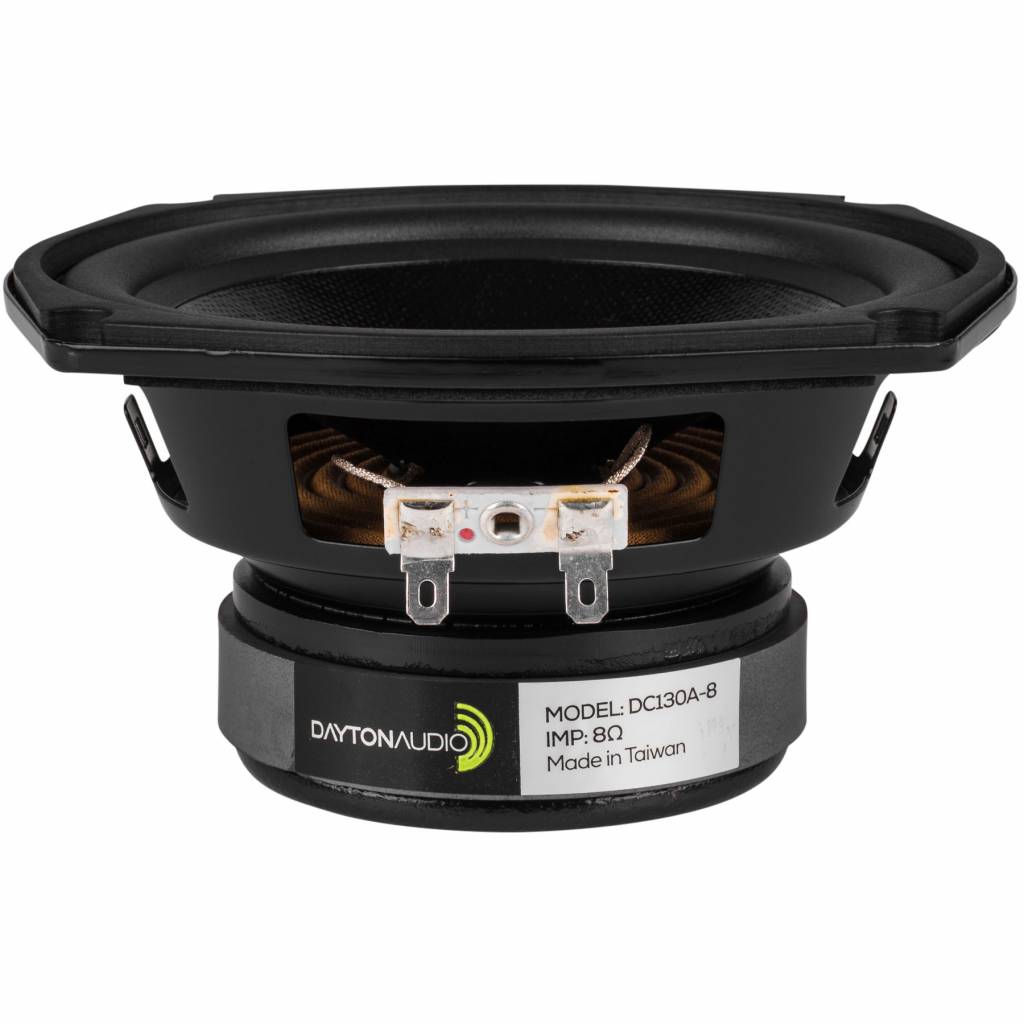

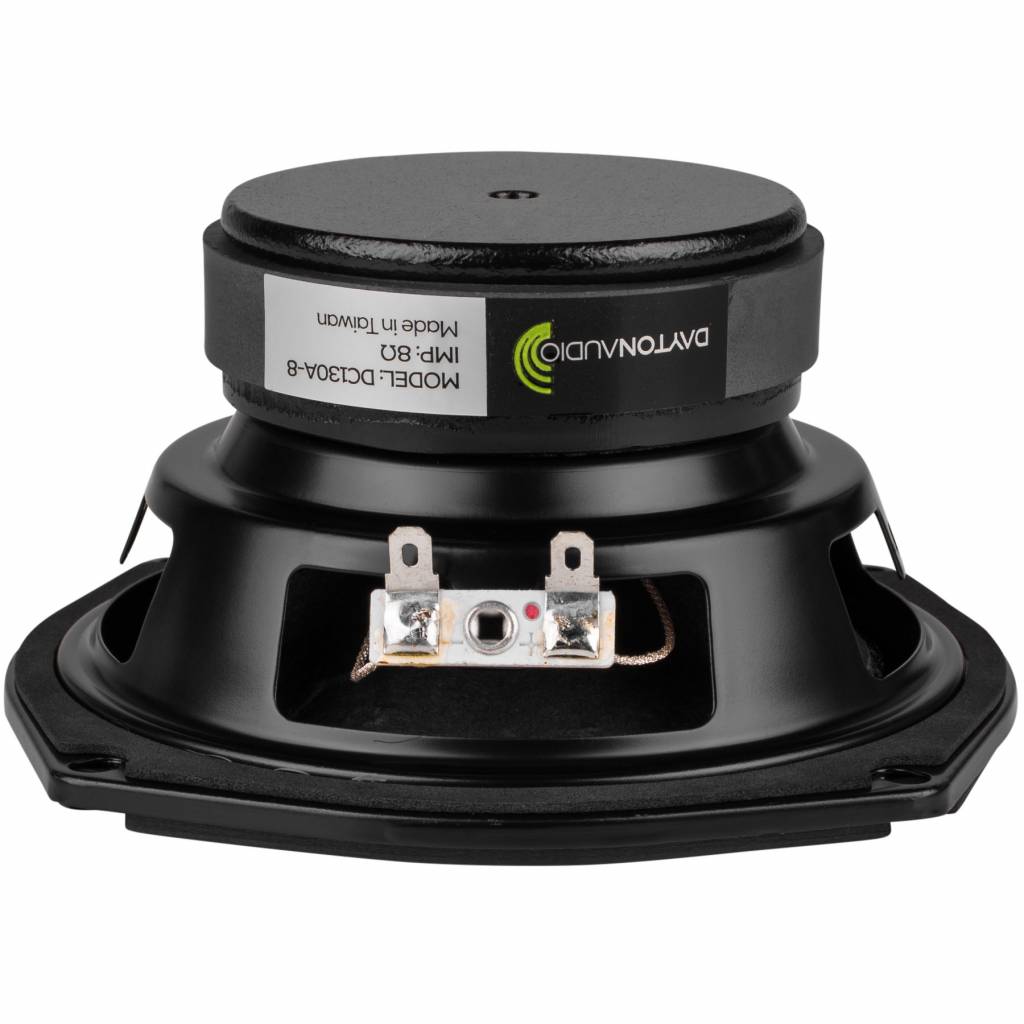

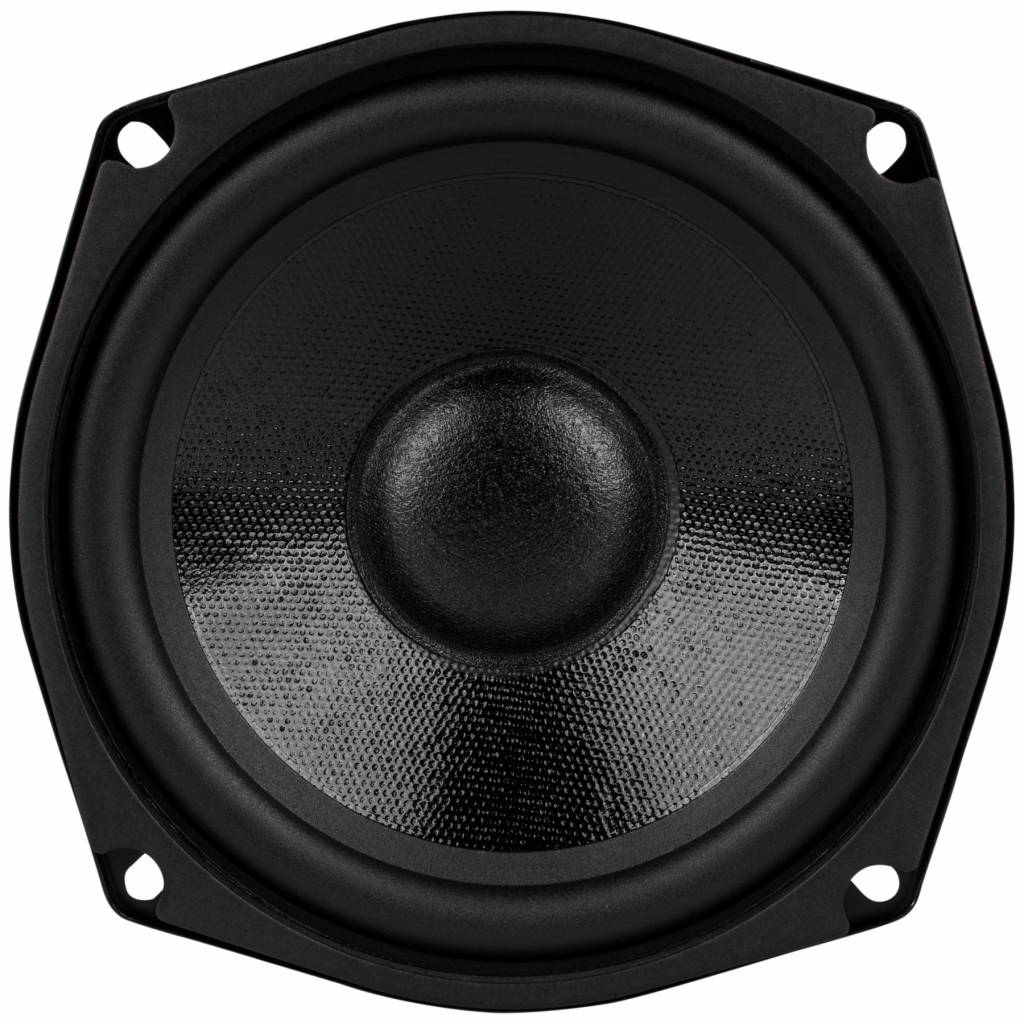

Dayton Audio DC130A-8 5-1/4" Classic Woofer Speaker

In stock

  • Article code: DC130A-8
  • Stock: 7 In stock

The Dayton Audio DC130A-8 is a compact and inexpensive unshielded variant of the popular DC130AS-8 magnetically shielded woofer.

€ 29,95 Incl. 21% VAT

  • Buy 4 for €28,45 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio DC130A-8 5-1/4" Classic Woofer Speaker

The Dayton Audio DC130A-8 is a compact and inexpensive unshielded variant of the popular DC130AS-8 magnetically shielded woofer.



Highlights

  • Pincushion steel frame for great looks and strength
  • Coated paper cone provides smooth response and reduced cone breakup
  • Aluminum voice coil former for high power handling
  • Large diameter flat spider and good Xmax for clean bass
  • Suitable for sealed or vented enclosures



Product details

Dayton Audio DC130A-8 5-1/4" Classic Woofer Speaker



One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC130A-8 5-1/4" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, coated cloth dust cap, and excellent low frequency response.

Specifications

Specifications for: DC130A-8 5-1/4" Classic Woofer Speaker

  • Woofer Series Specific woofer production line of the manufacturer. Classic Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Midwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 5.25"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 40 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 80 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 88.7 dB @ 2.83V/1m
  • Frequency Response 50 - 5,000 Hz
  • Voice Coil Diameter 25.4 mm
  • Magnet Weight 11 oz.
  • DC Resistance (Re) 5.7 ohms
  • Voice Coil Inductance (Le) 0.75 mH @ 1 kHz
  • Resonant Frequency (Fs) 53.2 Hz
  • Mechanical Q (Qms) 1.90
  • Electromagnetic Q (Qes) 0.51
  • Total Q (Qts) 0.41
  • Diaphragm Mass Inc. Airload (Mms) 9.3g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.96 mm/N
  • Surface Area of Cone (Sd) 91.6 cm²
  • Volume of Displacement (Vd) 22.9 cm³
  • BL Product (BL) 5.88 Tm
  • Compliance Equivalent Volume (Vas) 11.8 liters
  • Maximum Linear Excursion (Xmax) 2.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Coated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 134 mm
  • Overall Depth 69.5 mm
  • Baffle Cutout Diameter 120 mm
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.15 ft.³
  • Sealed F3 102 Hz
  • Vented Volume 0.36 ft.³
  • Vented F3 56 Hz
