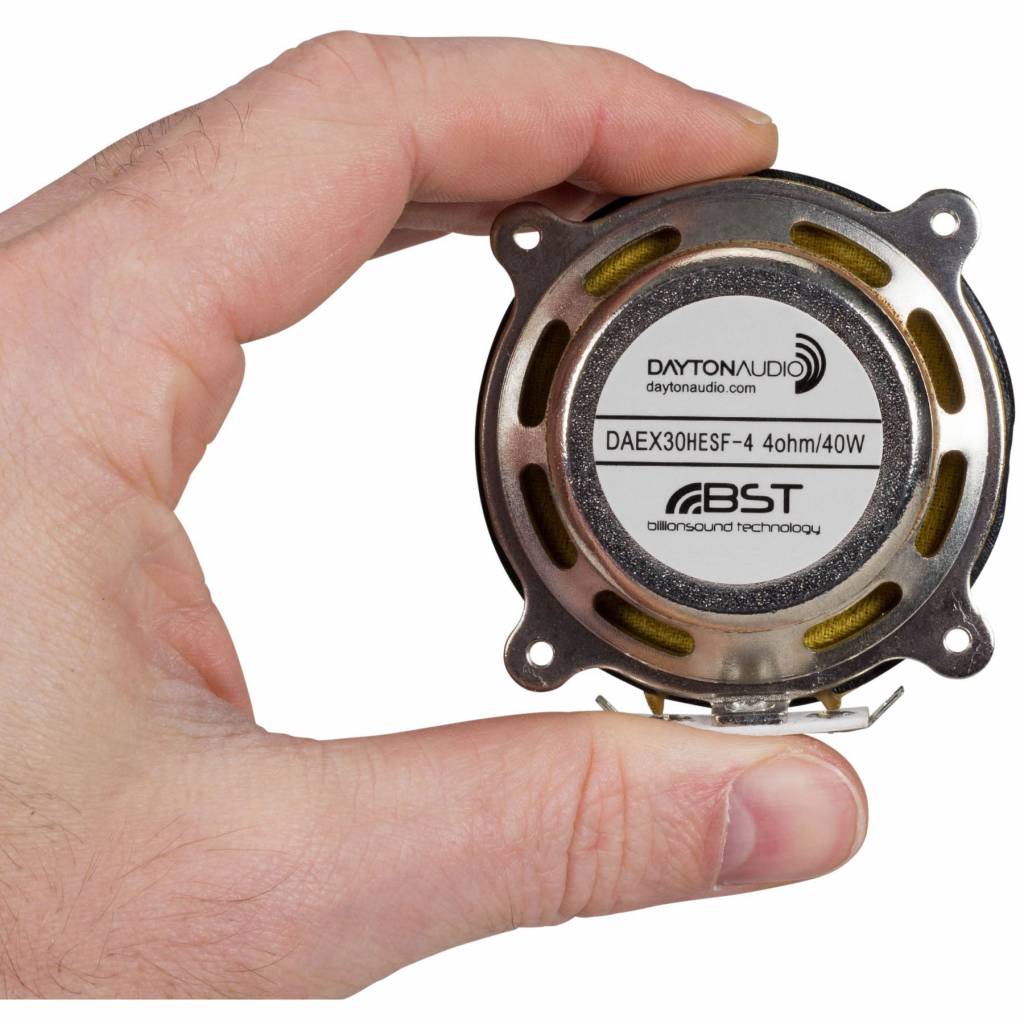

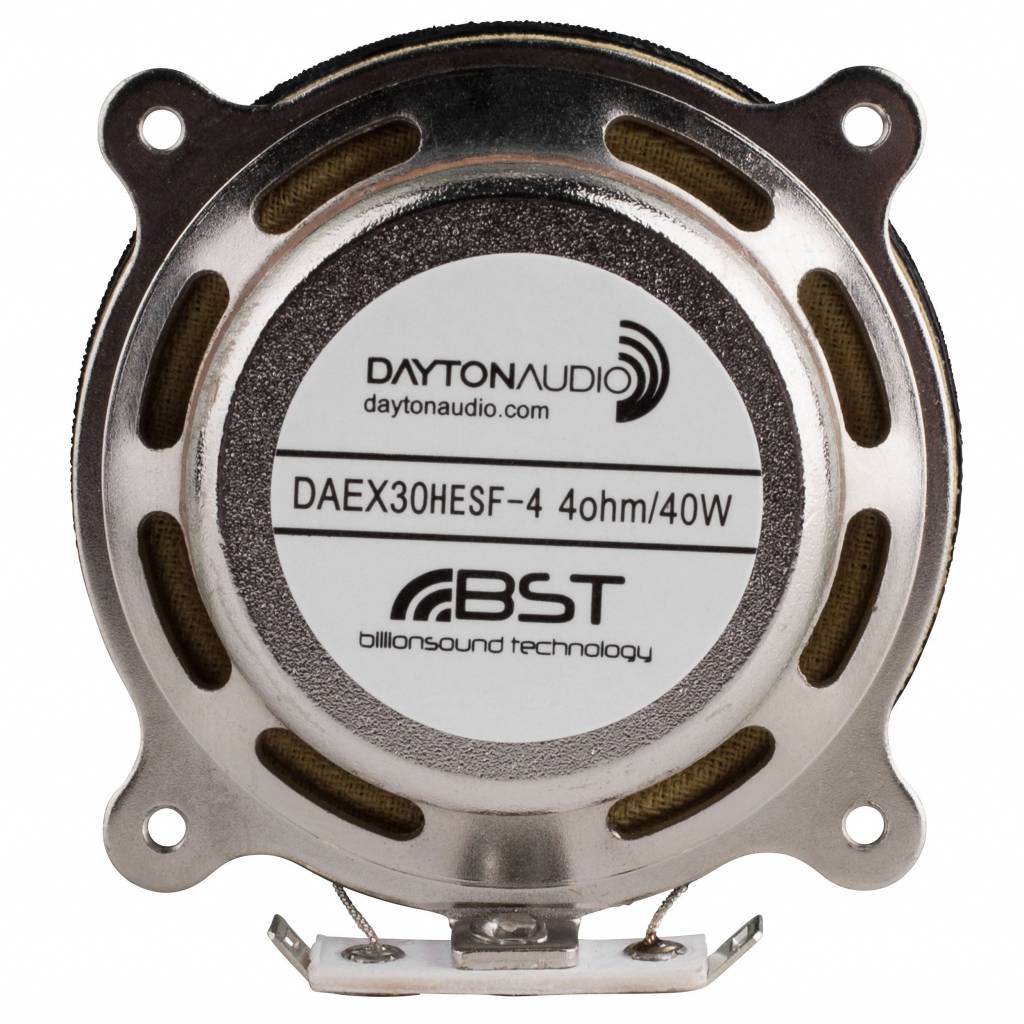

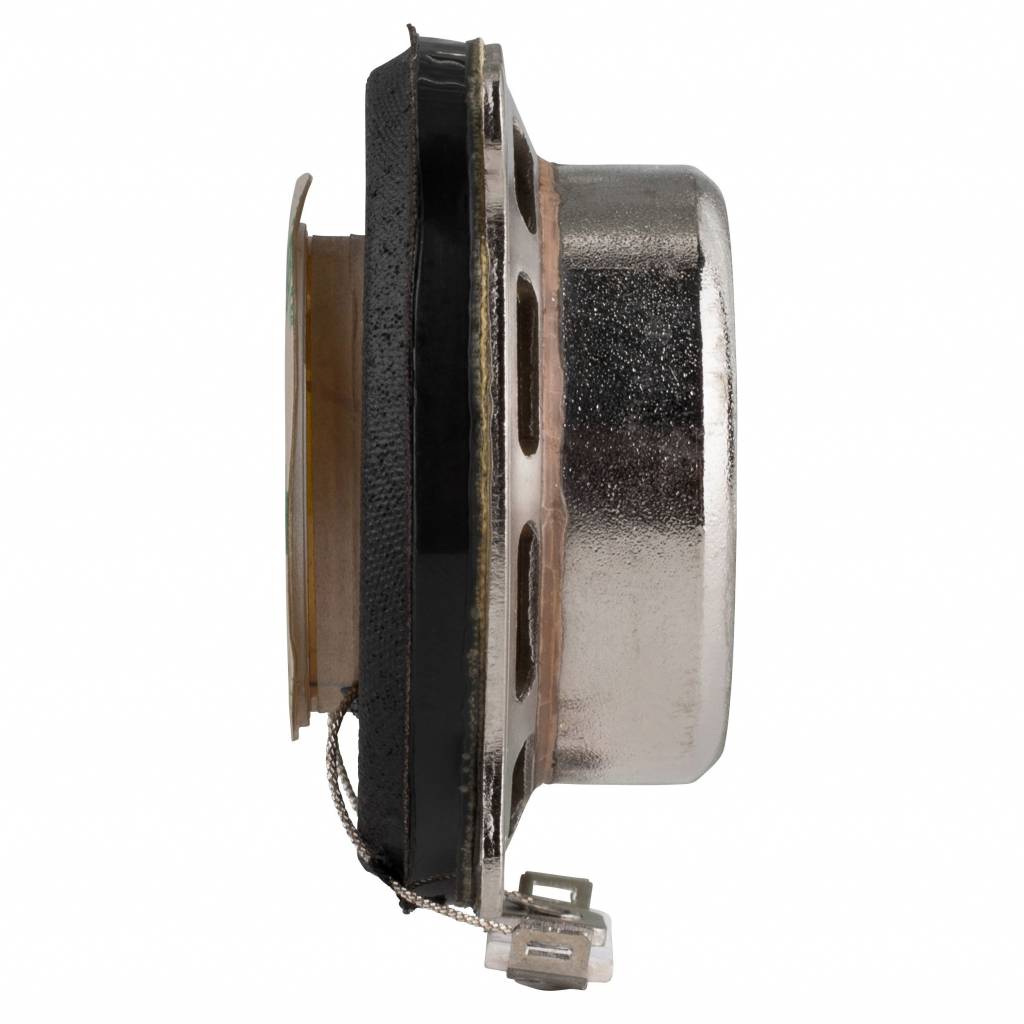

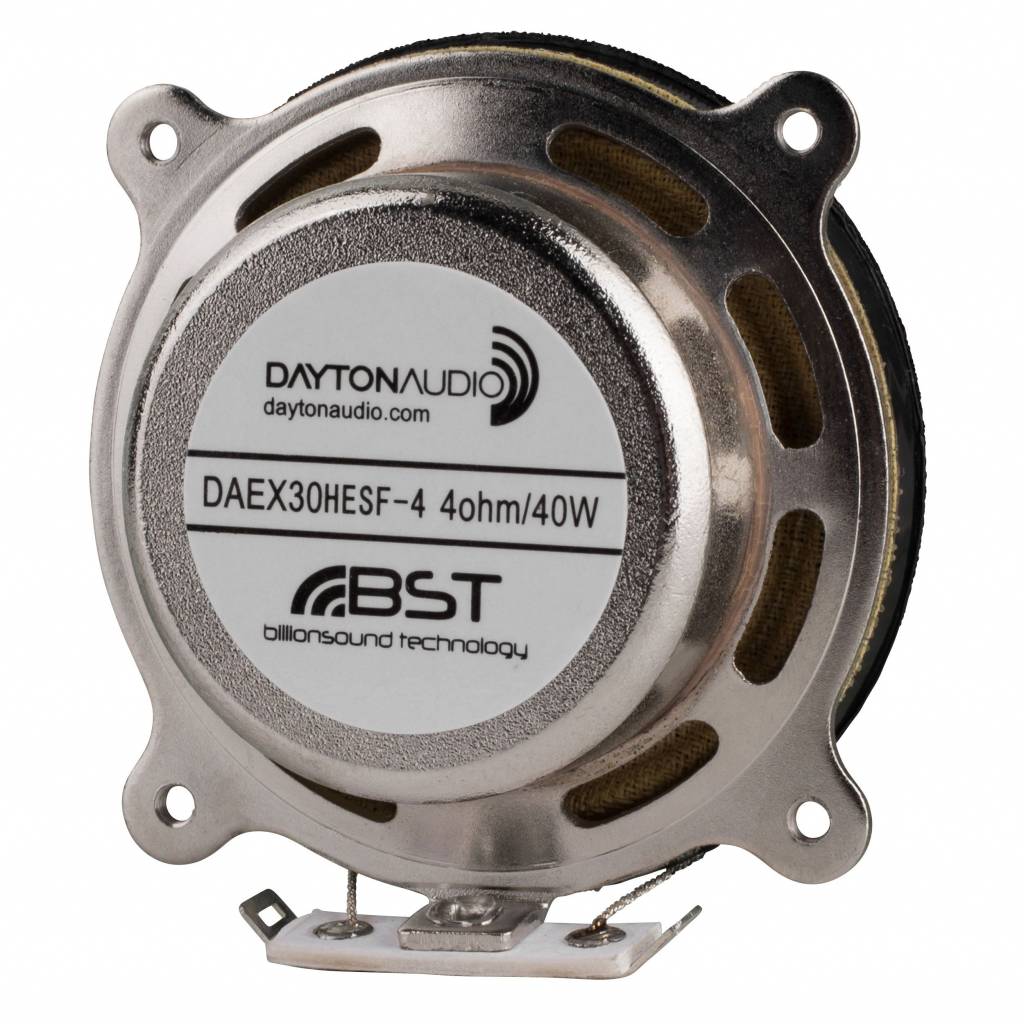

      Dayton Audio DAEX30HESF-4 Exciter

      € 24,75€ 29,95 >10 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 28,45 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The DAEX30HESF-4 30 mm steered high flux exciter is one of the most powerful in Dayton Audio's line of exciters capable of handling up to 40 watts. A pre-attached 3M VHB adhesive ring combines with four screw-down mounting tabs for maximum energy transfer.



      Highlights

      • High output exciter design handles up to 40 watts RMS
      • Specially designed neodymium motor and proprietary voice coil
      • 3M™ VHB™ adhesive ring with four mounting holes
      • Low inductance (only 0.3 mH) motor for extended response



      Product details

      Dayton Audio DAEX30HESF-4 High Efficiency Steered Flux Exciter with Shielding 30 mm Exciter 40W 4 Ohm



      Dayton Audio's DAEX30HESF-4 steered high flux exciter is one of our most powerful. It has a specially designed neodymium motor system that imparts strong forces on even the most rigid surface for maximum output.



      For use with medium sized amplifiers, this steered high flux exciter incorporates a 4 ohm voice coil to extract maximum power. A wide frequency response is permitted due to this exciter's low inductance of only 0.3 mH.

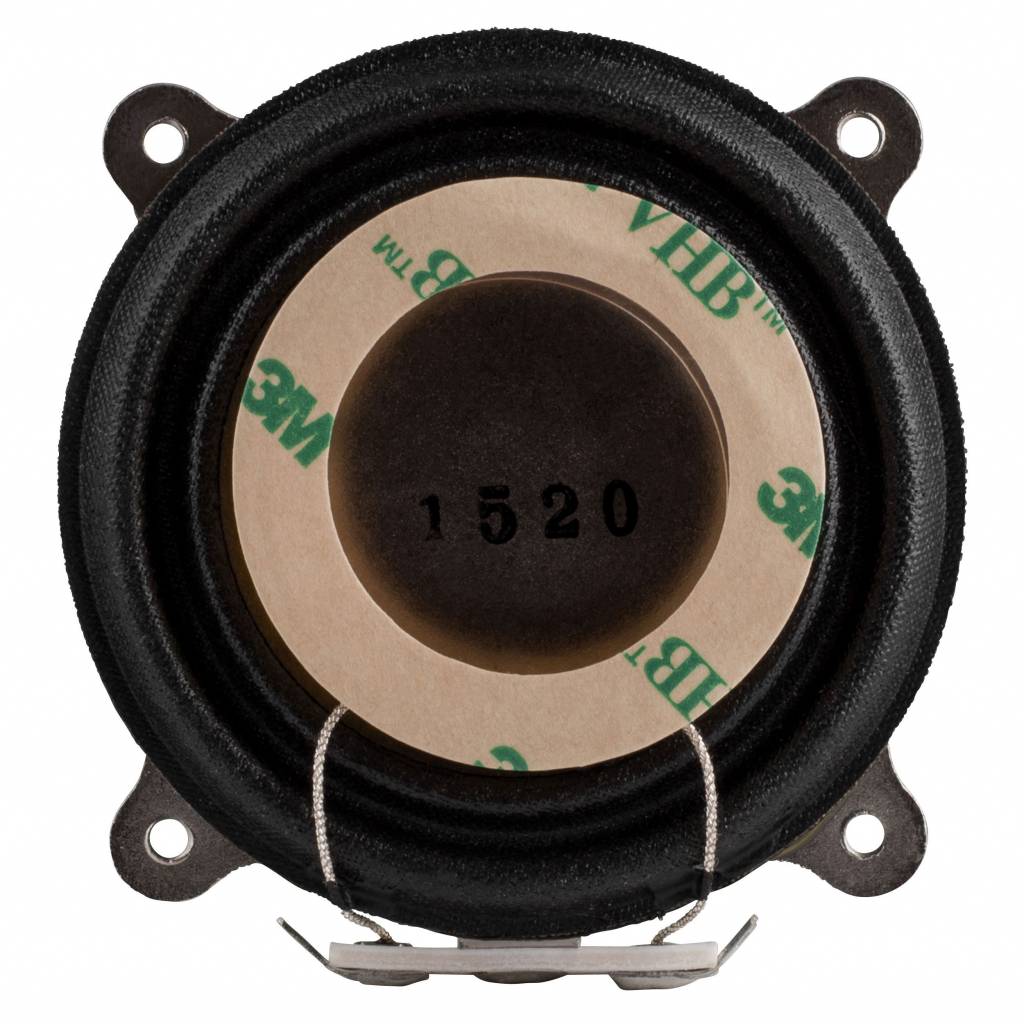

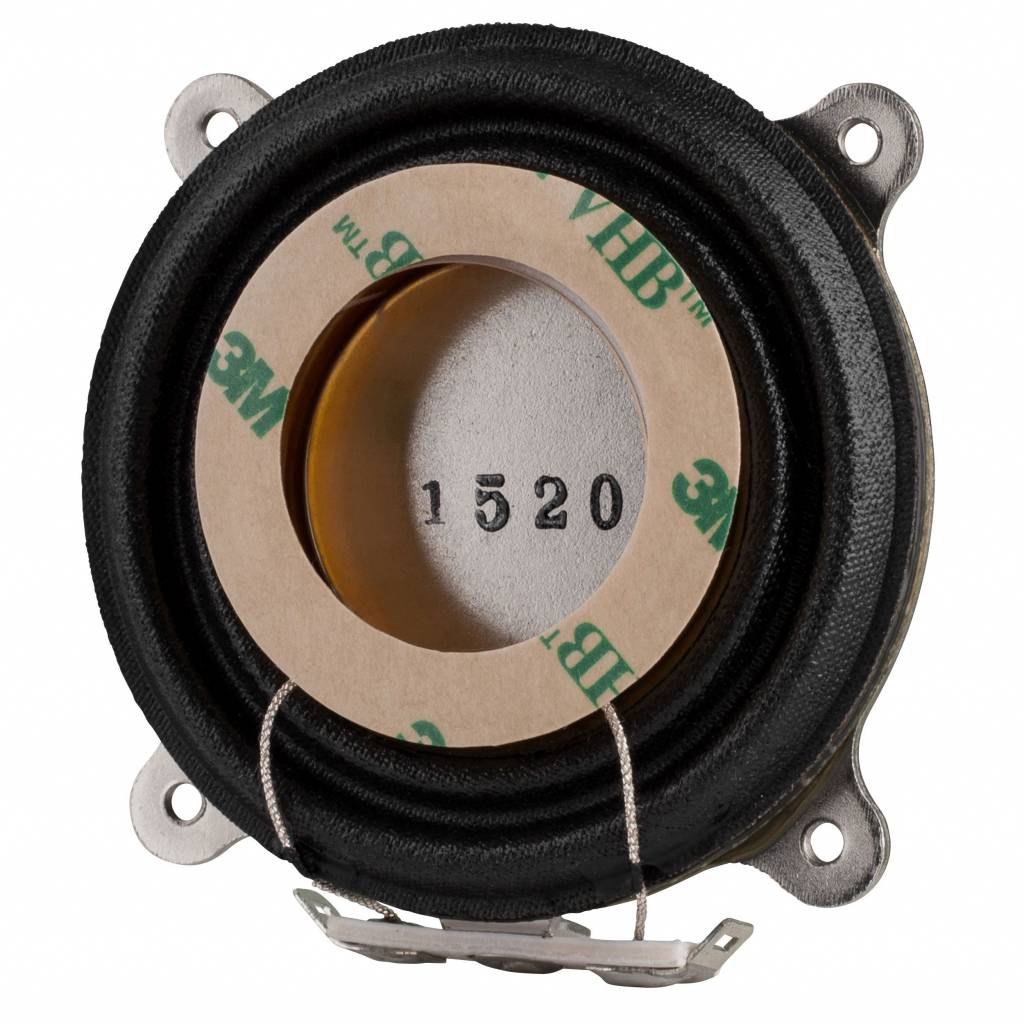

      Four threaded screw holes are integrated into the exciter's shell and combine with a 3M VHB (Very High Bond) adhesive, permitting this exciter to be securely coupled to a wide range of materials, even upside-down mounting and attaching to moving objects. Two solder tabs offer quick, permanent wire attachment.



      A great field of application for this exciter is so-called DML or flat-panel speakers. DML stands for Distributed Mode Loudspeakers and is a term for speakers that catch the eye with their incredibly slim design.



      Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



      To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

      Specifications

      Article number
      DAEX30HESF-4
      Exciter type
      Full-Range
      Power Handling (RMS)
      40 watts
      Power Handling (max)
      -
      Impedance
      4 ohms
      Frequency Response
      70 - 20.000 Hz
      Resonant Frequency (Fs)
      300 Hz
      DC Resistance (Re)
      3.8 ohms
      Voice Coil Inductance (Le)
      0.31 mH
      Total Q (Qts)
      -
      Diaphragm Mass Inc. Airload (Mms)
      -
      Mechanical Compliance of Suspension (Cms)
      -
      BL Product (BL)
      -
      Voice Coil Diameter
      30 mm
      Overall Outside Diameter
      57 mm Ø (69.9 mm acros mounting tabs)
      Overall Depth
      28.5 mm
      Overall Dimensions (L x W x H)
      -
      Mounting surface dimensions
      3.18 cm outside Ø
      # Mounting Holes
      4
      Mounting type
      3M VHB adhesive pre-applied
      Weight
      158 grams

      Show more

      Reviews

      5 from 5Based on 6 reviews
      Review this product
      4 of 5
      Werkt naar behoren. En snelle levertijd van Soundimports. Gemonteerd tegen een hard foam isolatiebord. werkt perfect. Het geluid is wat hard aan de hoge kant van het spectrum. Met eq kan je het mogelijk wat afvlakken. Het is totaal niet hetzelfde als een speaker met standaard drivers. Maar met een eq zeker wel naar te luisteren.
      By KC on 31 July 2022
      5 of 5
      Koper heeft geen omschrijving achtergelaten.
      By Hiromi N. on 28 July 2020
