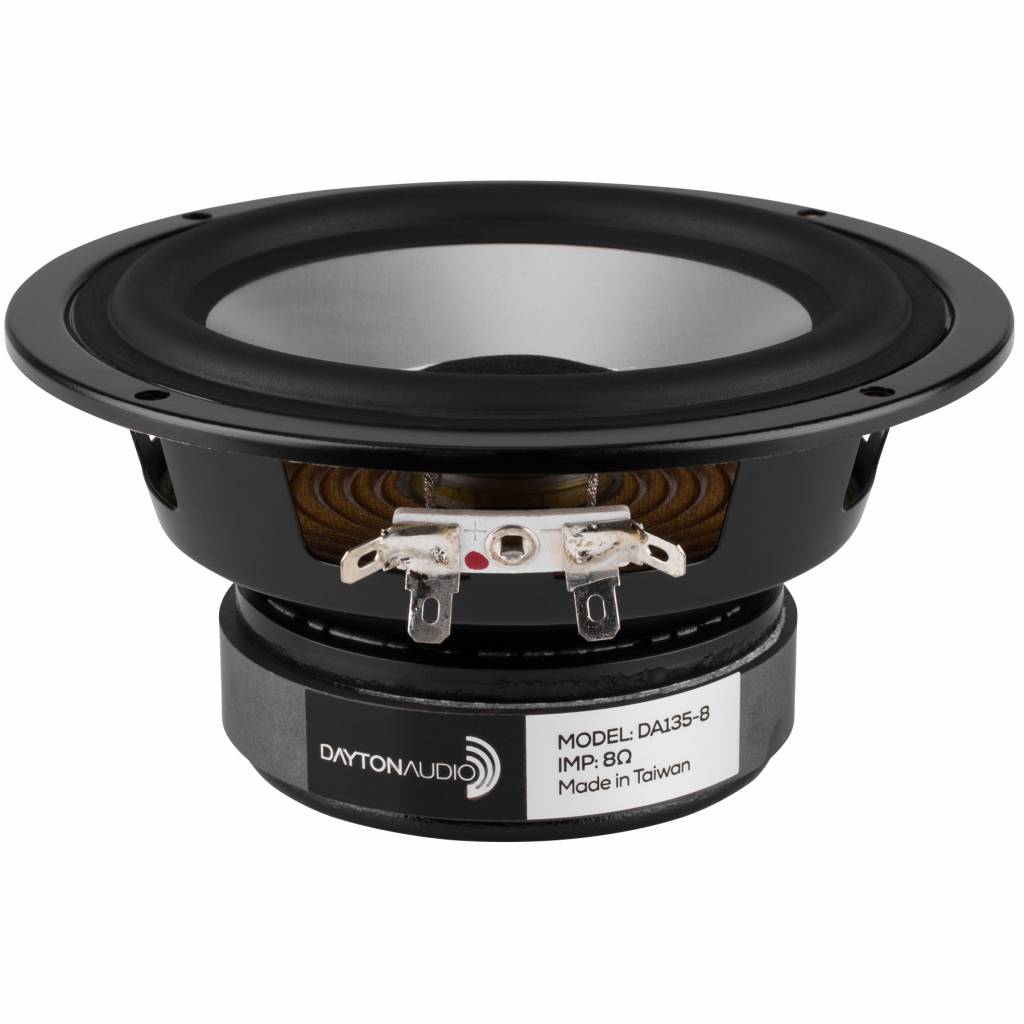

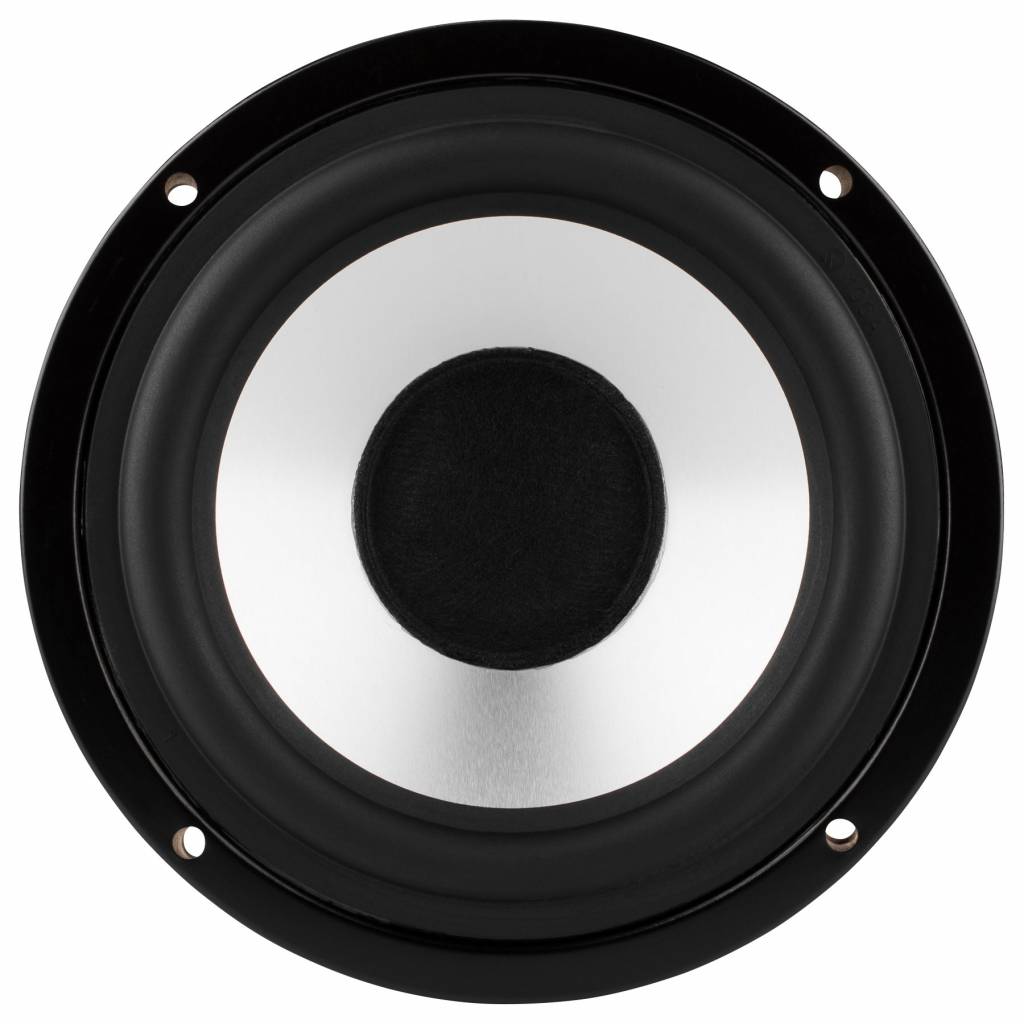

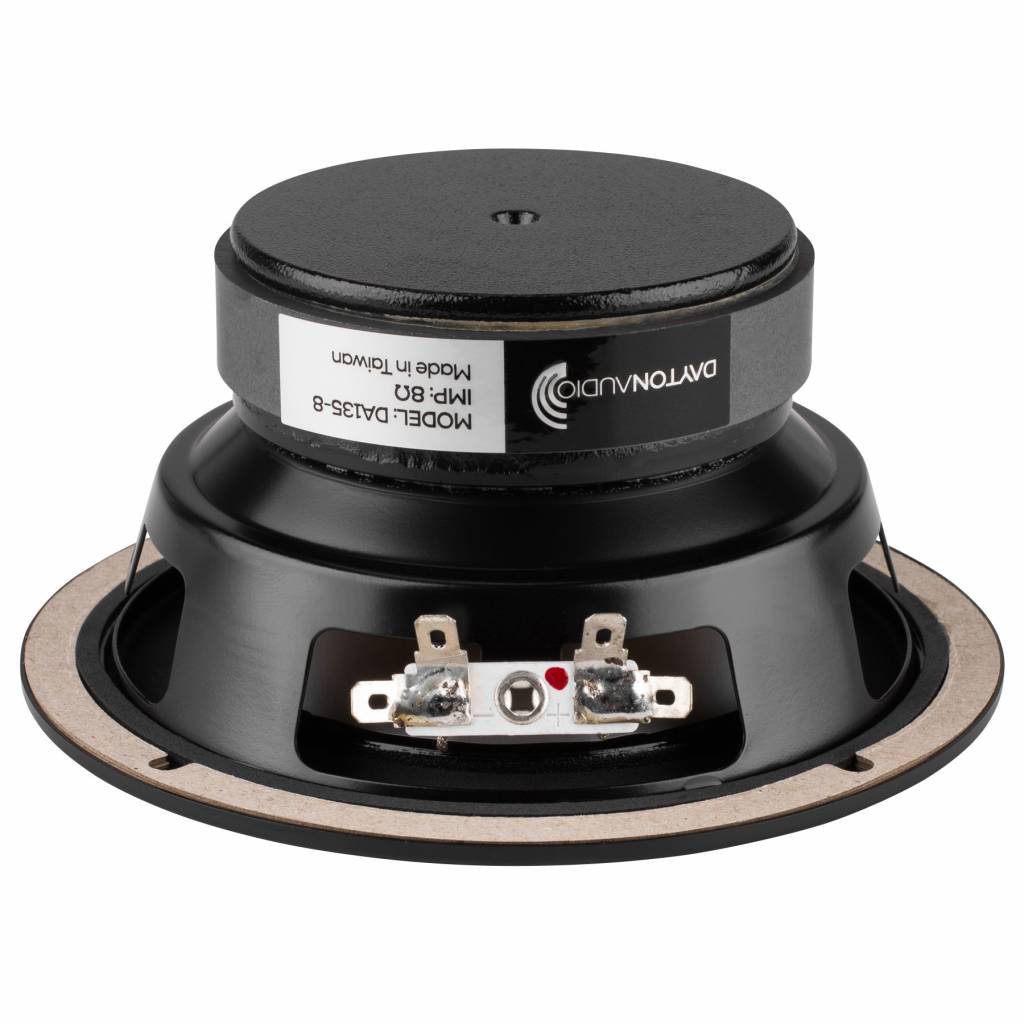

Dayton Audio DA135-8 5-1/4" Aluminum Cone Woofer

Name: Dayton Audio DA135-8 5-1/4" Aluminum Cone Woofer
Brand: Dayton Audio
SKU: DA135-8
Price: 31.45 EUR
Availability: InStock
Rating: 5 (1 reviews)

1 reviews

Brand: Dayton Audio

Show all Bass-mid woofer

Compare

5¼" | 8 Ω

€ 25,99€ 31,45 10+ In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

5-1/4" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap.

Highlights

Makes a great studio monitor speaker
Aluminum cone offers a flat frequency response
Cosmetically appealing integrated trim ring
Very low distortion driver

Product details

Dayton Audio DA135-8 5-1/4" Aluminum Cone Woofer

5-1/4" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap. The cosmetic stamped steel frame provides a very high-class and professional look to your next speaker design. The aluminum cone offers a flat frequency response in the passband region with very low distortion.

Specifications

Article number: DA135-8
Woofer Series: Specialty Drivers Series
Woofer Type: Midwoofer
Nominal Diameter: 5.25"
Power Handling (RMS): 30 watts
Power Handling (max): 60 watts
Impedance (Z): 8 ohms
Sensitivity: 85 dB @ 1W/1m
Frequency Response: 50 - 15,000 Hz
Voice Coil Diameter: 25 mm
DC Resistance (Re): 6.4 ohms
Voice Coil Inductance (Le): 0.97 mH
Resonant Frequency (Fs): 56.5 Hz
Mechanical Q (Qms): 2.61
Electromagnetic Q (Qes): 0.68
Total Q (Qts): 0.54
Diaphragm Mass Inc. Airload (Mms): 8.54g
Mechanical Compliance of Suspension (Cms): 0.93 mm/N
Surface Area of Cone (Sd): 75.4 cm²
Volume of Displacement (Vd): 22.6 cm³
BL Product (BL): 5.32 Tm
Compliance Equivalent Volume (Vas): 7.4 liters
Maximum Linear Excursion (Xmax): 3.0 mm
Cone / Diaphragm Material: Aluminum Cone
Surround Material: Rubber
Voice Coil Wire Material: Copper
Voice Coil Former: Aluminum
Basket / Frame Material: Steel
Magnet Material: Ferrite
Overall Outside Diameter: 135 mm
Overall Depth: 63.1 mm
Baffle Cutout Diameter: 111.5 mm
# Mounting Holes: 4
Sealed Volume: 0.16 ft.³
Sealed F3: 89 Hz
Vented Volume: 0.47 ft.³
Vented F3: 44 Hz

Data sheet

Reviews

1 reviews

5 from 5Based on 1 reviews

Review this product

5 of 5

Voldoet aan alle verwachtingen. Bedoeld als vervanging van bestaande Woofer. Specs kwamen nagenoeg overeen. Inbouw verliep perfect en nu weer goed geluid met ook nog een mooi uiterlijk. Top!. Snel en netjes geleverd!

By Bart B. on 12 January 2018
