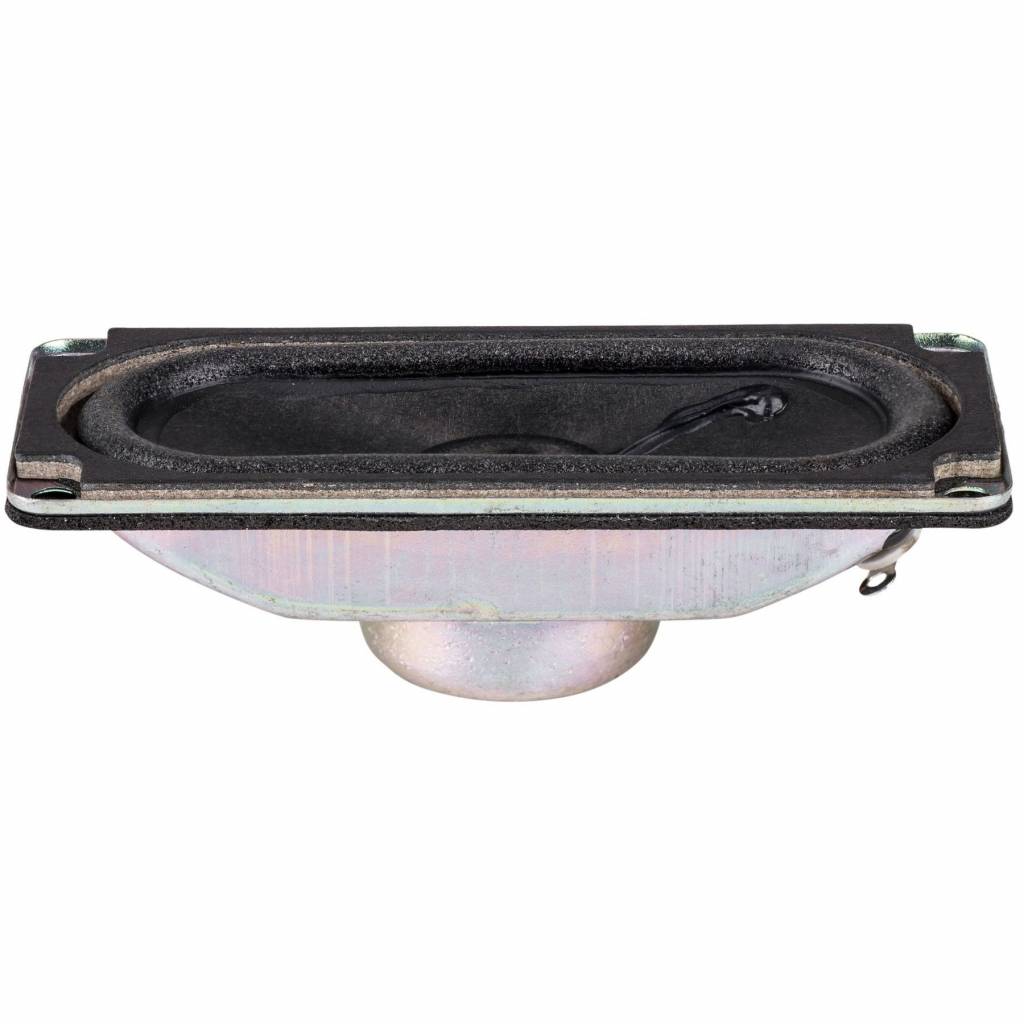

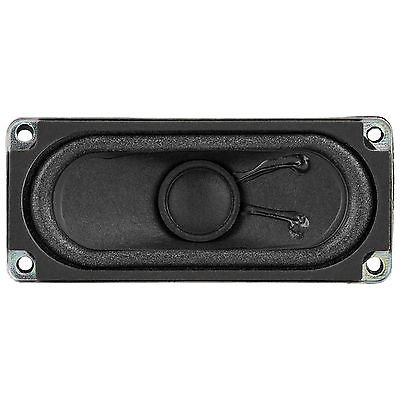

Dayton Audio CE70-30P-8 1-1/4" x 2-3/4" Full Range Driver

In stock

  • Article code: CE70-30P-8
  • Stock: 1 In stock

Dayton Audio’s CE70-30P-8 is an economical small full-range driver that features an ultra-narrow racetrack shape, a high-output neodymium motor, a paper cone, a front gasket, and a steel frame. 8 ohm impedance.

€ 5,95 Incl. 21% VAT

  • Buy 4 for €5,65 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-days the right to cancel
  • International payment options

Product description

Dayton Audio CE70-30P-8 1-1/4" x 2-3/4" Full Range Driver

Dayton Audio’s CE70-30P-8 is an economical small full-range driver that features an ultra-narrow racetrack shape, a high-output neodymium motor, a paper cone, a front gasket, and a steel frame. 8 ohm impedance.



Highlights

  • Paper cone with foam surround for high output
  • Rugged stamped steel frame
  • High-energy neodymium magnet motor



Product details

Dayton Audio CE Series CE70-30P-8 1-1/4" x 2-3/4" Full Range Driver

Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.

The CE70-30P-8 features a ‘racetrack’ design that maximizes cone area for high output while fitting into narrow spaces. Its high-quality design features a paper cone, foam surround, textile spider, high-performance neodymium motor, and a rectangular steel frame

with mounting lobes for conventional mounting.

Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

Specifications

Specifications for: CE70-30P-8 1-1/4" x 2-3/4" Full Range Driver

  • Woofer Series Specific woofer production line of the manufacturer. CE Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Full-range
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 1" x 2"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 2 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 4 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 85 dB 2.83V/1m
  • Frequency Response 310 to 20,000 Hz
  • Voice Coil Diameter 0.52"
  • Magnet Weight
  • DC Resistance (Re) 7.2 ohms
  • Voice Coil Inductance (Le) 0.21 mH
  • Resonant Frequency (Fs) 371 Hz
  • Mechanical Q (Qms) 5.65
  • Electromagnetic Q (Qes) 5.67
  • Total Q (Qts) 2.83
  • Diaphragm Mass Inc. Airload (Mms) 0.82g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.32 mm/N
  • Surface Area of Cone (Sd) 11.01 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 1.56 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 0.8 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper
  • Surround Material Foam
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 1.18" x 2.76"
  • Overall Depth 0.76"
  • Baffle Cutout Diameter 1.00" x 2.52"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
