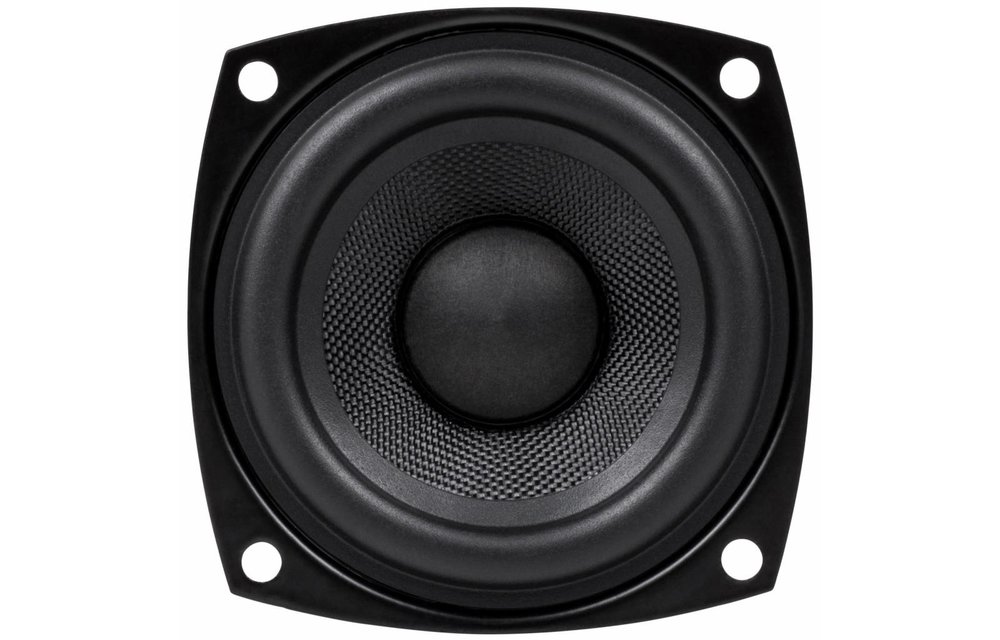

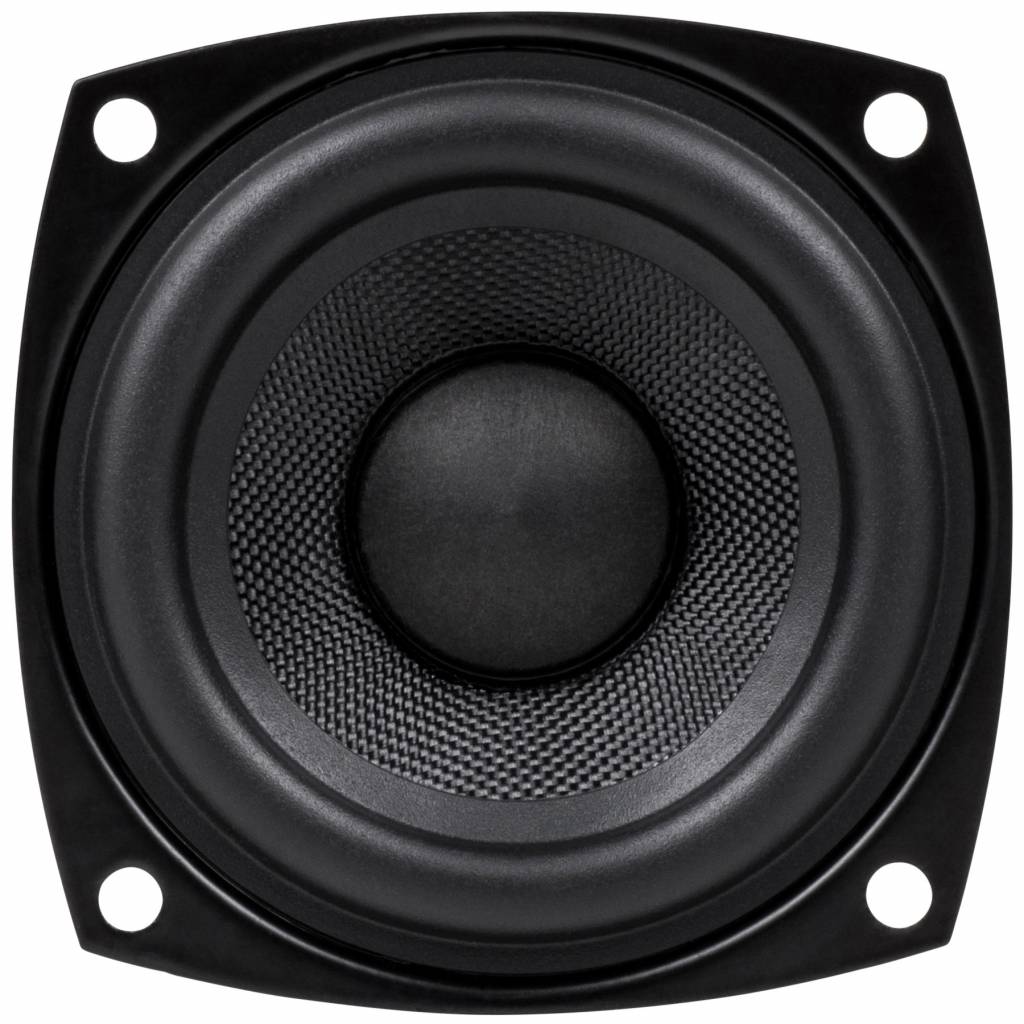

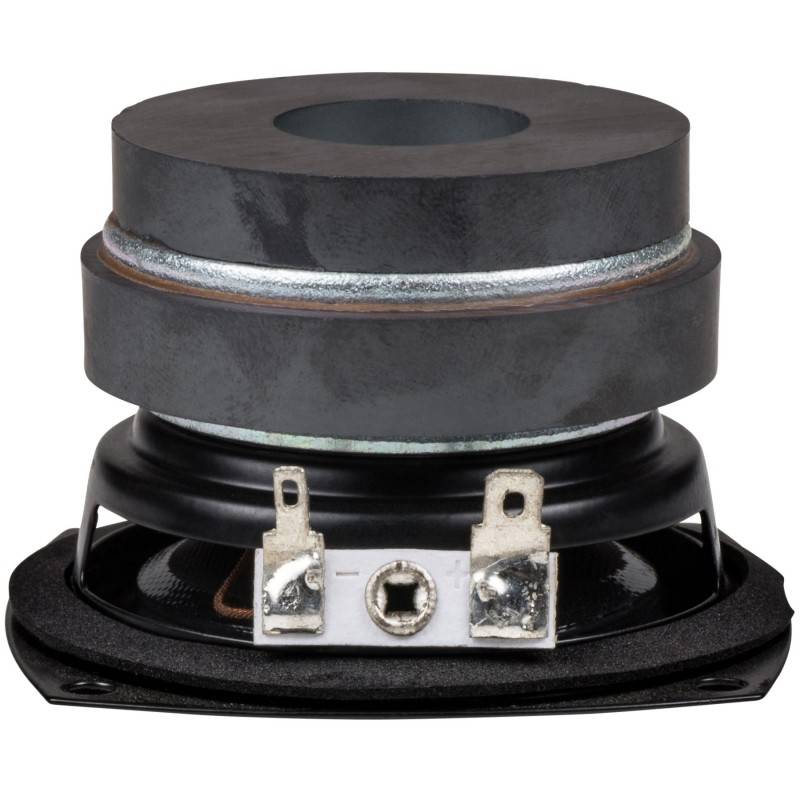

Dayton Audio CE65W-8 2-1/2" Shielded Extended Range Driver

In stock

  • Article code: CE65W-8
  • Stock: >10 In stock

The economical, compact CE65W-8 extended-range woofer from Dayton Audio features a woven glass-fiber cone, rubber surround, and ferrite magnet motor assembly with shielding magnet. It offers great performance in a variety of small music-oriented audio sys

€ 6,45 Incl. 21% VAT

  • Buy 4 for €6,13 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio CE65W-8 2-1/2" Shielded Extended Range Driver

The economical, compact CE65W-8 extended-range woofer from Dayton Audio features a woven glass-fiber cone, rubber surround, and ferrite magnet motor assembly with shielding magnet. It offers great performance in a variety of small music-oriented audio systems.



Highlights

  • Usable as a full-range driver or small woofer
  • Woven glass fiber cone for excellent sonic detail
  • Robust, compact design
  • Shielded magnet for use near sensitive electronic parts



Product details

Dayton Audio CE Series CE65W-8 2-1/2" Shielded Extended Range Driver 8 Ohms

Dayton Audio's CE65W-8 2-1/2" shielded extended range driver excels in wide-range speaker or "mini-woofer" applications. The woven fiberglass cone and rubber surround provide a wide operating frequency range, enabling this driver to be used as either a woofer or full-range driver. Its bucking magnet provides video shielding for operation near legacy CRT monitors without causing magnetic interference, and the stamped frame and cotton spider ensure reliable, properly aligned operation for years. It is the perfect choice for multimedia applications, line arrays, or compact hi-fi loudspeakers.

The Commercial Engineering (CE) Series drivers from Dayton Audio provide engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects. Multiple types and styles are available within the CE Series family of drivers, to suit a wide spectrum of engineering requirements

Specifications

Specifications for: CE65W-8 2-1/2" Shielded Extended Range Driver

  • Woofer Series Specific woofer production line of the manufacturer. CE Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Full-range/Midwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 2-1/2"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 7 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 15 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 83 dB 2.83V/1m
  • Frequency Response 105 to 16,000 Hz
  • Voice Coil Diameter 0.75"
  • Magnet Weight
  • DC Resistance (Re) 6.9 ohms
  • Voice Coil Inductance (Le) 0.51 mH
  • Resonant Frequency (Fs) 105 Hz
  • Mechanical Q (Qms) 3.85
  • Electromagnetic Q (Qes) 1.43
  • Total Q (Qts) 0.99
  • Diaphragm Mass Inc. Airload (Mms) 1.91g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.91 mm/N
  • Surface Area of Cone (Sd) 21.24 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 2.73 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 2 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Fiberglass
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded Yes
  • Overall Outside Diameter 3.28"
  • Overall Depth 1.78"
  • Baffle Cutout Diameter 2.32"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
