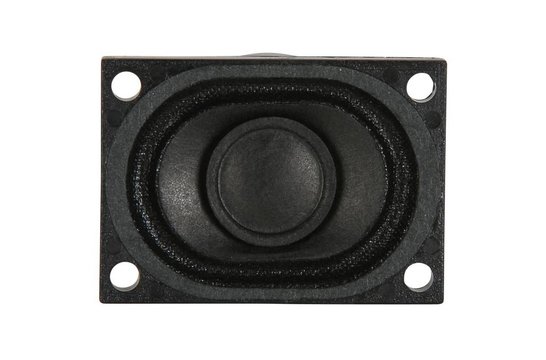

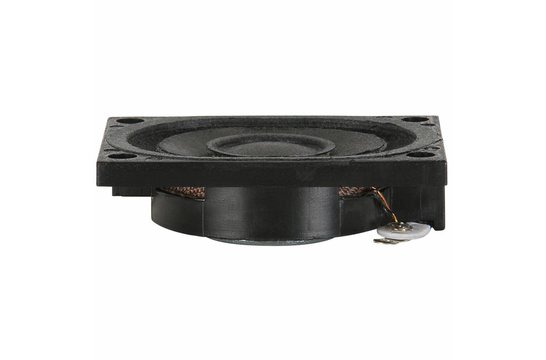

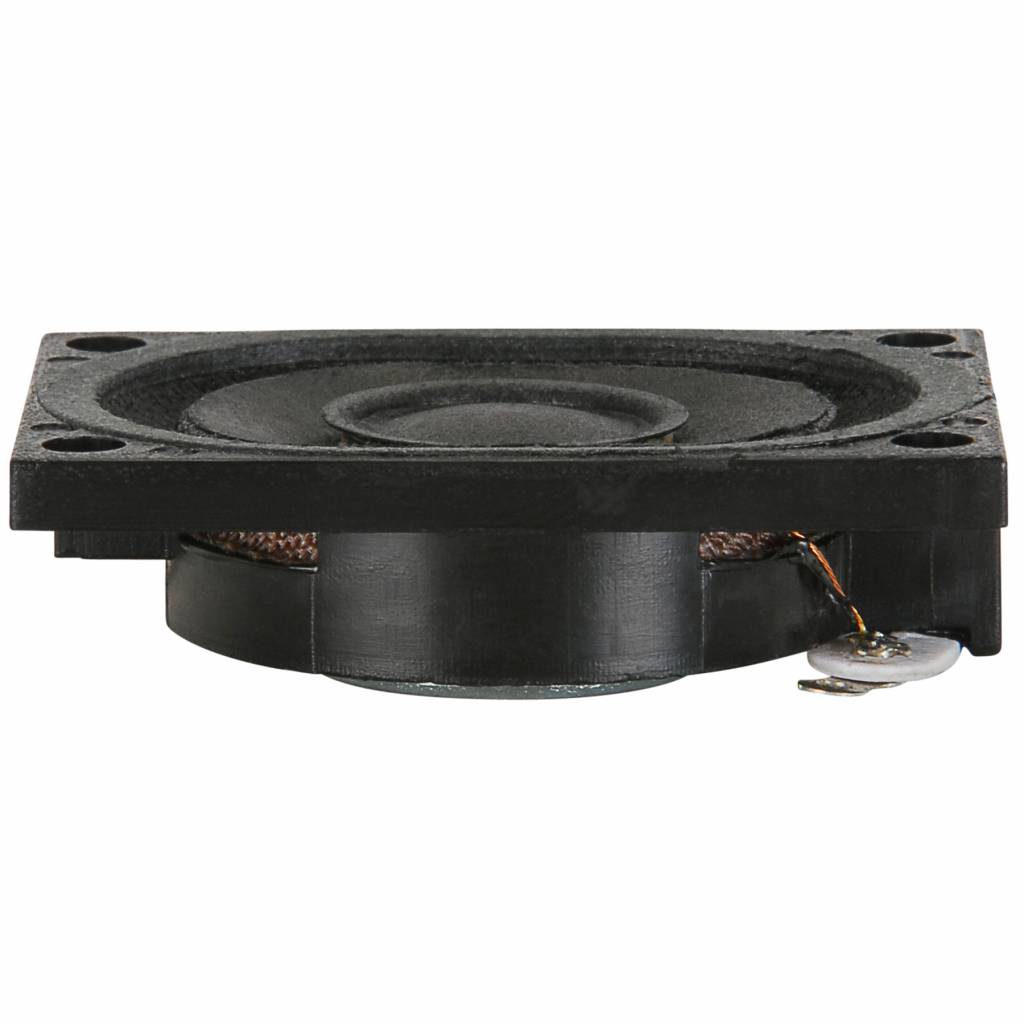

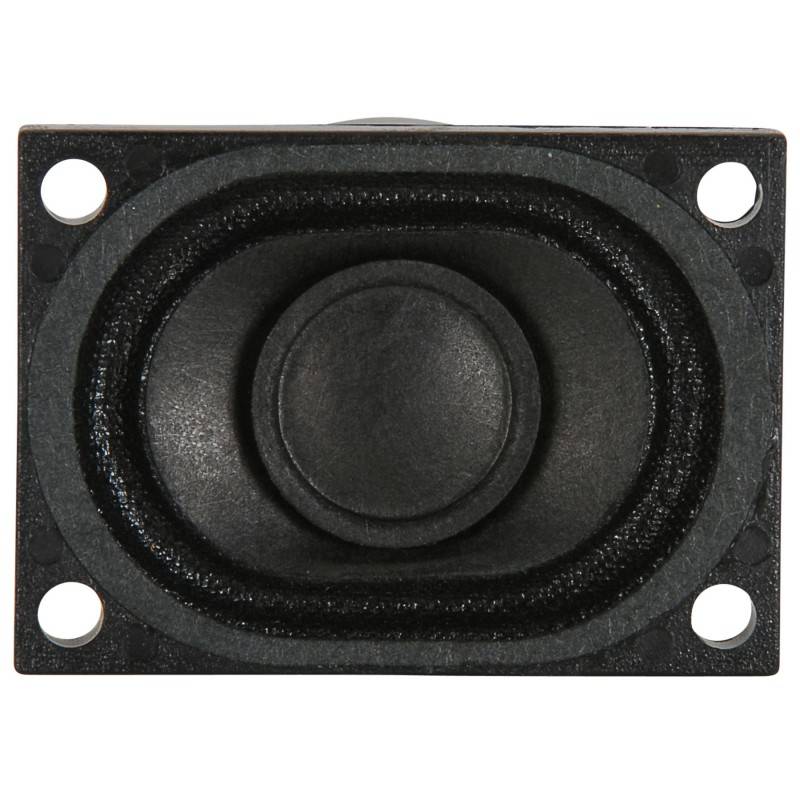

Dayton Audio CE40-28P-8 1-1/8" x 1-1/2" Mini Speaker

In stock

  • Article code: CE40-28P-8
  • Stock: 9 In stock

Dayton Audio’s CE40-28P-8 is an economical mini speaker that features a high-output neodymium motor, a lightweight paper cone, a front gasket, and a molded plastic frame drilled for conventional mounting. 8 ohm impedance.

€ 4,45 Incl. 21% VAT

  • Buy 4 for €4,23 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio CE40-28P-8 1-1/8" x 1-1/2" Mini Speaker

Dayton Audio’s CE40-28P-8 is an economical mini speaker that features a high-output neodymium motor, a lightweight paper cone, a front gasket, and a molded plastic frame drilled for conventional mounting. 8 ohm impedance.



Highlights

  • Racetrack-shaped paper cone with fabric surround
  • Slim design for narrow and shallow profile installation
  • High-energy neodymium motor



Product details

Dayton Audio CE Series CE40-28P-8 1-1/8" x 1-1/2" Mini Speaker

Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.

Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

The CE40-20P-8 is a slim driver that’s perfect for applications that require its shallow profile and rectangular shape. Its high-quality design features a paper cone, fabric surround, textile spider, high-performance neodymium motor, and an injection-molded frame that’s drilled for conventional mounting.

Specifications

Specifications for: CE40-28P-8 1-1/8" x 1-1/2" Mini Speaker

  • Woofer Series Specific woofer production line of the manufacturer. CE Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Full-range
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 1" x 2"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 2 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 4 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 75 dB 2.83V/1m
  • Frequency Response 550 to 15,000 Hz
  • Voice Coil Diameter 0.5"
  • Magnet Weight
  • DC Resistance (Re) 7 ohms
  • Voice Coil Inductance (Le) 0.26 mH
  • Resonant Frequency (Fs) 608 Hz
  • Mechanical Q (Qms) 3.96
  • Electromagnetic Q (Qes) 9.87
  • Total Q (Qts) 2.83
  • Diaphragm Mass Inc. Airload (Mms) 0.37g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.18 mm/N
  • Surface Area of Cone (Sd) 5.28 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 1.03 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 0.1 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper
  • Surround Material Cloth
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 1.13" x 1.57"
  • Overall Depth 0.45"
  • Baffle Cutout Diameter 0.97" x 1.32"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
